LFF-M20 ∅10mm DC Brushed Motor

10mm diameter micro DC brushed motor, could with 10mm reduction gearbox, specific parameters customized by request.

Additional information

Model

LFF-M20

Type

DC Brushed Motor

Body Size

Φ10*8*15mm

Shaft Size

Φ1mm diameter, Length customized by request

Weight

5g (Approx)

Voltage

1.2v-12v

Output Power

≤0.5W

Product Details:

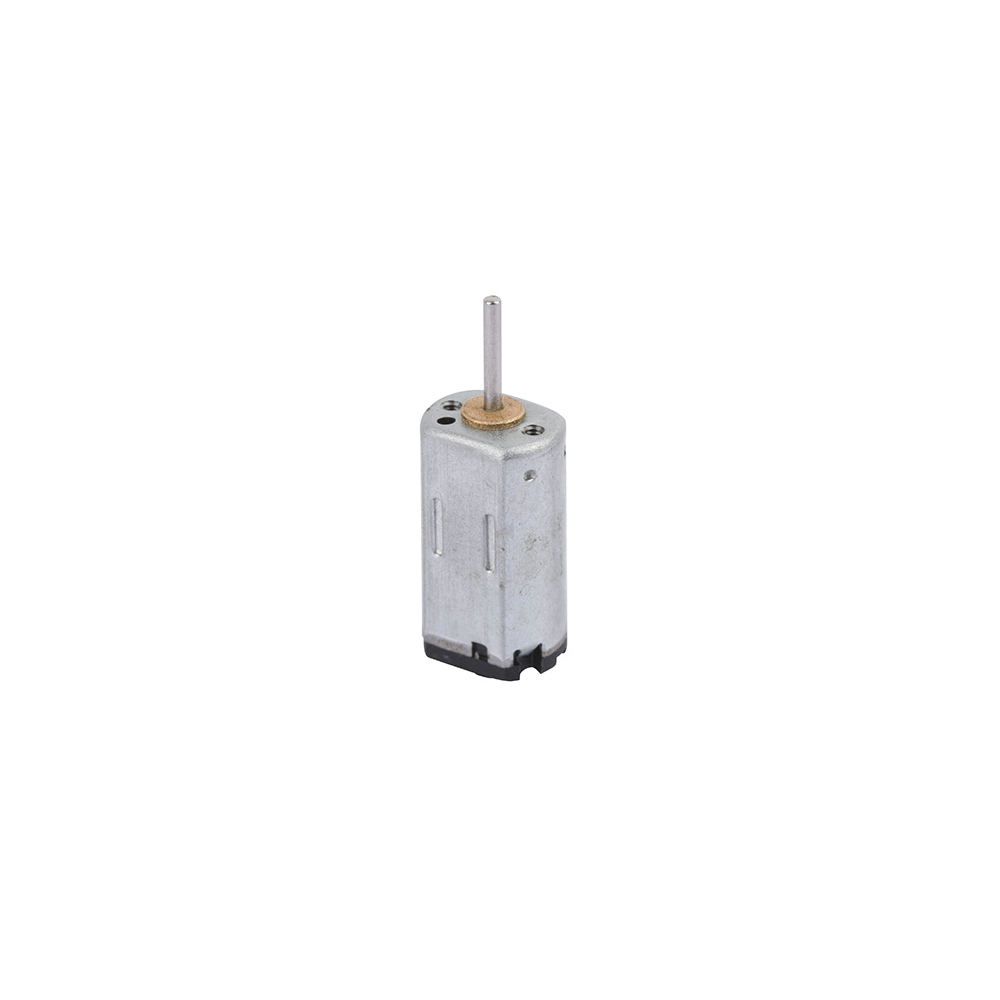

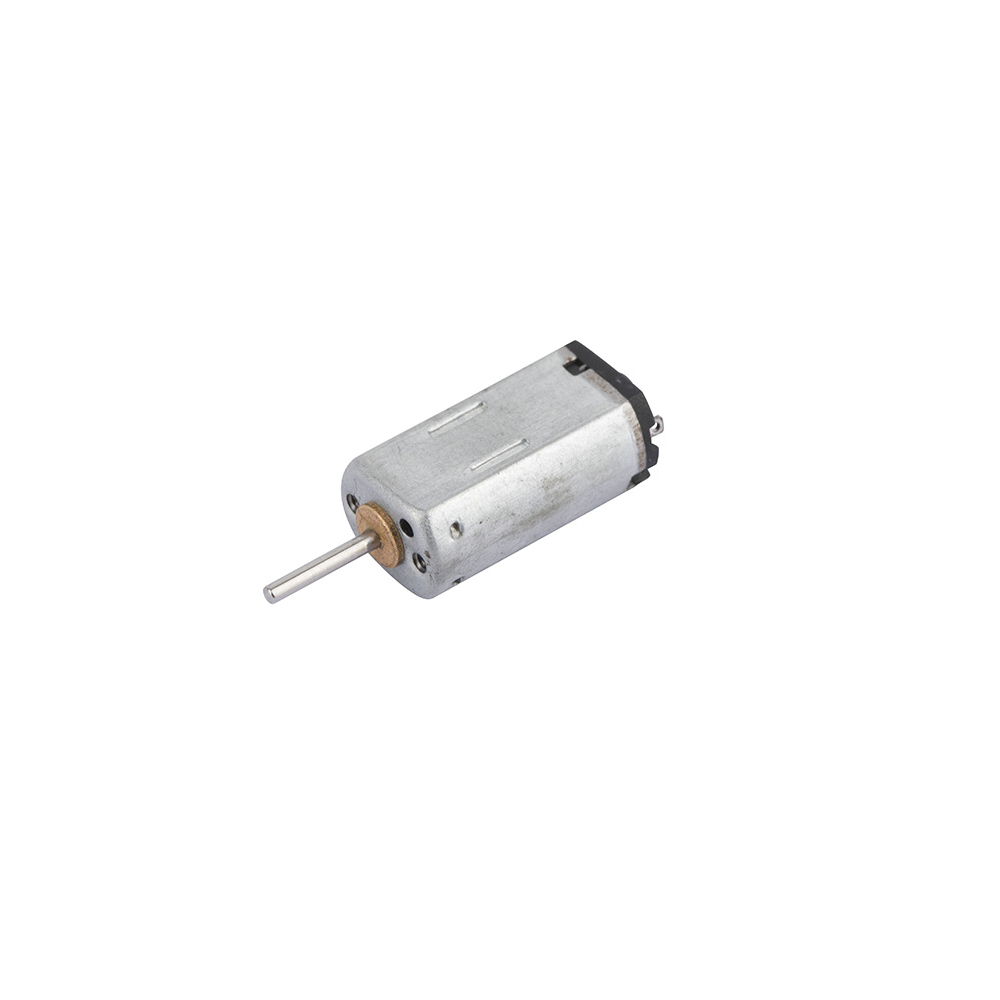

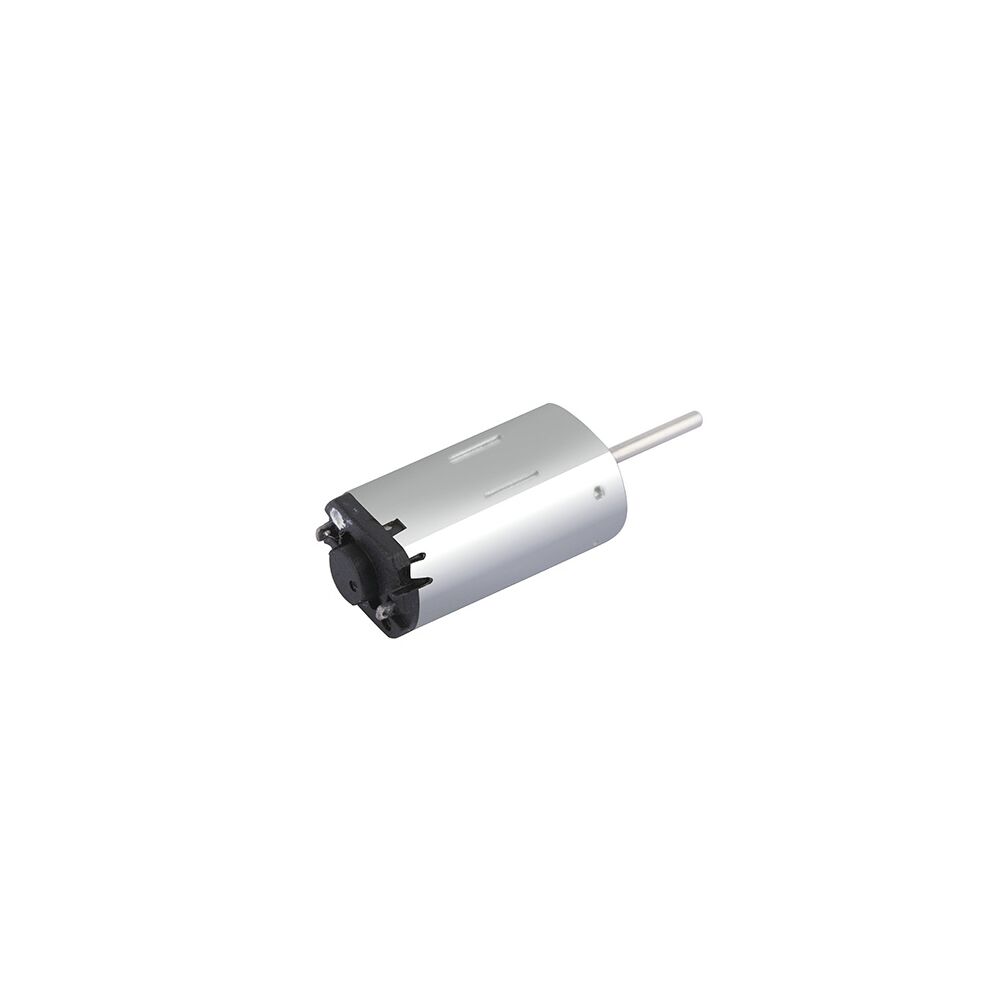

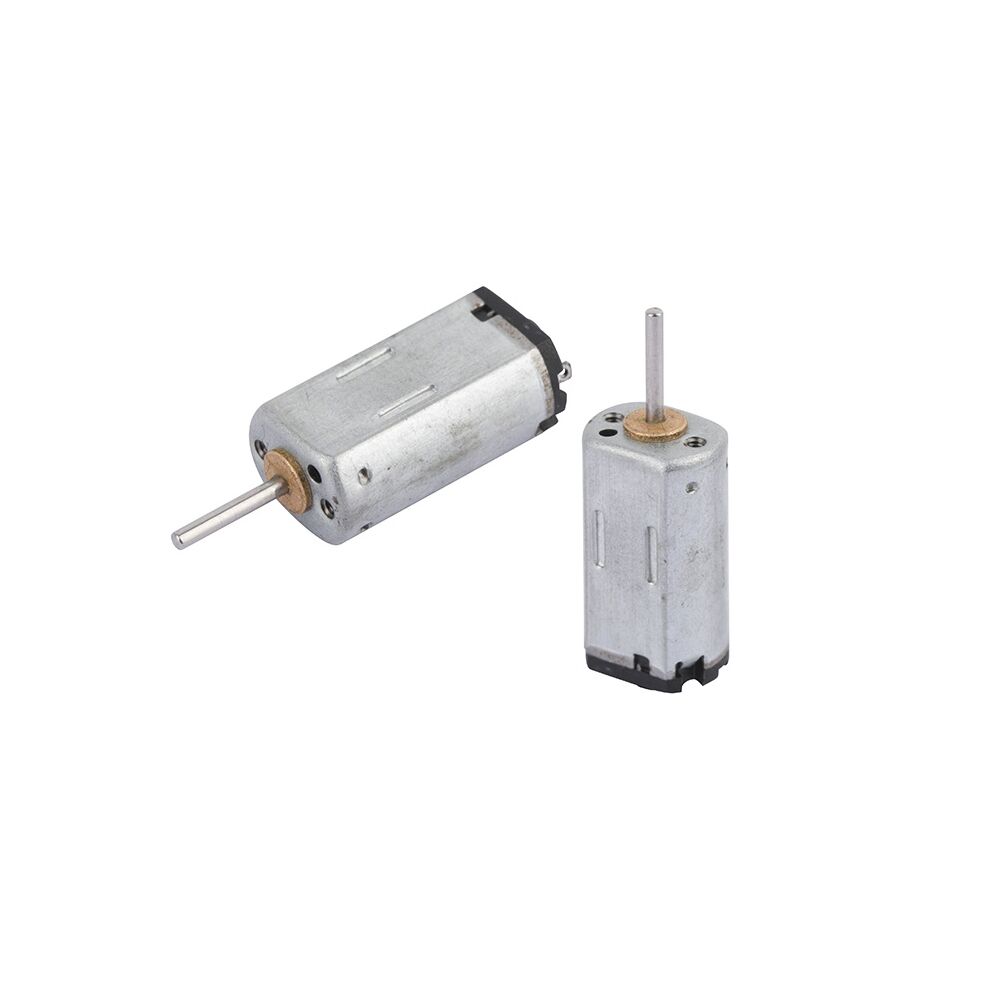

10mm Diameter Micro DC Brushed Motor


+ Brand: Linkto Motor

Model: LFF-M20 Brush Type: Metal-brush
Voltage: 1.2v-12v Speed: 3500rpm-35000rpm
Continuous Current: ≤450mA Stall Torque: ≤16g.cm
Typical Application: Adult products,Blood pressure pump,Commercial Products,Electric toys,Handheld metronome,Health Care Devices,Medical device,Personal Care,etc.

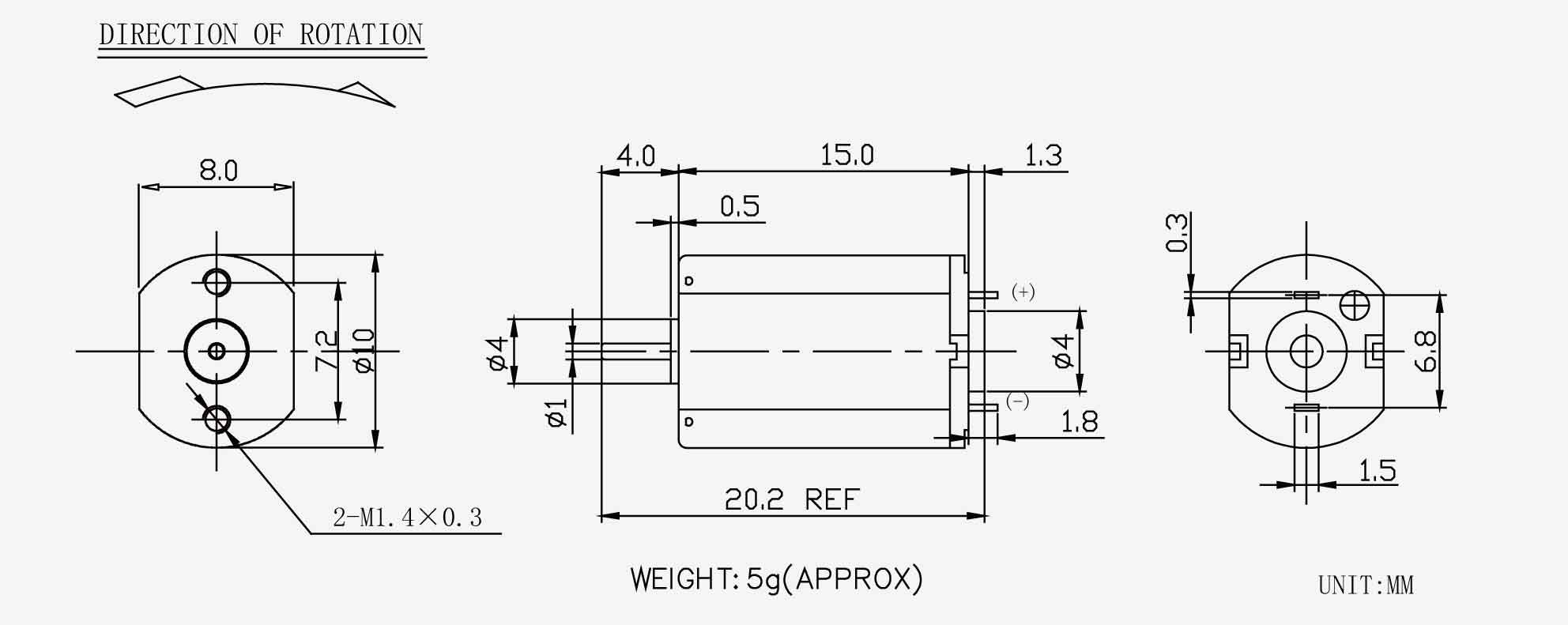

+ Outline Dimension

+ Technical Data For Reference


MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V V r/min A r/min A mN.m g.cm W mN.m g.cm A
LFF-M20VA-82130 2.0-3.0 3.0 15200 0.045 11800 0.16 0.16 1.6 0.19 0.784 8 0.6
LFF-M20VA-72170 2.0-4.0 2.0 8000 0.025 6100 0.075 0.078 0.8 0.05 0.392 4 0.24
LFF-M20VA-10100 1.5-4.0 2.8 18000 0.05 14800 0.19 0.2 2 0.3 1.1 11 0.88

Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.

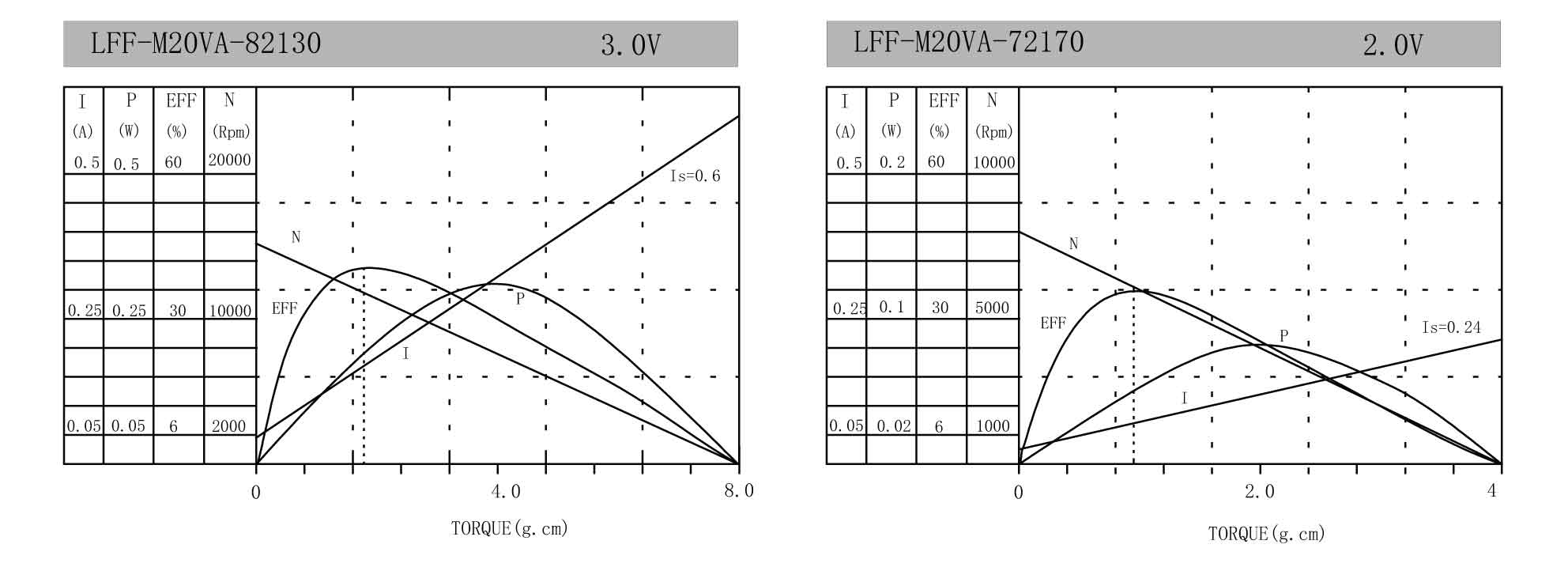

+ Motor Characteristics

+ Applications

  • Adult products,Blood pressure pump,
  • Electric toys,Handheld metronome,
  • Health Care Devices,Medical device,Personal Care,etc.
