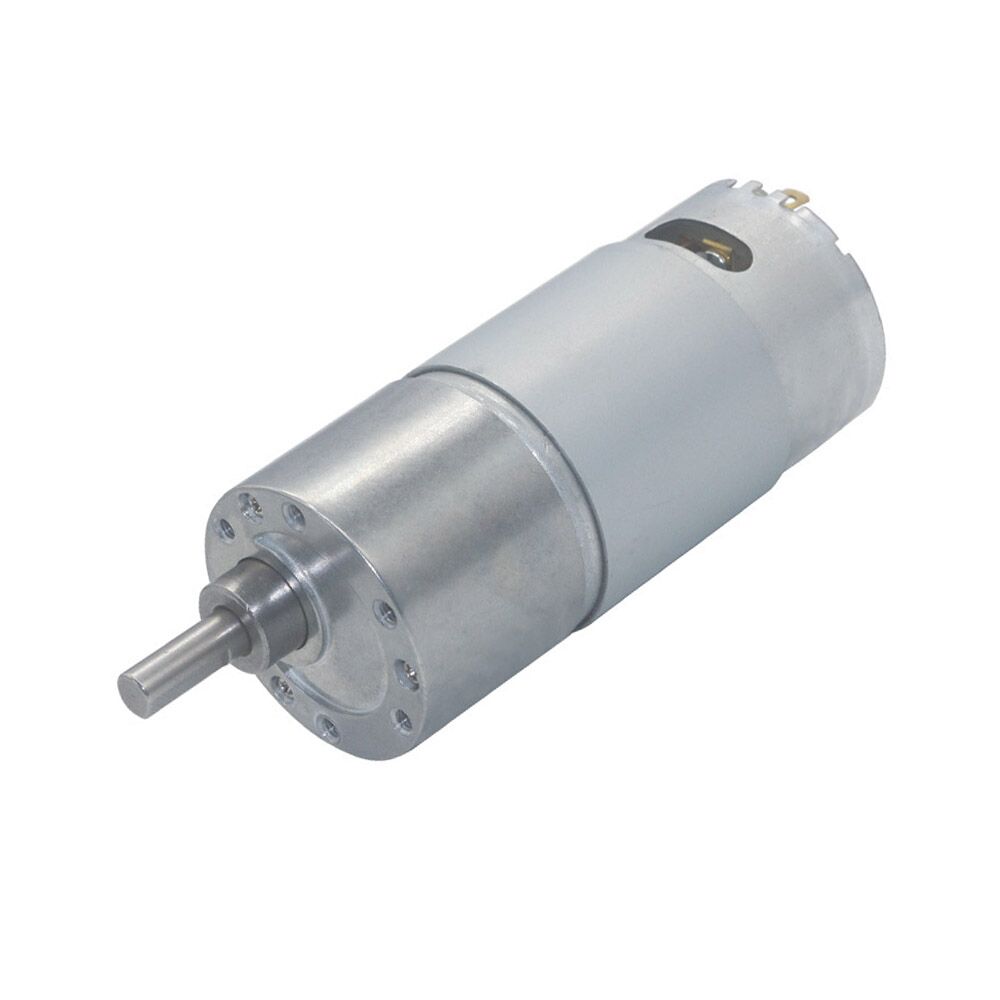

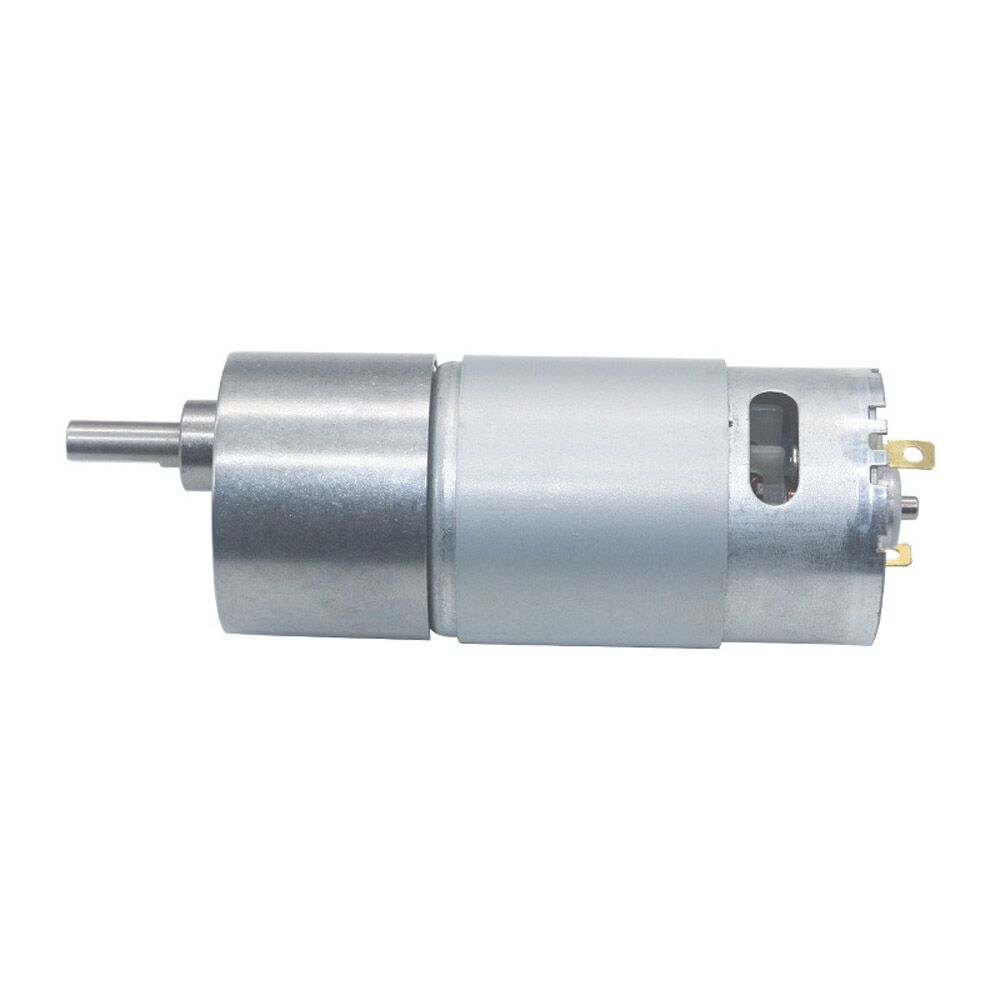

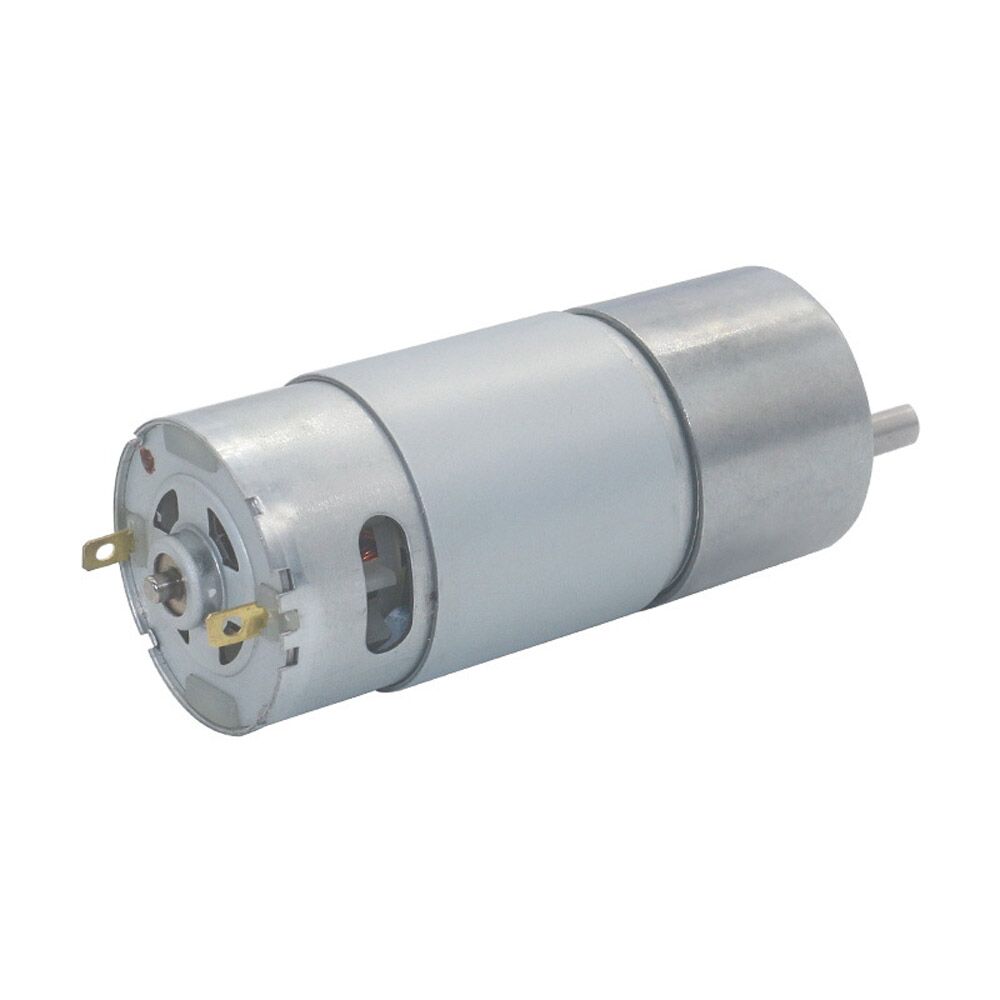

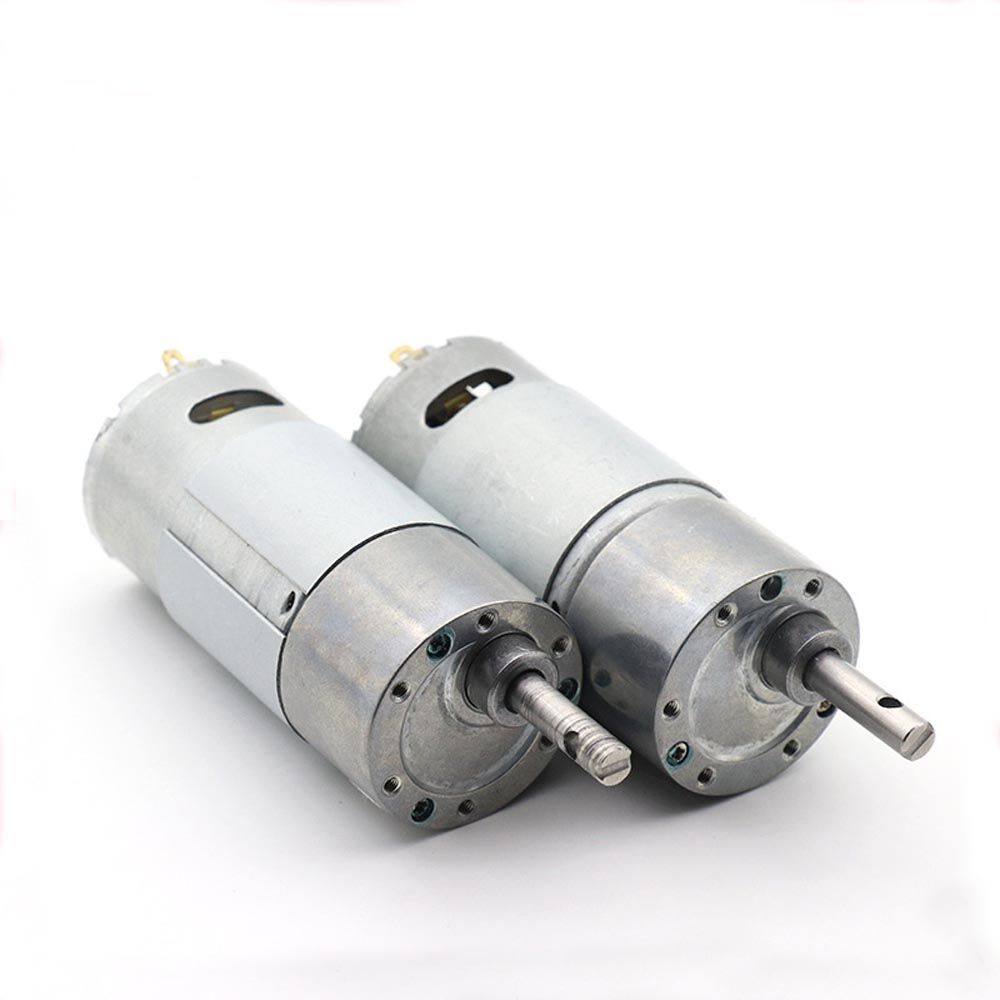

LGM37-550 ∅37mm DC Geared Motor
37mm gearbox could be with 385/520/528/550 motor, specific parameters customized by request.
Additional information
| Model | LGM37-550 |
|---|---|
| Type | DC Geared Motor |
| Brush Type | Metal-Brush/Carbon-Brush |
| Motor Size | Φ35.8*57mm |
| Gearbox Size | Φ37*L mm |
| Output Shaft | Shaft shape, size and length can be customized by request |
| Voltage | 1.5v-24v |
Product Details:
37mm Diameter Micro DC Geared Motor
+ Brand: Linkto Motor
| Model: | LGM37-550 | Type: | DC Geared Motor |
| Voltage: | 3v-24v | Speed: | 3rpm-2500rpm |
| Continuous Current: | ≤3A | Stall Torque: | ≤20kg.cm |
| Typical Application: | Automotive Parts,Blender machine,Camera,Childern toy car,Commercial Products,Handheld robot mower,Home Appliances,Vehicle TV Lifter,etc. | ||
+ Outline Dimension
+ Gear ratio and length of gearbox
| Number of gear stages | 2 | 3 | 4 | 5 | 6 |
| Gear ratio | 6 | 16.7 | 45 | 110 | 330 |
| 10 | 23.3 | 50 | 121 | 350 | |
| 30 | 60 | 135 | 405 | ||
| 70 | 150 | 420 | |||
| 90 | 180 | 450 | |||
| 100 | 210 | 490 | |||
| 250 | 540 | ||||
| 270 | 630 | ||||
| 300 | 810 | ||||
| Length of gearbox L(mm） | 19mm | 21.5mm | 24mm | 26.5mm | 29mm |
+ Technical Data For Reference
| MODEL | VOlTAGE | NO LOAD | RATED LOAD | STALL | |||||||
| NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | rpm | A | rpm | A | mN.m | Kg.cm | W | mN.m | Kg.cm | A | |
| LGM37-550-10 | 12 | 450 | 0.3 | 380 | 0.83 | 130 | 1.326 | 5.34 | 294 | 3.00 | 4.3 |
| LGM37-550-30 | 12 | 150 | 0.3 | 126 | 0.83 | 360 | 3.672 | 4.78 | 588 | 6.00 | 4.3 |
| LGM37-550-50 | 12 | 90 | 0.3 | 76 | 0.83 | 530 | 5.406 | 4.28 | 1470 | 15.00 | 4.3 |
| LGM37-550-70 | 12 | 64 | 0.3 | 54 | 0.83 | 760 | 7.752 | 4.32 | 1470 | 15.00 | 4.3 |
| LGM37-550-90 | 12 | 50 | 0.3 | 42 | 0.83 | 784 | 8.000 | 4.3 | 1470 | 15.00 | 4.3 |
| LGM37-550-150 | 24 | 24 | 0.2 | 20 | 0.5 | 784 | 8.000 | 3.5 | 1960 | 20.00 | 3 |
| LGM37-550-270 | 24 | 13 | 0.2 | 11 | 0.5 | 784 | 8.000 | 3.38 | 1960 | 20.00 | 3 |
| LGM37-550-630 | 12 | 5.5 | 0.3 | 4.5 | 0.65 | 784 | 8.000 | 2.03 | 1960 | 20.00 | 3.4 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Applications
- Automotive Parts,Blender machine,
- Camera,Childern toy car,Commercial Products,
- Handheld robot mower,
- Home Appliances,Vehicle TV Lifter,etc.
