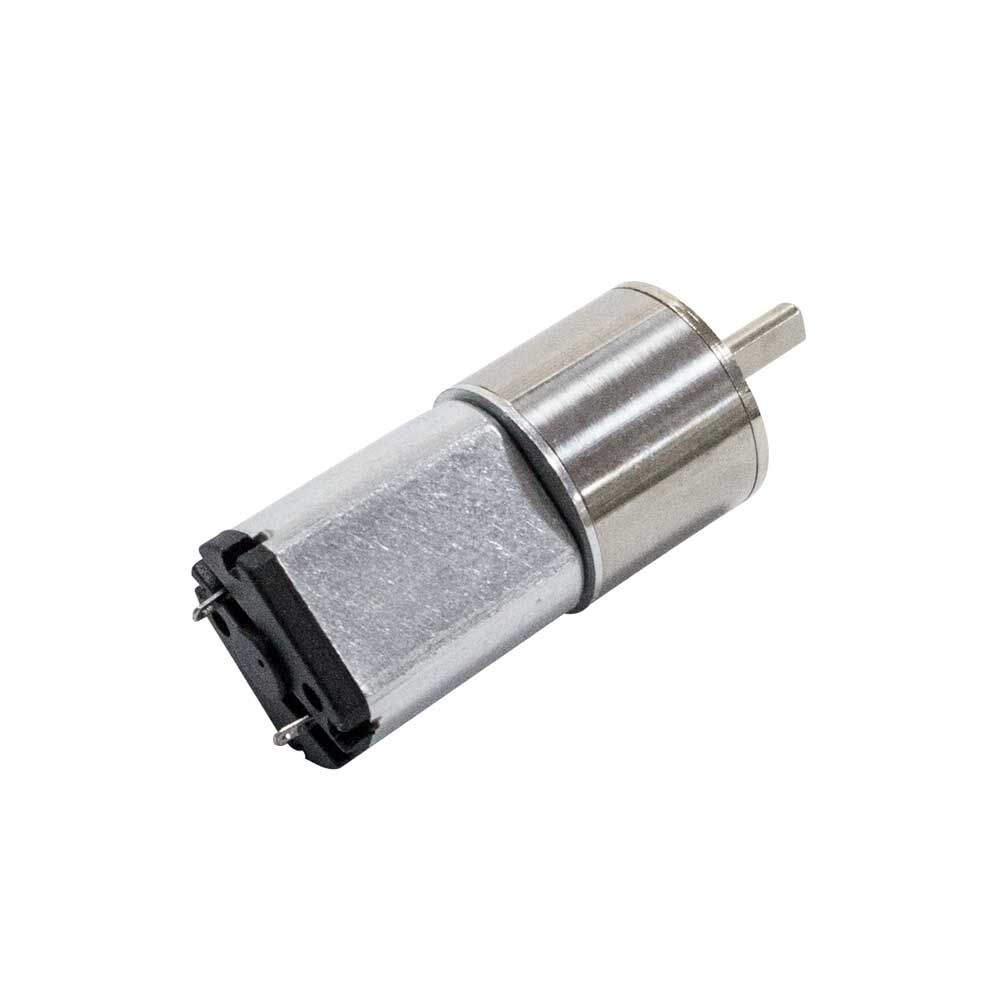

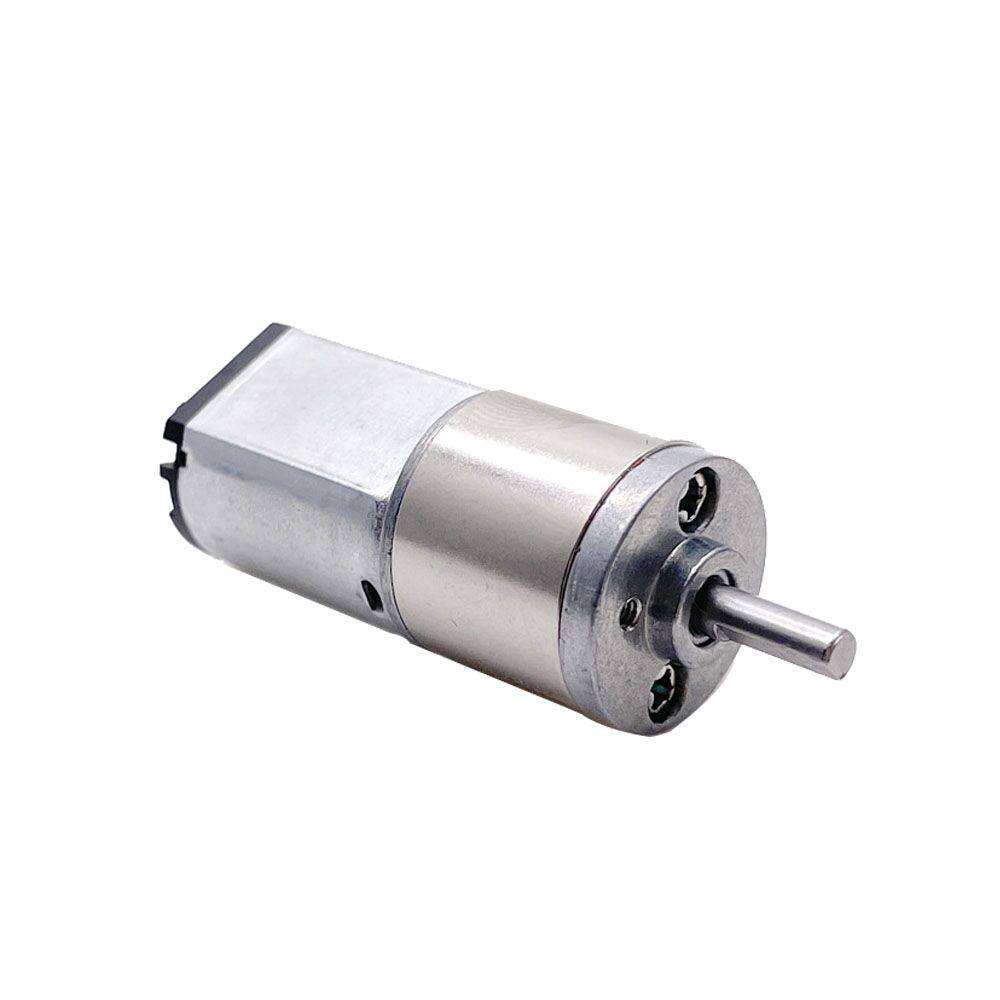

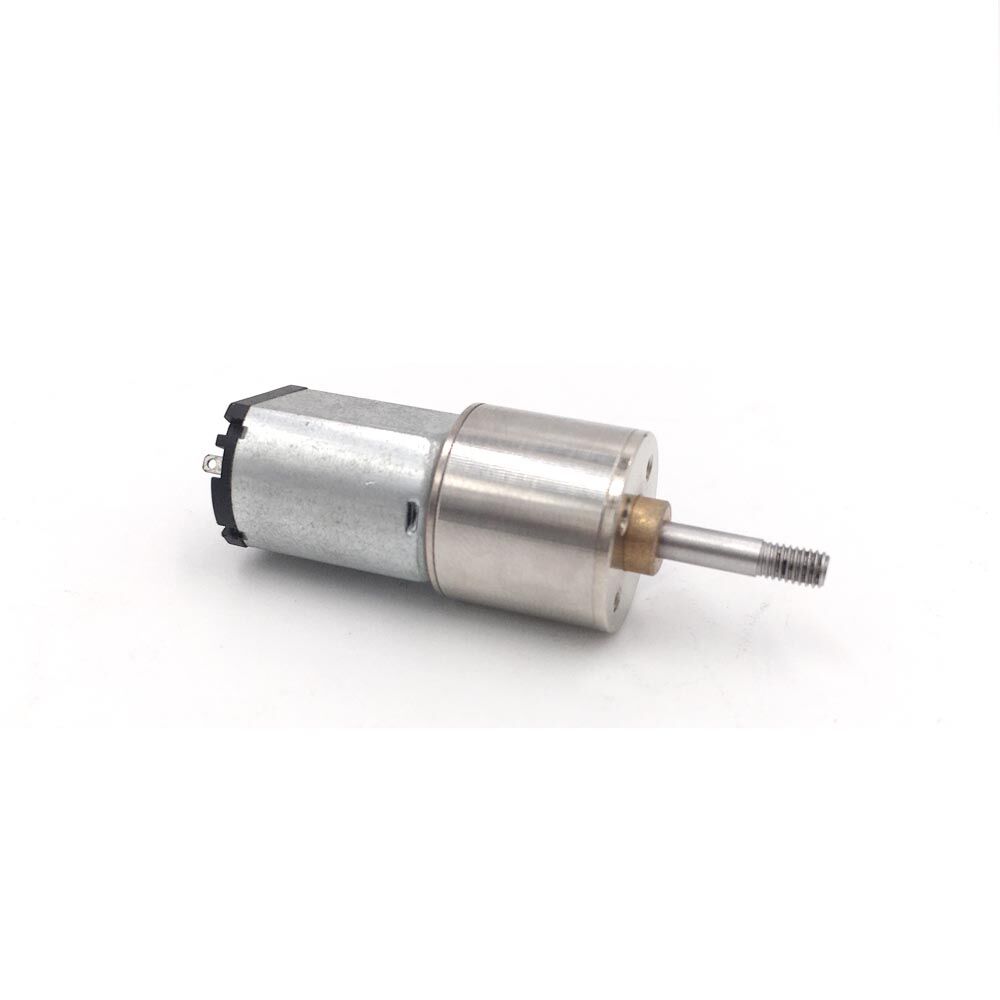

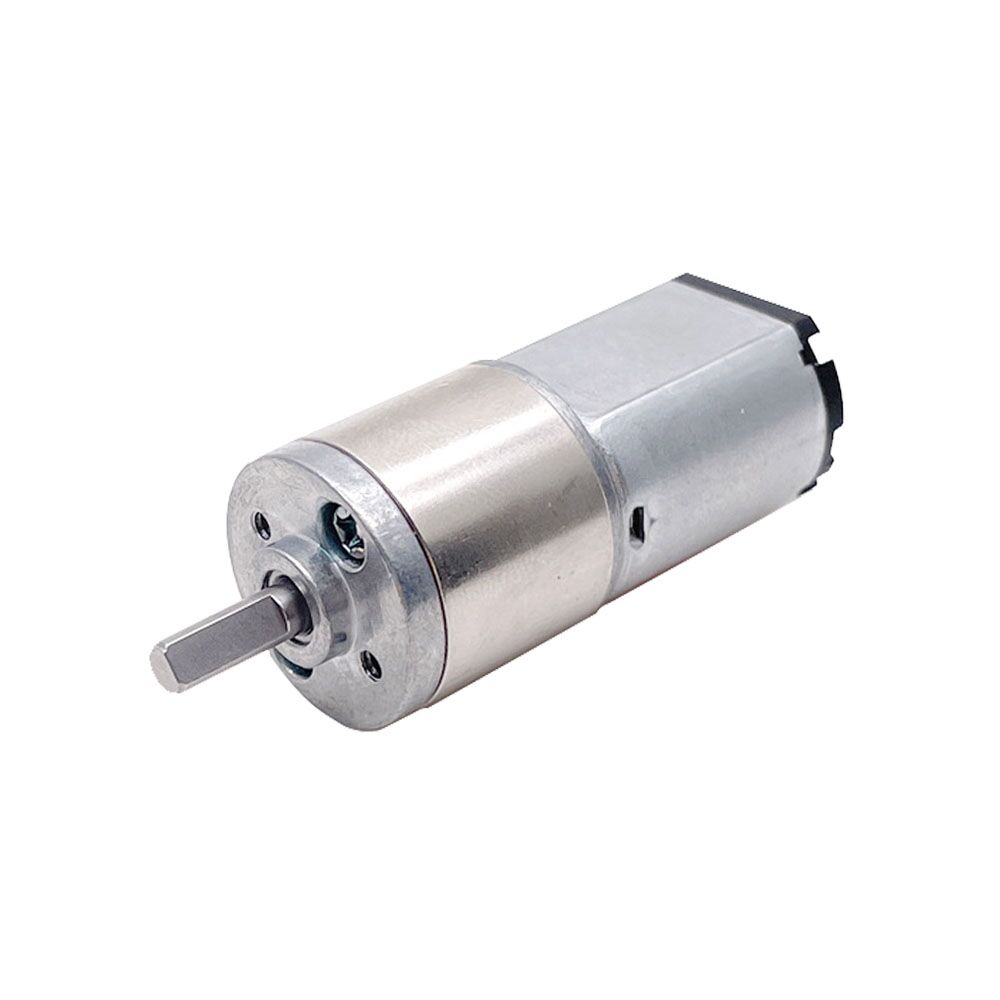

LGM16-030 ∅16mm DC Geared Motor
16mm gearbox could be with 030/050 motor, specific parameters customized by request.
Additional information
| Model | LGM16-030 |
|---|---|
| Type | DC Geared Motor |
| Brush Type | Metal-Brush/Carbon-Brush |
| Motor Size | Φ15.5*12*18.6mm |
| Gearbox Size | Φ16*L mm |
| Output Shaft | Shaft shape, size and length can be customized by request |
| Voltage | 1.5v-24v |
Product Details:
16mm Diameter Micro DC Geared Motor
+ Brand: Linkto Motor
| Model: | LGM16-030 | Type: | DC Geared Motor |
| Voltage: | 3v-24v | Speed: | 5rpm-2500rpm |
| Continuous Current: | ≤3A | Stall Torque: | ≤2kg.cm |
| Typical Application: | Beauty instrument,Commercial Products,Electric lock,Health Care Devices,High temperature sterilization device,Home Appliances,Personal Care,Robot,Security and Locks,Shoe brush,etc. | ||
+ Outline Dimension
+ Gear ratio and length of gearbox
| Number of gear stages | 3 | 4 | 5 | 6 | 7 |
| Gear ratio | 11 | 24 | 58 | 120 | 360 |
| 16.7 | 28.8 | 72 | 200 | 500 | |
| 33.3 | 83.3 | 250 | 600 | ||
| 37.5 | 86.4 | 300 | 750 | ||
| 43.2 | 100 | 450 | 900 | ||
| 50 | 150 | 1350 | |||
| Length of gearbox L(mm） | 11.3mm | 12.8mm | 14.3mm | 16.5mm | 18mm |
+ Technical Data For Reference
| MODEL | VOlTAGE | NO LOAD | RATED LOAD | STALL | |||||||
| NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | rpm | A | rpm | A | mN.m | Kg.cm | W | mN.m | Kg.cm | A | |
| LGM16-030-11 | 12 | 1200 | 0.05 | 815 | 0.14 | 5 | 0.051 | 0.42 | 15 | 0.153 | 0.3 |
| LGM16-030-37.5 | 3 | 185 | 0.08 | 160 | 0.17 | 6 | 0.061 | 0.1 | 4 | 0.041 | 0.45 |
| LGM16-030-50 | 6 | 250 | 0.08 | 200 | 0.25 | 12 | 0.122 | 0.25 | 98 | 1.000 | 0.7 |
| LGM16-030-72 | 5 | 200 | 0.12 | 145 | 0.3 | 20 | 0.204 | 0.3 | 98 | 1.000 | 0.65 |
| LGM16-030-100 | 3 | 70 | 0.06 | 52 | 0.17 | 29 | 0.296 | 0.16 | 78 | 0.796 | 0.45 |
| LGM16-030-120 | 6 | 120 | 0.1 | 95 | 0.3 | 50 | 0.510 | 0.5 | 196 | 2.000 | 1 |
| LGM16-030-150 | 6 | 100 | 0.1 | 80 | 0.3 | 98 | 1.000 | 1.34 | 196 | 2.000 | 2.5 |
| LGM16-030-200 | 6 | 60 | 0.08 | 45 | 0.25 | 54 | 0.551 | 0.25 | 196 | 2.000 | 0.7 |
| LGM16-030-300 | 6 | 35 | 0.06 | 25 | 0.18 | 68 | 0.694 | 0.18 | 196 | 2.000 | 0.5 |
| LGM16-030-360 | 5 | 50 | 0.17 | 38 | 0.5 | 98 | 1.000 | 0.79 | 196 | 2.000 | 1.4 |
| LGM16-030-500 | 3 | 15 | 0.07 | 12.5 | 0.16 | 69 | 0.704 | 0.09 | 196 | 2.000 | 0.6 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Applications
- Beauty instrument,Commercial Products,
- Electric lock,Health Care Devices,
- High temperature sterilization device,
- Home Appliances,Personal Care,Robot,
- Security and Locks,Shoe brush,etc.
