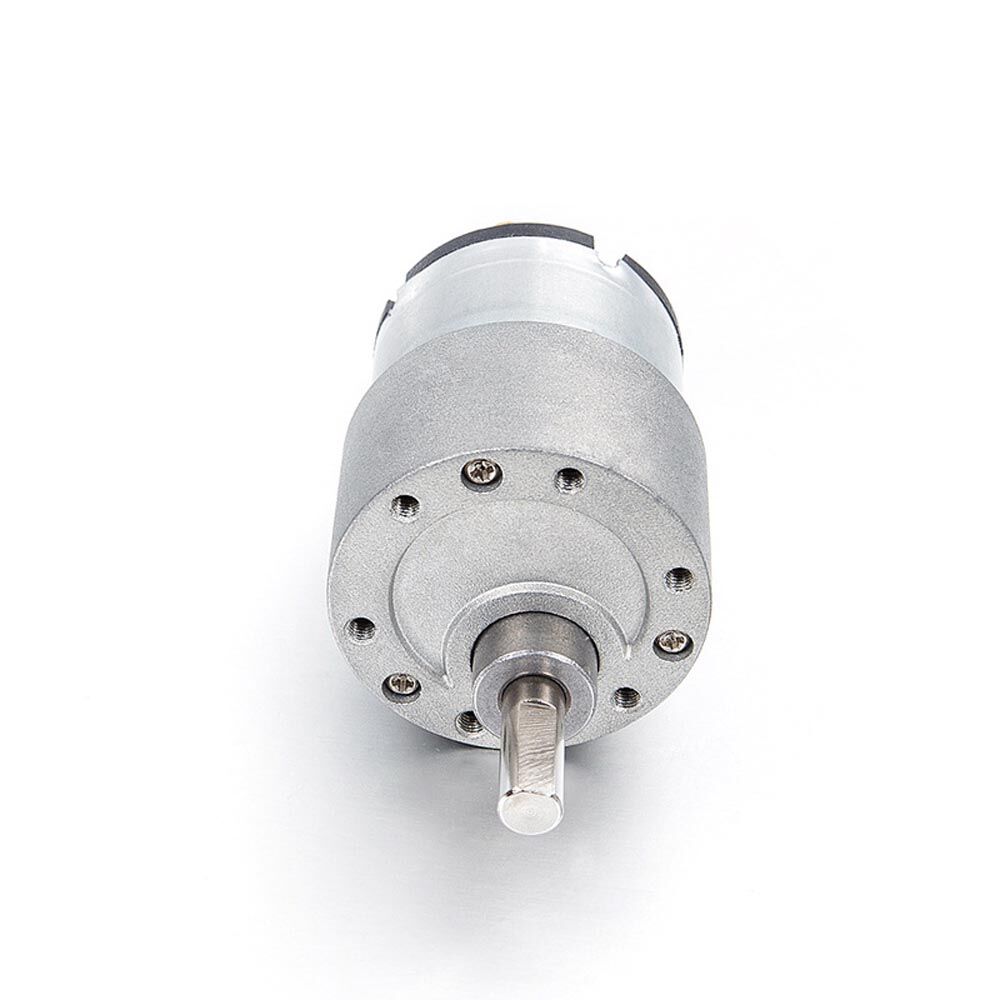

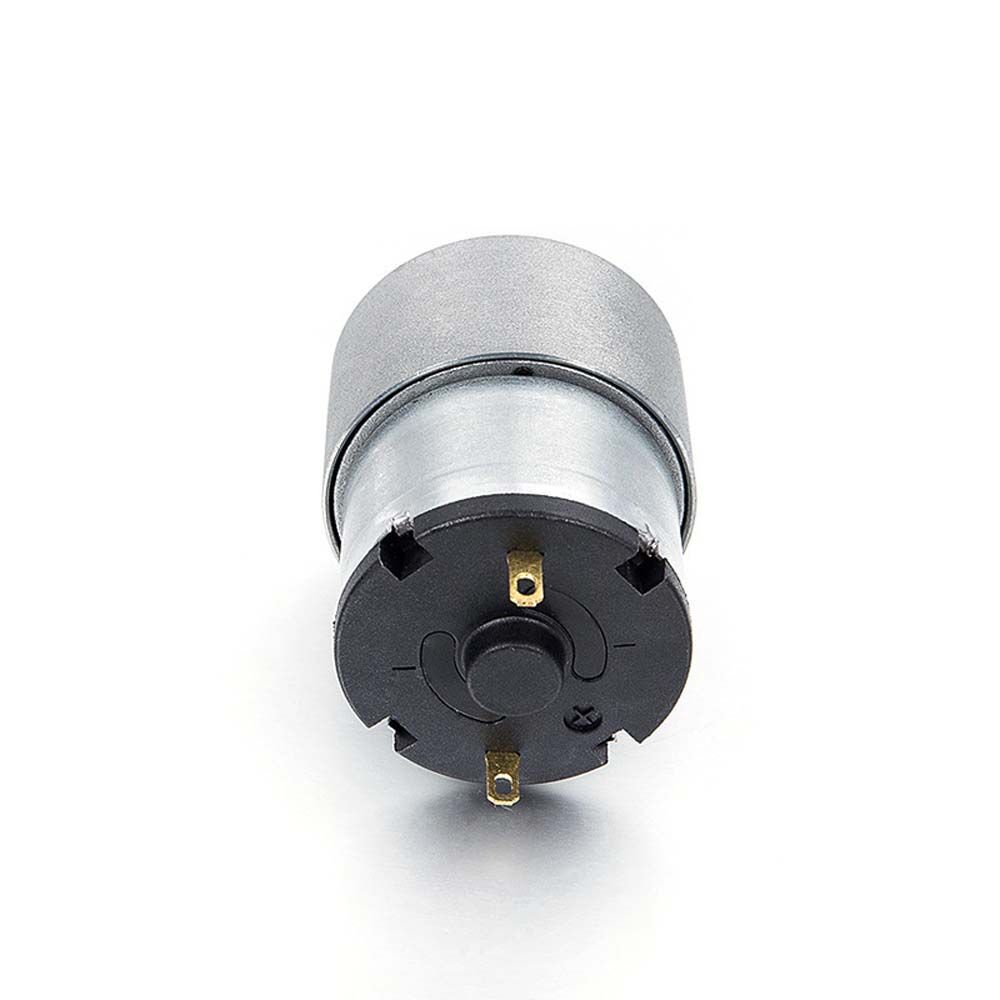

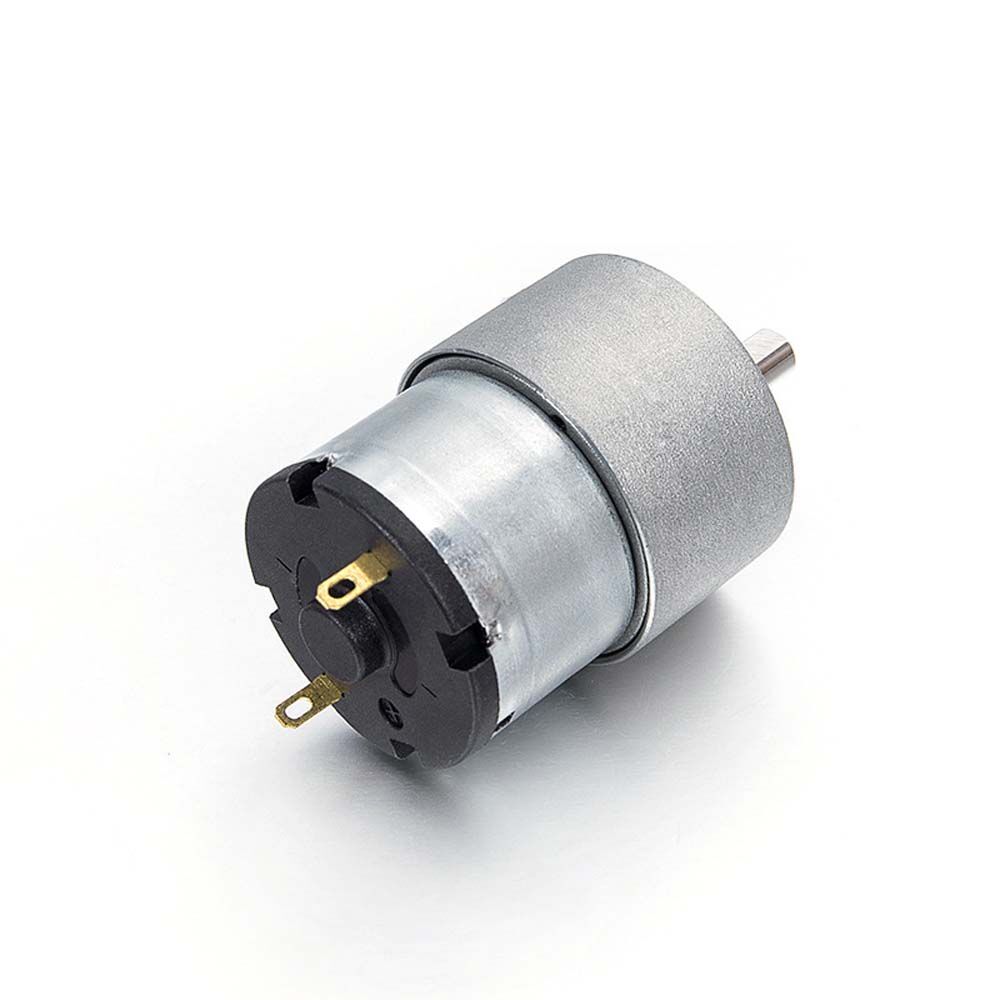

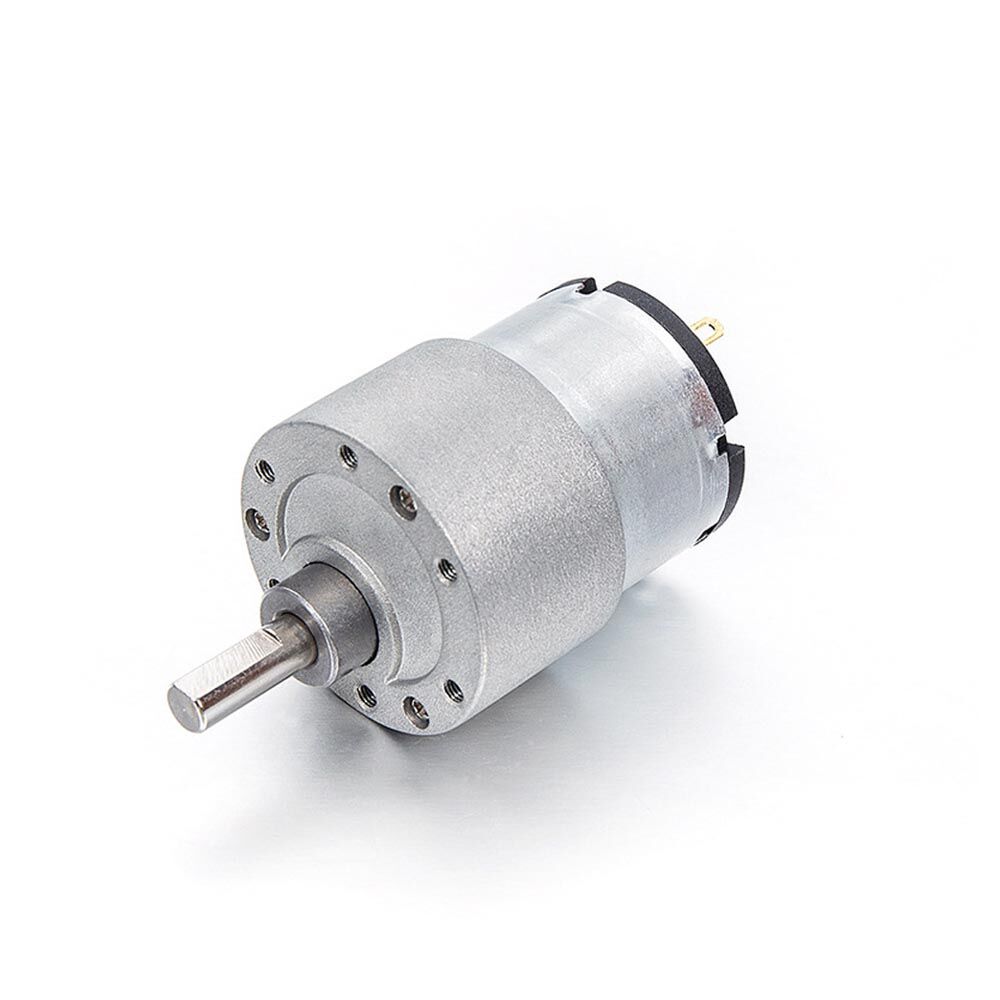

LGM37-520 ∅37mm DC Geared Motor
37mm gearbox could be with 385/520/528/550 motor, specific parameters customized by request.
Additional information
| Model | LGM37-520 |
|---|---|
| Type | DC Geared Motor |
| Brush Type | Metal-Brush/Carbon-Brush |
| Motor Size | Φ33*22.7mm |
| Gearbox Size | Φ37*L mm |
| Output Shaft | Shaft shape, size and length can be customized by request |
| Voltage | 1.5v-24v |
Product Details:
37mm Diameter Micro DC Geared Motor
+ Brand: Linkto Motor
| Model: | LGM37-520 | Type: | DC Geared Motor |
| Voltage: | 3v-24v | Speed: | 3rpm-1200rpm |
| Continuous Current: | ≤3A | Stall Torque: | ≤20kg.cm |
| Typical Application: | Air purifier,Beauty instrument,Cell phone sterilizer,Home Appliances,Personal Care,Sports equipment,etc. | ||
+ Outline Dimension
+ Gear ratio and length of gearbox
| Number of gear stages | 2 | 3 | 4 | 5 | 6 |
| Gear ratio | 6 | 16.7 | 45 | 110 | 330 |
| 10 | 23.3 | 50 | 121 | 350 | |
| 30 | 60 | 135 | 405 | ||
| 70 | 150 | 420 | |||
| 90 | 180 | 450 | |||
| 100 | 210 | 490 | |||
| 250 | 540 | ||||
| 270 | 630 | ||||
| 300 | 810 | ||||
| Length of gearbox L(mm） | 19mm | 21.5mm | 24mm | 26.5mm | 29mm |
+ Technical Data For Reference
| MODEL | VOlTAGE | NO LOAD | RATED LOAD | STALL | |||||||
| NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | rpm | A | rpm | A | mN.m | Kg.cm | W | mN.m | Kg.cm | A | |
| LGM37-520-10 | 12 | 1100 | 0.3 | 865 | 1 | 40 | 0.408 | 4.4 | 190 | 1.938 | 3.7 |
| LGM37-520-30 | 12 | 280 | 0.1 | 230 | 0.6 | 140 | 1.428 | 3.5 | 780 | 7.956 | 2.6 |
| LGM37-520-50 | 6 | 152 | 0.17 | 125 | 0.85 | 140 | 1.428 | 1.9 | 780 | 7.956 | 3.5 |
| LGM37-520-90 | 12 | 60 | 0.06 | 48 | 0.32 | 390 | 3.978 | 2 | 1750 | 17.850 | 1.5 |
| LGM37-520-110 | 12 | 50 | 0.1 | 40 | 0.22 | 195 | 1.989 | 0.82 | 1220 | 12.444 | 1.05 |
| LGM37-520-150 | 24 | 20 | 0.03 | 16 | 0.06 | 85 | 0.867 | 0.13 | 490 | 4.998 | 0.1 |
| LGM37-520-270 | 12 | 11 | 0.035 | 9 | 0.1 | 580 | 5.916 | 0.5 | 1960 | 20.000 | 0.4 |
| LGM37-520-350 | 12 | 15.5 | 0.1 | 13 | 0.22 | 580 | 5.916 | 0.8 | 1960 | 20.000 | 1.05 |
| LGM37-520-490 | 24 | 12 | 0.05 | 11 | 0.1 | 784 | 8.000 | 1.2 | 1960 | 20.000 | 0.7 |
| LGM37-520-630 | 12 | 5 | 0.04 | 4 | 0.11 | 784 | 8.000 | 0.4 | 1960 | 20.000 | 0.52 |
| LGM37-520-810 | 24 | 4 | 0.02 | 3 | 0.04 | 390 | 3.978 | 0.12 | 1960 | 20.000 | 0.1 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Applications
- Air purifier,Beauty instrument,
- Cell phone sterilizer,Home Appliances,
- Personal Care,Sports equipment,etc.
