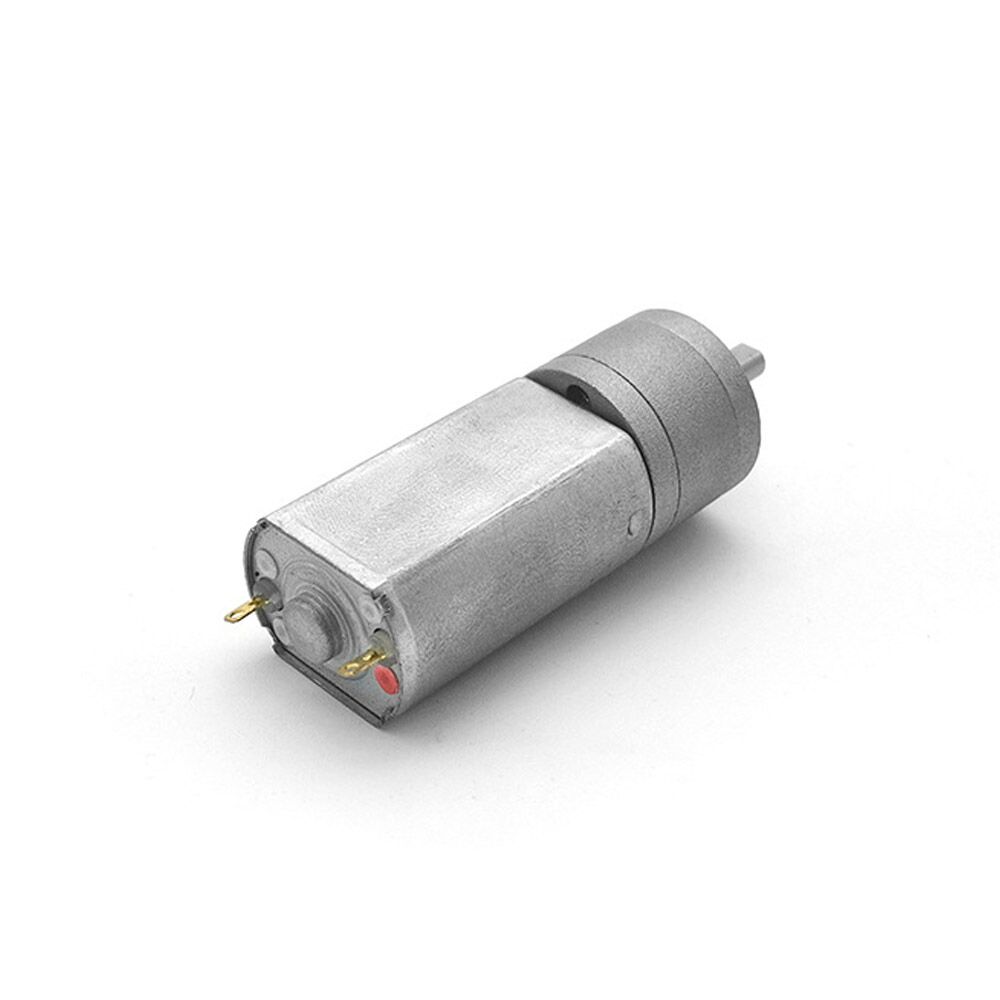

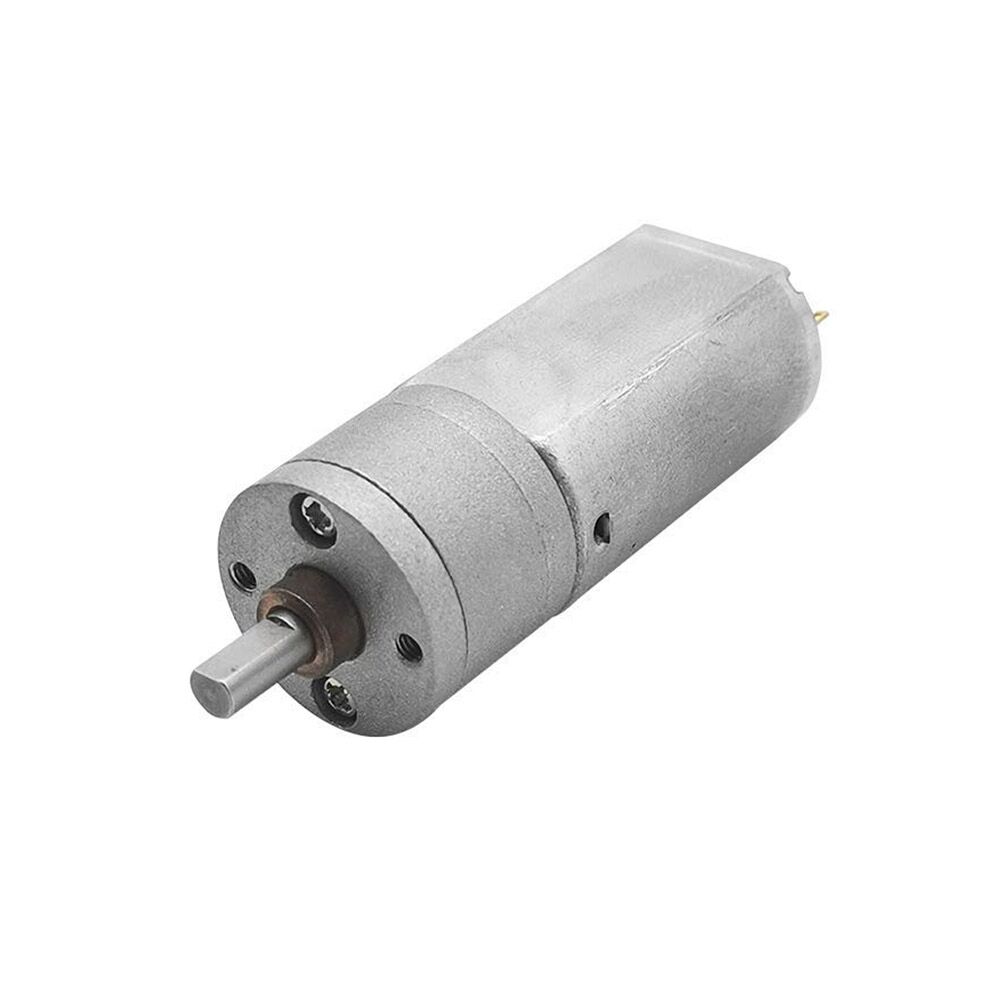

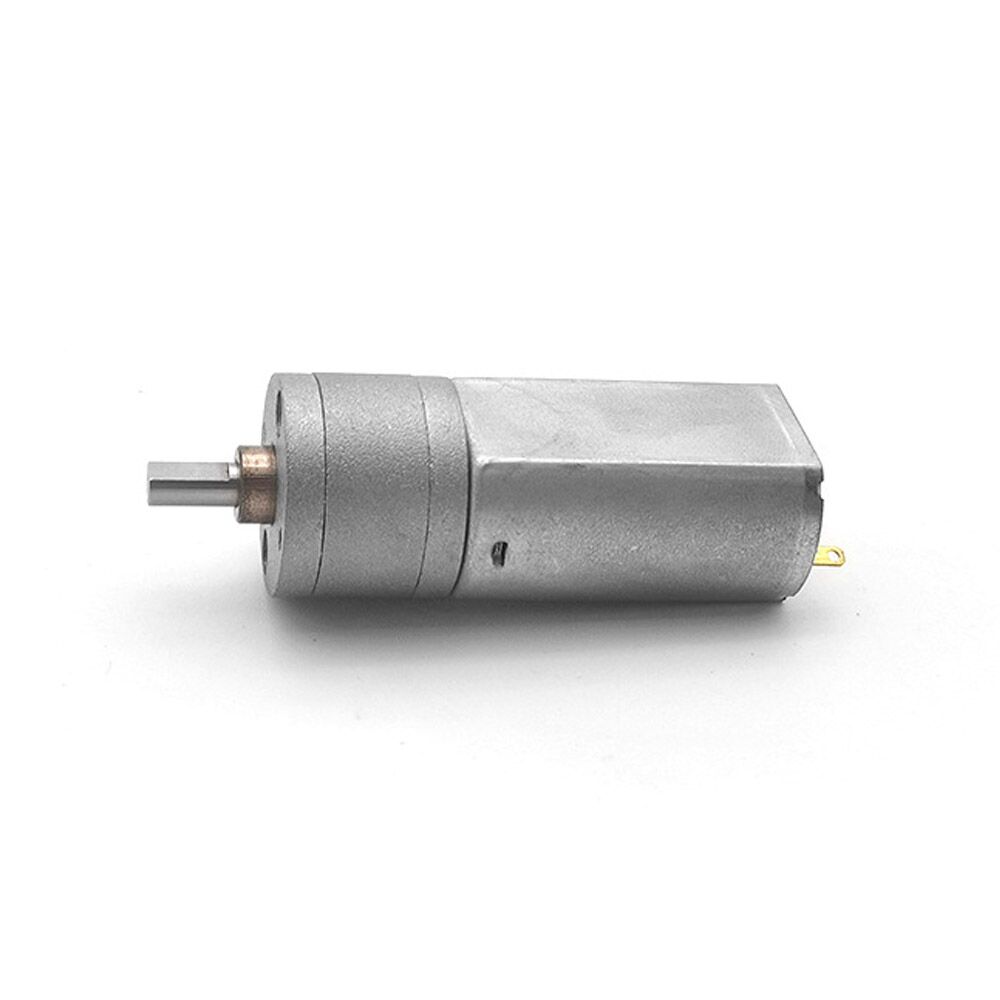

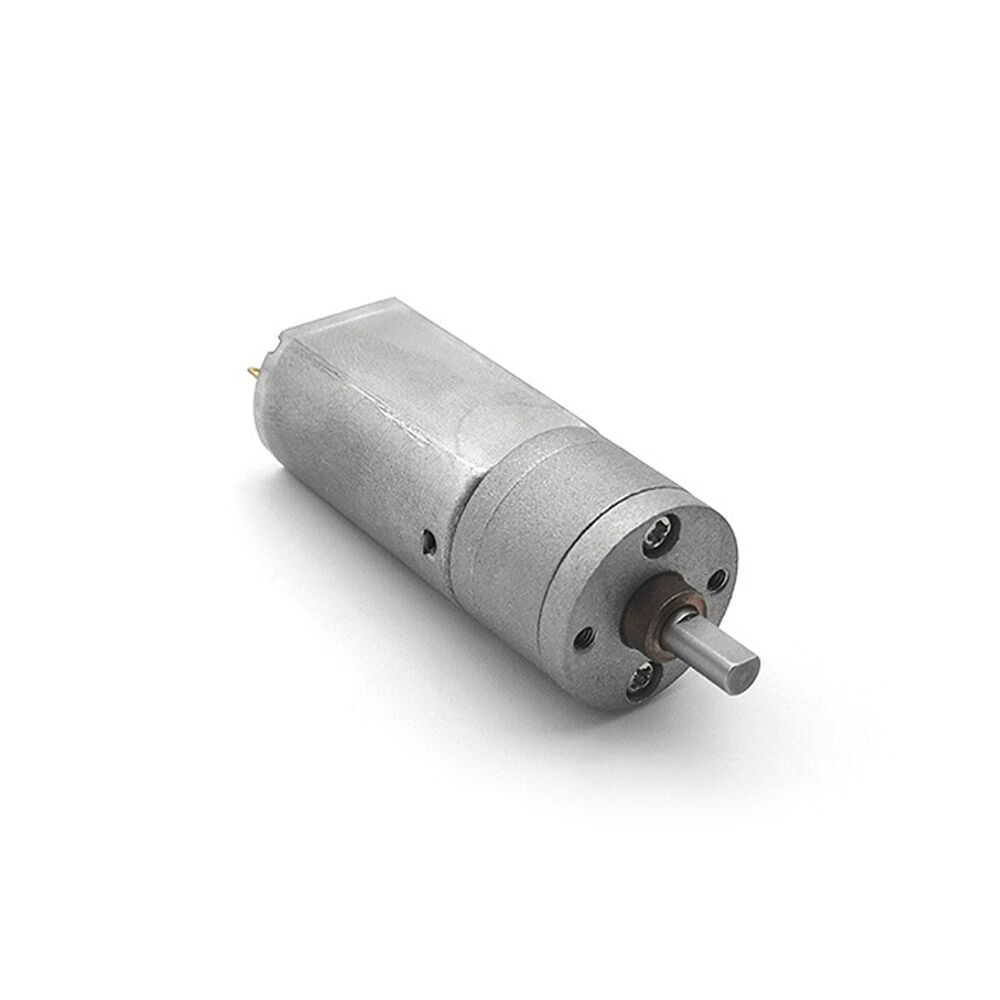

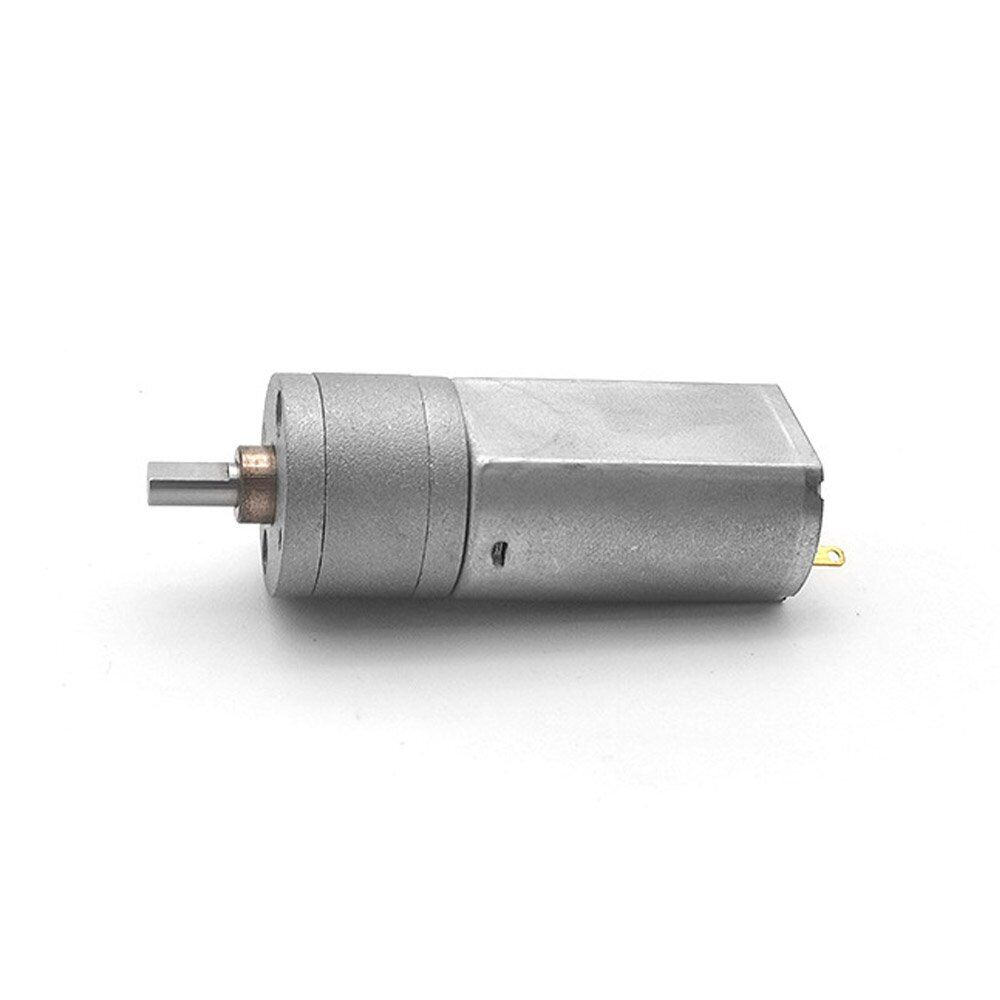

LGM20-180 ∅20mm DC Geared Motor
20mm gearbox could be with 130/180 motor, specific parameters customized by request.
Additional information
| Model | LGM20-180 |
|---|---|
| Type | DC Geared Motor |
| Brush Type | Metal-Brush/Carbon-Brush |
| Motor Size | Φ20.4*15.4*32.1mm |
| Gearbox Size | Φ20*L mm |
| Output Shaft | Shaft shape, size and length can be customized by request |
| Voltage | 1.5v-24v |
Product Details:
20mm Diameter Micro DC Geared Motor
+ Brand: Linkto Motor
| Model: | LGM20-180 | Type: | DC Geared Motor |
| Voltage: | 3v-24v | Speed: | 5rpm-1500rpm |
| Continuous Current: | ≤3A | Stall Torque: | ≤5kg.cm |
| Typical Application: | Aircraft landing gear,Airplane toy,Automotive Parts,Beauty instrument,Commercial Products,Door lock,Educational robot,Personal Care,Security and Locks,Window actuator,etc. | ||
+ Outline Dimension
+ Gear ratio and length of gearbox
| Number of gear stages | 3 | 4 | 5 | 6 | 7 |
| Gear ratio | 9.2 | 25 | 50 | 100 | 250 |
| 12 | 31.2 | 62.5 | 125 | 312 | |
| 78 | 156 | 390.6 | |||
| 195 | 488 | ||||
| Length of gearbox L(mm） | 15.7mm | 15.7mm | 17.2mm | 18.7mm | 20.2mm |
+ Technical Data For Reference
| MODEL | VOlTAGE | NO LOAD | RATED LOAD | STALL | |||||||
| NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | rpm | A | rpm | A | mN.m | Kg.cm | W | mN.m | Kg.cm | A | |
| LGM20-180-12 | 3 | 800 | 0.55 | 645 | 1.3 | 19 | 0.194 | 1.35 | 90 | 0.918 | 4.9 |
| LGM20-180-25 | 6 | 240 | 0.08 | 190 | 0.45 | 45 | 0.459 | 1 | 190 | 1.938 | 2 |
| LGM20-180-31 | 9 | 300 | 0.09 | 240 | 0.4 | 45 | 0.459 | 1.13 | 240 | 2.448 | 1.7 |
| LGM20-180-50 | 2.4 | 166 | 0.27 | 127 | 1 | 55 | 0.561 | 0.66 | 240 | 2.448 | 3.2 |
| LGM20-180-62.5 | 12 | 105 | 0.06 | 80 | 0.22 | 90 | 0.918 | 0.83 | 290 | 2.958 | 0.75 |
| LGM20-180-100 | 15 | 135 | 0.15 | 115 | 0.5 | 190 | 1.938 | 0.39 | 490 | 5.000 | 2.3 |
| LGM20-180-125 | 12 | 80 | 0.1 | 65 | 0.4 | 175 | 1.785 | 1.2 | 440 | 4.488 | 1.8 |
| LGM20-180-250 | 2.4 | 24 | 0.21 | 19 | 0.52 | 240 | 2.448 | 0.5 | 400 | 4.080 | 1.6 |
| LGM20-180-195 | 6 | 64 | 0.2 | 55 | 0.67 | 245 | 2.5 | 1.72 | 490 | 5.000 | 3.3 |
| LGM20-180-312 | 6 | 25 | 0.12 | 20 | 0.45 | 245 | 2.5 | 0.8 | 490 | 5.000 | 2 |
| LGM20-180-488 | 12 | 9 | 0.05 | 7 | 0.1 | 245 | 2.5 | 0.25 | 490 | 5.000 | 0.5 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Applications
- Aircraft landing gear,Airplane toy,
- Automotive Parts,Beauty instrument,
- Commercial Products,Door lock,
- Educational robot,Personal Care,
- Security and Locks,Window actuator,etc.
