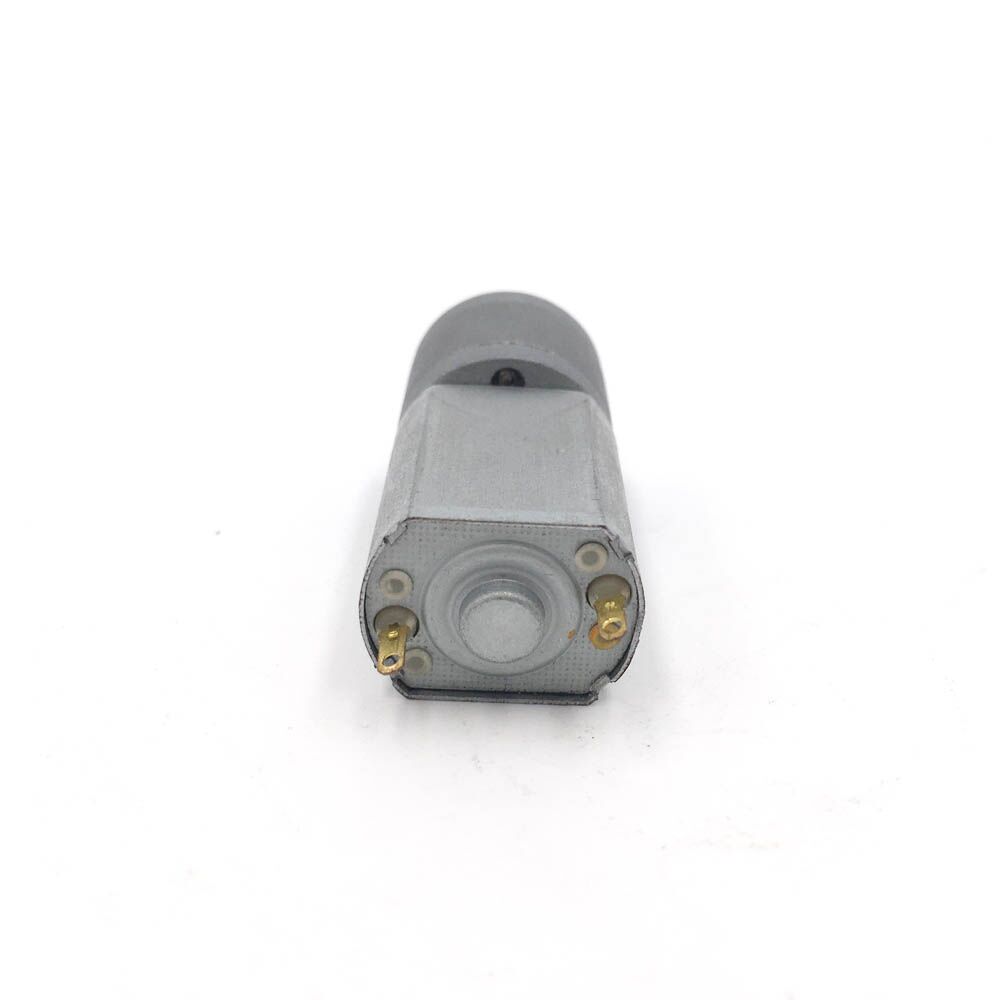

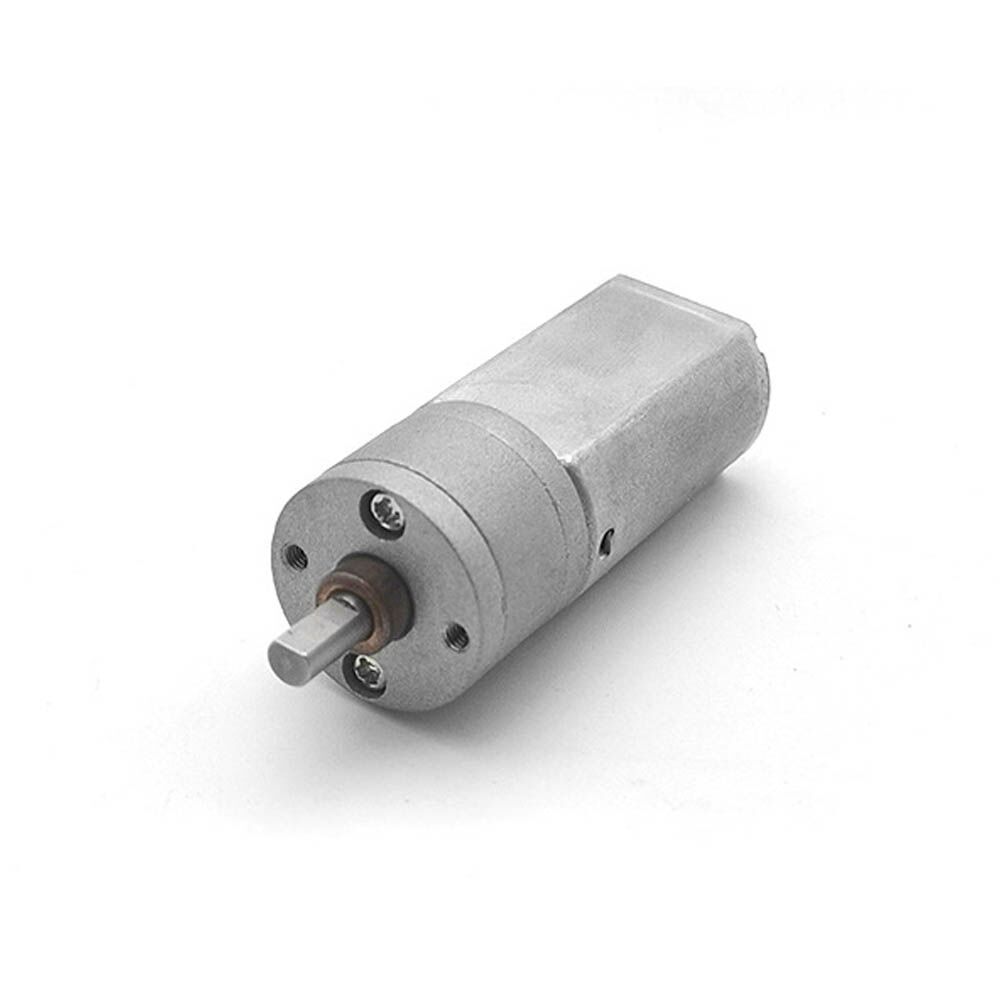

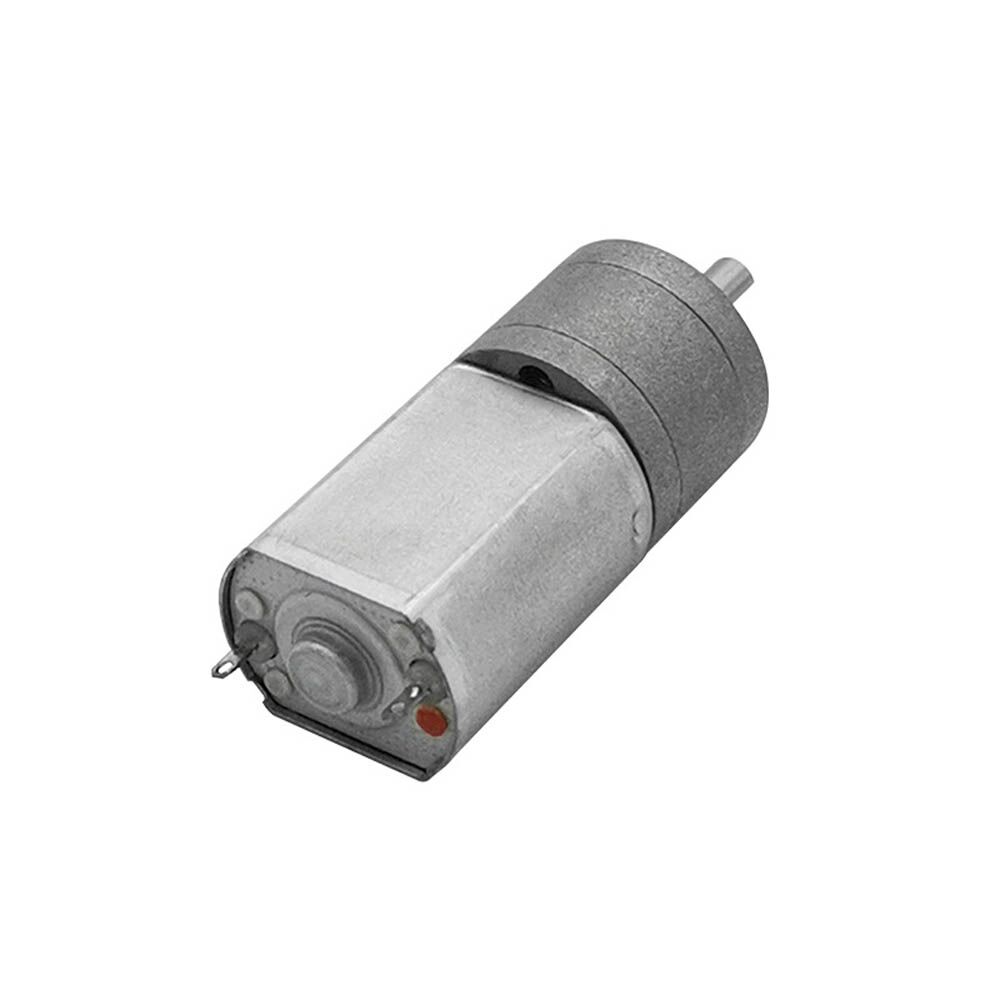

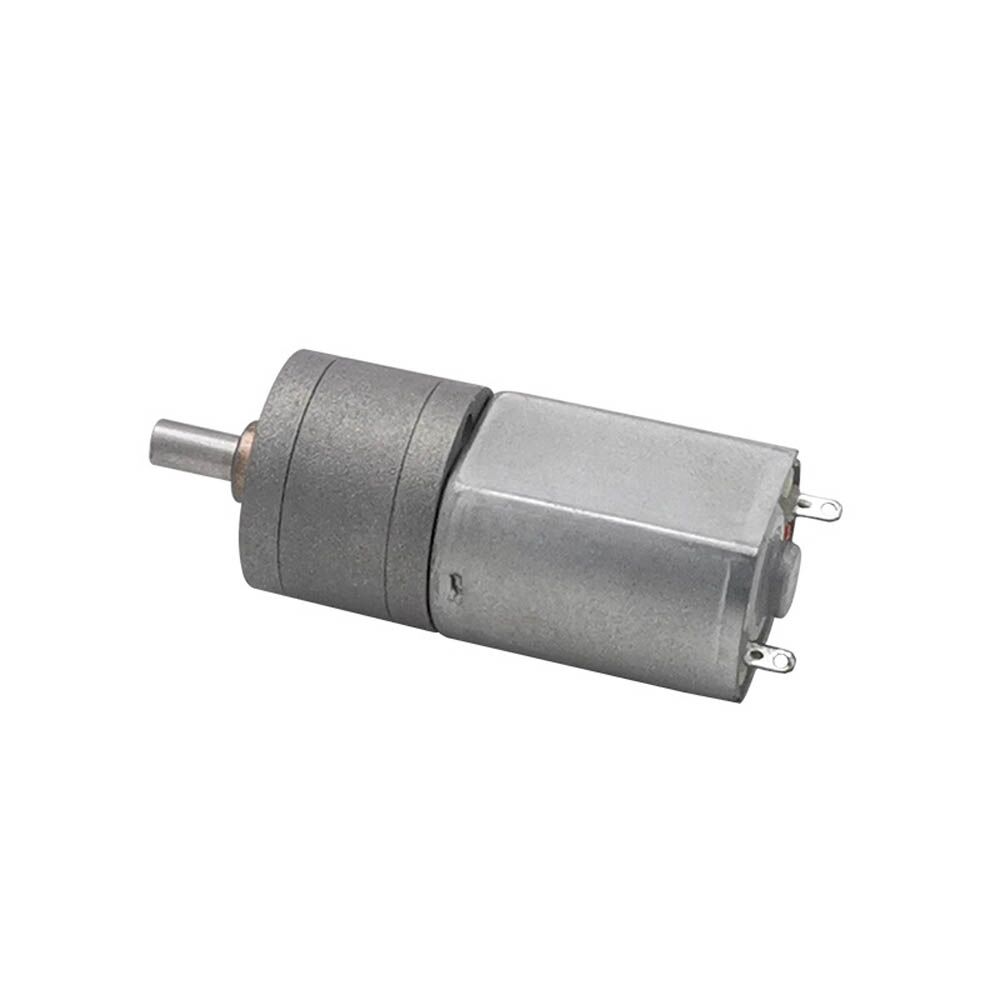

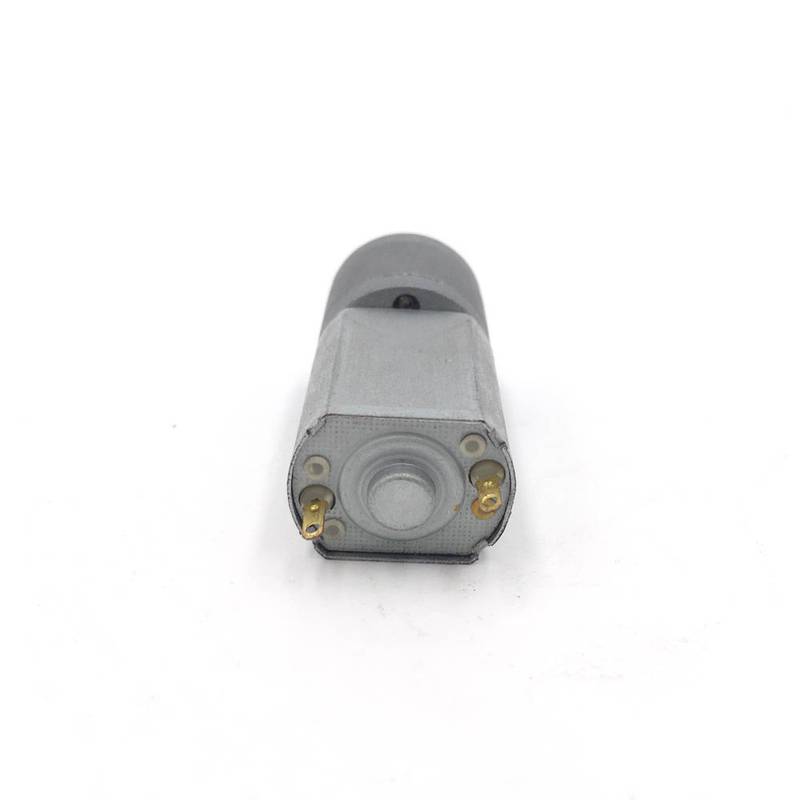

LGM20-130 ∅20mm DC Geared Motor
20mm gearbox could be with 130/180 motor, specific parameters customized by request.
Additional information
| Model | LGM20-130 |
|---|---|
| Type | DC Geared Motor |
| Brush Type | Metal-Brush/Carbon-Brush |
| Motor Size | Φ20.4*15.4*25.1mm |
| Gearbox Size | Φ20*L mm |
| Output Shaft | Shaft shape, size and length can be customized by request |
| Voltage | 1.5v-24v |
Product Details:
20mm Diameter Micro DC Geared Motor
+ Brand: Linkto Motor
| Model: | LGM20-130 | Type: | DC Geared Motor |
| Voltage: | 3v-24v | Speed: | 5rpm-1500rpm |
| Continuous Current: | ≤3A | Stall Torque: | ≤5kg.cm |
| Typical Application: | 3D printer,Agricultural seed dressing machine,Cocktail Shakers,Machine safety lock system,Robotic arm,etc. | ||
+ Outline Dimension
+ Gear ratio and length of gearbox
| Number of gear stages | 3 | 4 | 5 | 6 | 7 |
| Gear ratio | 9.2 | 25 | 50 | 100 | 250 |
| 12 | 31.2 | 62.5 | 125 | 312 | |
| 78 | 156 | 390.6 | |||
| 195 | 488 | ||||
| Length of gearbox L(mm） | 15.7mm | 15.7mm | 17.2mm | 18.7mm | 20.2mm |
+ Technical Data For Reference
| MODEL | VOlTAGE | NO LOAD | RATED LOAD | STALL | |||||||
| NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | rpm | A | rpm | A | mN.m | Kg.cm | W | mN.m | Kg.cm | A | |
| LGM20-130-9.2 | 12 | 1300 | 0.1 | 1000 | 0.35 | 10 | 0.102 | 1.5 | 75 | 0.765 | 1.5 |
| LGM20-130-25 | 6 | 270 | 0.14 | 200 | 0.45 | 30 | 0.306 | 0.75 | 140 | 1.428 | 1.3 |
| LGM20-130-31 | 12 | 200 | 0.05 | 160 | 0.12 | 24 | 0.245 | 0.42 | 110 | 1.122 | 0.35 |
| LGM20-130-50 | 8 | 265 | 0.17 | 200 | 0.57 | 50 | 0.510 | 1.05 | 250 | 2.550 | 1.7 |
| LGM20-130-62.5 | 12 | 140 | 0.07 | 100 | 0.2 | 35 | 0.357 | 0.41 | 240 | 2.448 | 0.5 |
| LGM20-130-100 | 18 | 100 | 0.1 | 75 | 0.18 | 80 | 0.816 | 0.62 | 390 | 3.978 | 0.5 |
| LGM20-130-125 | 12 | 45 | 0.06 | 38 | 0.1 | 68 | 0.694 | 0.28 | 340 | 3.468 | 0.25 |
| LGM20-130-156 | 6 | 65 | 0.1 | 50 | 0.4 | 90 | 0.918 | 0.5 | 440 | 4.488 | 1.3 |
| LGM20-130-195 | 6 | 36 | 0.06 | 28 | 0.2 | 110 | 1.122 | 0.37 | 490 | 5.000 | 0.8 |
| LGM20-130-312 | 4.8 | 24 | 0.15 | 16 | 0.67 | 245 | 2.500 | 0.65 | 490 | 5.000 | 1.8 |
| LGM20-130-488 | 6 | 15 | 0.08 | 12 | 0.3 | 245 | 2.500 | 0.37 | 490 | 5.000 | 0.9 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Applications
- 3D printer,Agricultural seed dressing machine,
- Cocktail Shakers,Machine safety lock system,
- Robotic arm,etc.
