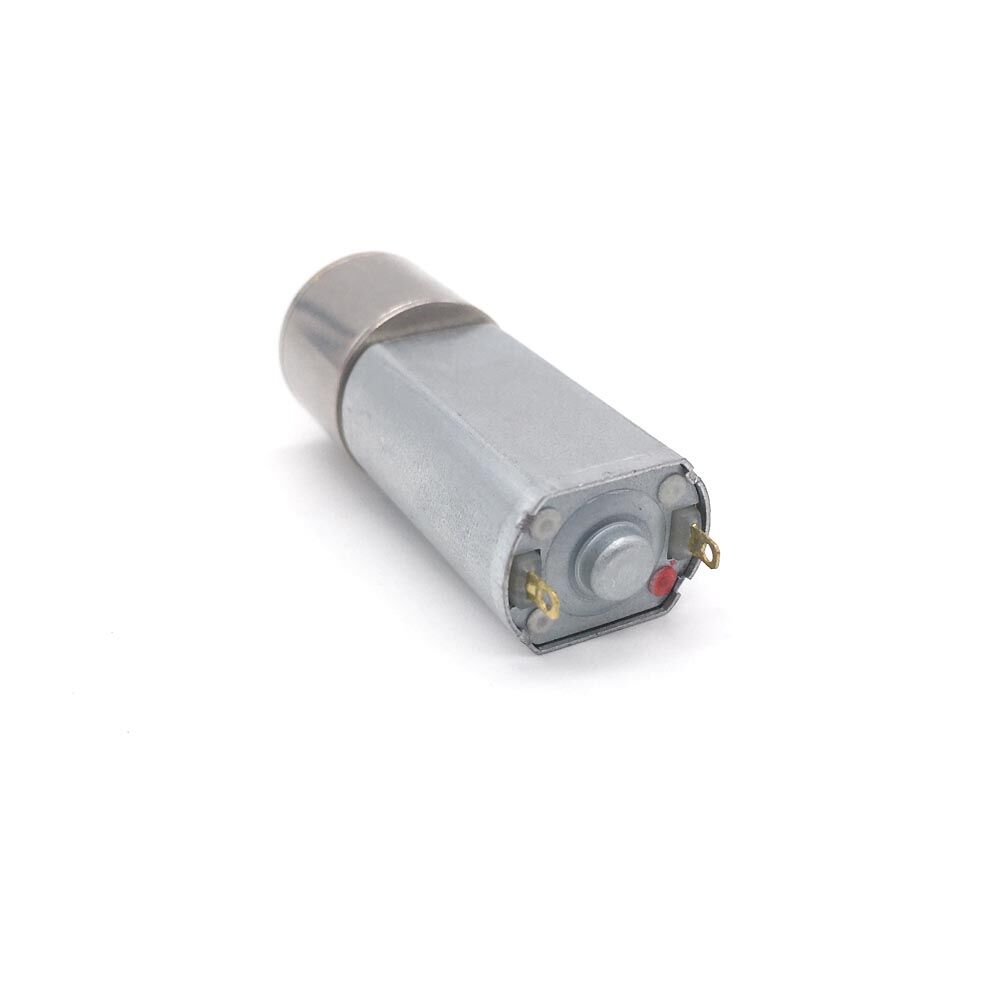

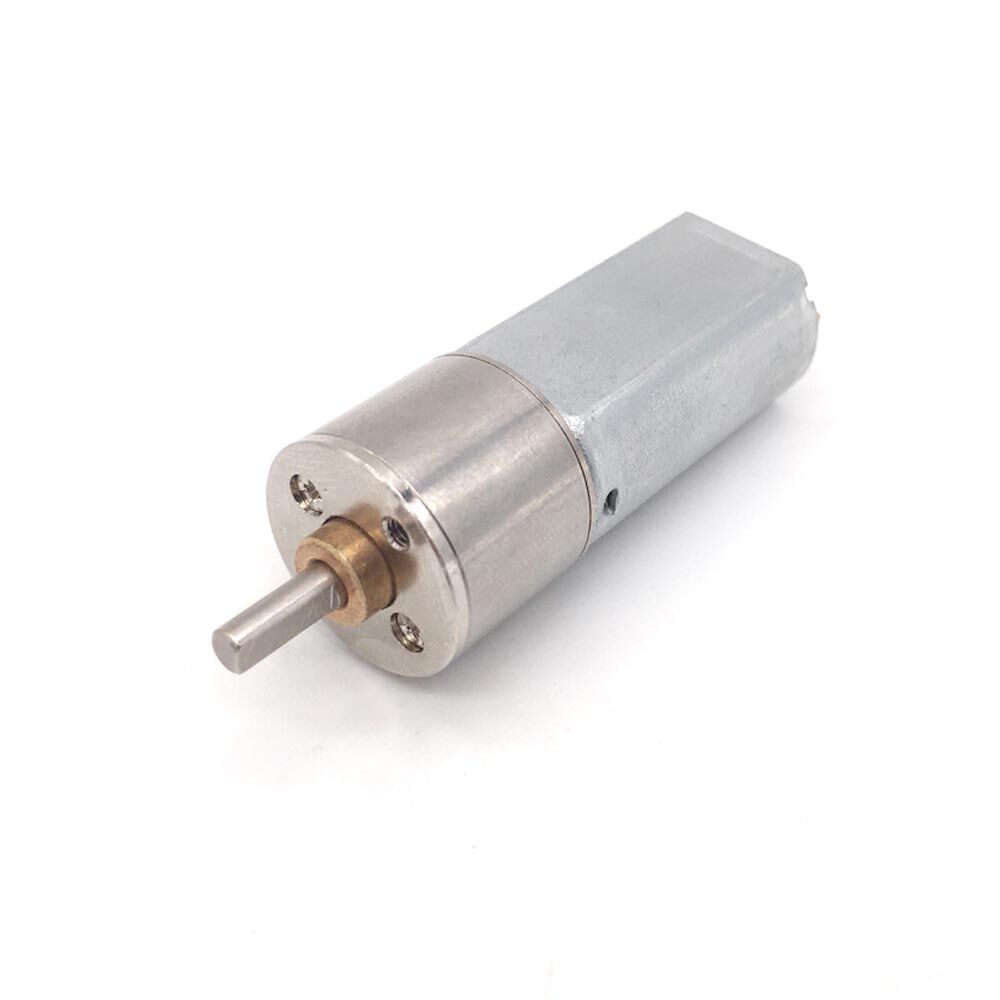

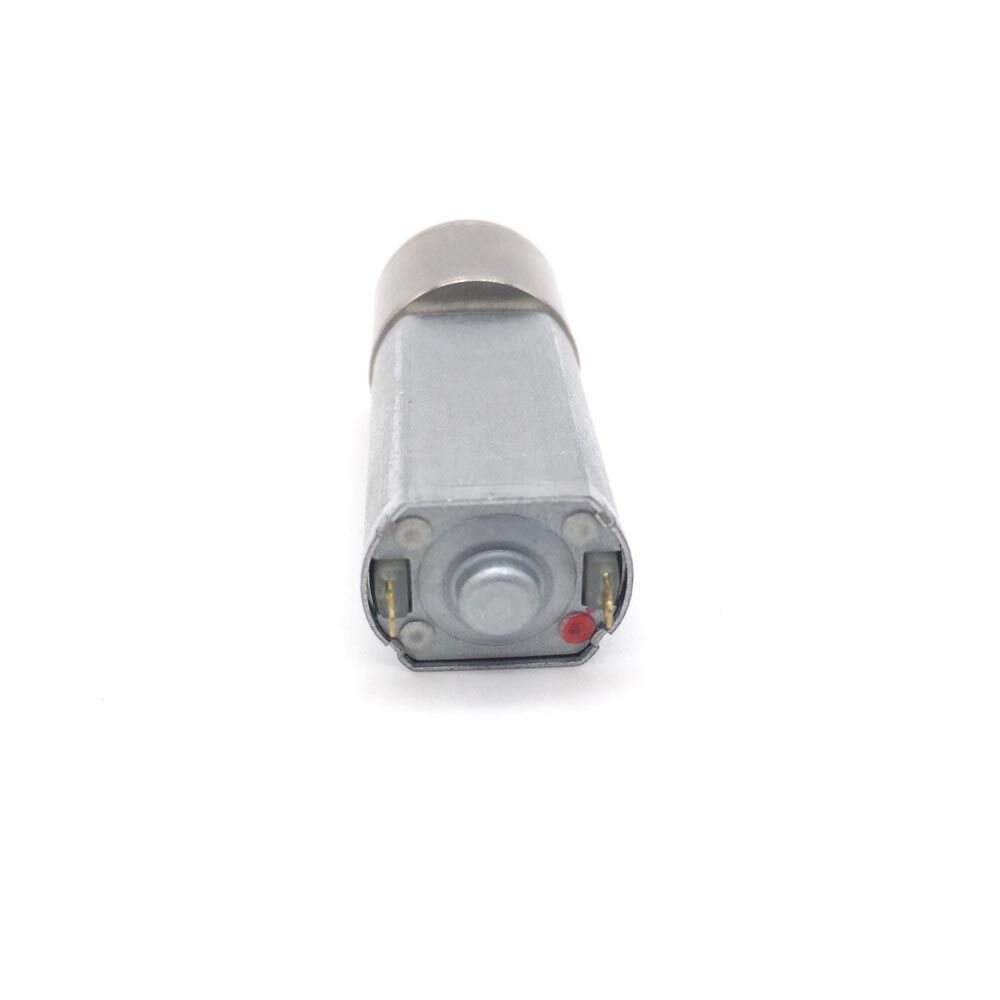

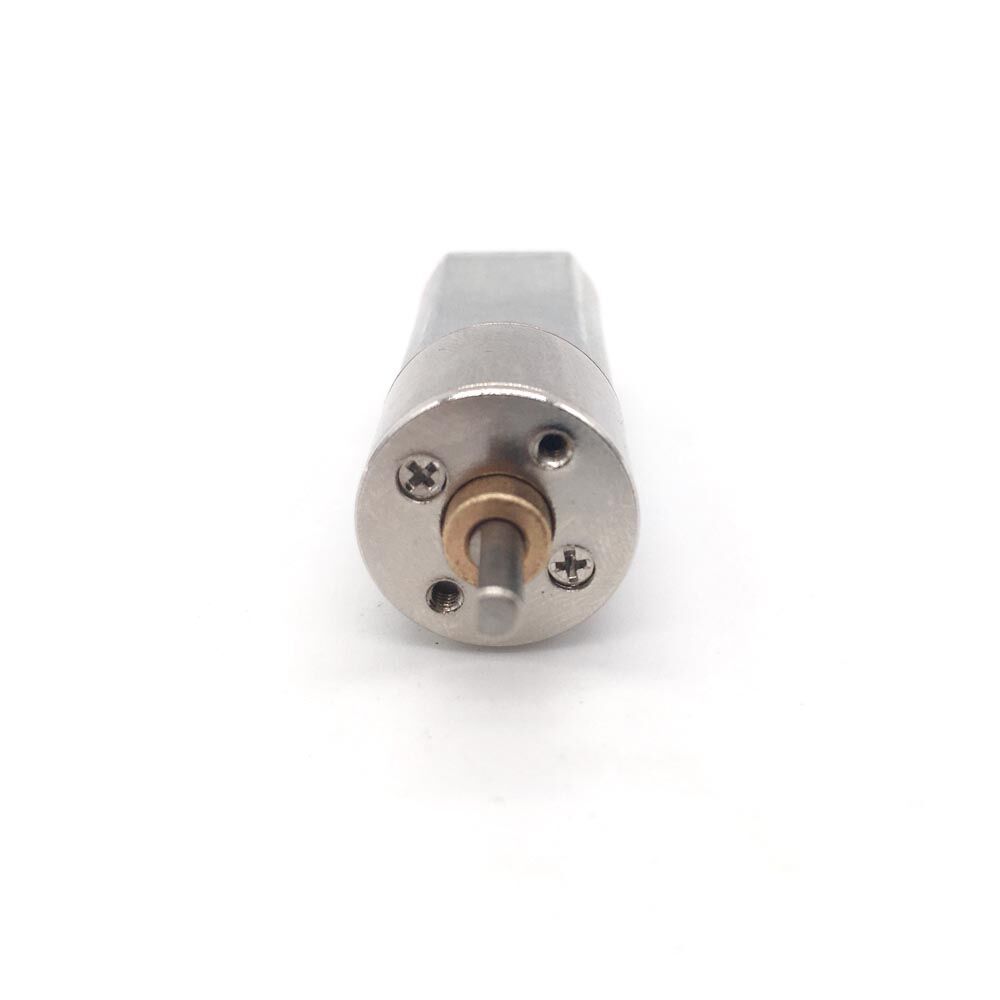

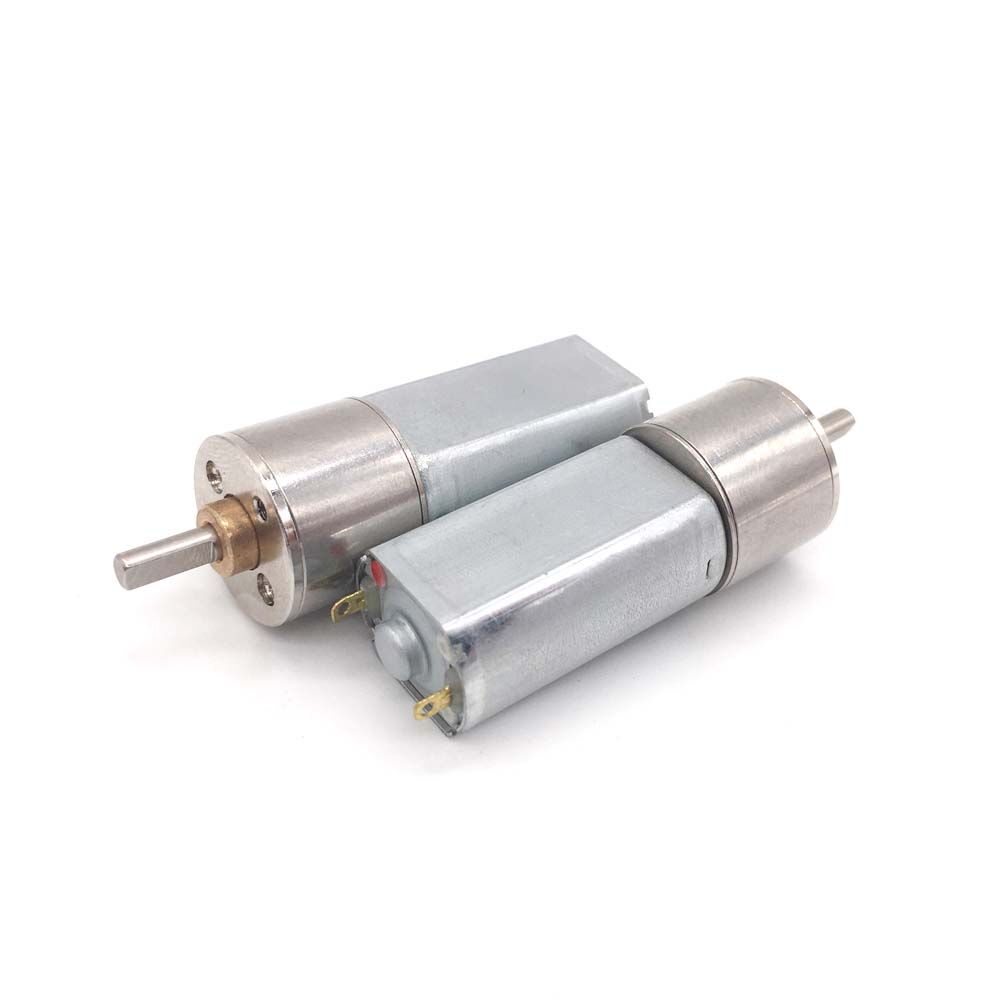

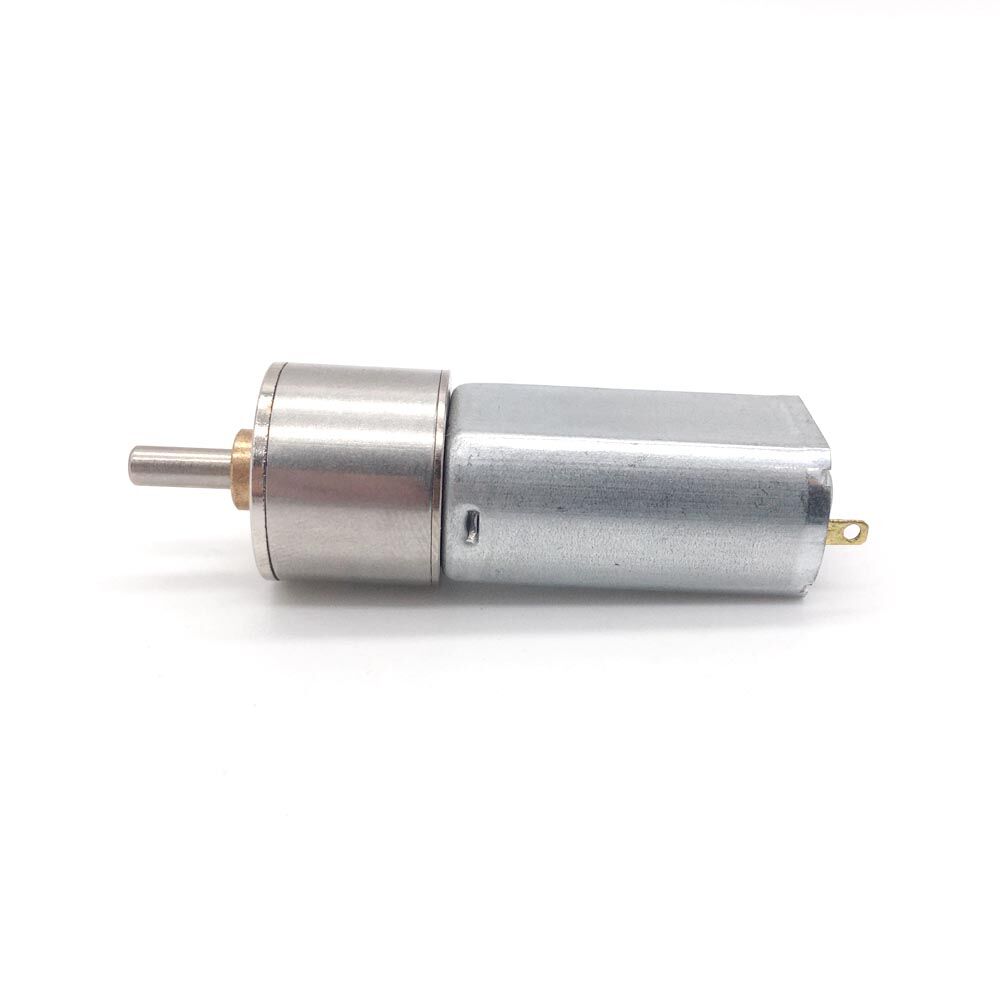

LGM16-050 ∅16mm DC Geared Motor
16mm gearbox could be with 030/050 motor, specific parameters customized by request.
Additional information
| Model | LGM16-050 |
|---|---|
| Type | DC Geared Motor |
| Brush Type | Metal-Brush/Carbon-Brush |
| Motor Size | Φ15.5*12*26.9mm |
| Gearbox Size | Φ16*L mm |
| Output Shaft | Shaft shape, size and length can be customized by request |
| Voltage | 1.5v-24v |
Product Details:
16mm Diameter Micro DC Geared Motor
+ Brand: Linkto Motor
| Model: | LGM16-050 | Type: | DC Geared Motor |
| Voltage: | 3v-24v | Speed: | 5rpm-2500rpm |
| Continuous Current: | ≤3A | Stall Torque: | ≤4kg.cm |
| Typical Application: | ATM machine,Commercial Products,Educational robot,Health Care Devices,Model train,Smart medicine box,Transformer,etc. | ||
+ Outline Dimension
+ Gear ratio and length of gearbox
| Number of gear stages | 3 | 4 | 5 | 6 | 7 |
| Gear ratio | 11 | 24 | 58 | 120 | 360 |
| 16.7 | 28.8 | 72 | 200 | 500 | |
| 33.3 | 83.3 | 250 | 600 | ||
| 37.5 | 86.4 | 300 | 750 | ||
| 43.2 | 100 | 450 | 900 | ||
| 50 | 150 | 1350 | |||
| Length of gearbox L(mm） | 11.3mm | 12.8mm | 14.3mm | 16.5mm | 18mm |
+ Technical Data For Reference
| MODEL | VOlTAGE | NO LOAD | RATED LOAD | STALL | |||||||
| NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | rpm | A | rpm | A | mN.m | Kg.cm | W | mN.m | Kg.cm | A | |
| LGM16-050-11 | 12 | 1050 | 0.07 | 850 | 0.17 | 7 | 0.071 | 3.1 | 34 | 0.347 | 0.6 |
| LGM16-050-33.3 | 12 | 350 | 0.05 | 290 | 0.17 | 14 | 0.143 | 0.45 | 98 | 1.000 | 0.7 |
| LGM16-050-50 | 12 | 230 | 0.05 | 180 | 0.17 | 23 | 0.235 | 0.45 | 147 | 1.499 | 0.7 |
| LGM16-050-72 | 3 | 208 | 0.24 | 170 | 0.52 | 18 | 0.184 | 0.35 | 90 | 0.918 | 1.6 |
| LGM16-050-100 | 12 | 110 | 0.05 | 85 | 0.12 | 47 | 0.479 | 0.42 | 196 | 2.000 | 0.4 |
| LGM16-050-150 | 24 | 100 | 0.06 | 80 | 0.15 | 13 | 0.133 | 1.25 | 196 | 2.000 | 0.5 |
| LGM16-050-200 | 6 | 60 | 0.08 | 46 | 0.29 | 88 | 0.898 | 0.42 | 196 | 2.000 | 0.9 |
| LGM16-050-250 | 12 | 32 | 0.05 | 25 | 0.12 | 98 | 1.000 | 0.38 | 196 | 2.000 | 0.4 |
| LGM16-050-450 | 6 | 20 | 0.06 | 16 | 0.2 | 98 | 1.000 | 32 | 196 | 2.000 | 0.8 |
| LGM16-050-600 | 6 | 13.5 | 0.07 | 11 | 0.17 | 98 | 1.000 | 0.28 | 196 | 2.000 | 0.6 |
| LGM16-050-750 | 6 | 12 | 0.06 | 10 | 0.2 | 98 | 1.000 | 0.28 | 196 | 2.000 | 0.8 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Applications
- ATM machine,Commercial Products,
- Educational robot,Health Care Devices,
- Model train,Smart medicine box,Transformer,etc.
