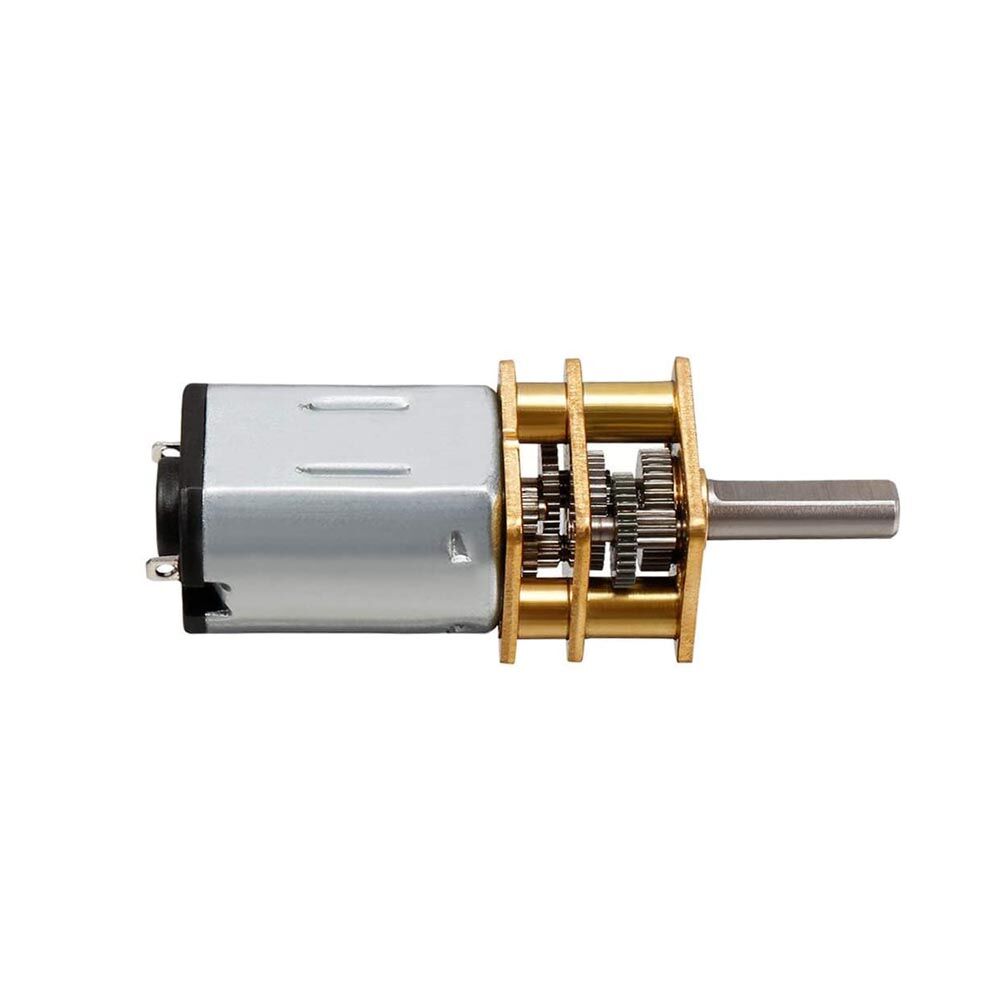

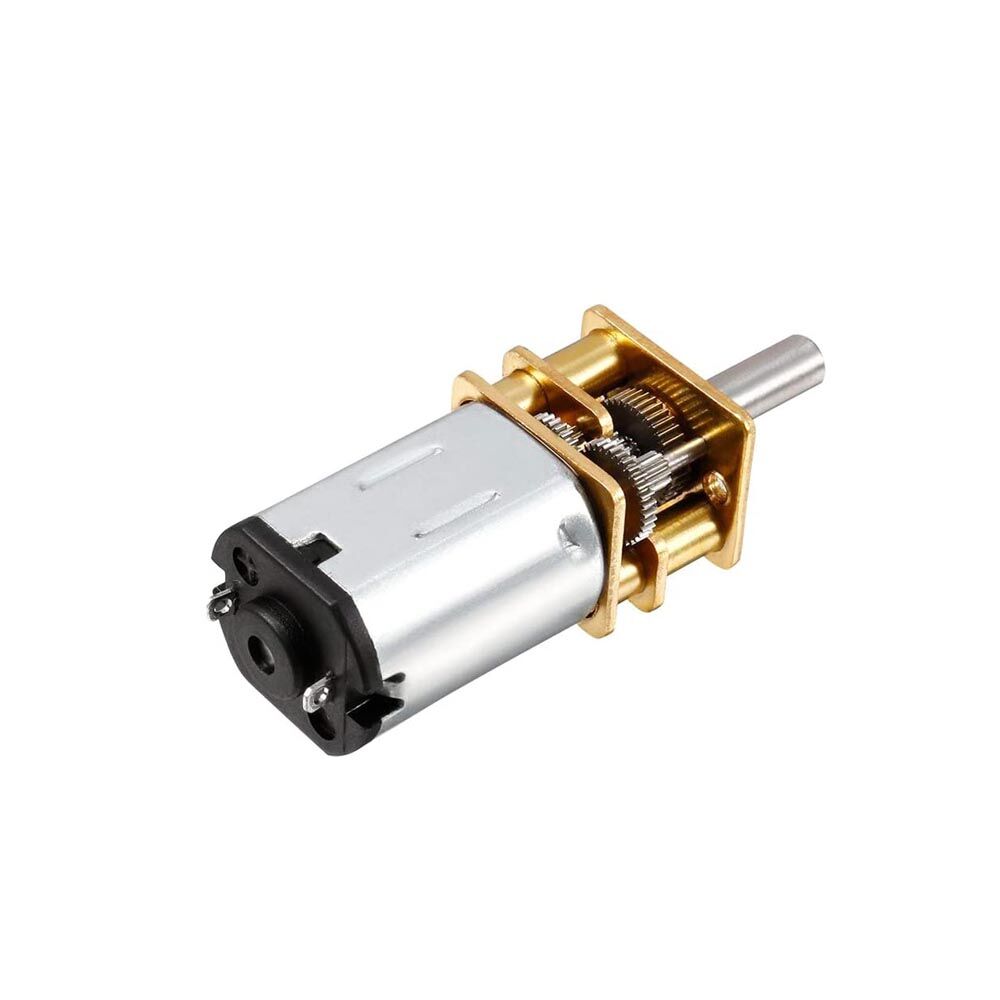

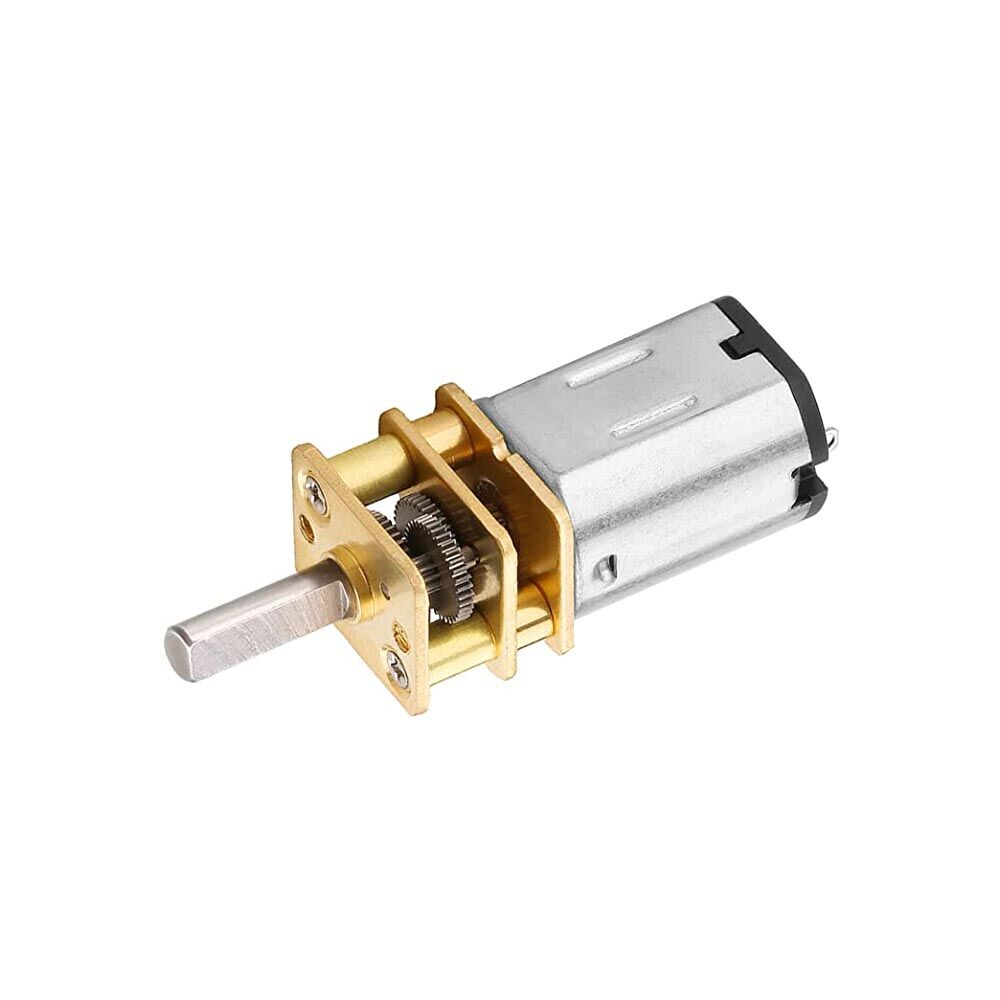

LGM12-N20 12mm DC Geared Motor

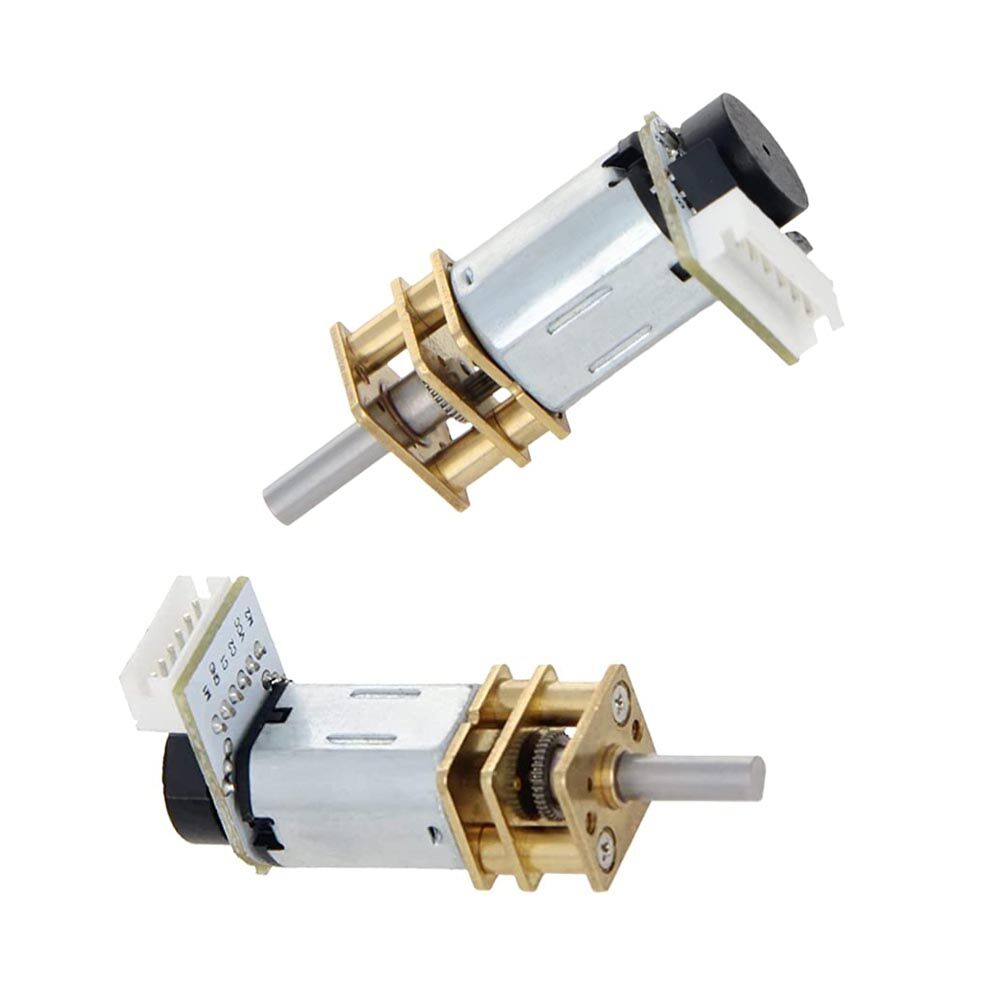

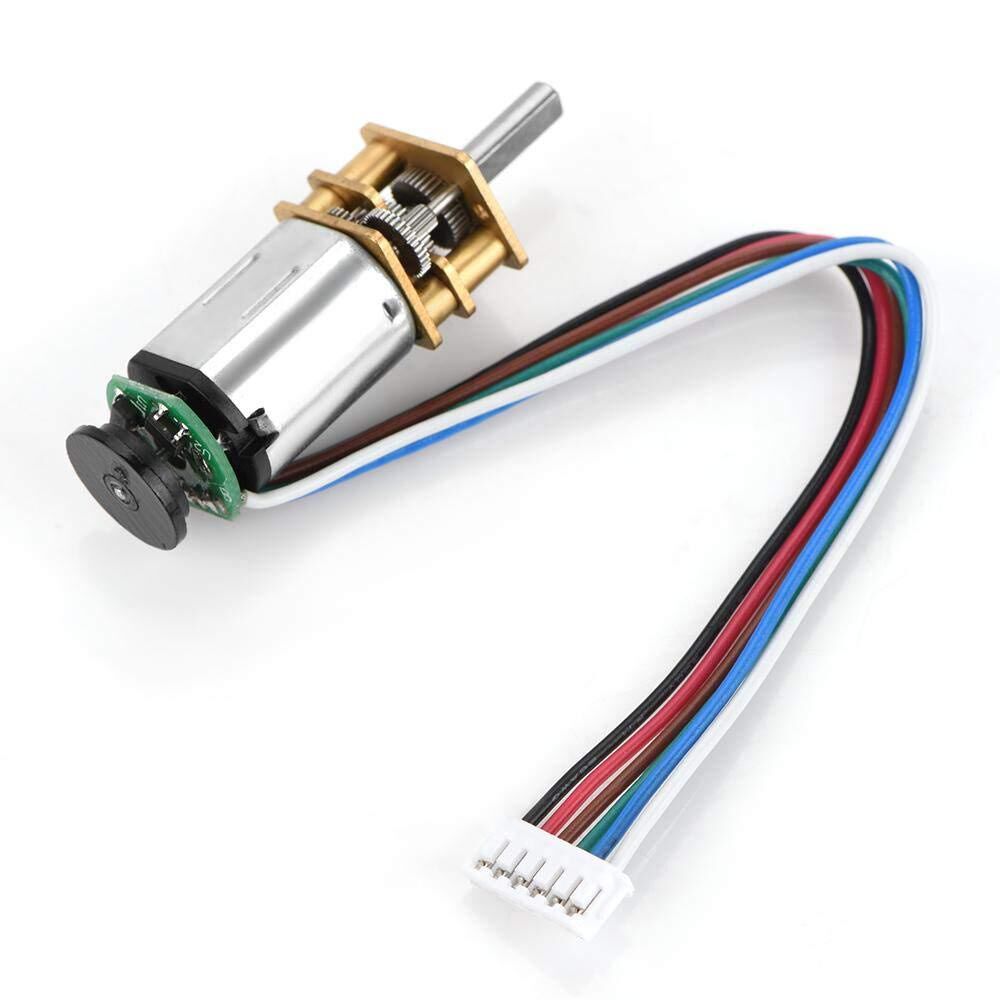

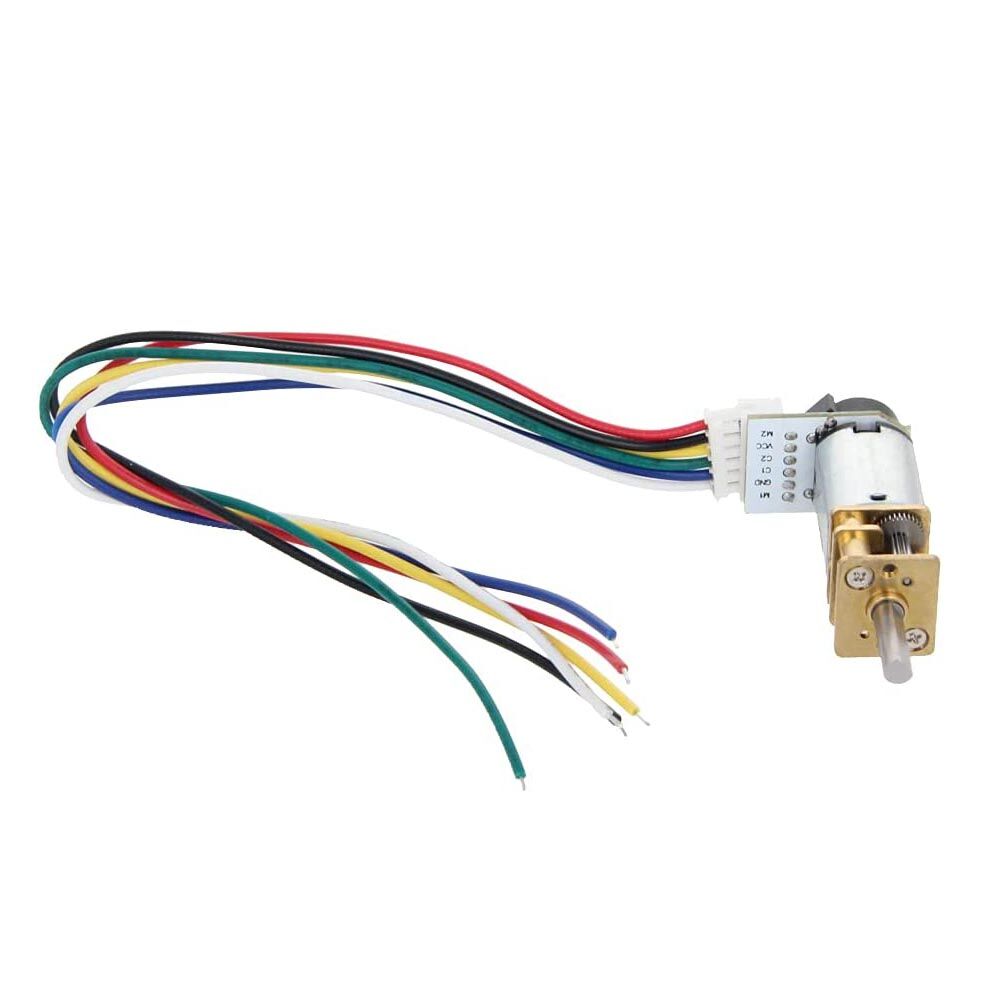

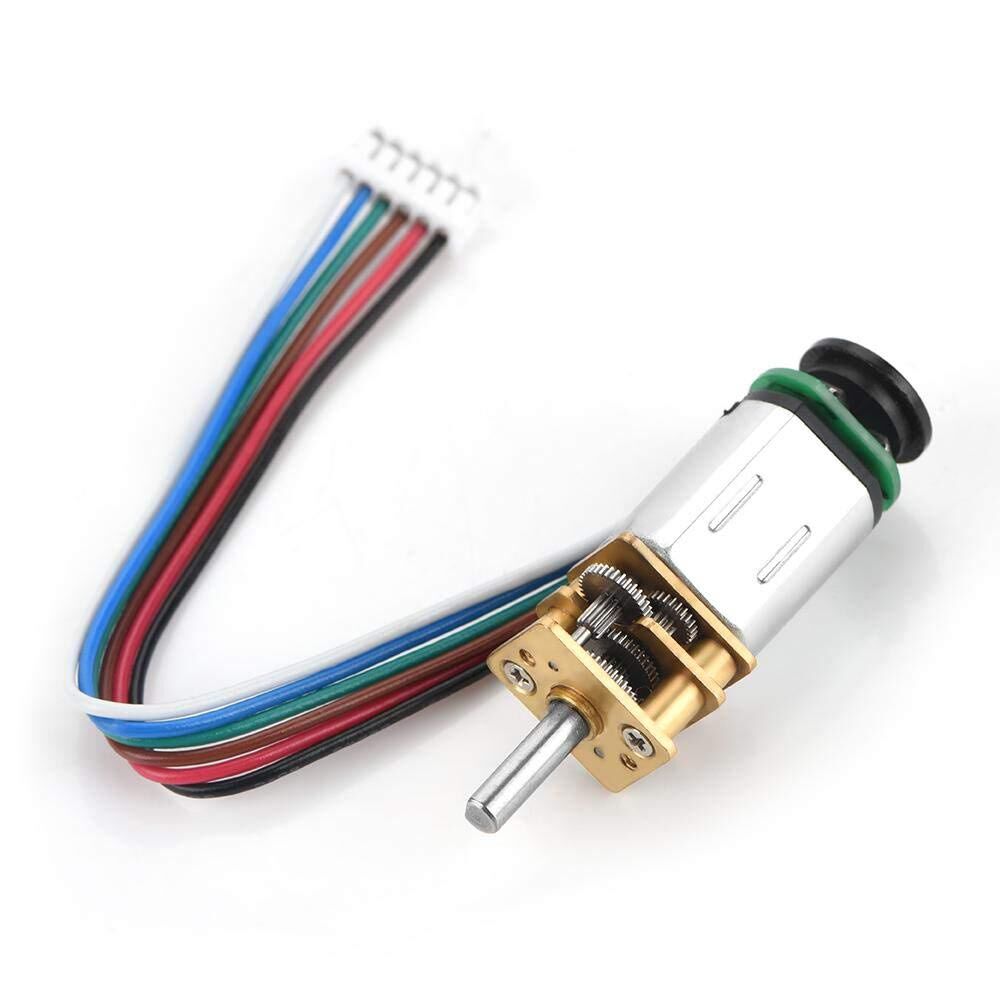

12mm gearbox could with N10/N20/N30/encoder, specific parameters customized by request.
Additional information
| Model | LGM12-N20 |
|---|---|
| Type | DC Geared Motor |
| Brush Type | Metal-Brush |
| Motor Size | Φ12*10*15mm |
| Gearbox Size | 12*10*L mm |
| Output Shaft | Shaft shape, size and length can be customized by request |
| Voltage | 1.5v-24v |
Product Details:
12mm Micro DC Geared Motor
+ Brand: Linkto Motor
| Model: | LGM12-N20 | Type: | DC Geared Motor |
| Voltage: | 1.5v-24v | Speed: | 5rpm-3000rpm |
| Continuous Current: | ≤0.3A | Stall Torque: | ≤1kg.cm |
| Typical Application: | Commercial Products,Door lock,Educational robot,Electric shaver,Hub lock,Industrial Tools,Model train,Monitor,Security and Locks,Toy robot,etc. | ||
+ Outline Dimension
+ Gear ratio and length of gearbox
| Number of gear stages | 3 | 4 | 5 | 7 |
| Gear ratio | 10 | 23 | 210 | 1000 |
| 30 | 256 | |||
| 50 | 298 | |||
| 75 | 380 | |||
| 100 | ||||
| 150 | ||||
| Length of gearbox L(mm） | 9mm | 12mm | ||
+ Technical Data For Reference
| MODEL | VOlTAGE | NO LOAD | RATED LOAD | STALL | |||||||
| NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | rpm | A | rpm | A | mN.m | Kg.cm | W | mN.m | Kg.cm | A | |
| LGM12-N20-10 | 6 | 1804 | 0.06 | 1263 | 0.2 | 8 | 0.082 | 1.03 | 23 | 0.235 | 0.55 |
| LGM12-N20-23 | 6 | 799 | 0.085 | 780 | 0.2 | 10 | 0.102 | 0.49 | 33 | 0.337 | 0.58 |
| LGM12-N20-30 | 12 | 700 | 0.04 | 500 | 0.15 | 1 | 0.010 | 0.52 | 29 | 0.296 | 0.45 |
| LGM12-N20-50 | 3 | 200 | 0.06 | 175 | 0.15 | 6 | 0.061 | 0.1 | 30 | 0.306 | 0.4 |
| LGM12-N20-75 | 6 | 260 | 0.065 | 205 | 0.175 | 27 | 0.275 | 0.59 | 74 | 0.755 | 0.54 |
| LGM12-N20-100 | 3 | 110 | 0.05 | 90 | 0.15 | 14 | 0.143 | 0.13 | 78 | 0.796 | 0.65 |
| LGM12-N20-150 | 3 | 85 | 0.05 | 75 | 0.12 | 15 | 0.153 | 0.12 | 98 | 1.000 | 0.45 |
| LGM12-N20-210 | 3 | 35 | 0.04 | 27 | 0.08 | 25 | 0.255 | 0.07 | 98 | 1.000 | 0.25 |
| LGM12-N20-256 | 6 | 80 | 0.035 | 66 | 0.12 | 34 | 0.347 | 0.24 | 98 | 1.000 | 0.53 |
| LGM12-N20-298 | 4.5 | 40 | 0.07 | 32 | 0.2 | 39 | 0.398 | 0.14 | 98 | 1.000 | 0.65 |
| LGM12-N20-380 | 6 | 24 | 0.04 | 19 | 0.07 | 49 | 0.500 | 0.2 | 98 | 1.000 | 0.25 |
| LGM12-N20-1000 | 5 | 20 | 0.054 | 16 | 0.2 | 49 | 0.500 | 0.2 | 98 | 1.000 | 0.74 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Applications
- Commercial Products,Door lock,
- Educational robot,Electric shaver,
- Hub lock,Industrial Tools,Model train,
- Monitor,Security and Locks,Toy robot,etc.
