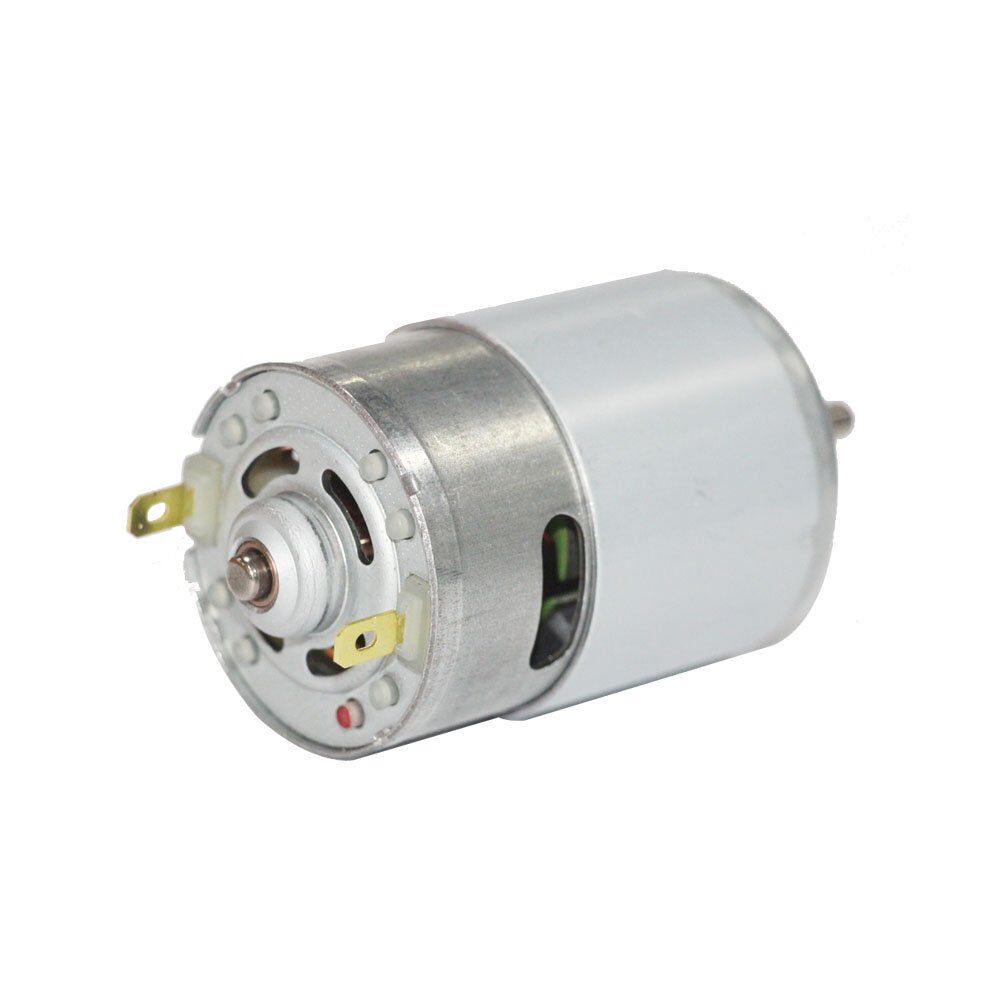

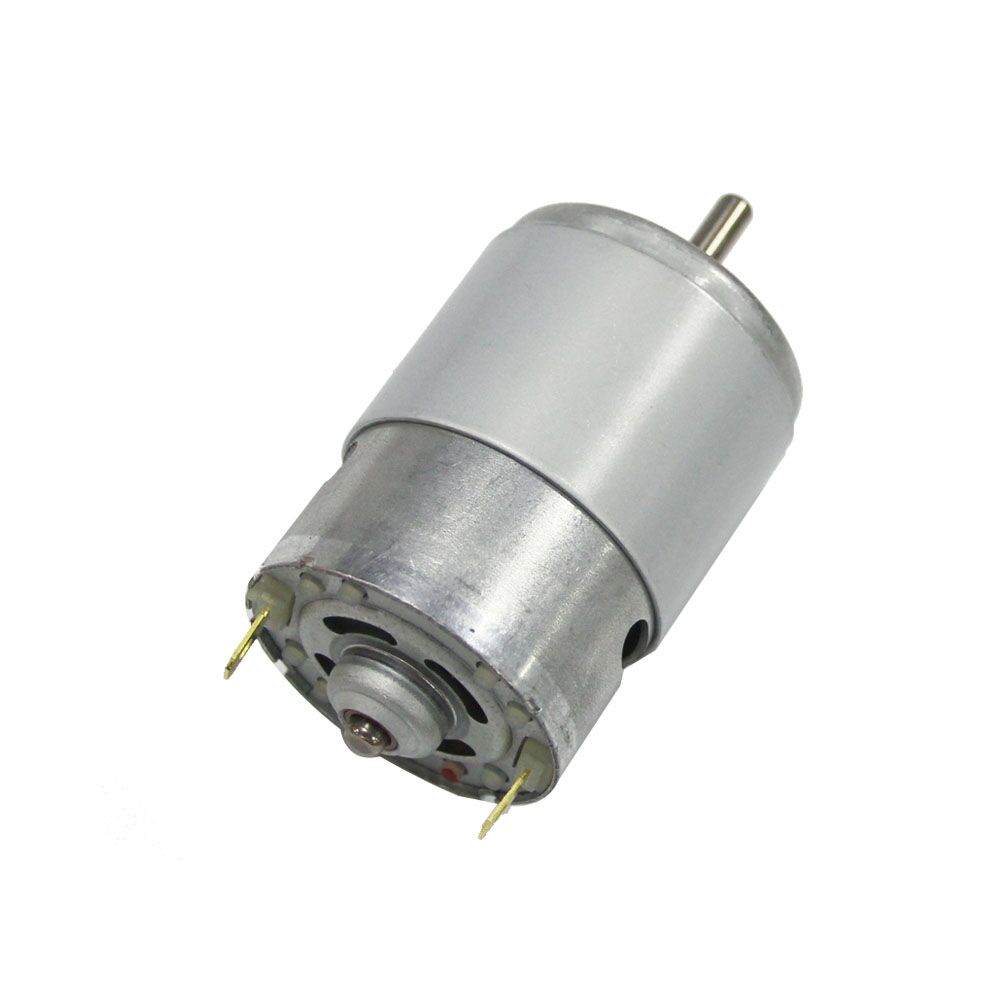

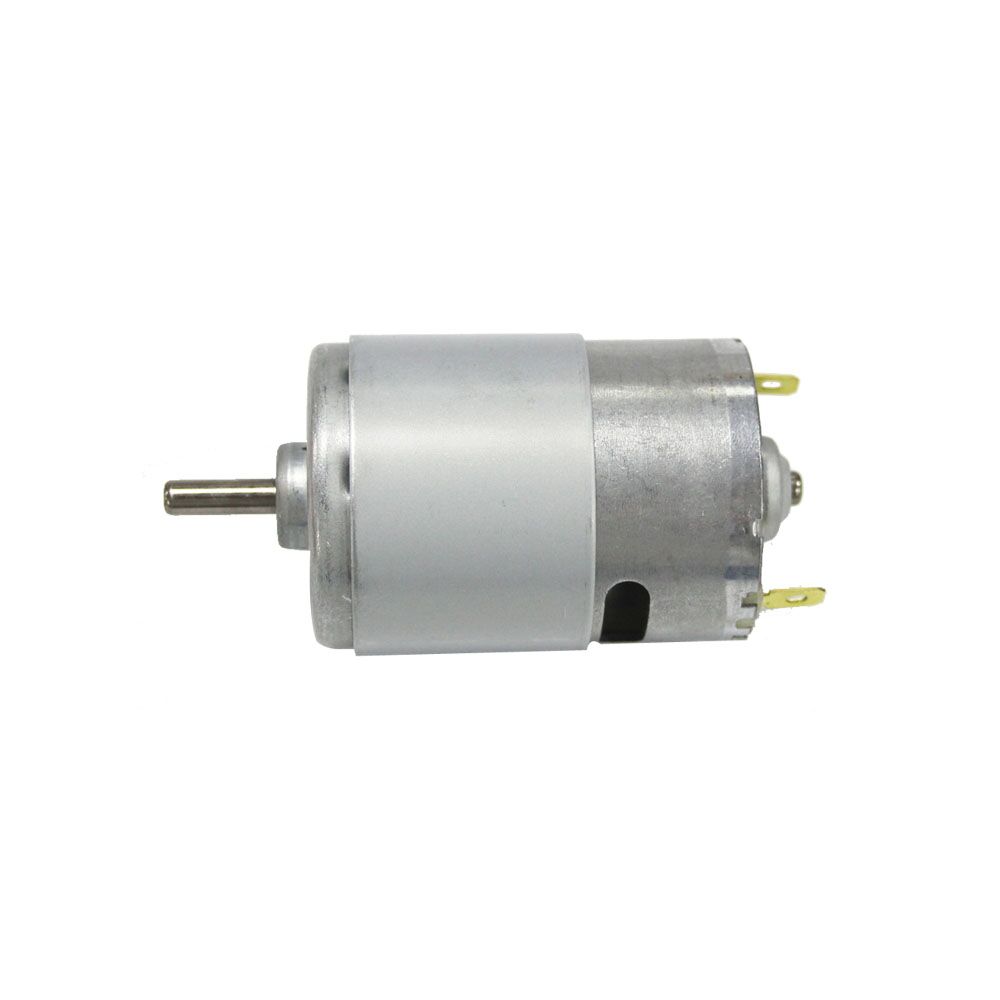

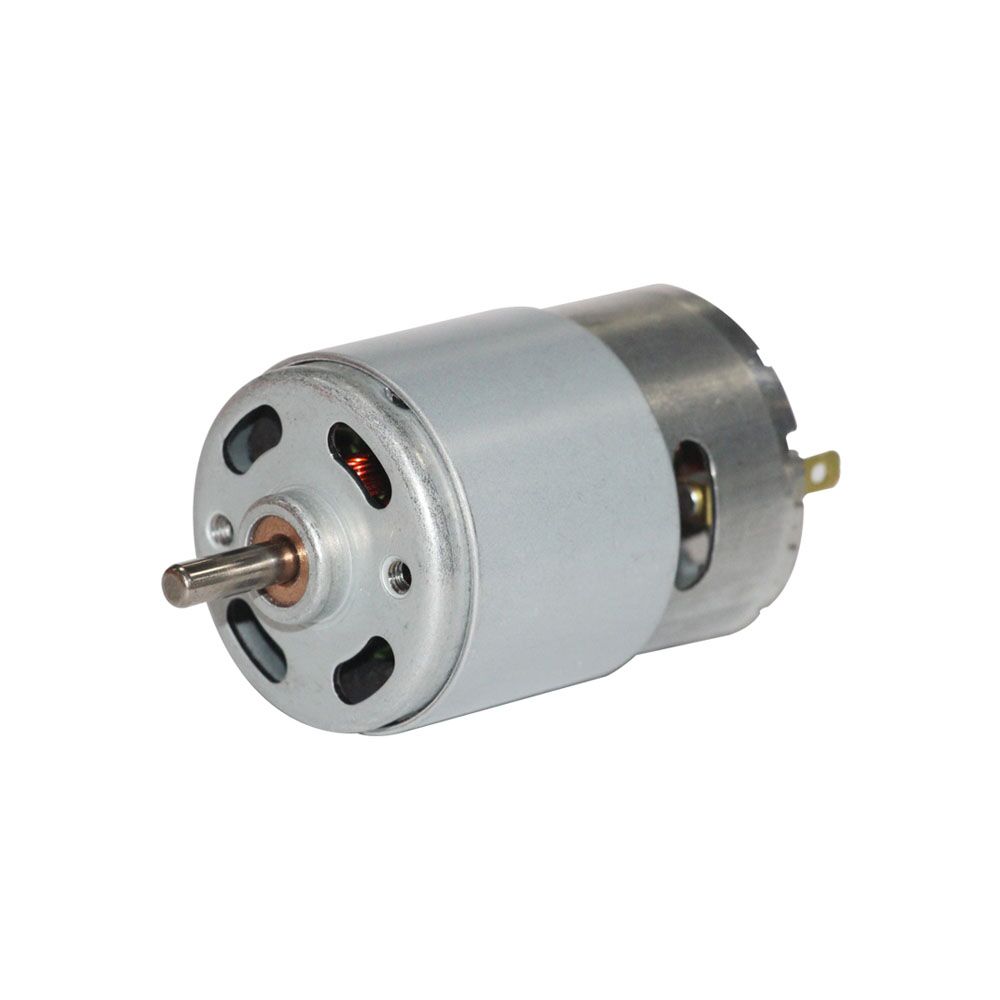

LRC-750/755 ∅42.2mm DC Brushed Motor
42.2mm diameter micro DC brushed motor, could with 42mm reduction gearbox, specific parameters customized by request.
Additional information
| Model | LRC-750/755 |
|---|---|
| Type | DC Brushed Motor |
| Body Size | Φ42.2*60mm |
| Shaft Size | Φ5mm diameter, Length customized by request |
| Weight | 270g (Approx) |
| Voltage | 3v-36v |
| Output Power | ≤250W |
Product Details:
42.2mm Diameter Micro DC Brushed Motor
+ Brand: Linkto Motor
| Model: | LRC-750/755 | Brush Type: | Carbon-brush |
| Voltage: | 3v-36v | Speed: | 600rpm-30000rpm |
| Continuous Current: | ≤20A | Stall Torque: | ≤9kg.cm |
| Typical Application: | Automotive Parts,Commercial Products,Electric tool,Home Appliances,Industrial Tools,Intelligent Weeding Robot,Sewing machine,etc. | ||
+ Outline Dimension
+ Technical Data For Reference
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | V | r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |
| LRC-750SH-5050 | 6.0-18.0 | 12 | 10500 | 0.85 | 8900 | 5.05 | 44.69 | 456 | 41.7 | 294 | 3000 | 28.5 |
| LRF-750PH-7030 | 6.0-12.0 | 9.6 | 12700 | 1.3 | 11000 | 9.9 | 53.9 | 550 | 62.1 | 402.78 | 4110 | 65.5 |
| LRF-755SH-4050 | 9.0-18.0 | 12 | 6500 | 0.5 | 5400 | 2.5 | 34.3 | 350 | 19.4 | 203.84 | 2080 | 12.4 |
| LRF-755PH-8017 | 6.0-20.0 | 18 | 19800 | 2.3 | 16320 | 18.8 | 137.79 | 1406 | 235.7 | 784 | 8000 | 96.2 |
| LRF-750SH-7032R | 6.0-12.0 | 12 | 15000 | 1.79 | 12671 | 7.52 | 48.6 | 496 | 66.6 | 393.1 | 4010 | 55.6 |
| LRF-750PH-6045 | 6.0-18.0 | 12 | 10420 | 1.16 | 8850 | 8.38 | 73.69 | 752 | 68.4 | 490 | 5000 | 49.1 |
| LRF-750PH-8027 | 6.0-12.0 | 9.6 | 18600 | 2 | 15250 | 17.4 | 67.03 | 684 | 107 | 372.4 | 3800 | 85.5 |
| LRF-755SH-27115 | 6.0-24.0 | 24 | 4260 | 0.18 | 3614 | 1.01 | 43 | 438.6 | 16.27 | 283.5 | 2891.7 | 5.64 |
| LRF-755PH-6513 | 9.0-18.0 | 12 | 18900 | 2.85 | 15750 | 13.9 | 47.04 | 480 | 77.6 | 284.2 | 2900 | 70 |
| LRF-755PH-5518 | 9.0-18.0 | 12 | 13780 | 1.8 | 11450 | 9 | 47.04 | 480 | 56.4 | 279.3 | 2850 | 46.5 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Motor Characteristics
+ Applications
- Automotive Parts,Commercial Products,
- Electric tool,Home Appliances,Industrial Tools,
- Intelligent Weeding Robot,Sewing machine,etc.
