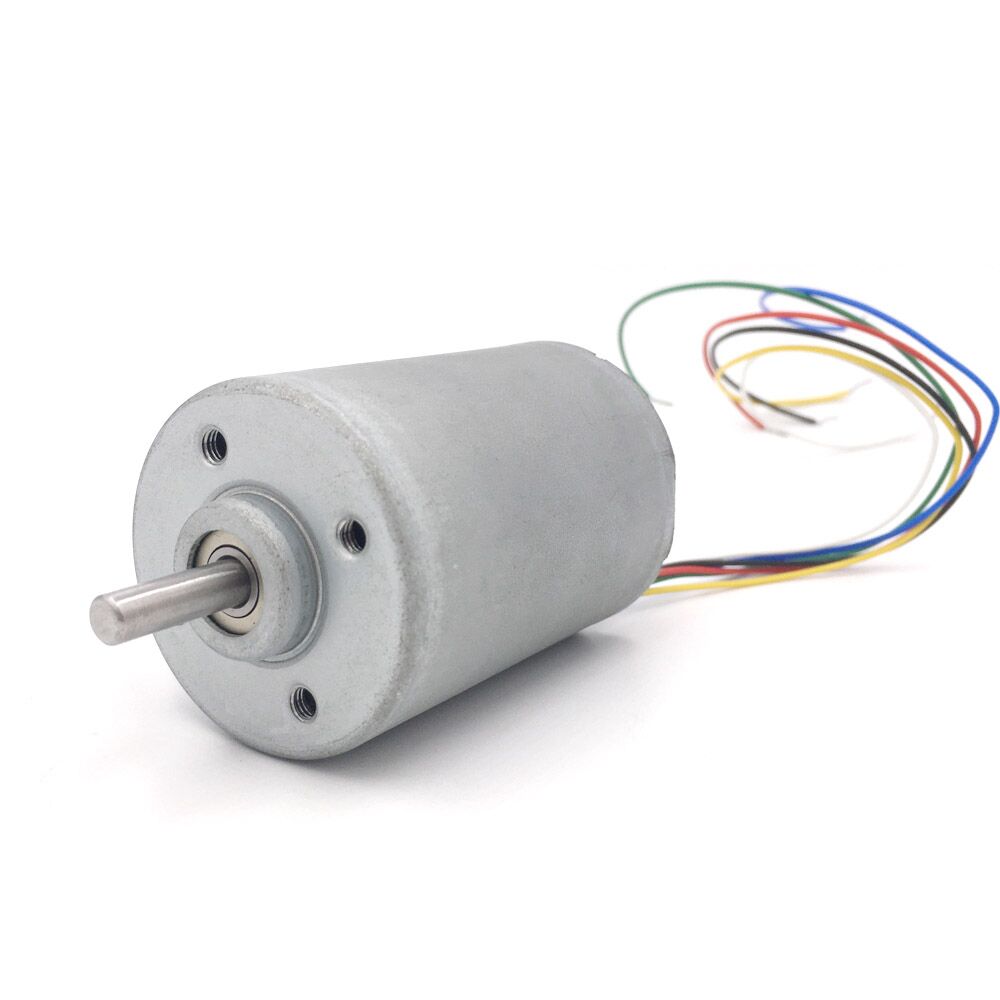

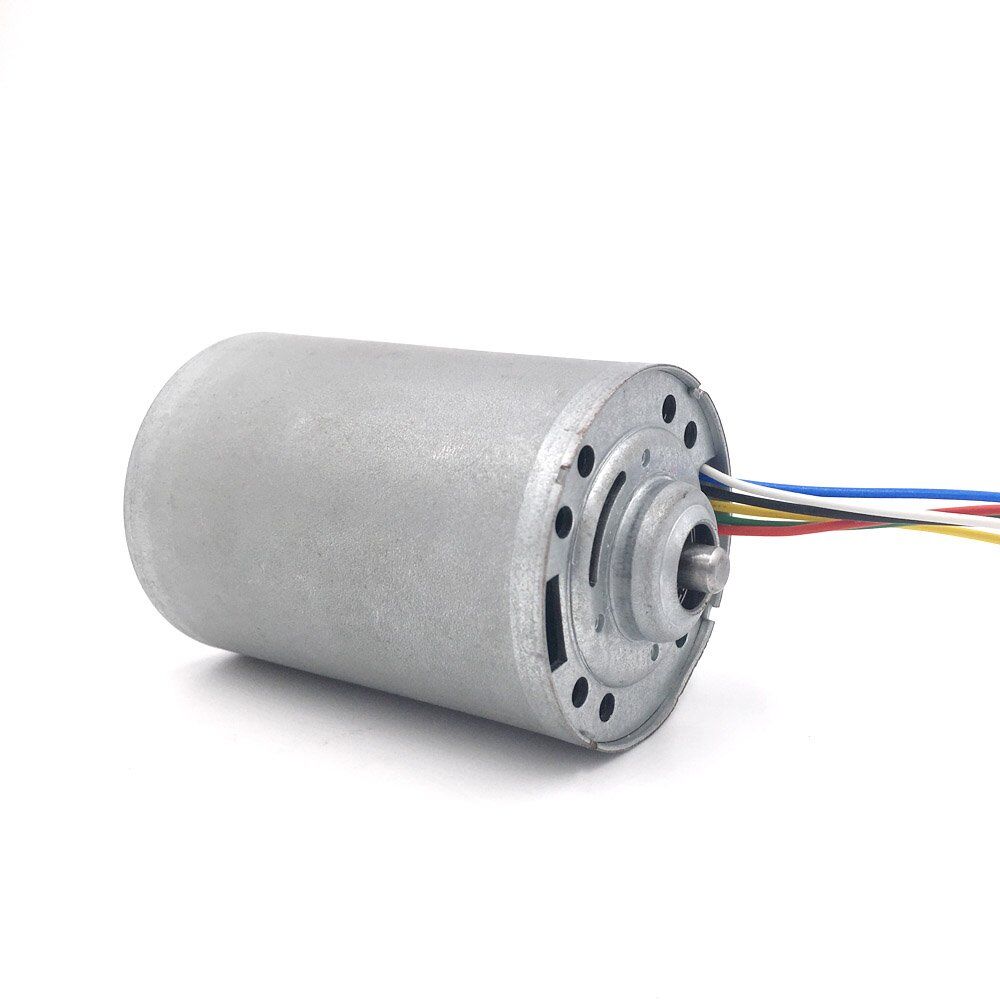

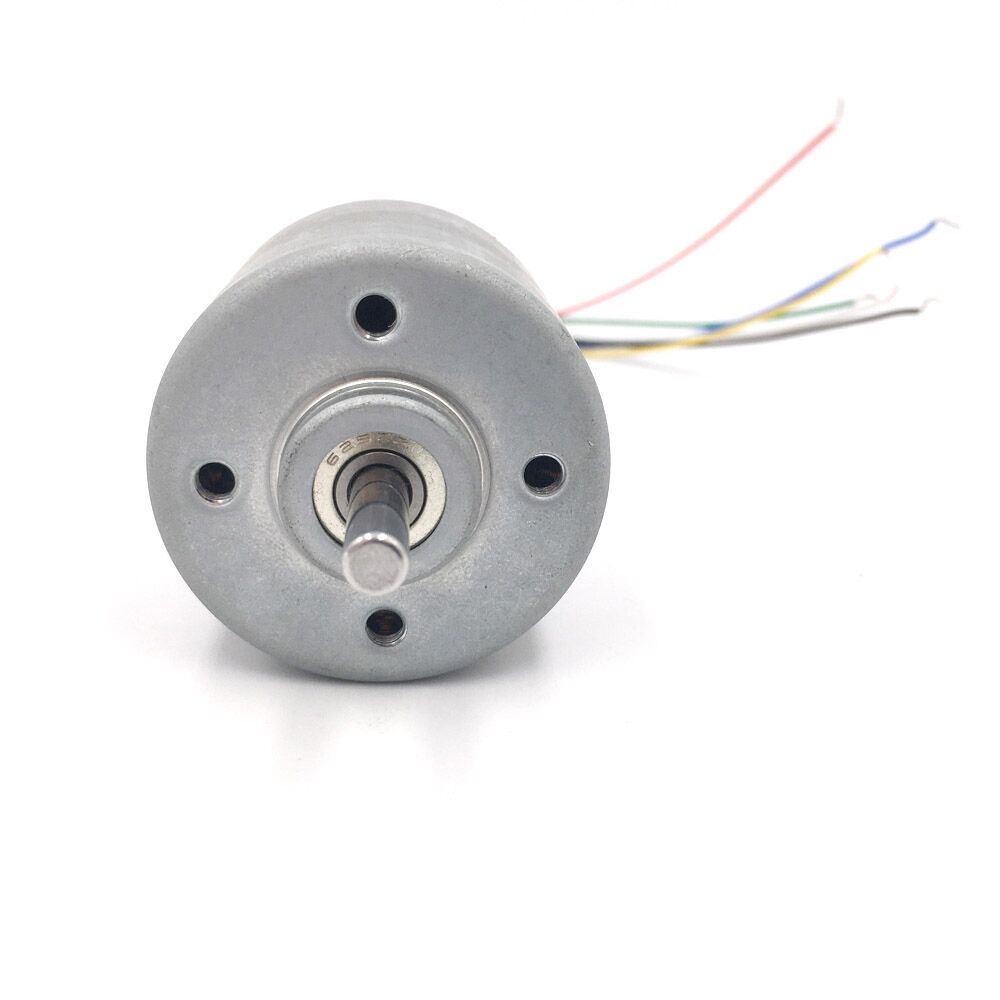

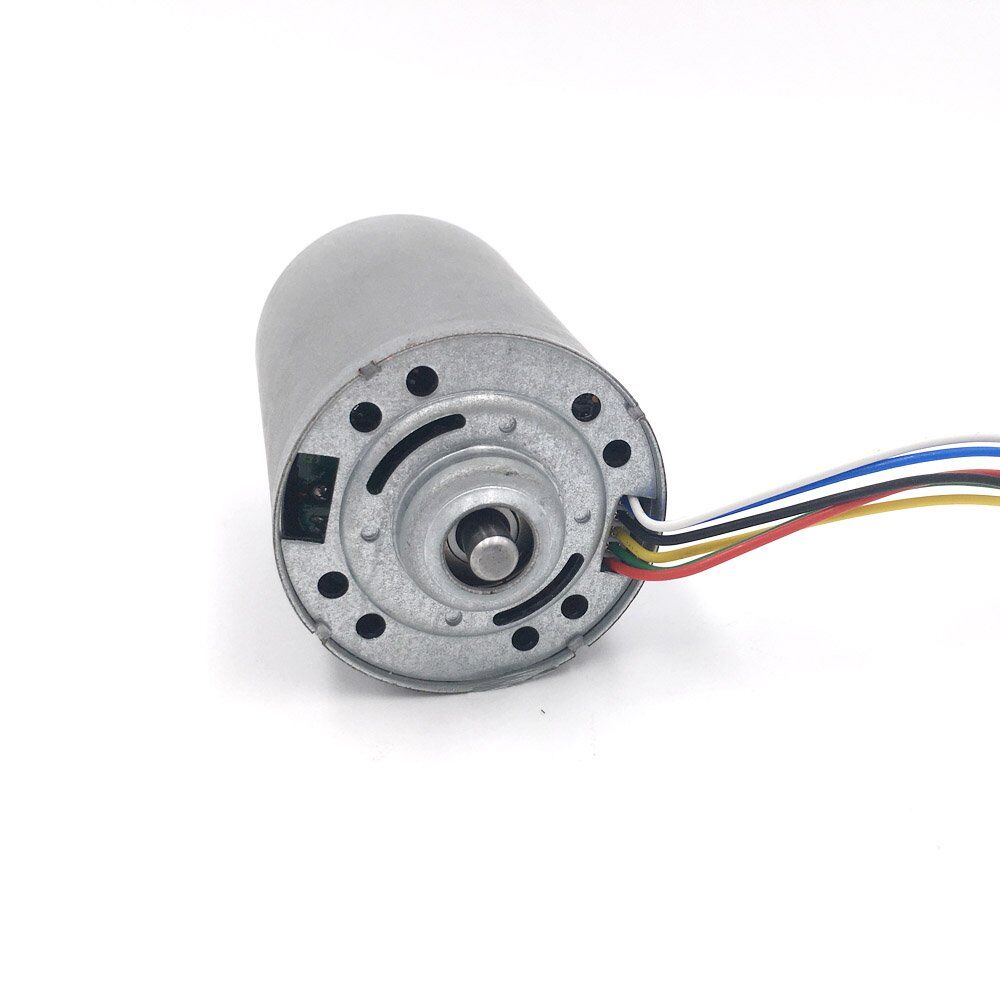

LBL-4260 ∅42mm DC Brushless Motor
42mm diameter micro DC brushless motor, could with 42mm reduction gearbox, specific parameters customized by request.
Additional information
| Model | LBL-4260 |
|---|---|
| Type | DC Brushless Motor |
| Body Size | Φ42*60mm |
| Shaft Size | Φ5.0mm diameter, Length customized by request |
| Weight | 295g (Approx) |
| Voltage | 6v-30v |
| Output Power | ≤220W |
Product Details:
42mm Diameter Micro DC Brushless Motor
+ Brand: Linkto Motor
| Model: | LBL-4260 | Type: | DC Brushless Motor |
| Voltage: | 6v-30v | Speed: | 1000rpm-25000rpm |
| Continuous Current: | ≤16A | Stall Torque: | ≤8kg.cm |
| Typical Application: | Automobile Parts,Home Application,Medical Apparatus,Industry Equipment,Business Equipment,Personal Care,Power Tools,etc. | ||
+ Outline Dimension
+ Technical Data For Reference
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | V | r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |
| LBL4260-L1 | 8.0-16.0 | 12 | 2038 | 0.15 | 1773 | 0.934 | 47.07 | 480.3 | 8.734 | 362.01 | 3694 | 6.184 |
| LBL4260-L2 | 8.0-26.0 | 18 | 3690 | 0.2 | 3284 | 1.564 | 64.16 | 654.7 | 22.05 | 583.30 | 5952 | 12.6 |
| LBL4260-L3 | 8.0-26.0 | 24 | 4280 | 0.2 | 3766 | 1.567 | 75.13 | 766.6 | 29.62 | 626.02 | 6388 | 11.59 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Motor Characteristics
+ Applications
- Automobile Parts: Pump, Fan, Actuator, Parking Heater
- Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Meat Grinder
- Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, Centrifugal Machine
- Business Equipment: Printer, Copier, Projector, ATM, Vending Machine
- Power Tools: Screwdriver, Drill, Air Compressor
- Personal Care: Hair Dryer, Massager, Vibrator
