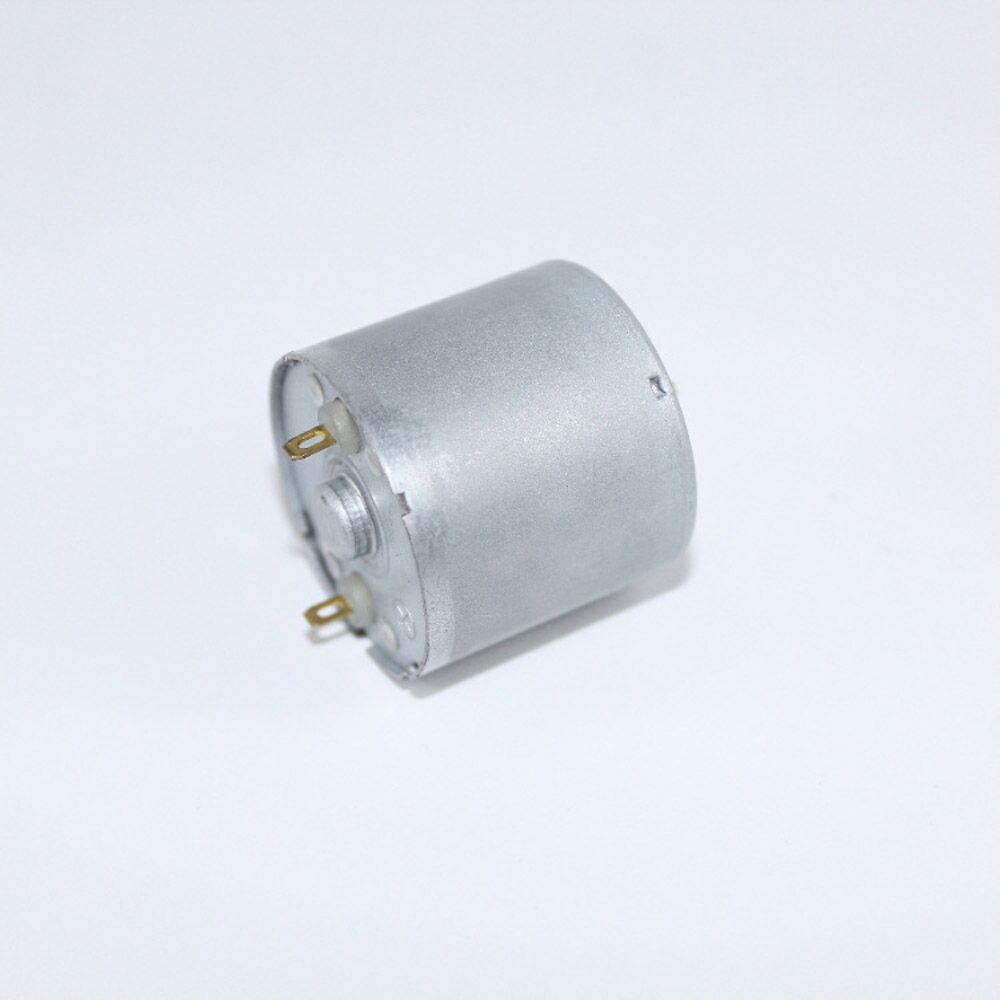

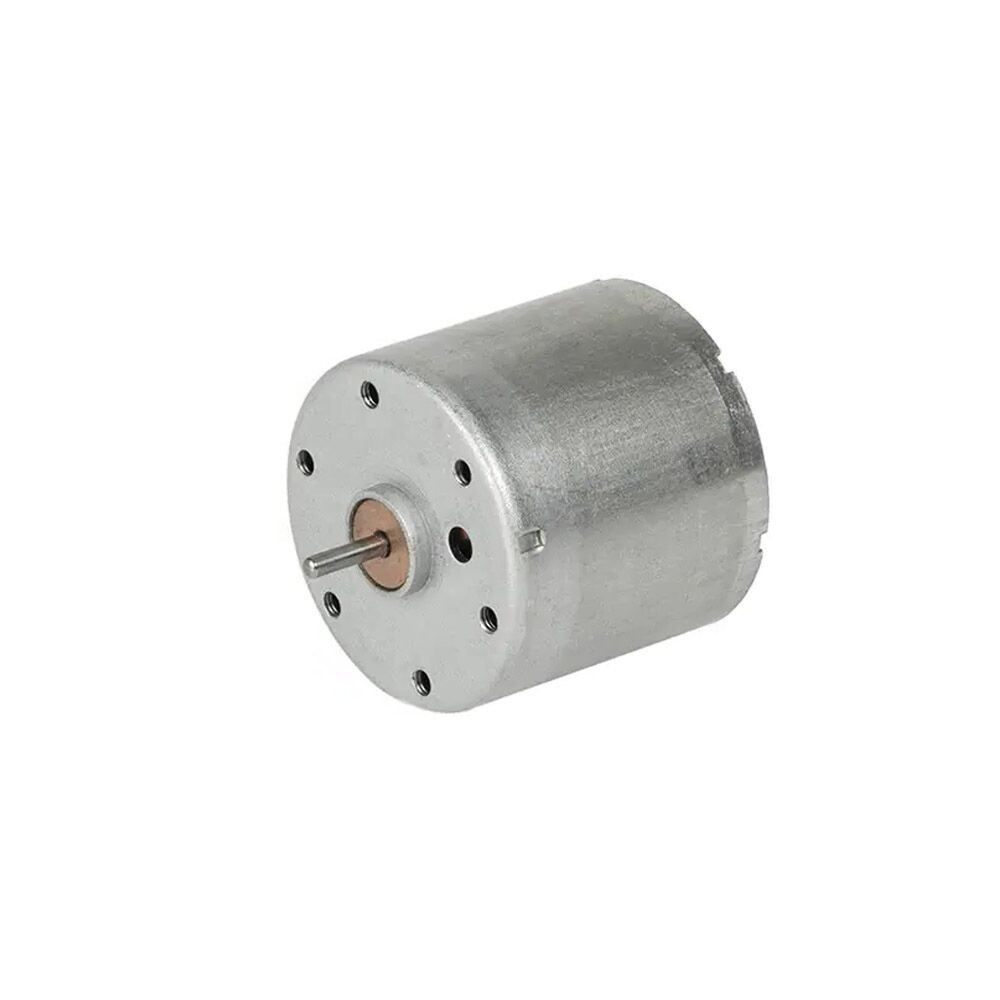

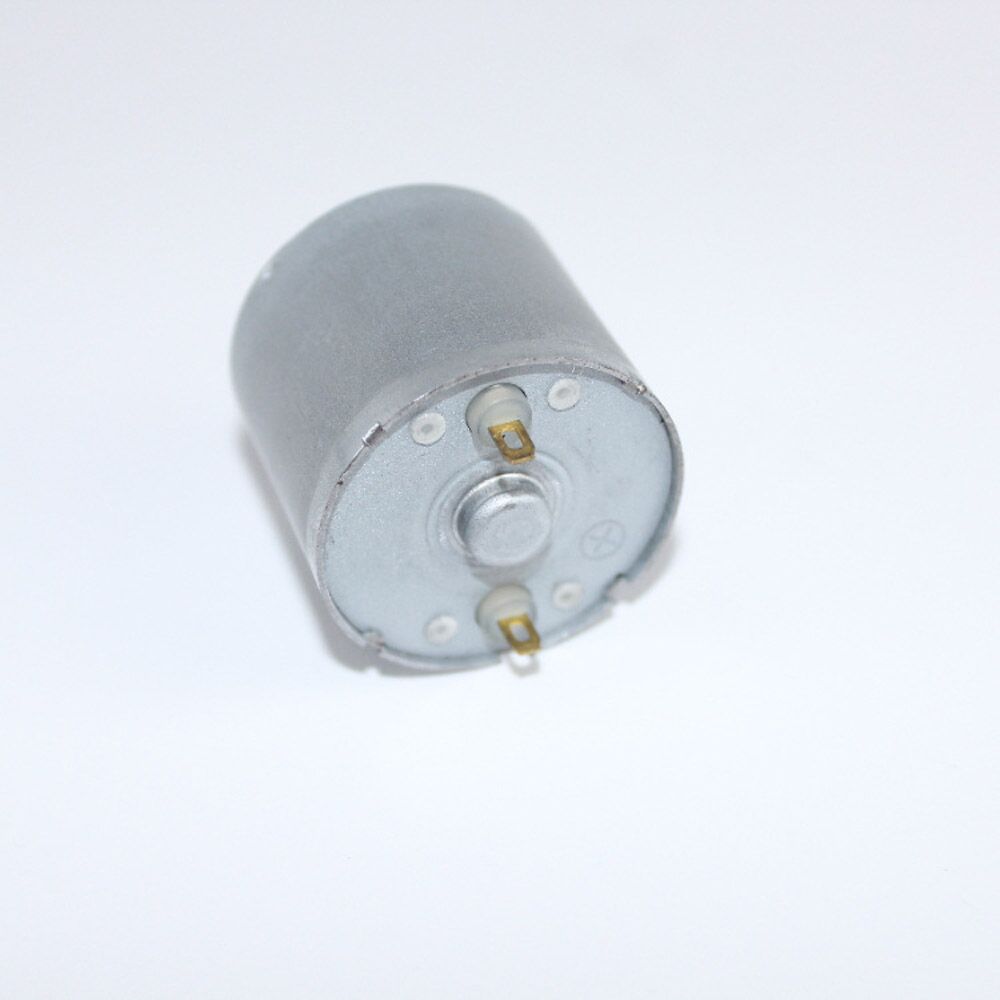

LRF-528 ∅33.1mm DC Brushed Motor
33.1mm diameter micro DC brushed motor, could with 37mm reduction gearbox, specific parameters customized by request.
Additional information
| Model | LRF-528 |
|---|---|
| Type | DC Brushed Motor |
| Body Size | Φ33.1*29.3mm |
| Shaft Size | Φ2mm diameter, Length customized by request |
| Weight | 56g (Approx) |
| Voltage | 3v-24v |
| Output Power | ≤5W |
Product Details:
33.1mm Diameter Micro DC Brushed Motor
+ Brand: Linkto Motor
| Model: | LRF-528 | Brush Type: | Metal-brush/Carbon-brush |
| Voltage: | 3v-24v | Speed: | 1000rpm-16000rpm |
| Continuous Current: | ≤920mA | Stall Torque: | ≤310g.cm |
| Typical Application: | Fan,Home Appliances,Toy,Massage instrument,Home Appliances,Electric tool,Pump,Beauty equipment,Medical Apparatus,etc. | ||
+ Outline Dimension
+ Technical Data For Reference
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | V | r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |
| LRF-528CH-18250 | 9.0-15.0 | 12 | 7000 | 0.06 | 5600 | 0.32 | 4.41 | 45 | 2.58 | 22.05 | 225 | 1.36 |
| LRF-528CH--17300 | 20.0-28.0 | 24 | 6700 | 0.03 | 5300 | 0.2 | 4.9 | 50 | 2.72 | 23.44 | 239.2 | 0.843 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Motor Characteristics
+ Applications
- Fan,Home Appliances,Toy,Massage instrument,
- Home Appliances,Electric tool,Pump,
- Beauty equipment,Medical Apparatus,etc.
