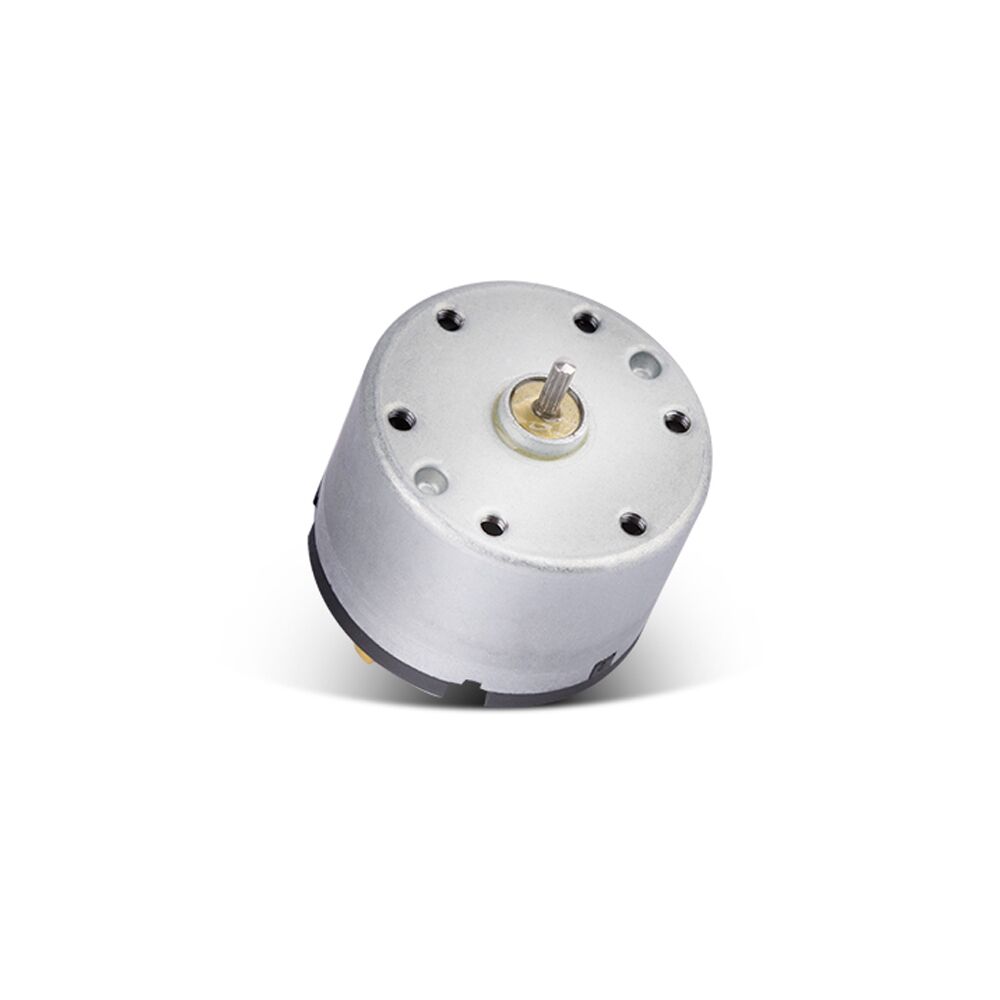

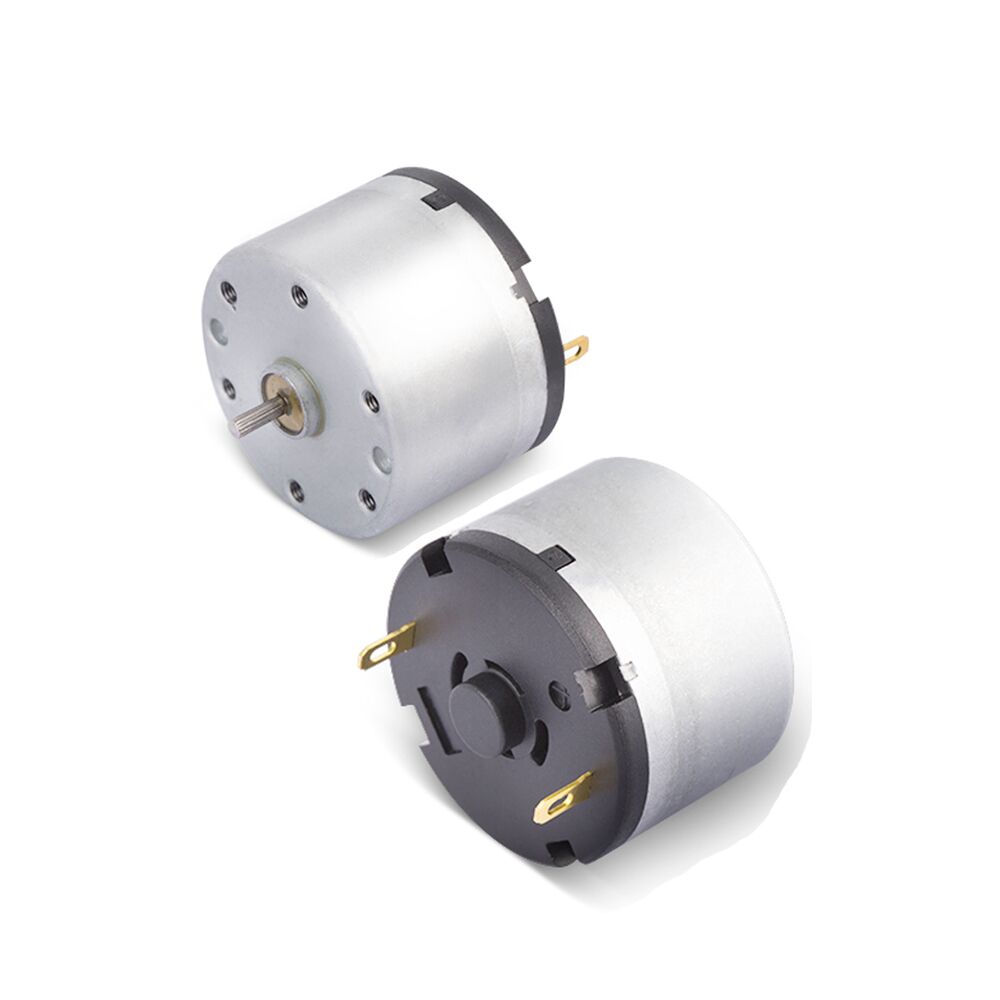

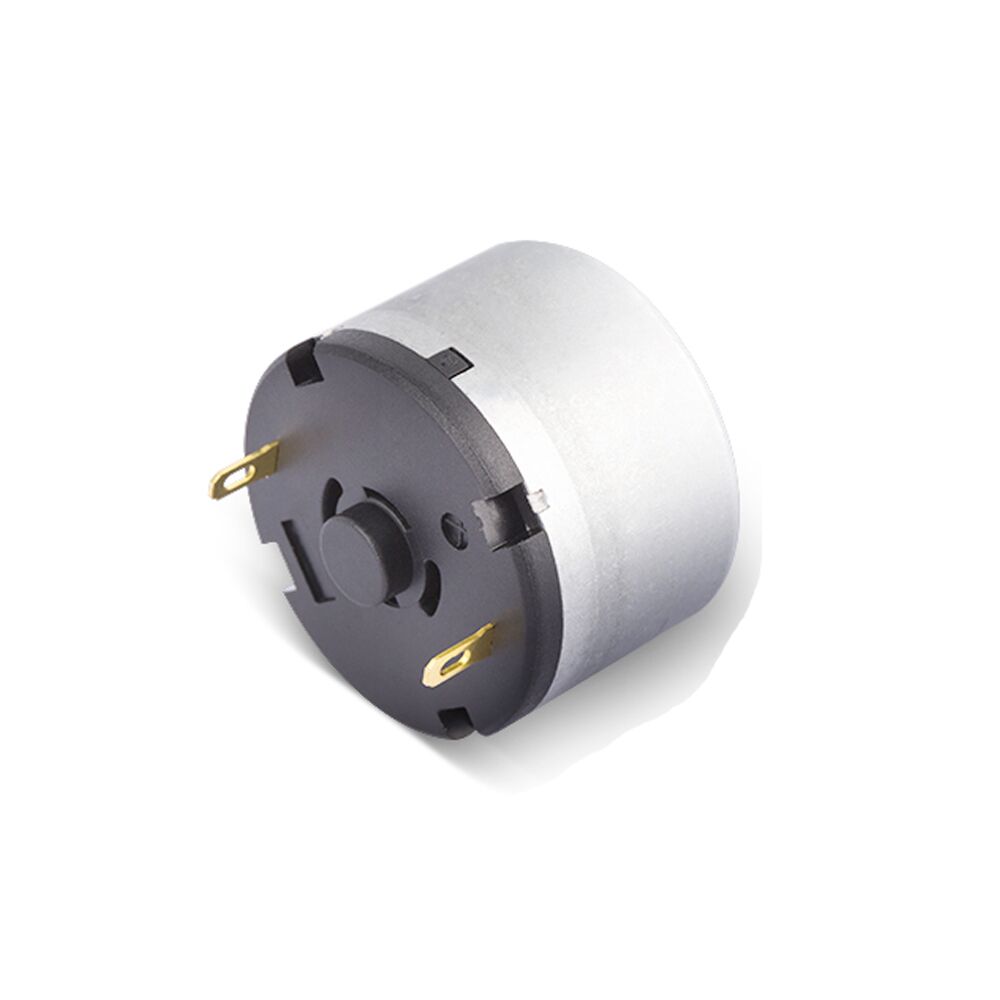

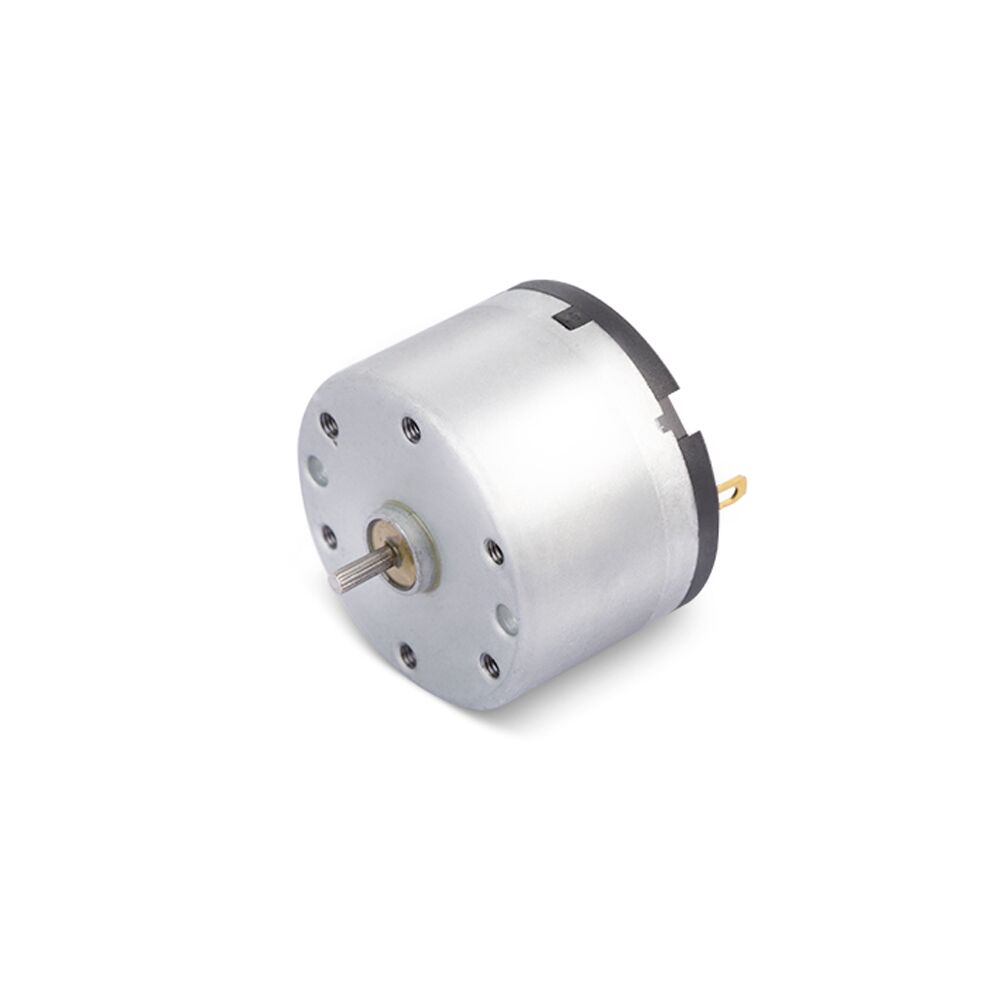

LRF-520 ∅33mm DC Brushed Motor
33mm diameter micro DC brushed motor, specific parameters customized by request.
Additional information
| Model | LRF-520 |
|---|---|
| Type | DC Brushed Motor |
| Body Size | Φ33*22.7mm |
| Shaft Size | Φ2mm diameter, Length customized by request |
| Weight | 56g (Approx) |
| Voltage | 3v-24v |
| Output Power | ≤5W |
Product Details:
32mm Diameter Micro DC Brushed Motor
+ Brand: Linkto Motor
| Model: | LRF-520 | Brush Type: | Metal-brush/Carbon-brush |
| Voltage: | 3v-24v | Speed: | 1000rpm-16000rpm |
| Continuous Current: | ≤920mA | Stall Torque: | ≤310g.cm |
| Typical Application: | Actuator,Commercial Products,Industrial Tools,Insecticide,Power transmission elevator,Printing machine,etc. | ||
+ Outline Dimension
+ Technical Data For Reference
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | V | r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |
| LRF-520TB-17410 | 9.0-15.0 | 12 | 5500 | 0.037 | 4565 | 0.21 | 3.23 | 33 | 1.55 | 19.01 | 194 | 1.05 |
| LRF-520TB--10900 | 20.0-28.0 | 24 | 3100 | 0.007 | 2600 | 0.02 | 0.98 | 10 | 0.267 | 6.09 | 62.1 | 0.088 |
| LRF-520TB-17360 | 6.0-12.0 | 12 | 6300 | 0.03 | 5406 | 0.18 | 2.98 | 30.4 | 1.76 | 21.9 | 223.5 | 1.17 |
| LRF-520TB-20230 | 3.0-6.0 | 6 | 5000 | 0.04 | 4500 | 0.16 | 1.96 | 20 | 0.92 | 20.5 | 210 | 2.2 |
| LRF-520TB-17380 | 6.0-12.0 | 12 | 6000 | 0.03 | 5200 | 0.17 | 2.94 | 30 | 1.6 | 24.5 | 250 | 1.5 |
| LRF-520TB-11710 | 9.0-13.0 | 12 | 3150 | 0.015 | 2550 | 0.11 | 2.94 | 30 | 0.78 | 15.4 | 157 | 0.51 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Motor Characteristics
+ Applications
- Actuator,Commercial Products,
- Industrial Tools,Insecticide,
- Power transmission elevator,Printing machine,etc.
