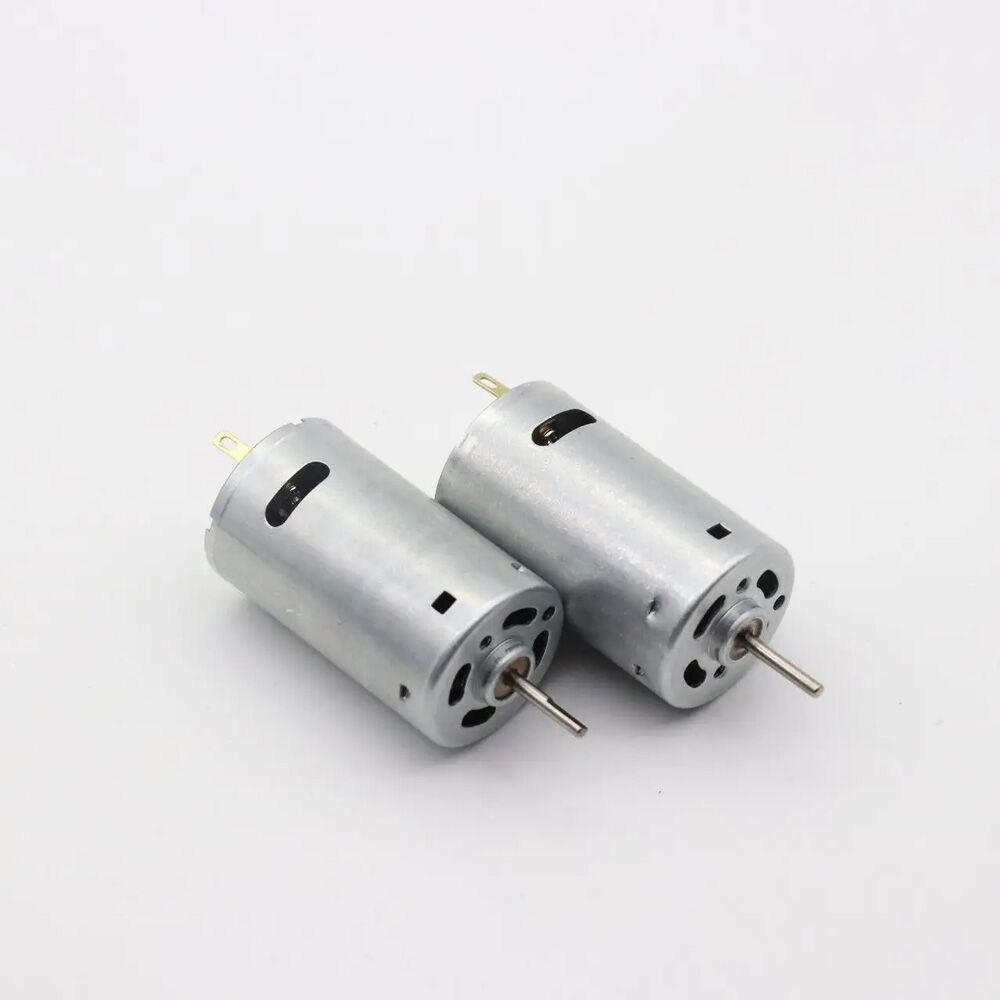

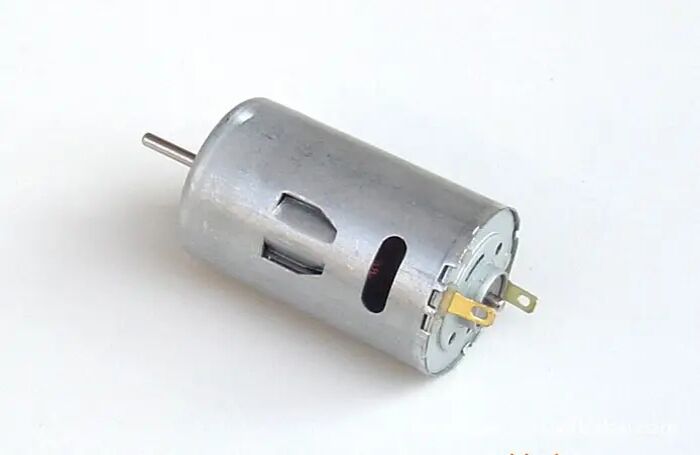

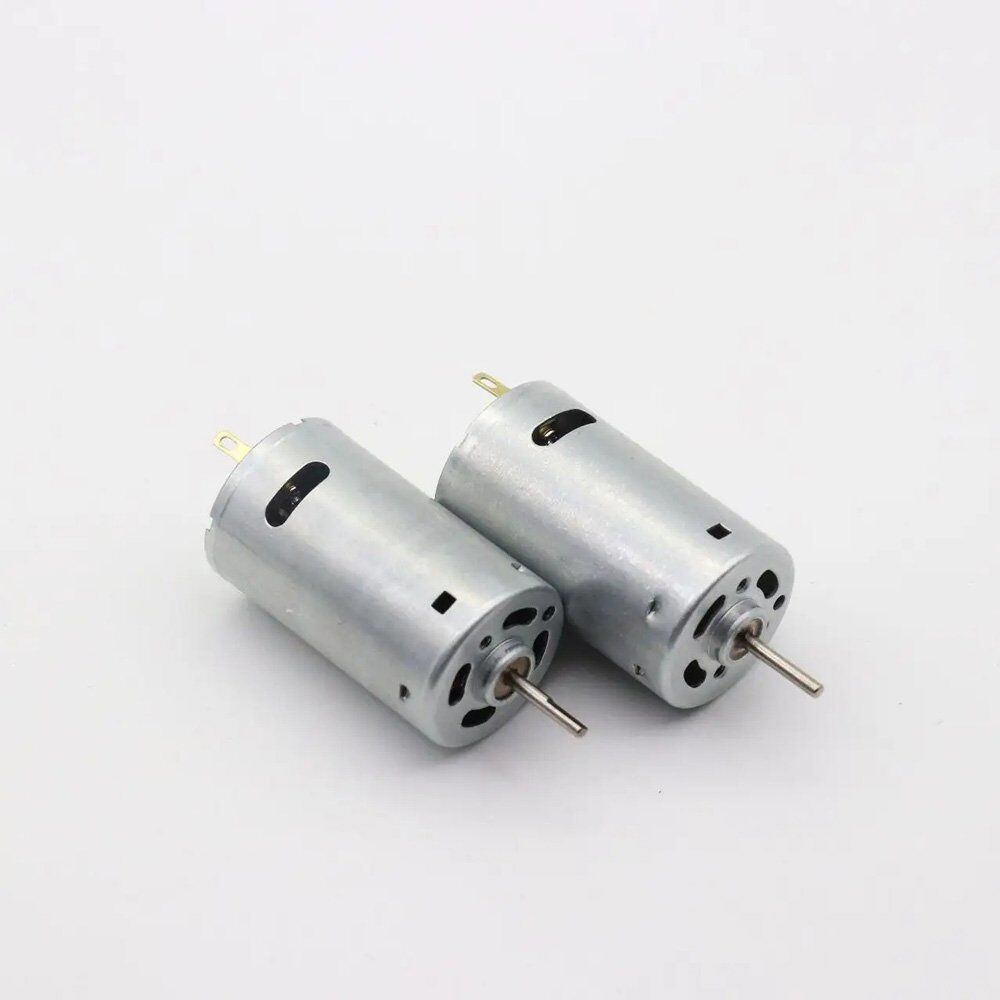

LRC-390/395 ∅27.7mm DC Brushed Motor
27.7mm diameter micro DC brushed motor, could with 28mm reduction gearbox, specific parameters customized by request.
Additional information
| Model | LRC-390/395 |
|---|---|
| Type | DC Brushed Motor |
| Body Size | Φ27.8*47mm |
| Shaft Size | Φ2.3mm diameter, Length customized by request |
| Weight | 90g (Approx) |
| Voltage | 3v-32v |
| Output Power | ≤22W |
Product Details:
27.7mm Diameter Micro DC Brushed Motor
+ Brand: Linkto Motor
| Model: | LRC-390/395 | Brush Type: | Carbon-brush |
| Voltage: | 3v-32v | Speed: | 700rpm-30000rpm |
| Continuous Current: | ≤2200mA | Stall Torque: | ≤1200g.cm |
| Typical Application: | Automotive Parts,Hair dryer,Beer pump,Coffee machine,Home Appliances,Throttle control,Vacuum cleaner,Massage apparatus,Personal Care,Window actuator,etc. | ||
+ Outline Dimension
+ Technical Data For Reference
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | V | r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |
| LRC-390SA-3168 | 6.0-12.0 | 7.5 | 8800 | 0.23 | 7480 | 1.34 | 6.51 | 66.4 | 6.67 | 56.84 | 580 | 7.65 |
| LRF-390PH-4535 | 3.0-12.0 | 6 | 12800 | 0.72 | 10940 | 3.81 | 12.35 | 126 | 14.2 | 85.26 | 870 | 22.1 |
| LRF-395SA-16120 | 9.0-18.0 | 12 | 4100 | 0.08 | 3285 | 0.32 | 6.04 | 61.6 | 2.08 | 30.38 | 310 | 1.29 |
| LRF-395PH-1890 | 12.0-30.0 | 24 | 10500 | 0.11 | 8800 | 0.7 | 12.35 | 126 | 11.4 | 76.44 | 780 | 3.76 |
| LRF-390SA-4535R | 6.0-9.0 | 9 | 17500 | 0.65 | 14909 | 3.74 | 15.2 | 155 | 23.81 | 103 | 1050.6 | 21.51 |
| LRF-390SH-2975 | 6.0-12.0 | 12 | 12000 | 0.29 | 10165 | 0.33 | 5.75 | 58.6 | 1.31 | 80.4 | 820 | 8.9 |
| LRF-395SA-3132 | 6.0-12.0 | 12 | 16800 | 0.36 | 14406 | 2.08 | 11.59 | 118 | 15.91 | 78.4 | 800 | 12 |
| LRF-395SH-2840 | 12.0-24.0 | 18 | 19300 | 0.27 | 16400 | 1.9 | 13.23 | 135 | 22.75 | 88.2 | 900 | 11.1 |
| LRF-395SH-15100R | 6.0-24.0 | 24 | 10300 | 0.07 | 8893 | 0.38 | 7.09 | 72.3 | 6.68 | 54.9 | 560 | 2.66 |
| LRF-395PH-15150 | 12.0-30.0 | 24 | 6200 | 0.055 | 5255 | 0.31 | 9.41 | 96 | 5.18 | 61.74 | 630 | 1.73 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Motor Characteristics
+ Applications
- Automotive Parts,Hair dryer,Beer pump,Coffee machine,
- Home Appliances,Throttle control,Vacuum cleaner,
- Massage apparatus,Personal Care,Window actuator,etc.
