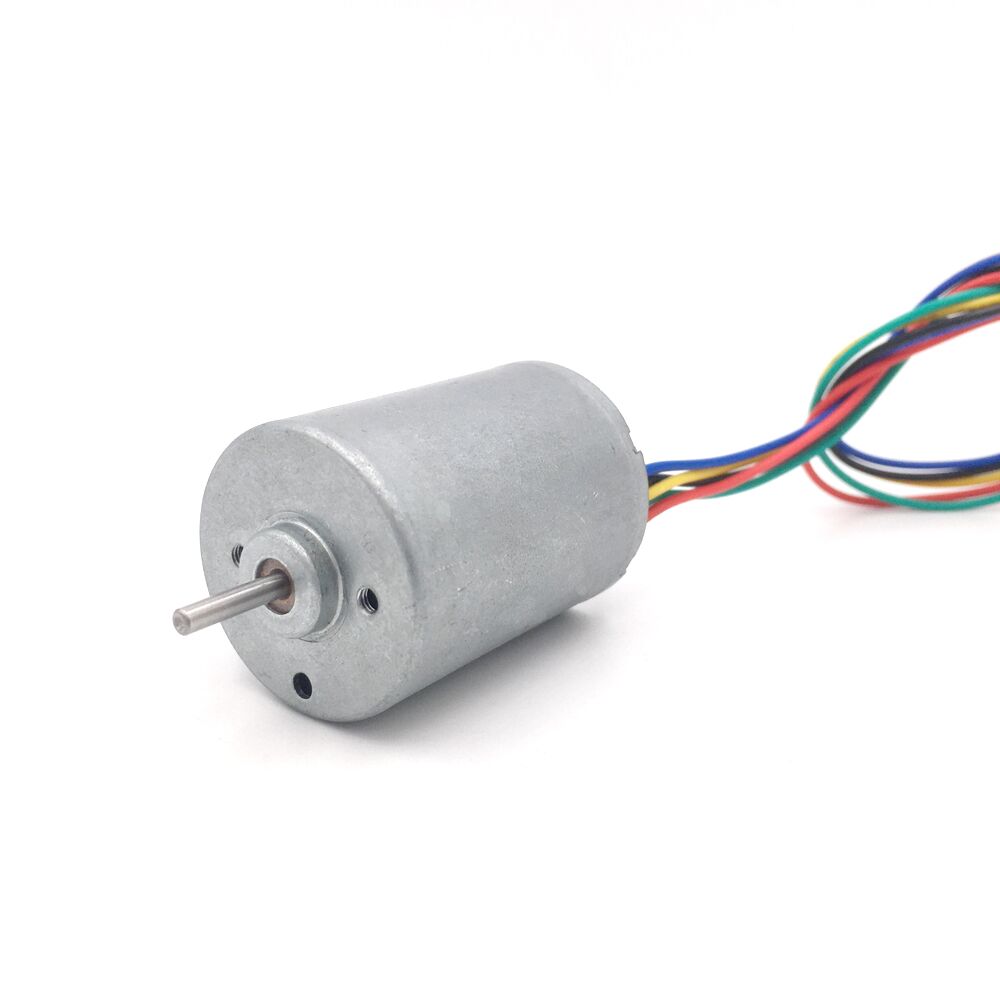

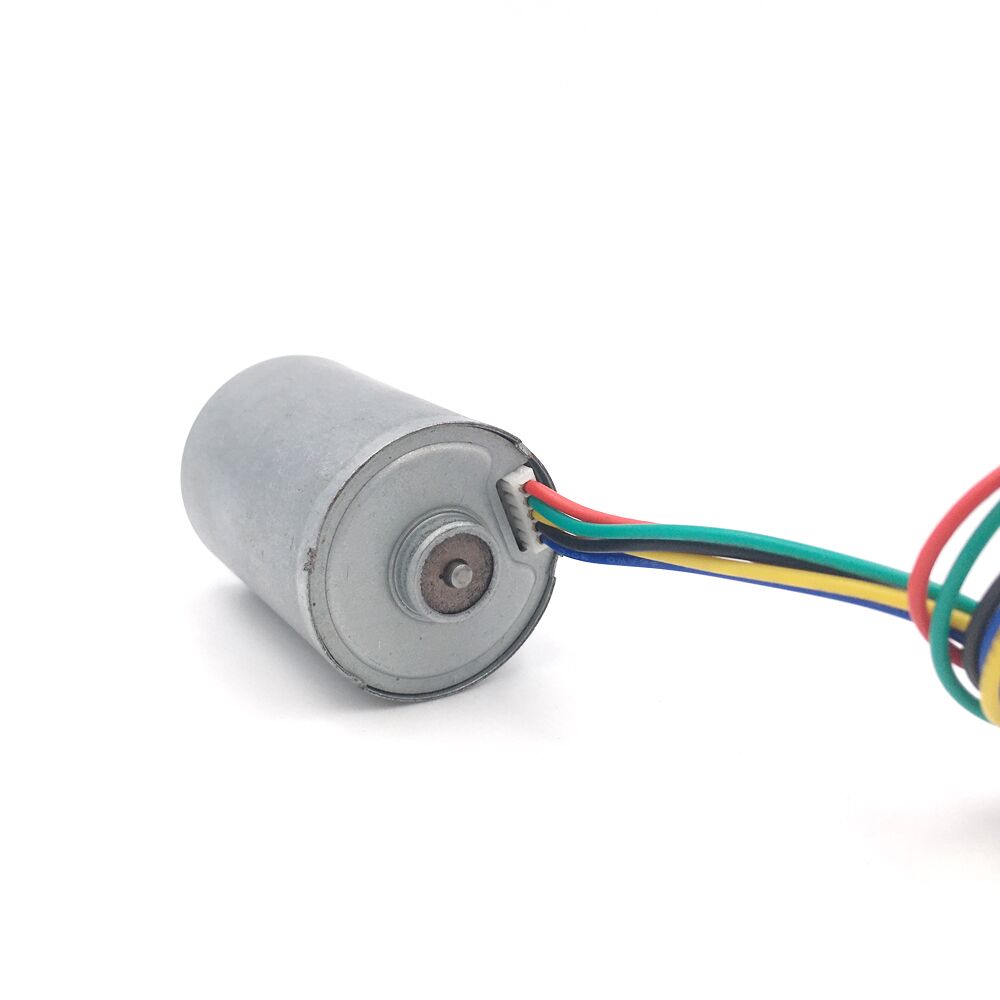

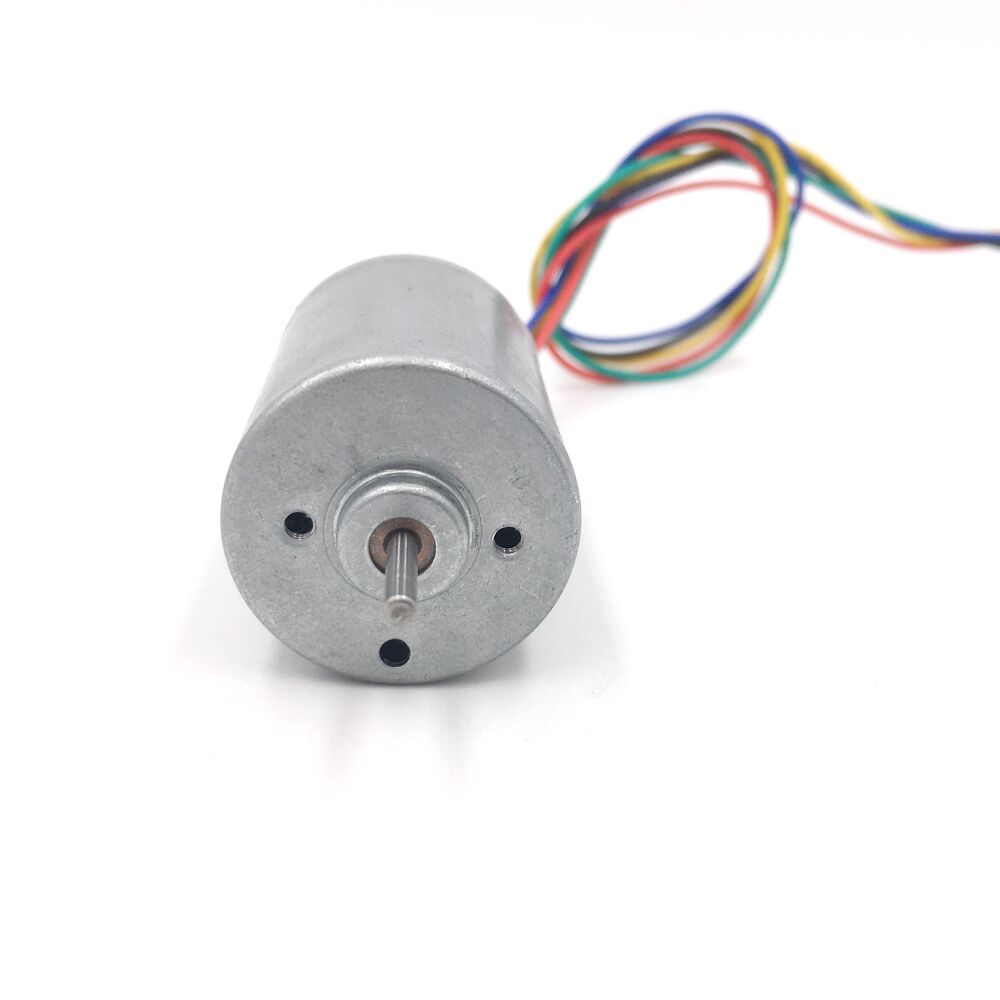

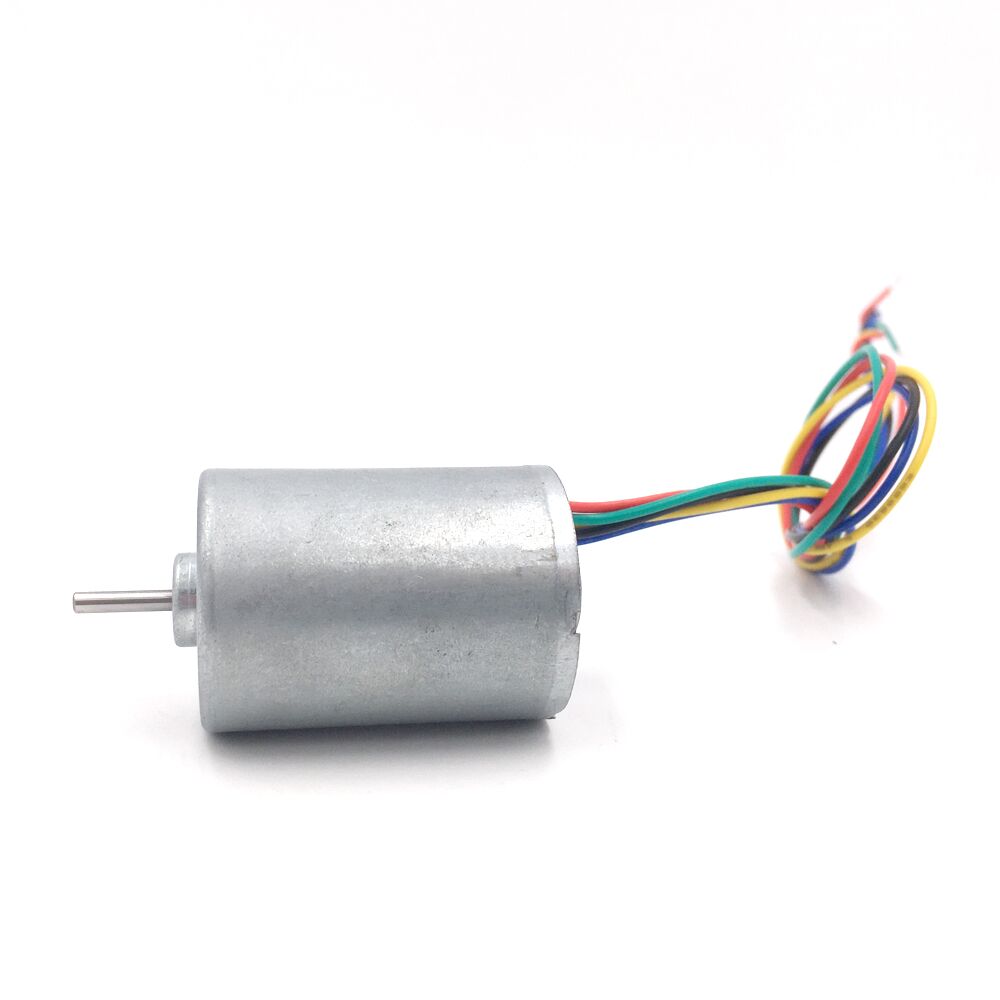

LBL-2847 ∅28mm DC Brushless Motor
28mm diameter micro DC brushless motor, could with 28mm reduction gearbox, specific parameters customized by request.
Additional information
| Model | LBL-2847 |
|---|---|
| Type | DC Brushless Motor |
| Body Size | Φ28*46.6mm |
| Shaft Size | Φ2.3mm diameter, Length customized by request |
| Weight | 115g (Approx) |
| Voltage | 5v-26v |
| Output Power | ≤12W |
Product Details:
28mm Diameter Micro DC Brushless Motor
+ Brand: Linkto Motor
| Model: | LBL-2847 | Type: | DC Brushless Motor |
| Voltage: | 6v-26v | Speed: | 1000rpm-15000rpm |
| Continuous Current: | ≤3200mA | Stall Torque: | ≤1200g.cm |
| Typical Application: | Automotive Parts, Home Application, Medical Apparatus, Industry Apparatus, Business Equipment, Personal Care,etc. | ||
+ Outline Dimension
+ Technical Data For Reference
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | V | r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |
| LBL2847-L1 | 6.0-12.0 | 12 | 7170 | 0.17 | 6095 | 0.903 | 11.98 | 122.2 | 7.64 | 79.85 | 814.8 | 5.059 |
| LBL2847-L2 | 8.0-16.0 | 18 | 10833 | 0.2 | 9100 | 1.087 | 14.49 | 147.9 | 13.81 | 90.58 | 924.3 | 5.746 |
| LBL2847-L3 | 8.0-26.0 | 24 | 12370 | 0.21 | 10391 | 1.113 | 17.01 | 173.6 | 18.5 | 106.3 | 1085 | 5.852 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Motor Characteristics
+ Applications
- Automotive Parts: Pump, Valve.
- Home Application: White Goods, Small Appliance, Fanner, Electric Curtain.
- Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, Centrifugal Machine.
- Industry Equipment: Electric Valve, Portable Screwdriver, Air Pump, Water Pump,Vacuum Pump.
- Business Equipment: Printer, Copier, Projector, Scanner, Cash Register.
- Personal Care: Hair Dryer, Electric Shaver, Massager.
