LBL-2430 ∅24.4mm DC Brushless Motor

24.4mm diameter micro DC brushless motor,  could with 24mm reduction gearbox, specific parameters customized by request.

Additional information

Model

LBL-2430

Type

DC Brushless Motor

Body Size

Φ24.4*30.8mm

Shaft Size

Φ2mm diameter, Length customized by request

Weight

50g (Approx)

Voltage

5v-24v

Output Power

≤8W

Product Details:

24.4mm Diameter Micro DC Brushless Motor

+ Brand: Linkto Motor

Model: LBL-2430 Type: DC Brushless Motor
Voltage: 5v-24v Speed: 1000rpm-16000rpm
Continuous Current: ≤2500mA Stall Torque: ≤370g.cm
Typical Application: Automotive Parts, Home Application, Medical Apparatus, Industry Apparatus, Business Equipment, Personal Care,etc.

+ Outline Dimension

+ Technical Data For Reference


MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V V r/min A r/min A mN.m g.cm W mN.m g.cm A
LBL2430-L1 5.0-12.0 9.0 6086 0.13 4747 0.442 4.77  48.7 2.371 21.69  221.3 1.546
LBL2430-L2 8.0-16.0 12.0 7380 0.12 5830 0.438 5.20  53.1 3.174 24.76  252.7 1.636
LBL2430-L3 8.0-26.0 24.0 9737 0.09 7692 0.369 6.67  68.1 5.37 31.76  324.1 1.322

Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.

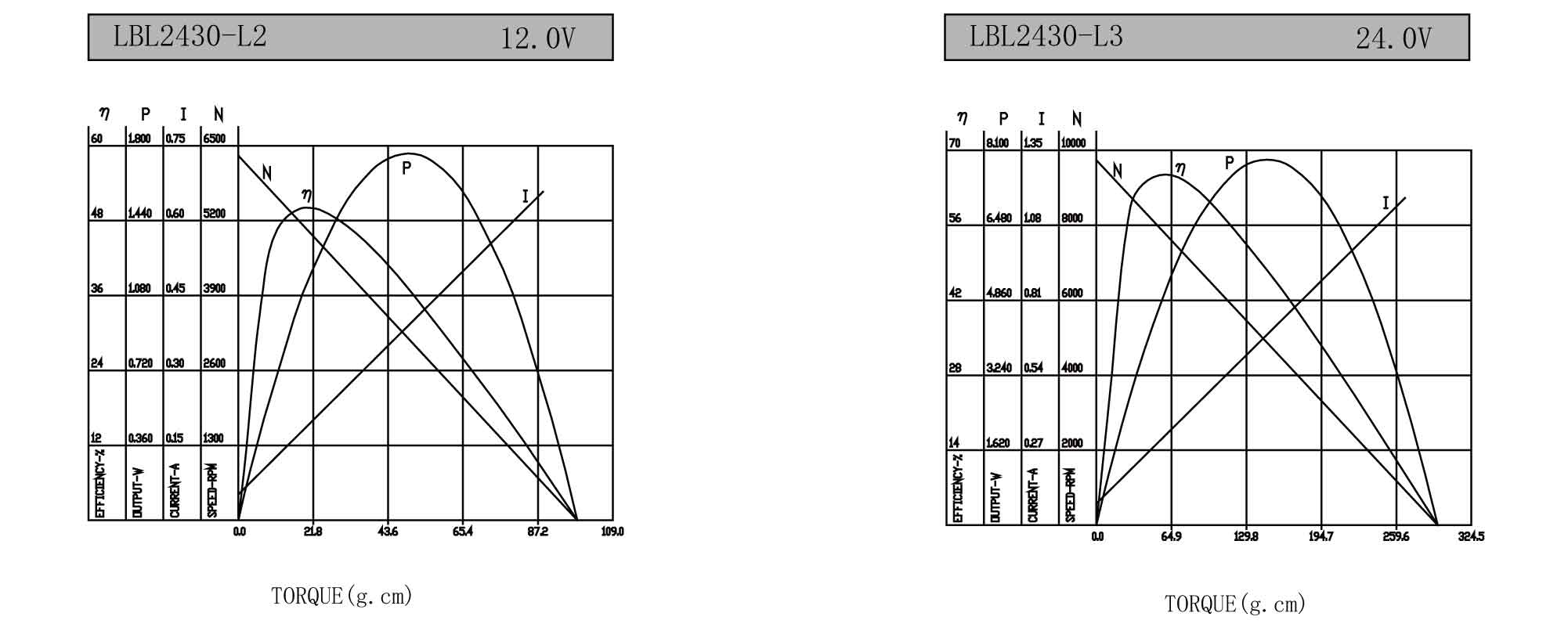

+ Motor Characteristics

+ Applications

  • Automotive Parts: Pump
  • Home Application: White Goods, Small Appliance, Fanner, Electric Curtain.
  • Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools,Medical Stirrer, Centrifugal Machine.
  • Industry Equipment: Electric Valve, Portable Screwdriver, Air Pump,Water Pump,Vacuum Pump.
  • Business Equipment: Printer, Copier, Projector, Scanner, Cash Register.
  • Personal Care: Hair Dryer, Electric Shaver, Massager.
