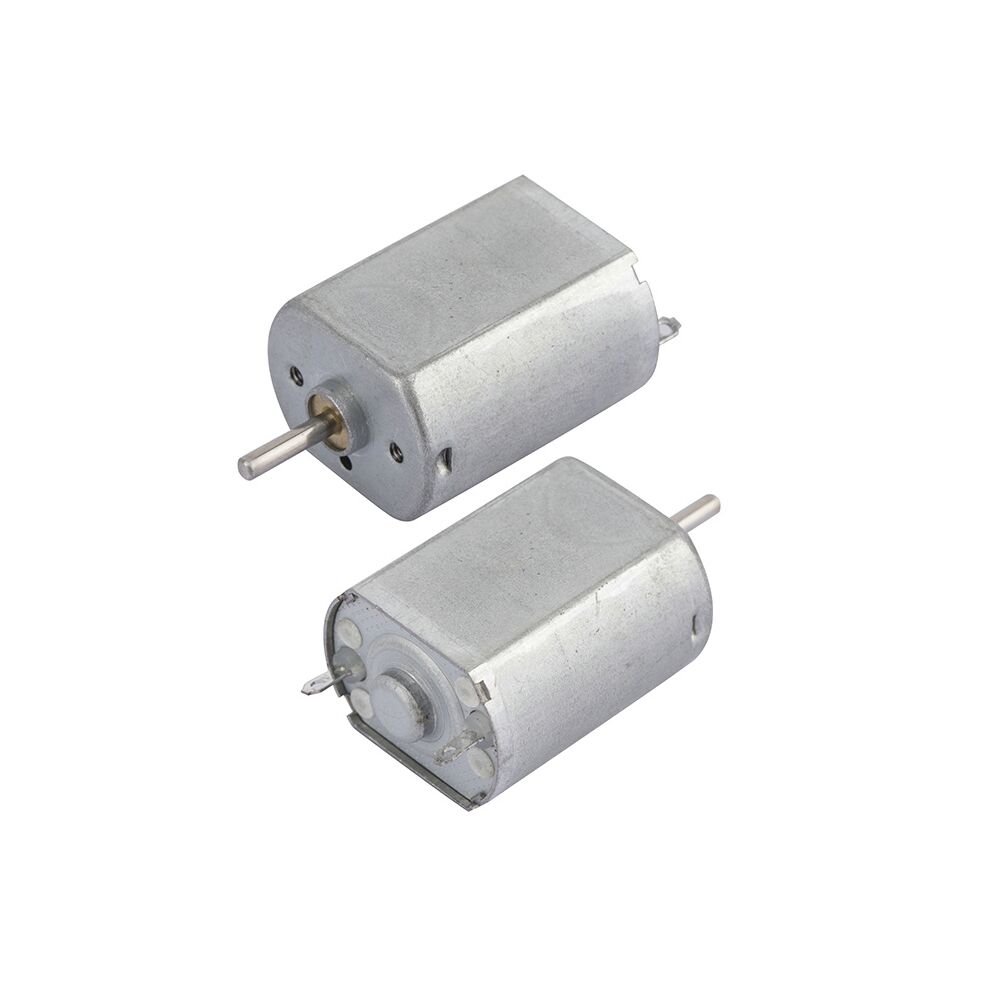

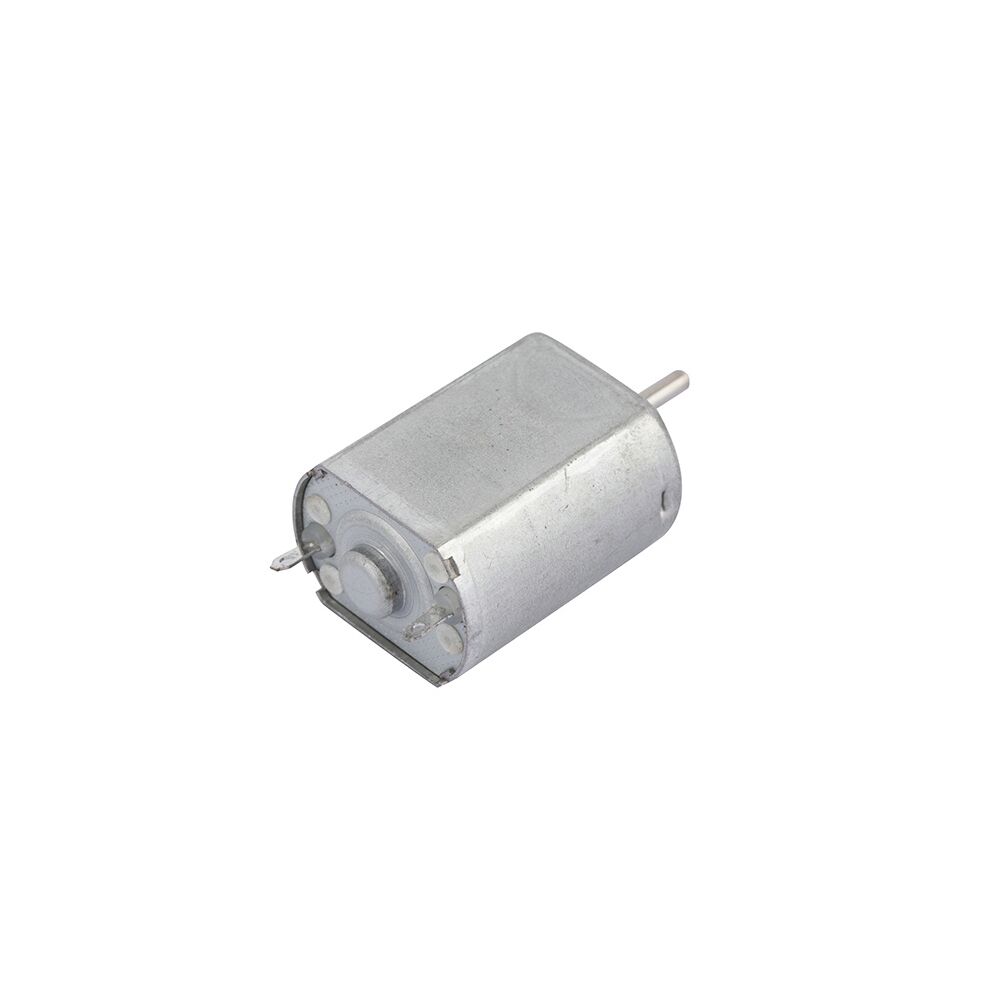

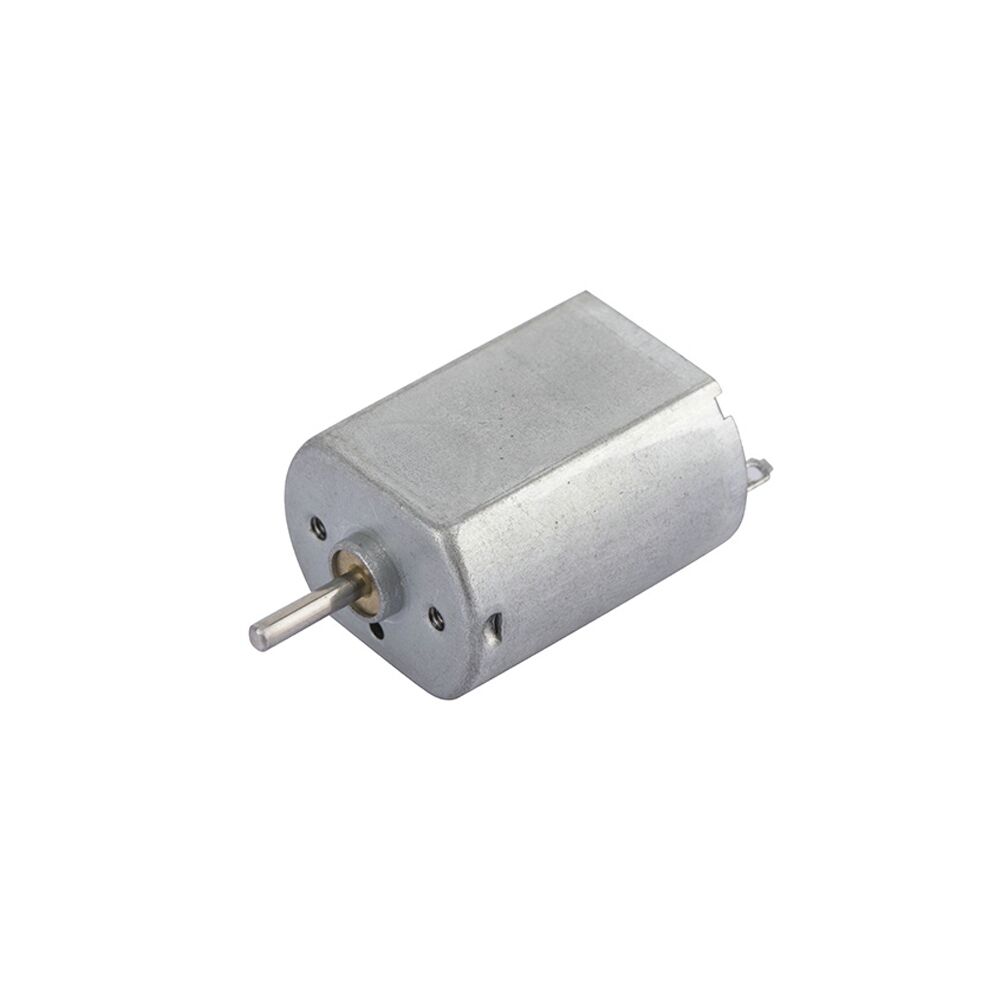

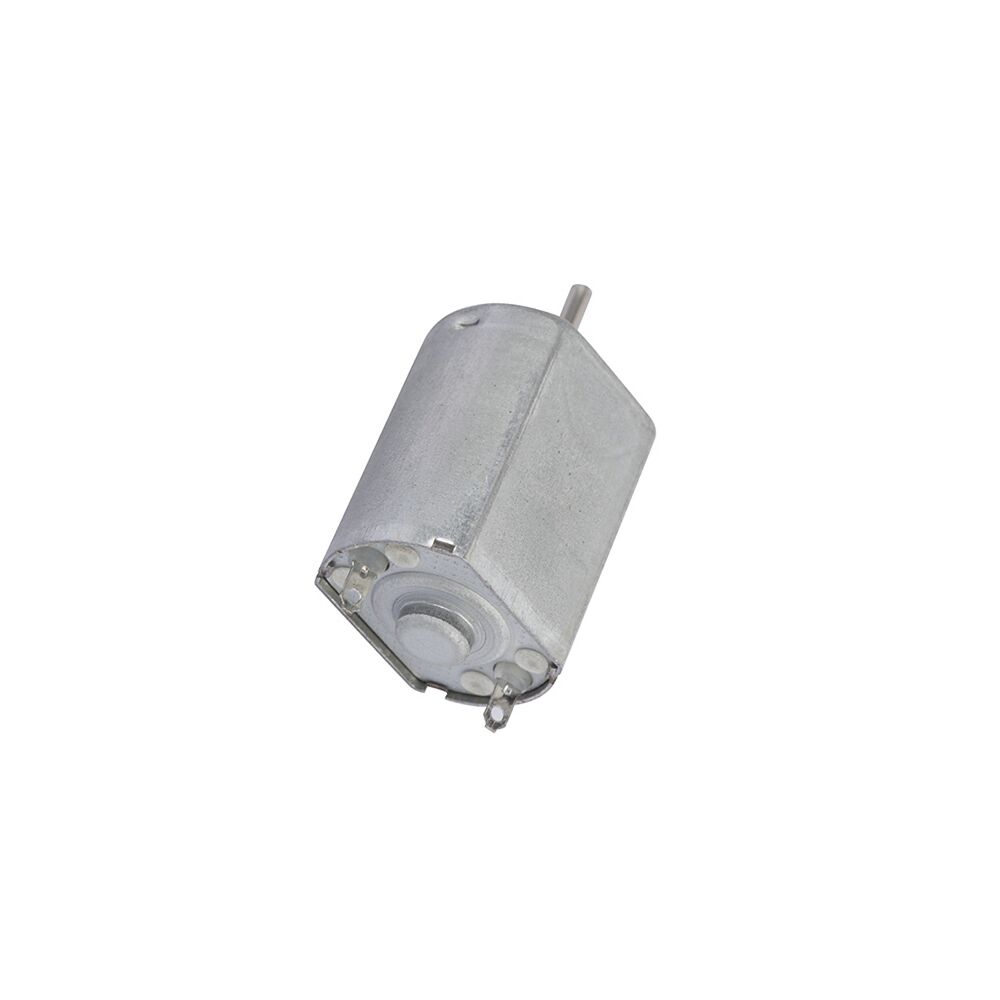

LFF-130 ∅20.4mm DC Brushed Motor
20.4mm diameter micro DC brushed motor, could with 20mm reduction gearbox, specific parameters customized by request.
Additional information
| Model | LFF-130 |
|---|---|
| Type | DC Brushed Motor |
| Body Size | Φ20.4*15.4*25.1mm |
| Shaft Size | Φ2mm diameter, Length customized by request |
| Weight | 24g (Approx) |
| Voltage | 2.3v-24v |
| Output Power | ≤15W |
Product Details:
20.4mm Diameter Micro DC Brushed Motor
+ Brand: Linkto Motor
| Model: | LFF-130 | Brush Type: | Metal-brush/Carbon-brush |
| Voltage: | 2.3v-24v | Speed: | 4000rpm-31000rpm |
| Continuous Current: | ≤1800mA | Stall Torque: | ≤180g.cm |
| Typical Application: | Adult products,Beauty instrument,Car headlight adjustment,Car side lock,Medical massager,Washing machine lid lock,etc. | ||
+ Outline Dimension
+ Technical Data For Reference
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | V | r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |
| LFF-130PH-15210 | 2.0-4.5 | 3 | 5400 | 0.045 | 4280 | 0.17 | 0.57 | 5.8 | 0.26 | 2.74 | 28 | 0.65 |
| LFF-130PH-11340 | 5.0-12.0 | 7.5 | 6100 | 0.033 | 4920 | 0.14 | 1.07 | 10.9 | 0.55 | 5.49 | 56 | 0.57 |
| LFF-130PA-16155 | 2.0-3.0 | 2.3 | 4000 | 0.07 | 2500 | 0.3 | 1.32 | 13.5 | 13.8 | 3.92 | 40 | 0.76 |
| LFF-130PA-17145 | 3.0-6.0 | 6 | 11500 | 0.1 | 10000 | 0.39 | 1.27 | 13 | 1.33 | 10 | 102 | 2.3 |
| LFF-130SH-2356 | 1.5-3.0 | 3 | 12800 | 0.27 | 10337 | 1.13 | 1.9 | 19.4 | 2.08 | 10 | 102 | 4.75 |
| LFF-130PH-7555 | 6.0-9.0 | 7.19 | 2700 | 0.02 | 1999 | 0.05 | 0.8 | 8.16 | 0.17 | 3 | 30.6 | 0.15 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Applications
- Adult products,Beauty instrument,
- Car headlight adjustment,Car side lock,
- Medical massager,Washing machine lid lock,etc.
