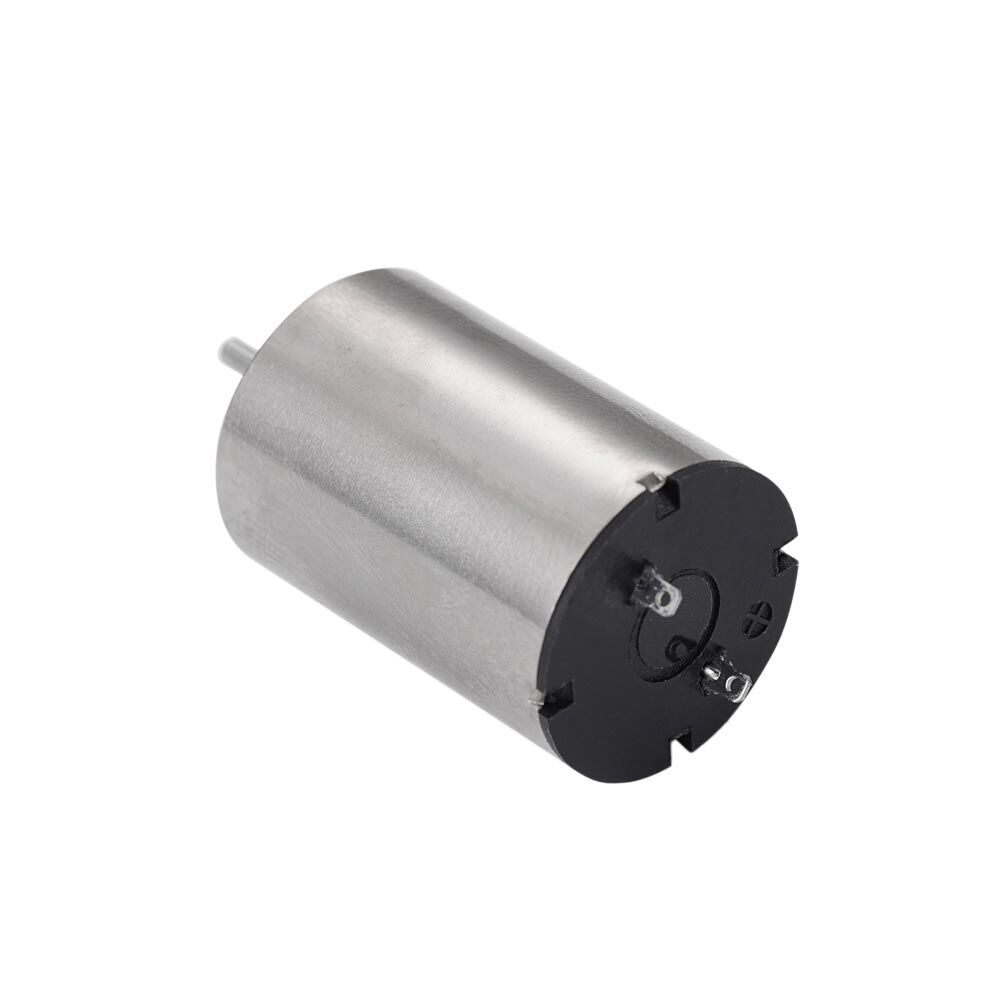

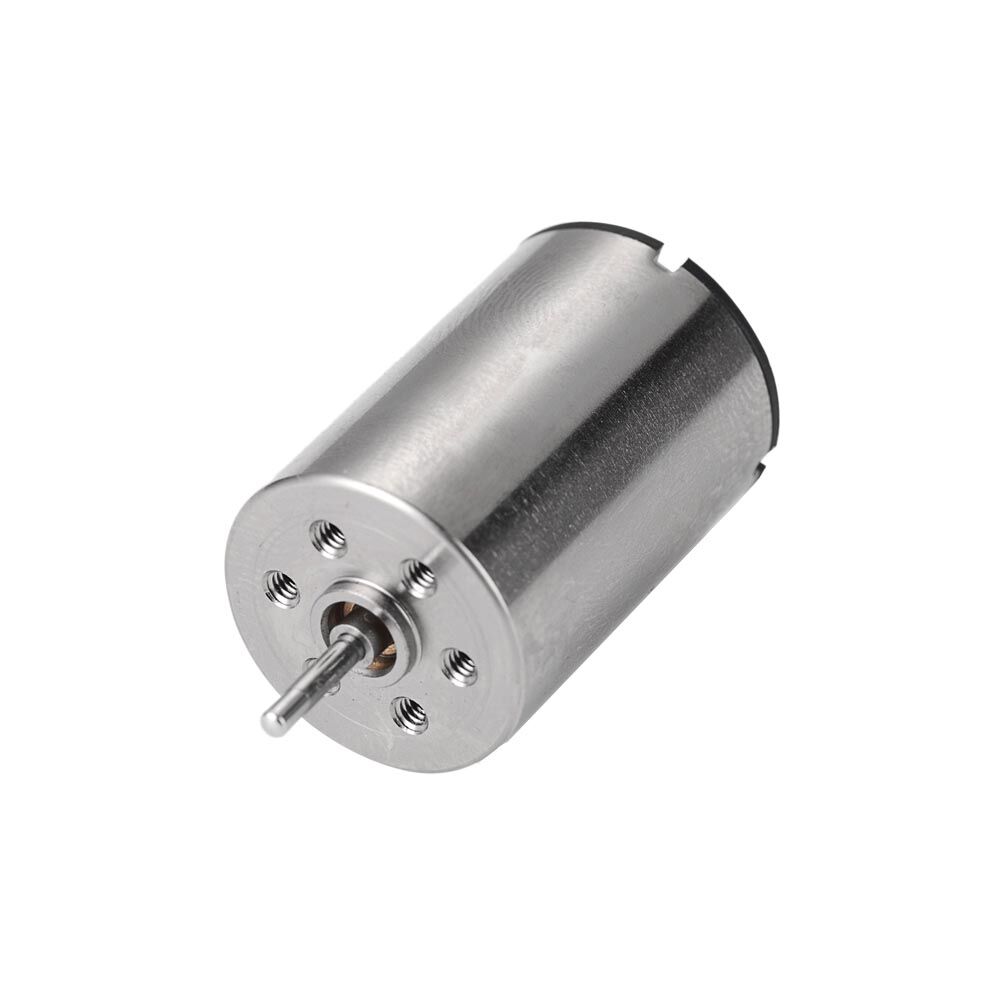

LCL-1725R ∅17mm DC Coreless Motor
17mm diameter micro DC coreless motor, specific parameters customized by request.
Additional information
| Model | LCL-1725R |
|---|---|
| Type | DC Coreless Motor |
| Body Size | Φ17*25mm |
| Shaft Size | Φ1.5mm diameter, Length customized by request |
| Weight | 27g (Approx) |
| Voltage | 3v-24v |
| Output Power | ≤2W |
Product Details:
17mm Diameter Micro DC Coreless Motor
+ Brand: Linkto Motor
| Model: | LCL-1725R | Type: | DC Coreless Motor |
| Voltage: | 3v-24v | Speed: | 1000rpm-20000rpm |
| Continuous Current: | ≤0.4A | Stall Torque: | ≤20mN.m |
| Typical Application: | Medical equipment, Smart home, Automotive applications, Industrial automation, Aviation equipment, etc. | ||
+ Outline Dimension
+ Technical Data For Reference
| Motor Data / Model: | 1725R-37A | 1725R-46A | 1725R-27A | 1725R-39A | 1725R-43A |
| Values at nominal voltage | |||||
| 1. Nominal Voltage (v) | 4.5 | 8 | 8 | 10 | 12 |
| 2. No load speed (rpm) | 9600 | 6400 | 7900 | 9900 | 11900 |
| 3. No load current (mA) | 27 | 10 | 14 | 13 | 17 |
| 4. Nominal speed (rpm) | 9024 | 5790 | 7189 | 9256 | 11245 |
| 5. Nominal torque (mN.m) | 1 | 1 | 1 | 1 | 1 |
| 6. Nominal current (A) | 0.24 | 0.09 | 0.11 | 0.11 | 0.12 |
| 7. Stall torque (mN.m) | 16.45 | 10.76 | 11.2 | 15.8 | 19.2 |
| 8. Stall current (A) | 3.75 | 0.91 | 1.17 | 1.66 | 2.03 |
| 9. Max efficiency (%) | 84 | 82 | 81 | 84 | 83 |
| Motor constant | |||||
| 10. Terminal resistance (Ω) | 1.2 | 8.7 | 6.8 | 6 | 5.9 |
| 11. Torque constant (mN.m/A) | 4.39 | 11.7 | 9.48 | 9.46 | 9.44 |
| 12. Speed constant (rpm/A) | 2133 | 800 | 987 | 990 | 991 |
| Other characteristic parameters | |||||
| 13. Ambient temperature -10-40℃ | |||||
| 14. Max permissible winding temperature 65℃ | |||||
| 15. Max permissible speed 20000rmp | |||||
| 16. Number of the pole pairs 1 | |||||
| 17. Number of the commutator segments 5 | |||||
| 18. Weight 27g | |||||
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Applications
- Medical and Health Care Equipment,
- Industrial Control Equipment,Aeromodelling,
- Mini Drone,Quadcopter,Robot,Rotary Tattoo Machine,
- Eyebrow Tattooing Machine,Electric Eyebrow Shaver,Auto Part,Servo,etc.
