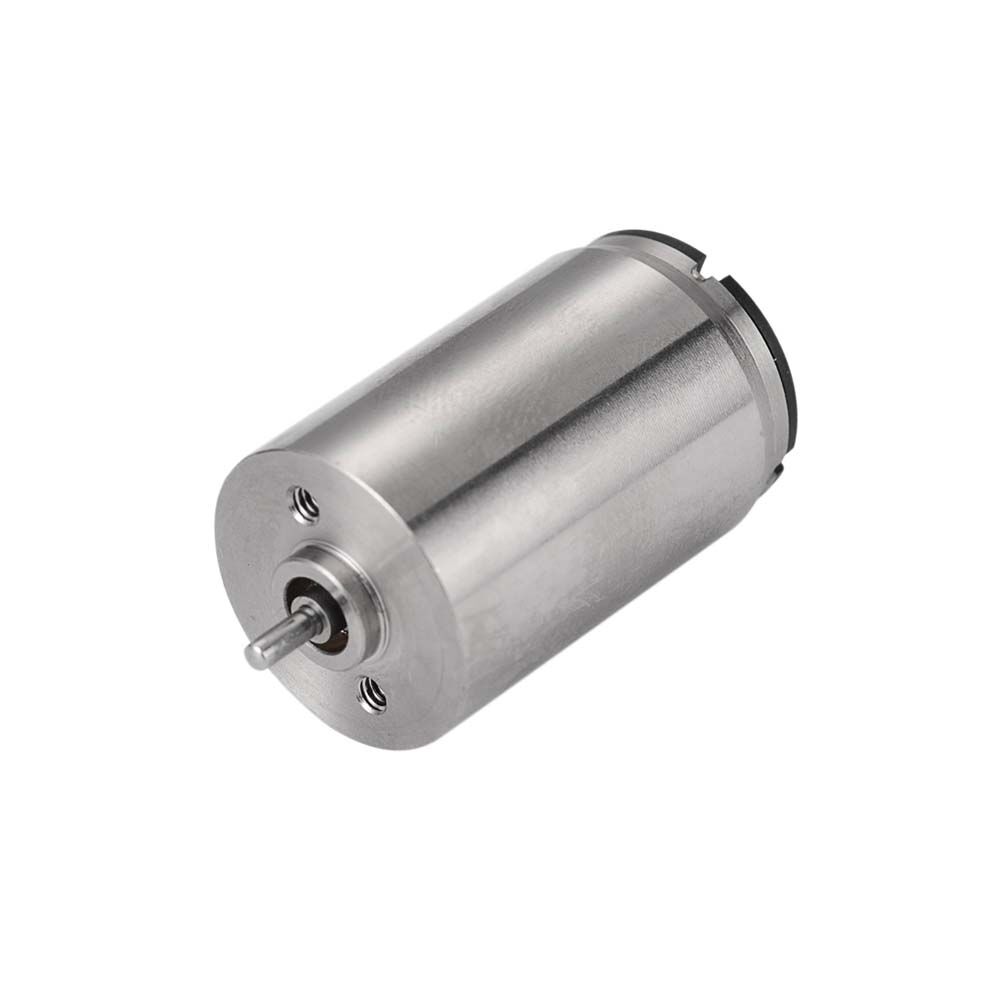

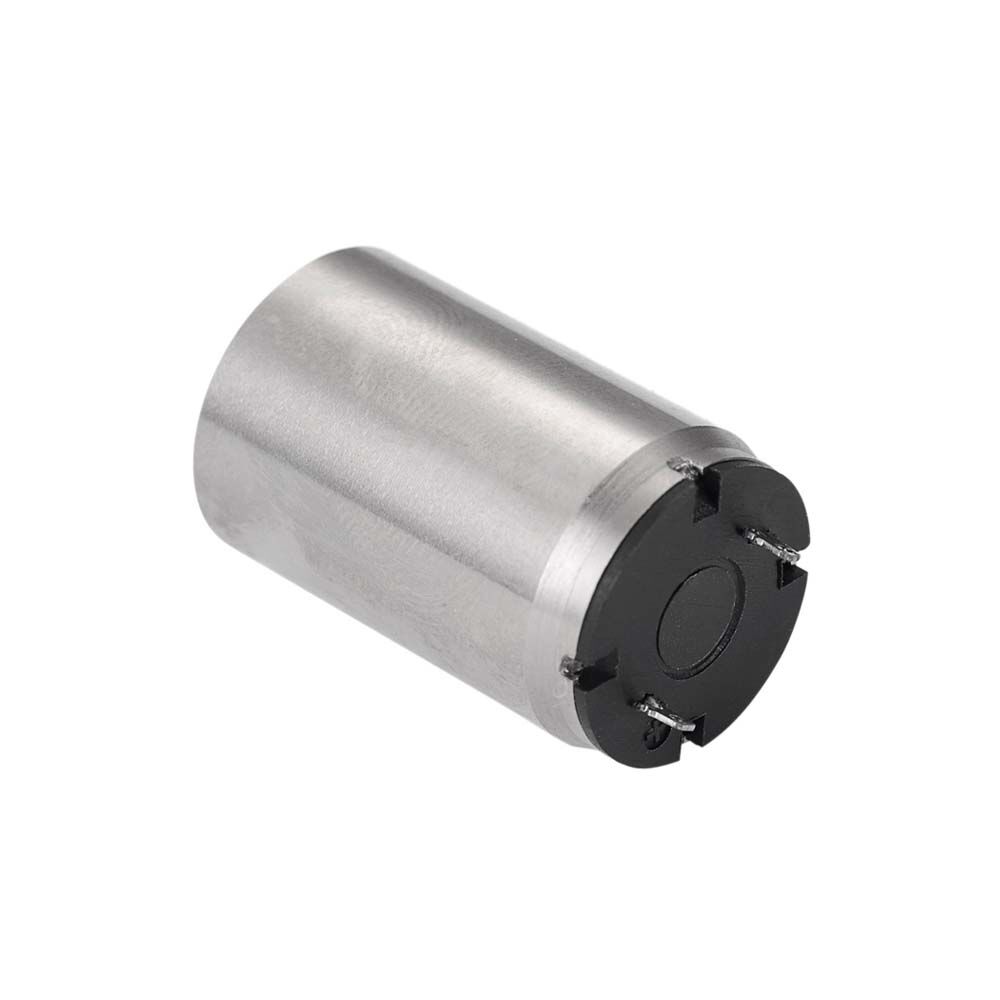

LCL-1625R ∅16mm DC Coreless Motor
16mm diameter micro DC coreless motor, could with 16mm reduction gearbox, specific parameters customized by request.
Additional information
| Model | LCL-1625R |
|---|---|
| Type | DC Coreless Motor |
| Body Size | Φ16*25mm |
| Shaft Size | Φ1.5mm diameter, Length customized by request |
| Weight | 27g (Approx) |
| Voltage | 3v-24v |
| Output Power | ≤2W |
Product Details:
16mm Diameter Micro DC Coreless Motor
+ Brand: Linkto Motor
| Model: | LCL-1625R | Type: | DC Coreless Motor |
| Voltage: | 3v-24v | Speed: | 1000rpm-20000rpm |
| Continuous Current: | ≤0.4A | Stall Torque: | ≤15mN.m |
| Typical Application: | Medical equipment, Smart home, Automotive applications, Industrial automation, Aviation equipment, etc. | ||
+ Outline Dimension
+ Technical Data For Reference
| Motor Data / Model: | 1625R-22A | 1625R-05A | 1625R-21A | 1625R-20A | 1625R-13A | 1625R-01A |
| Values at nominal voltage | ||||||
| 1. Nominal Voltage (v) | 4 | 5 | 6 | 10 | 12 | 15 |
| 2. No load speed (rpm) | 6700 | 8400 | 6200 | 9900 | 12000 | 9200 |
| 3. No load current (mA) | 18 | 24 | 12 | 15 | 13 | 20 |
| 4. Nominal speed (rpm) | 5728 | 7686 | 5518 | 9108 | 11160 | 7498 |
| 5. Nominal torque (mN.m) | 1 | 1 | 1 | 1 | 1 | 1 |
| 6. Nominal current (A) | 0.19 | 0.19 | 0.11 | 0.11 | 0.11 | 0.08 |
| 7. Stall torque (mN.m) | 6.8 | 11.8 | 9 | 12.28 | 14.59 | 5.32 |
| 8. Stall current (A) | 1.2 | 2.1 | 1 | 1.29 | 1.55 | 0.34 |
| 9. Max efficiency (%) | 79 | 83 | 82 | 84 | 85 | 65 |
| Motor constant | ||||||
| 10. Terminal resistance (Ω) | 3.3 | 2.36 | 6 | 7.7 | 7.7 | 43 |
| 11. Torque constant (mN.m/A) | 5.59 | 5.57 | 9.06 | 9.46 | 9.36 | 15.27 |
| 12. Speed constant (rpm/A) | 1675 | 1680 | 1033 | 990 | 1000 | 613 |
| Other characteristic parameters | ||||||
| 13. Ambient temperature -10-40℃ | ||||||
| 14. Max permissible winding temperature 65℃ | ||||||
| 15. Max permissible speed 20000rmp | ||||||
| 16. Number of the pole pairs 1 | ||||||
| 17. Number of the commutator segments 5 | ||||||
| 18. Weight 27g | ||||||
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Applications
- Tooth Washing,Tooth Drilling,Rotary Tattoo Machine,
- Eyebrow Tattooing Machine,Electric Nail Polisher,
- Electric Eyebrow Shaver,Remote Control Toy,
- Aeromodelling,Mini Drone,Quadcopter,Servo
