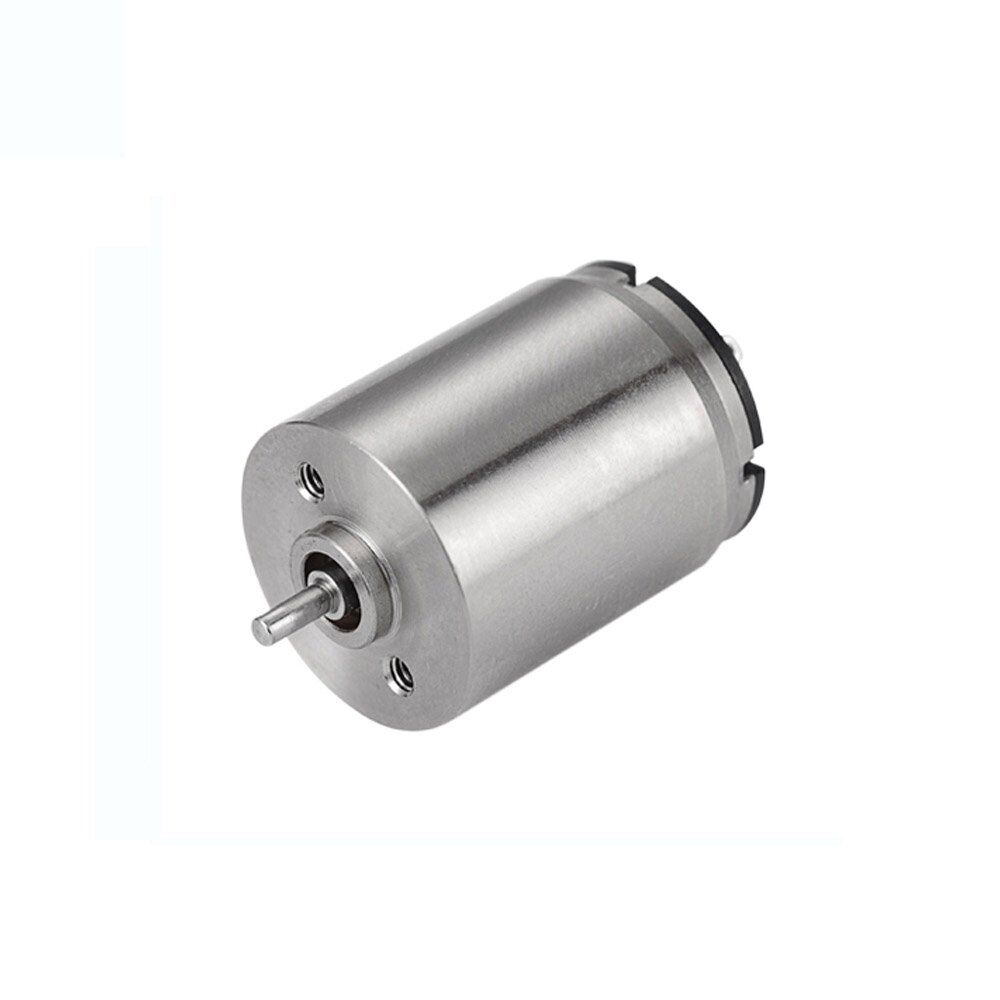

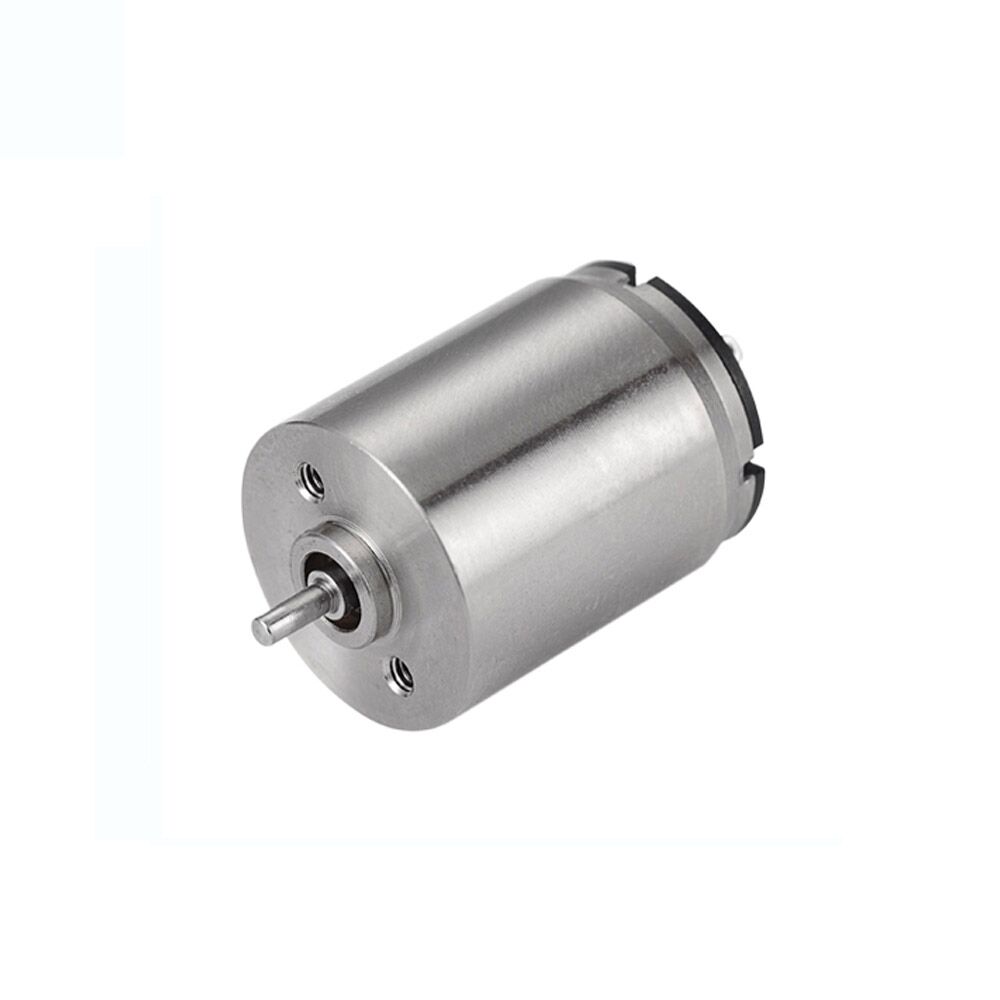

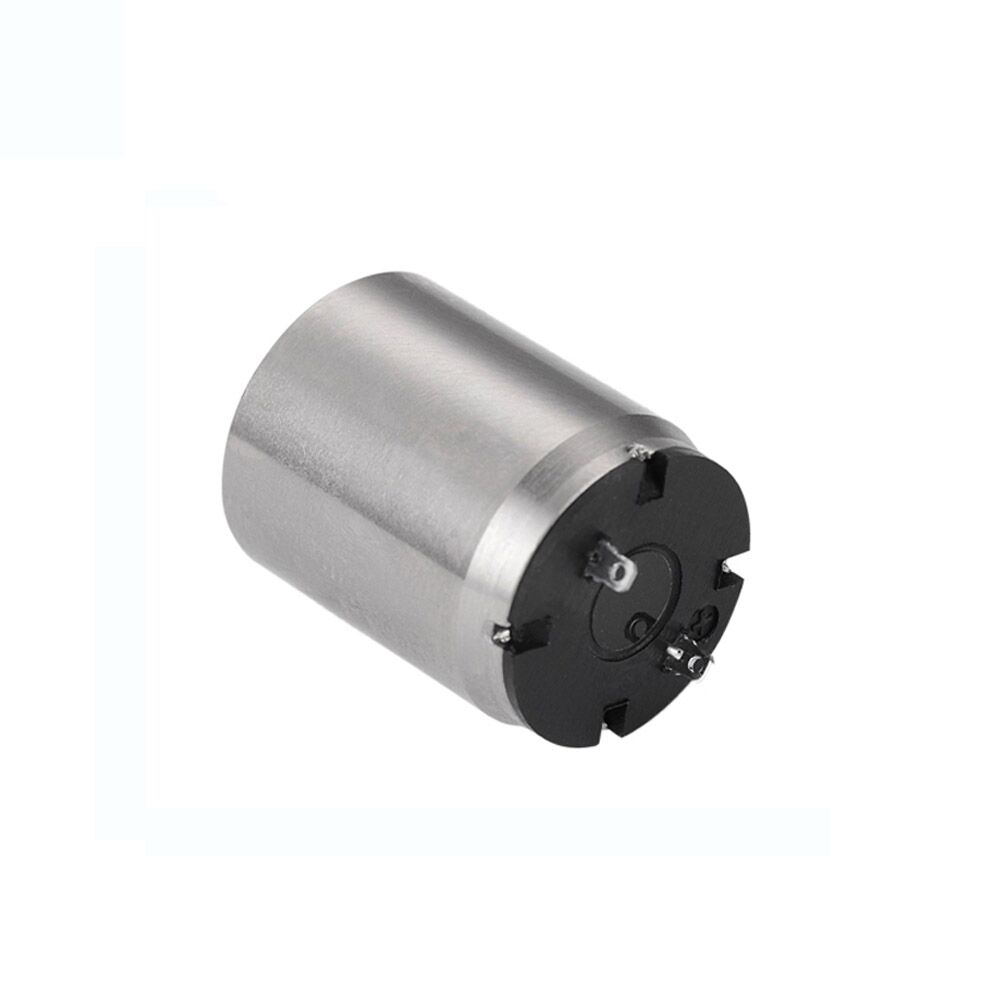

LCL-1620R ∅16mm DC Coreless Motor
16mm diameter micro DC coreless motor, could with 16mm reduction gearbox, specific parameters customized by request.
Additional information
| Model | LCL-1620R |
|---|---|
| Type | DC Coreless Motor |
| Body Size | Φ16*20mm |
| Shaft Size | Φ1.5mm diameter, Length customized by request |
| Weight | 24.5g (Approx) |
| Voltage | 3v-24v |
| Output Power | ≤2W |
Product Details:
16mm Diameter Micro DC Coreless Motor
+ Brand: Linkto Motor
| Model: | LCL-1620R | Type: | DC Coreless Motor |
| Voltage: | 3v-24v | Speed: | 1000rpm-20000rpm |
| Continuous Current: | ≤0.4A | Stall Torque: | ≤9mN.m |
| Typical Application: | Medical equipment, Smart home, Automotive applications, Industrial automation, Aviation equipment, etc. | ||
+ Outline Dimension
+ Technical Data For Reference
| Motor Data / Model: | 1620R-19A | 1620R-31A | 1620R-11A | 1620R-34A | 1620R-35A | 1620R-36A |
| Values at nominal voltage | ||||||
| 1. Nominal Voltage (v) | 3 | 4 | 4.5 | 8 | 12 | 24 |
| 2. No load speed (rpm) | 4680 | 7430 | 10800 | 10000 | 12500 | 12200 |
| 3. No load current (mA) | 10 | 20 | 35 | 15 | 23 | 10 |
| 4. Nominal speed (rpm) | 3720 | 6612 | 9774 | 9150 | 10750 | 10065 |
| 5. Nominal torque (mN.m) | 0.5 | 0.5 | 0.5 | 0.5 | 1 | 1.5 |
| 6. Nominal current (A) | 0.09 | 0.11 | 0.15 | 0.08 | 0.13 | 0.08 |
| 7. Stall torque (mN.m) | 2.4 | 4.5 | 5.3 | 6 | 7.09 | 8.5 |
| 8. Stall current (A) | 0.4 | 0.88 | 1.36 | 0.8 | 0.78 | 0.46 |
| 9. Max efficiency (%) | 74 | 75 | 75 | 74 | 72 | 75 |
| Motor constant | ||||||
| 10. Terminal resistance (Ω) | 7.5 | 4.5 | 3.3 | 10 | 15.2 | 52 |
| 11. Torque constant (mN.m/A) | 6 | 5 | 3.9 | 7.5 | 8.99 | 18.42 |
| 12. Speed constant (rpm/A) | 1560 | 1857 | 2400 | 1250 | 1042 | 508 |
| Other characteristic parameters | ||||||
| 13. Ambient temperature -10-40℃ | ||||||
| 14. Max permissible winding temperature 65℃ | ||||||
| 15. Max permissible speed 20000rmp | ||||||
| 16. Number of the pole pairs 1 | ||||||
| 17. Number of the commutator segments 5 | ||||||
| 18. Weight 24.5g | ||||||
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Applications
- Tooth Washing,Tooth Drilling,Rotary Tattoo Machine,
- Eyebrow Tattooing Machine,Electric Nail Polisher,
- Electric Eyebrow Shaver,Remote Control Toy,
- Aeromodelling,Mini Drone,Quadcopter,Servo
