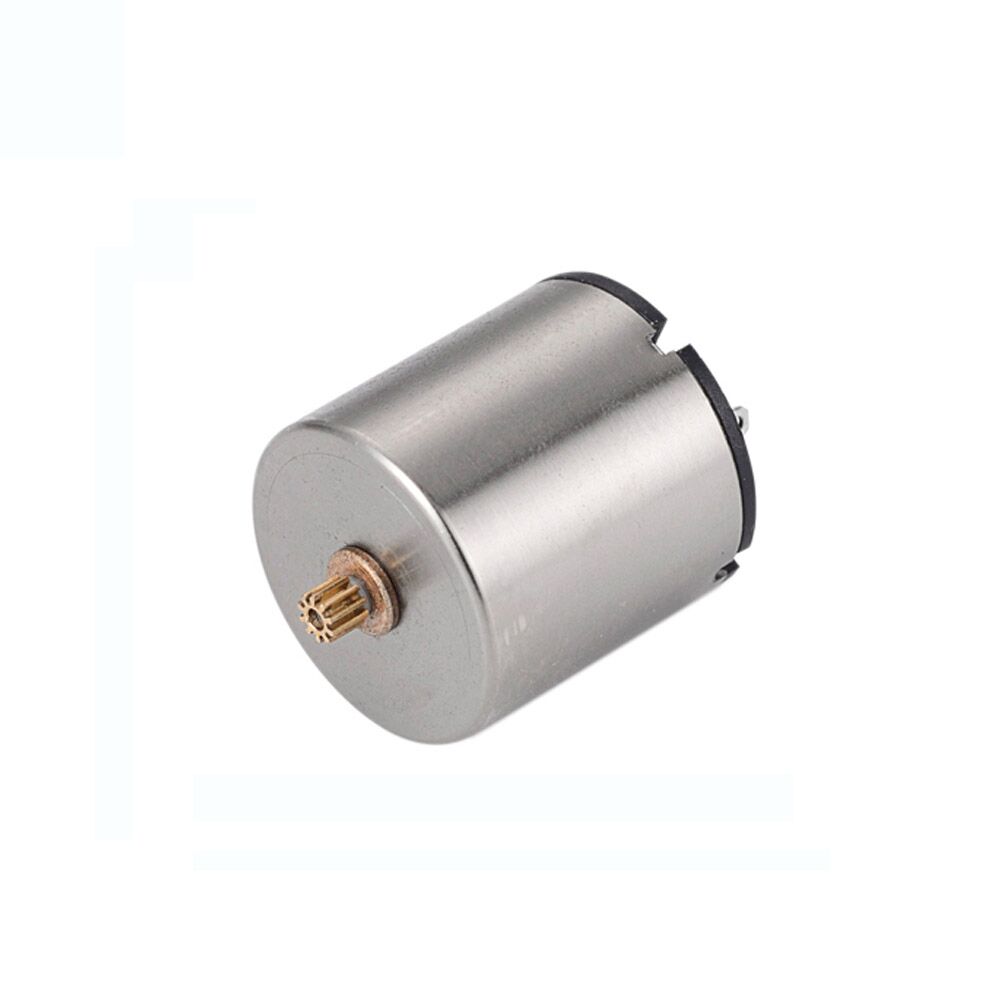

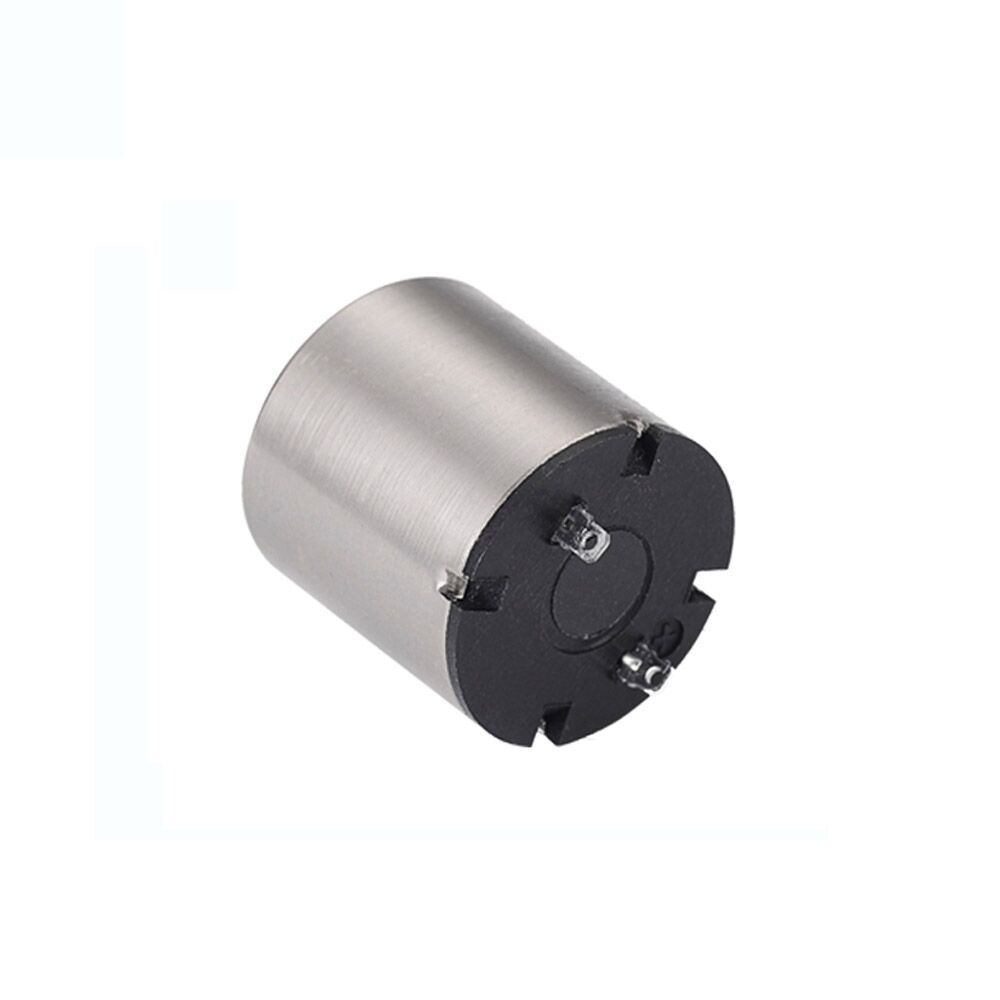

LCL-1515R ∅15mm DC Coreless Motor

15mm diameter micro DC coreless motor, specific parameters customized by request.

Additional information

Model	LCL-1515R
Type	DC Coreless Motor
Body Size	Φ15*15.2mm
Shaft Size	Φ1mm diameter, Length customized by request
Weight	11.3g (Approx)
Voltage	3v-24v
Output Power	≤2W

15mm Diameter Micro DC Coreless Motor

Model:	LCL-1515R	Type:	DC Coreless Motor
Voltage:	3v-24v	Speed:	1000rpm-30000rpm
Continuous Current:	≤0.4A	Stall Torque:	≤6mN.m
Typical Application:	Medical equipment, Smart home, Automotive applications, Industrial automation, Aviation equipment, etc.

Motor Data / Model:	1515R-04A	1515R-01A	1515R-03A	1515R-02A	1515R-05A
Values at nominal voltage
1. Nominal Voltage (v)	3.3	4.5	5	5	5
2. No load speed (rpm)	13100	22500	17500	19000	21000
3. No load current (mA)	10	50	45	35	45
4. Nominal speed (rpm)	11397	20137	15225	16910	18375
5. Nominal torque (mN.m)	0.5	0.5	0.7	0.5	0.7
6. Nominal current (A)	0.21	0.31	0.3	0.23	0.36
7. Stall torque (mN.m)	3.79	4.84	5.3	4.63	5.6
8. Stall current (A)	1.6	2.58	2	1.87	2.5
9. Max efficiency (%)	85	77	74	77	76
Motor constant
10. Terminal resistance (Ω)	2.05	1.74	2.5	2.66	2
11. Torque constant (mN.m/A)	2.36	1.87	2.68	2.46	2.23
12. Speed constant (rpm/A)	3970	5000	3500	3800	4200
Other characteristic parameters
13. Ambient temperature -10-40℃
14. Max permissible winding temperature 65℃
15. Max permissible speed 30000rmp
16. Number of the pole pairs 1
17. Number of the commutator segments 5
18. Weight 11.3g

Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
