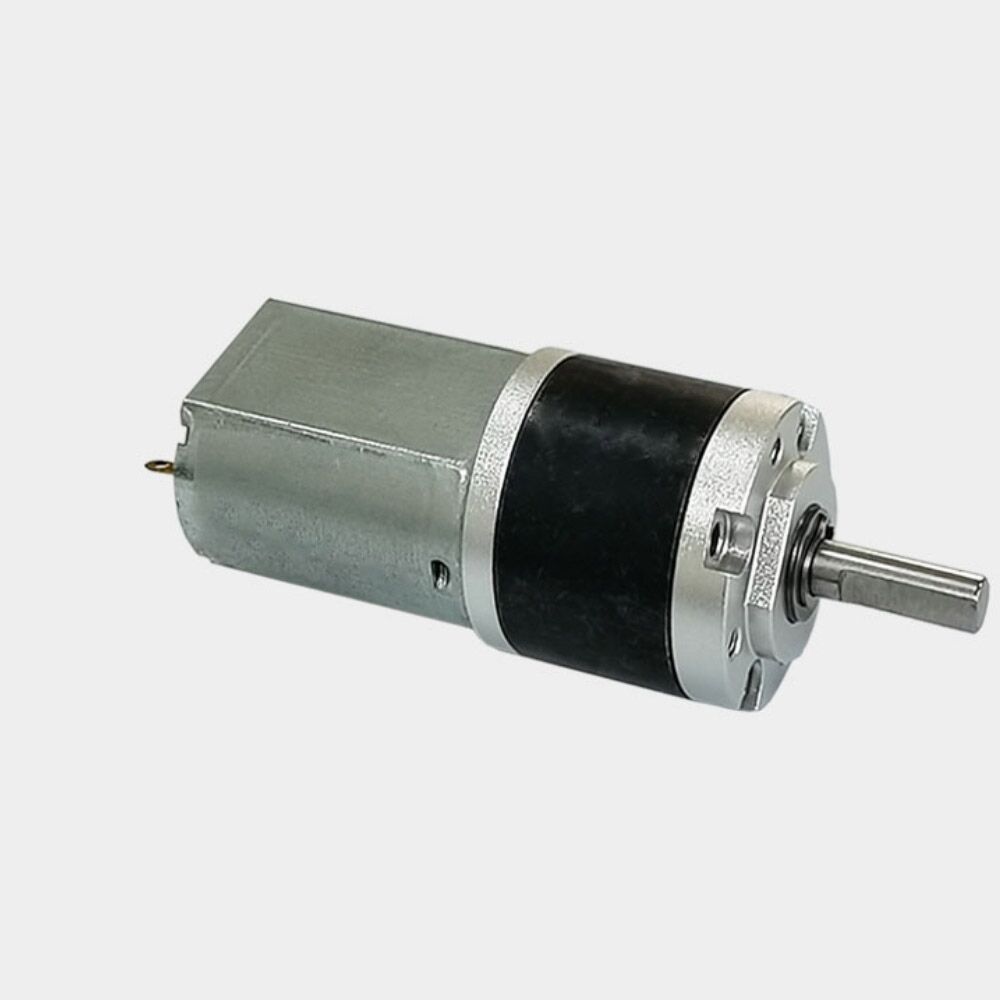

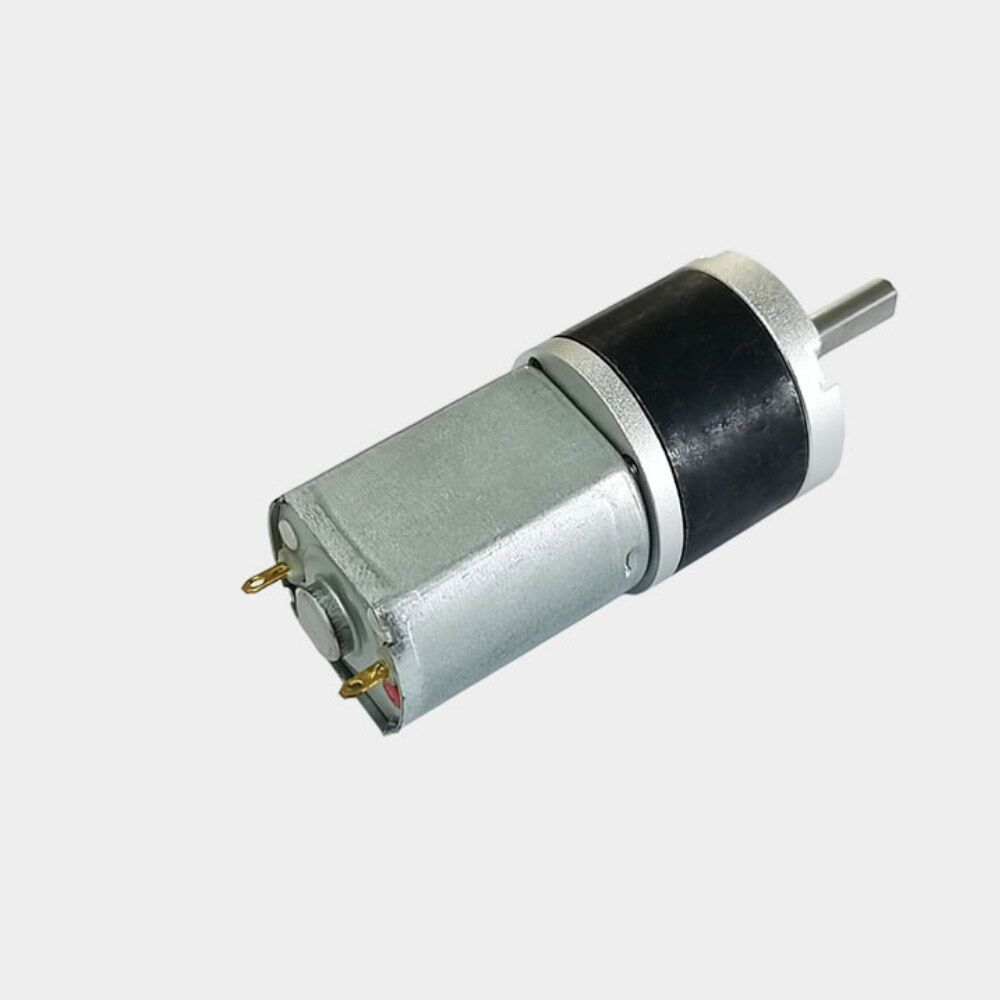

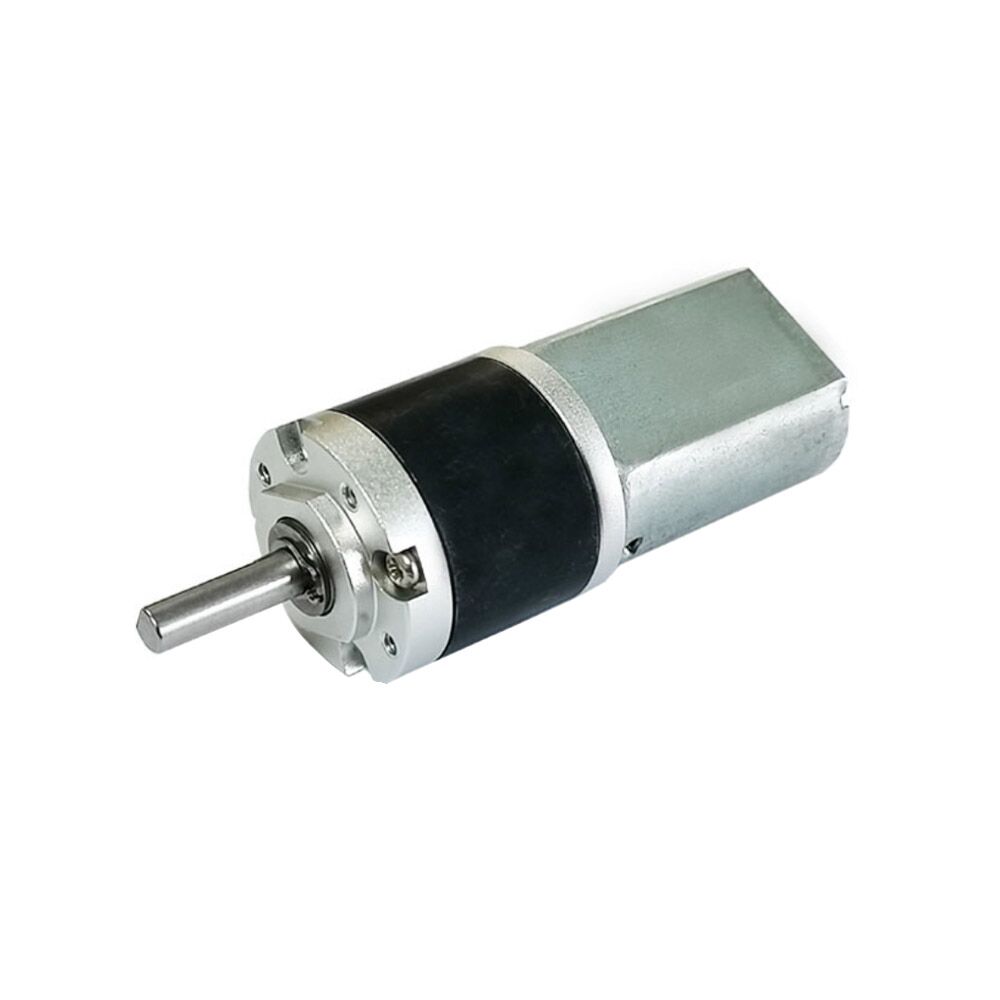

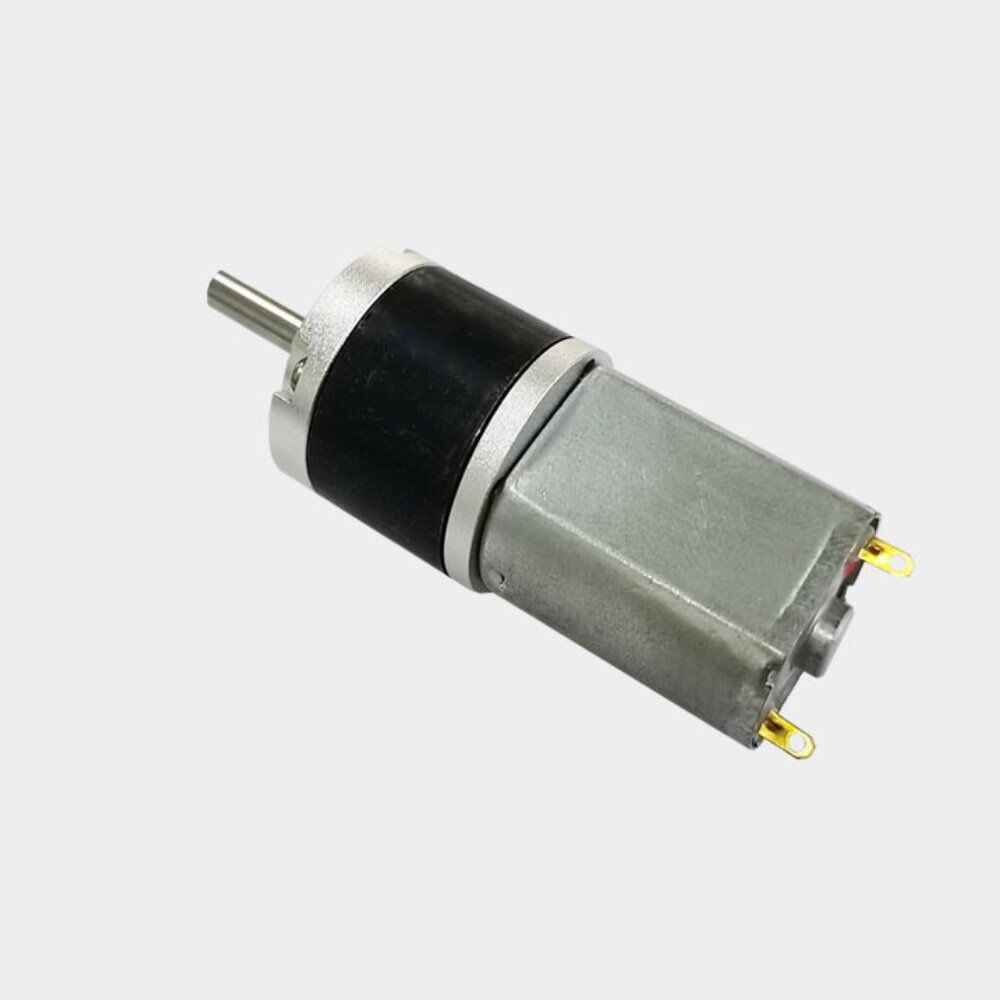

LPM22-130 ∅22mm DC Planetary Gear Motor
22mm planetary gearbox could be with 130/180/250 motor, specific parameters customized by request.
Additional information
| Model | LPM22-130 |
|---|---|
| Type | DC Planetary Gear Motor |
| Brush Type | Metal-brush/Carbon-brush |
| Motor Size | Φ20.4*15.4*25.1mm |
| Gearbox Size | Φ22*L mm |
| Output Shaft | Shaft shape, size and length can be customized by request |
| Voltage | 3v-24v |
Product Details:
22mm Diameter Micro DC Planetary Gear Motor
+ Brand: Linkto Motor
| Model: | LPM22-130 | Type: | DC Planetary Gear Motor |
| Voltage: | 3v-24v | Speed: | 1rpm-5000rpm |
| Continuous Current: | ≤7A | Stall Torque: | ≤12kg.cm |
| Typical Application: | Household Appliances, Hair Care, Office Equipment, Medical Equipment, Industrial Equipment,Business Equipment,Intelligent Robot,etc. | ||
+ Outline Dimension
+ Gear Motor Technical Data For Reference
| Voltage | Reduction ratio | 1/4 | 1/5 | 1/16 | 1/19 | 1/22 | 1/64 | 1/76 | 1/90 | 1/107 | 1/256 | 1/304 | 1/361 | 1/429 | 1/509 |
| 6V | No load speed(rpm) | 1800 | 1440 | 450 | 379 | 327 | 113 | 95 | 80 | 67 | 28 | 24 | 20 | 17 | 14 |
| Rated speed(rpm) | 1500 | 1200 | 375 | 316 | 273 | 94 | 79 | 67 | 56 | 23 | 20 | 17 | 14 | 12 | |
| Rated torque(g.cm) | 34 | 43 | 121 | 144 | 167 | 422 | 502 | 594 | 706 | 1408 | 1672 | 1986 | 2360 | 2800 | |
| Stall torque(g.cm) | 212 | 265 | 751 | 891 | 1032 | 2611 | 3101 | 3672 | 4366 | 7500 | 7500 | 7500 | 7500 | 7500 | |
| 12V | No load speed(rpm) | 1800 | 1440 | 450 | 379 | 327 | 113 | 95 | 80 | 67 | 28 | 24 | 20 | 17 | 14 |
| Rated speed(rpm) | 1500 | 1200 | 375 | 316 | 273 | 94 | 79 | 67 | 56 | 23 | 20 | 17 | 14 | 12 | |
| Rated torque(g.cm) | 37 | 47 | 132 | 157 | 182 | 461 | 547 | 648 | 770 | 1536 | 1824 | 2166 | 2574 | 3000 | |
| Stall torque(g.cm) | 203 | 254 | 718 | 852 | 858 | 2496 | 2964 | 3510 | 4173 | 7500 | 7500 | 7500 | 7500 | 7500 | |
| Length of gearbox L(mm） | 13.3mm | 16.8mm | 20.3mm | 23.8mm | |||||||||||
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Single Motor Technical Data For Reference
| VOLTAGE | NO LOAD | RATED LOAD | STALL | |||||||
| NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||
| V | r/min | mA | r/min | mA | mN.m | g.cm | W | mN.m | g.cm | mA |
| 6 | 7200 | 40 | 6000 | 180 | 1.078 | 11 | 0.67 | 6.664 | 68 | 850 |
| 12 | 7200 | 20 | 6000 | 100 | 1.176 | 12 | 0.7 | 6.37 | 65 | 450 |
+ Applications
- Household Appliances: Electric curtain, Intergrated cooker, Coffee maker, Intelligent closestool,Sweeping robot, Dish-washing Machine, Cooker hood, Electric lock
- Hair Care：Hair Curler, Massager, Electric Hair Clipper
- Office Equipment: Shredder, Printer, Projector, Counting Machine
- Medical Equipment：Massage chair, Electric trolley, Medical pump, Electric bed, Electric wheelchair
- Industrial Equipment: Water，electrical and gas valve, Air switch, Pump, Automatic door, Automatic lubrication equipment.
- Business Equipment:Vending machines, Parking locks, ATM machines, Stage lights.
- Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot
