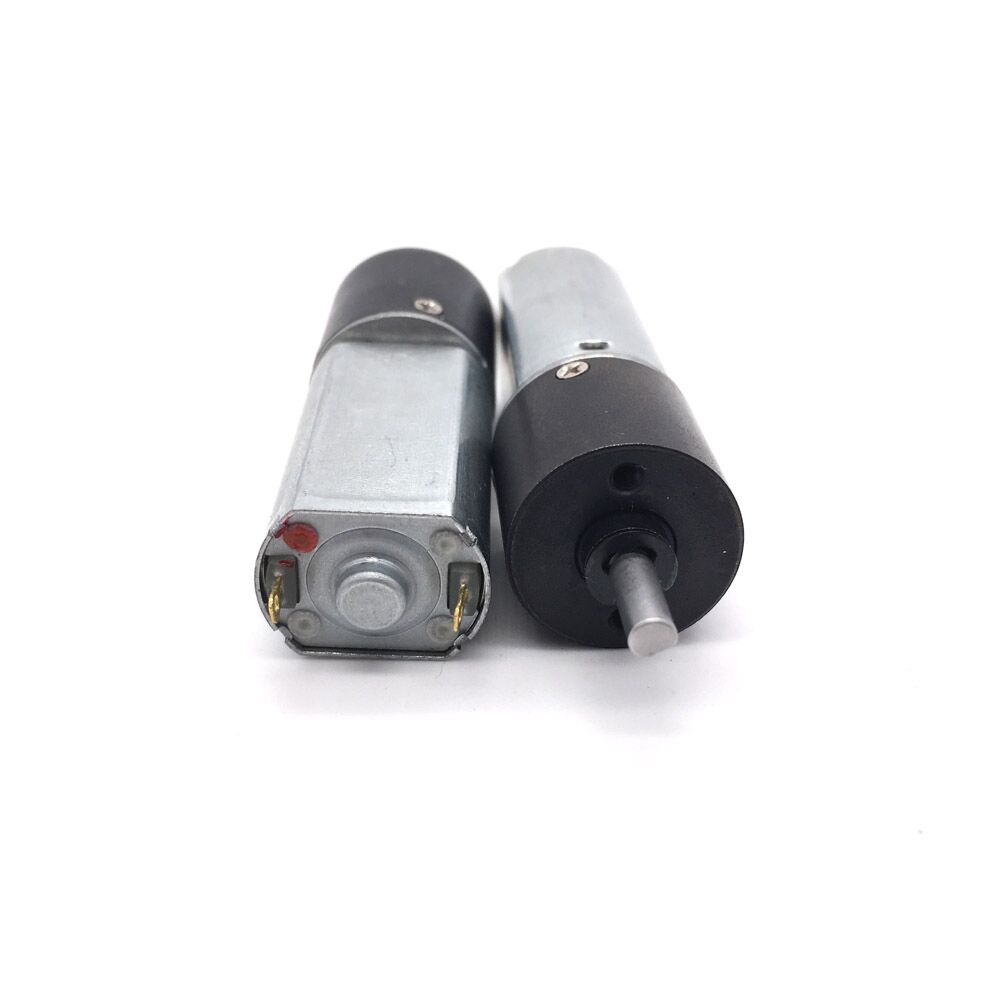

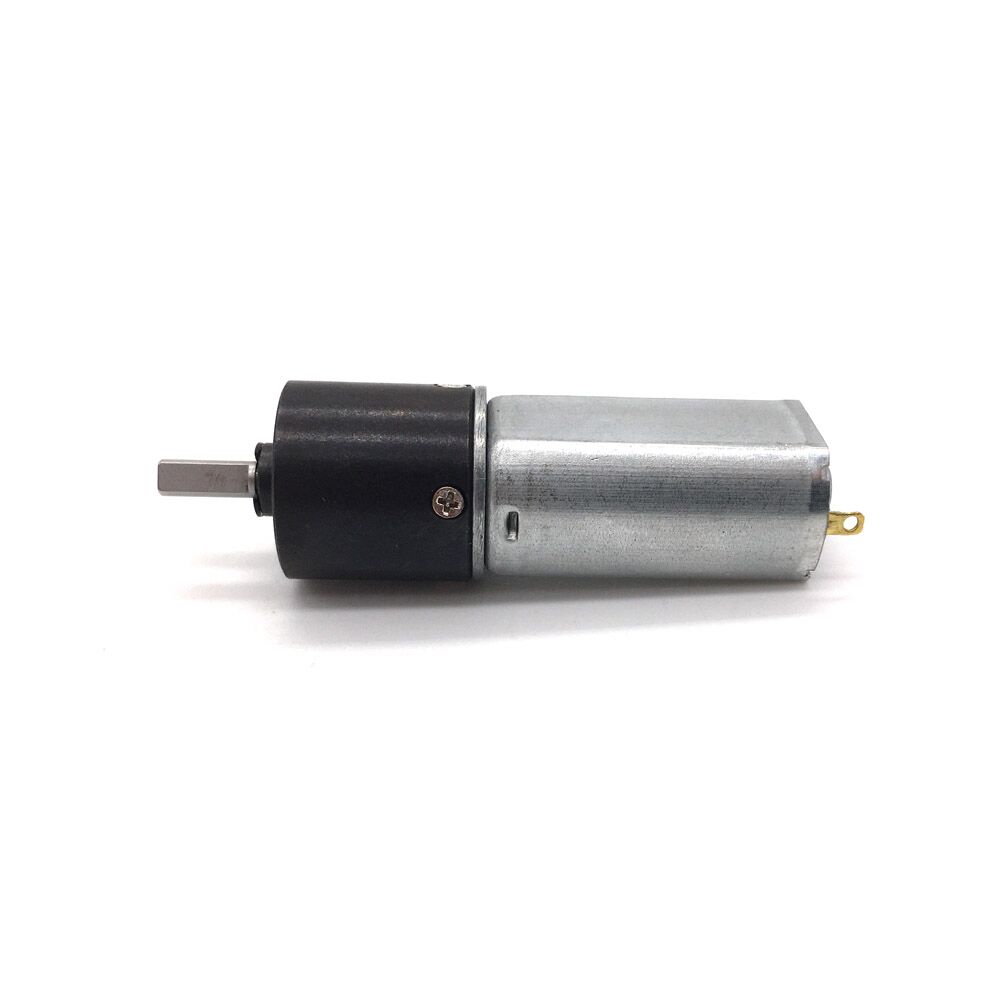

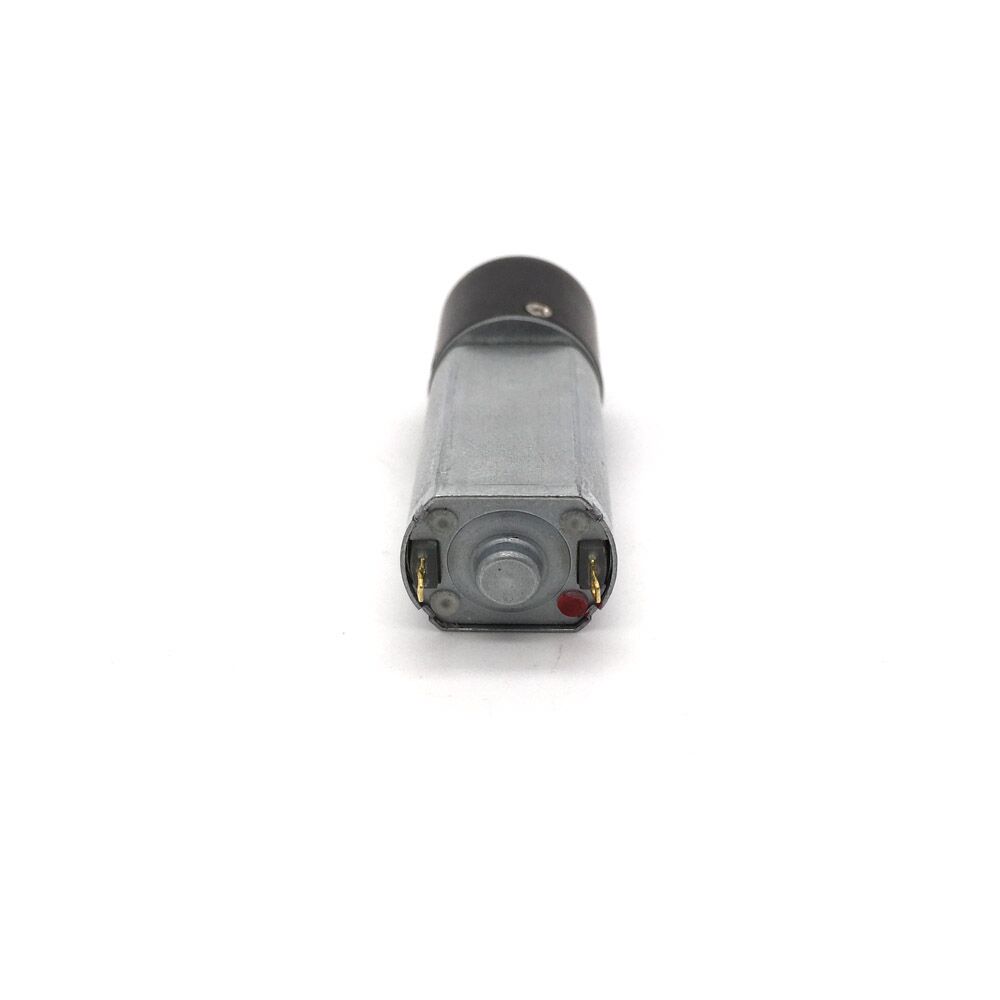

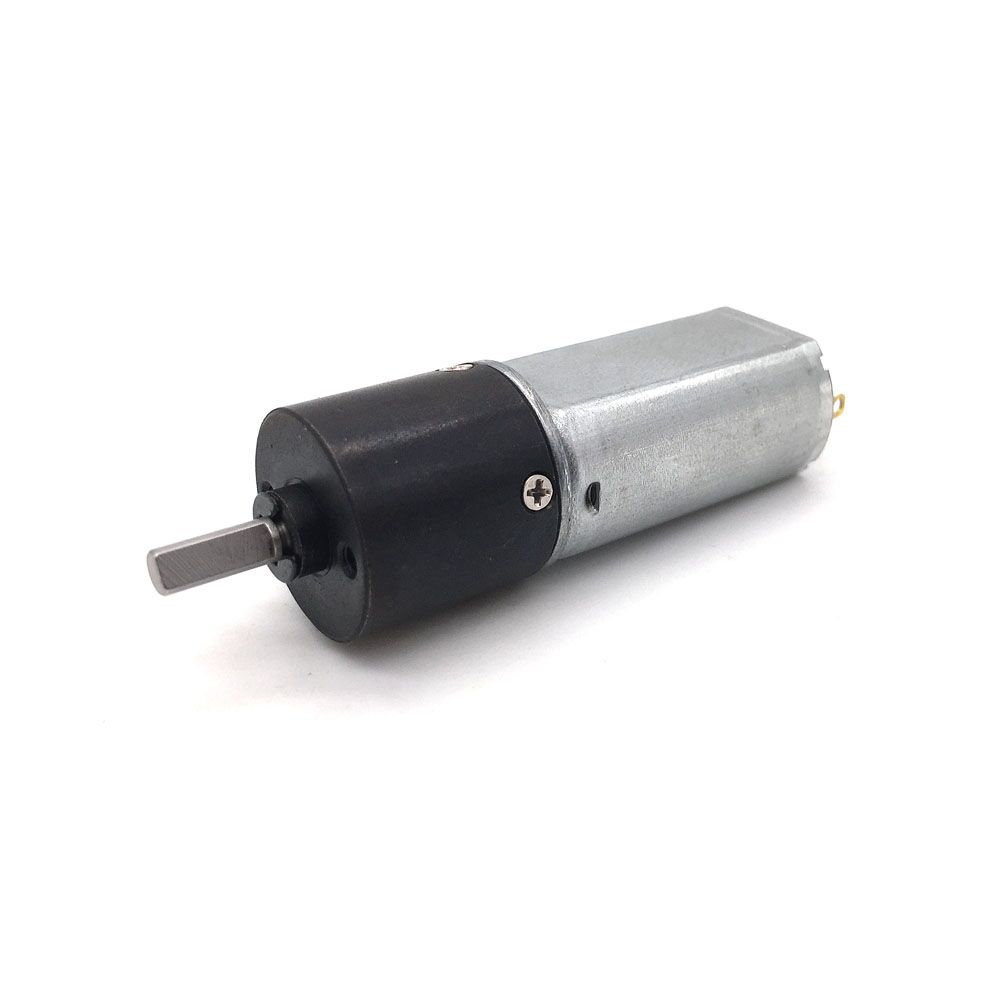

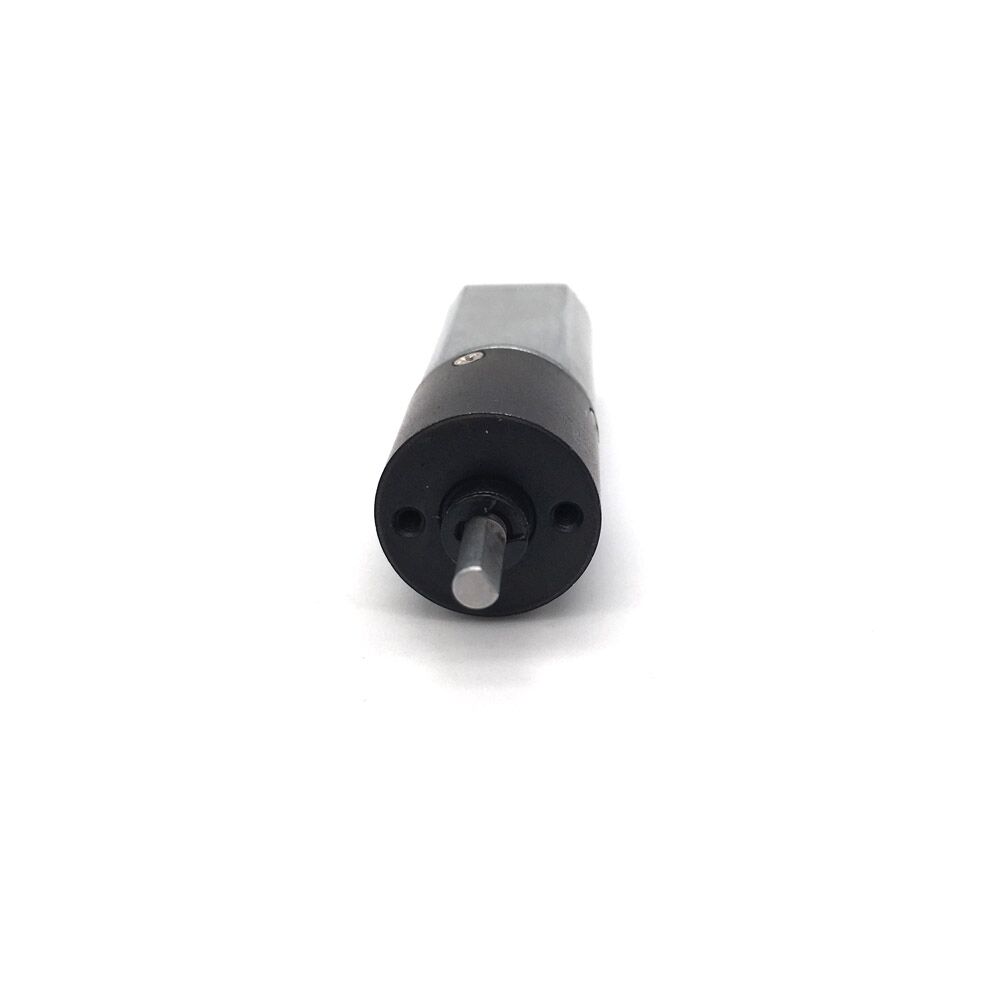

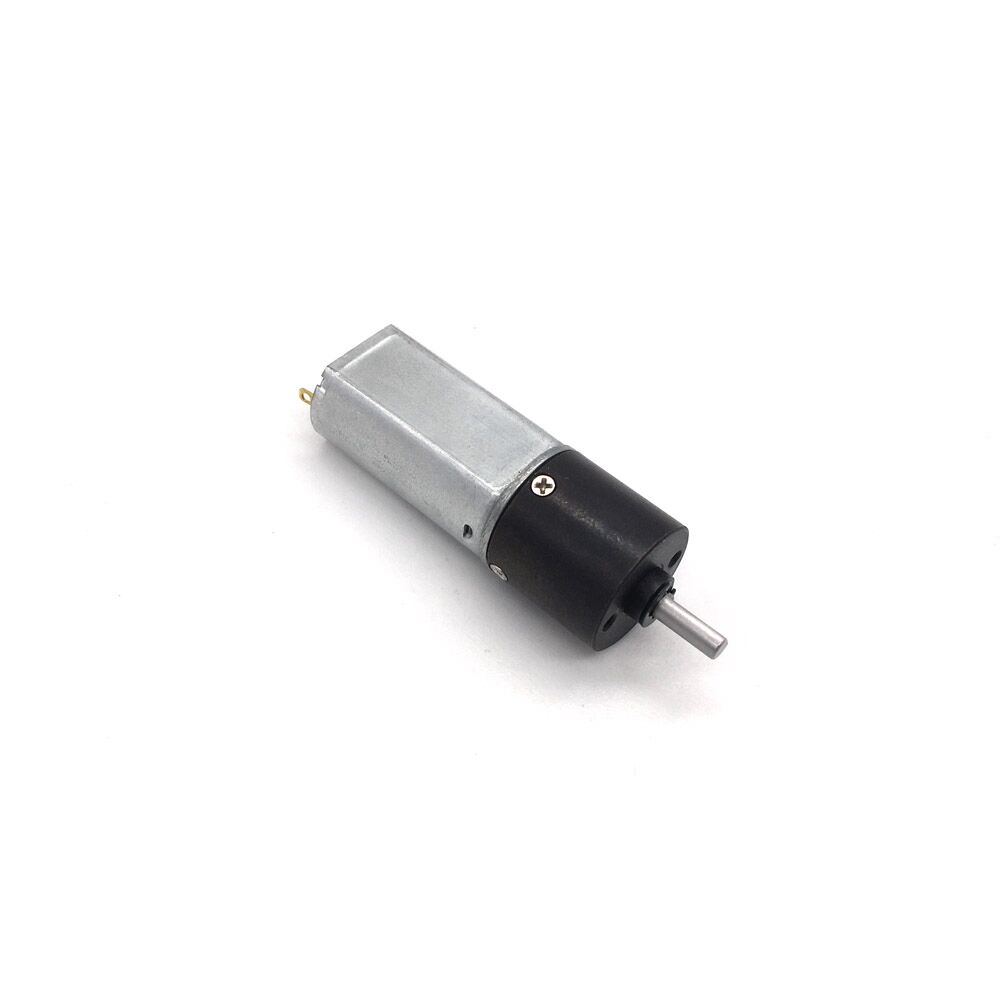

LPM16-050 ∅16mm DC Planetary Gear Motor
16mm planetary gearbox could be with 030/050 motor, specific parameters customized by request.
Additional information
| Model | LPM16-050 |
|---|---|
| Type | DC Planetary Gear Motor |
| Brush Type | Metal-brush/Carbon-brush |
| Motor Size | Φ15.5*12*26.9mm |
| Gearbox Size | Φ16*L mm |
| Output Shaft | Shaft shape, size and length can be customized by request |
| Voltage | 3v-24v |
Product Details:
16mm Diameter Micro DC Planetary Gear Motor
+ Brand: Linkto Motor
| Model: | LPM16-050 | Type: | DC Planetary Gear Motor |
| Voltage: | 3v-24v | Speed: | 1rpm-5000rpm |
| Continuous Current: | ≤5.8A | Stall Torque: | ≤9kg.cm |
| Typical Application: | Smart Locks, Household Appliances, Financial Medical Equipment, Industrial Equipment, Intelligent Robot,etc. | ||
+ Outline Dimension
+ Gear Motor Technical Data For Reference
| Voltage | Reduction ratio | 1/4 | 1/5 | 1/16 | 1/19 | 1/22 | 1/64 | 1/76 | 1/90 | 1/107 | 1/256 | 1/304 | 1/361 | 1/429 | 1/509 |
| 6V | No load speed(rpm) | 2050 | 1640 | 513 | 432 | 373 | 128 | 108 | 91 | 77 | 32 | 27 | 23 | 19 | 16 |
| Rated speed(rpm) | 1600 | 1280 | 400 | 337 | 291 | 100 | 84 | 71 | 60 | 25 | 21 | 18 | 15 | 13 | |
| Rated torque(g.cm) | 20 | 25 | 75 | 90 | 105 | 265 | 315 | 375 | 445 | 895 | 1060 | 1260 | 1500 | 1780 | |
| Stall torque(g.cm) | 110 | 140 | 390 | 460 | 530 | 1340 | 1590 | 1890 | 2240 | 4480 | 5320 | 6310 | 7500 | 7500 | |
| 12V | No load speed(rpm) | 2050 | 1640 | 513 | 432 | 373 | 128 | 108 | 91 | 77 | 32 | 27 | 23 | 19 | 16 |
| Rated speed(rpm) | 1500 | 1200 | 375 | 316 | 273 | 94 | 79 | 67 | 56 | 23 | 20 | 17 | 14 | 12 | |
| Rated torque(g.cm) | 15 | 20 | 65 | 75 | 90 | 230 | 270 | 320 | 380 | 765 | 910 | 1080 | 1285 | 1520 | |
| Stall torque(g.cm) | 80 | 100 | 300 | 350 | 410 | 1030 | 1230 | 1450 | 1730 | 3450 | 4100 | 4870 | 5790 | 6870 | |
| 24V | No load speed(rpm) | 3425 | 2740 | 856 | 721 | 623 | 214 | 180 | 152 | 128 | 54 | 45 | 38 | 32 | 27 |
| Rated speed(rpm) | 2750 | 2200 | 688 | 579 | 500 | 172 | 145 | 122 | 103 | 43 | 36 | 30 | 26 | 22 | |
| Rated torque(g.cm) | 27 | 30 | 90 | 110 | 130 | 320 | 385 | 455 | 540 | 1085 | 1290 | 1530 | 1820 | 2160 | |
| Stall torque(g.cm) | 130 | 170 | 480 | 570 | 660 | 1650 | 1950 | 2320 | 2750 | 5500 | 6530 | 7500 | 7500 | 7500 | |
| Length of gearbox L(mm） | 12.2mm | 15.8mm | 19.4mm | 23mm | |||||||||||
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Single Motor Technical Data For Reference
| VOLTAGE | NO LOAD | RATED LOAD | STALL | |||||||
| NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||
| V | r/min | mA | r/min | mA | mN.m | g.cm | W | mN.m | g.cm | mA |
| 6 | 8200 | 75 | 6400 | 170 | 0.686 | 7 | 0.45 | 3.43 | 35 | 600 |
| 12 | 8200 | 60 | 6000 | 90 | 0.588 | 6 | 0.38 | 2.646 | 27 | 240 |
| 24 | 13700 | 60 | 11000 | 100 | 0.833 | 8.5 | 0.95 | 4.214 | 43 | 320 |
+ Applications
- Smart Locks: Door Lock, Fingerprint Lock, Express Cabinet Lock, Bike Lock
- Household Appliances: Hair Curler
- Financial Medical Equipment: Projector
- Industrial Equipment: Air Switch
- Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot
