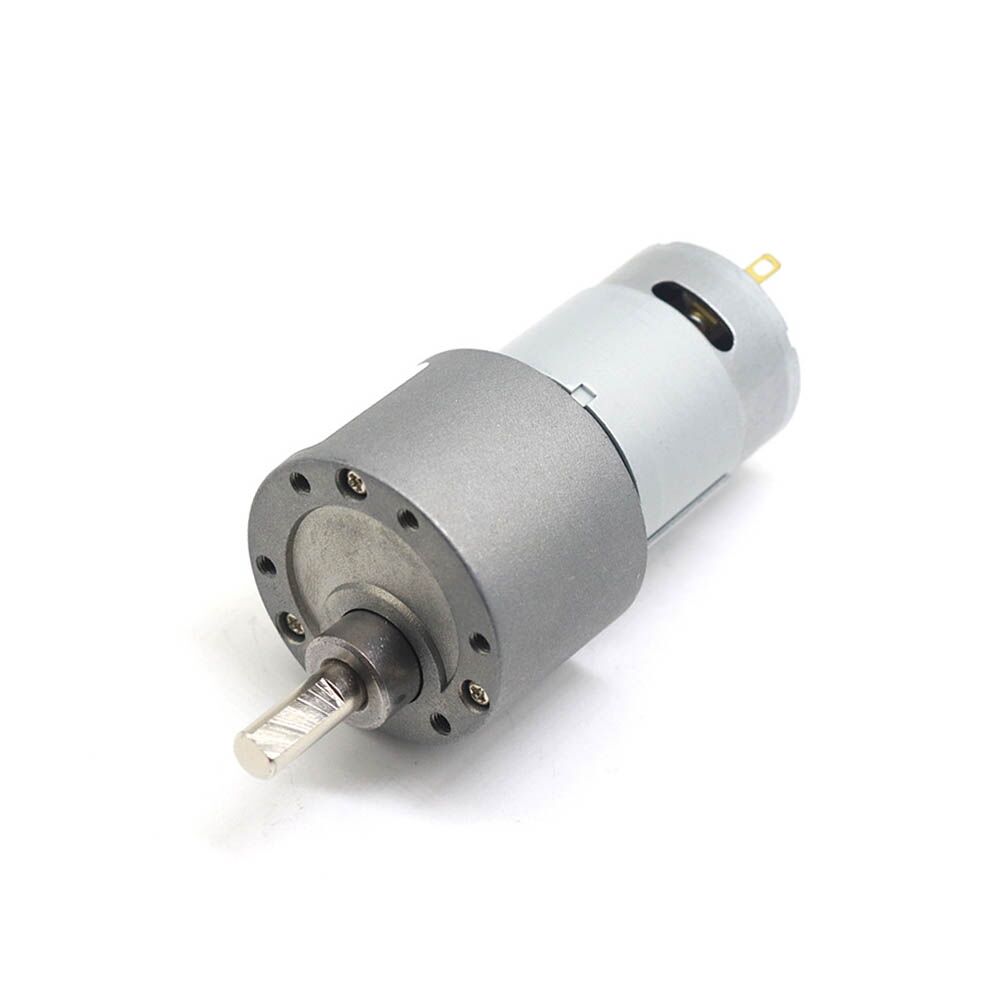

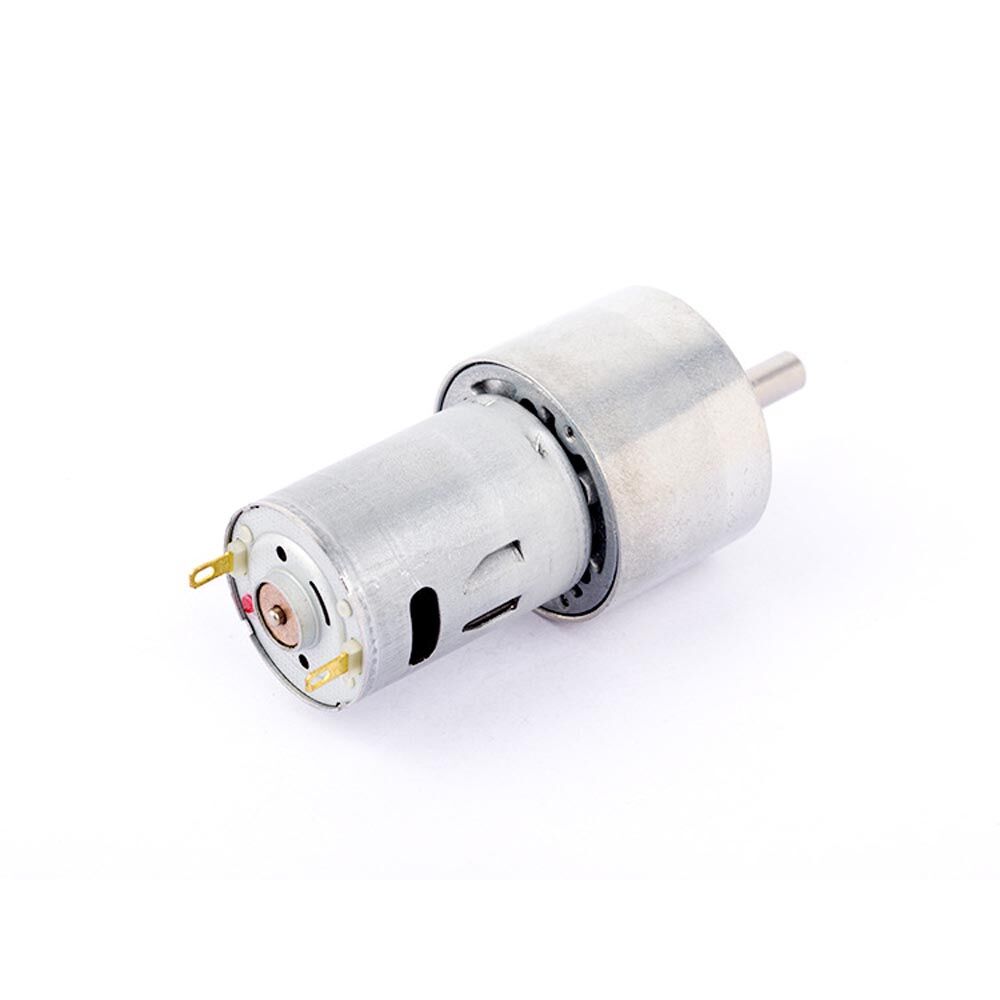

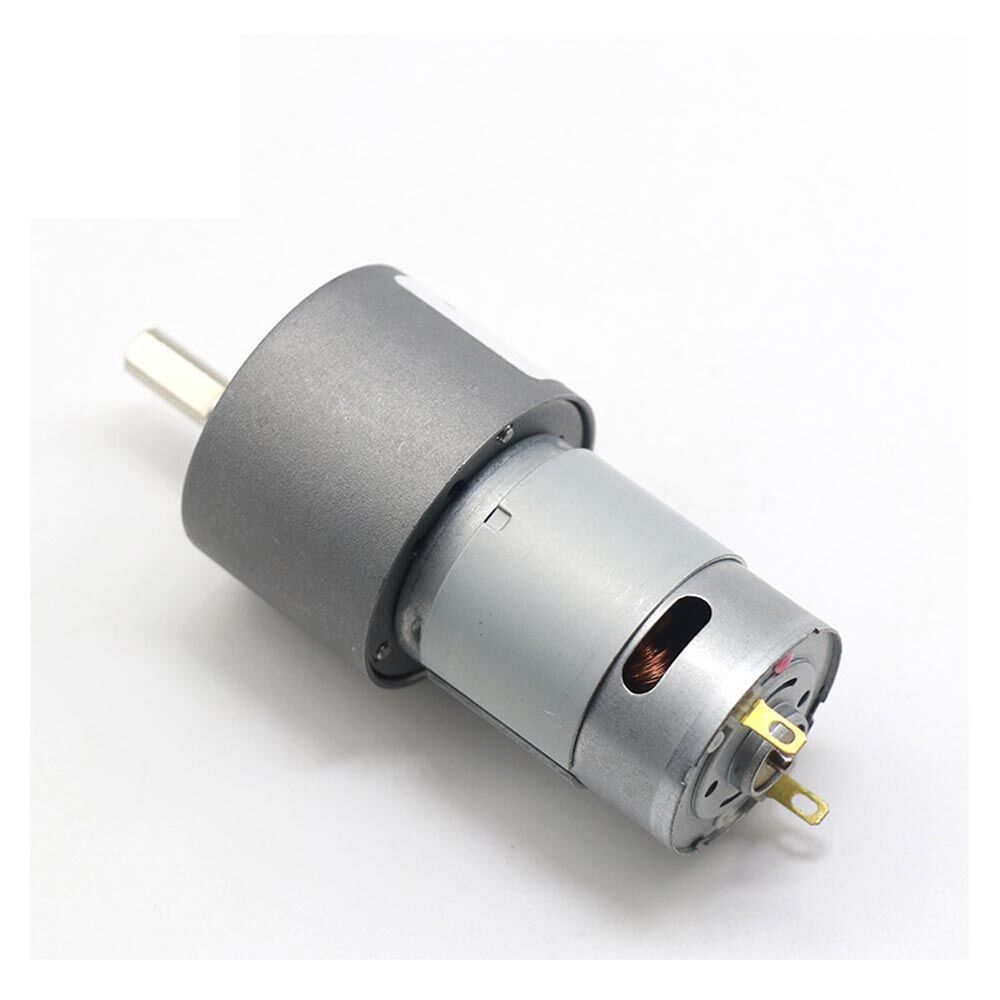

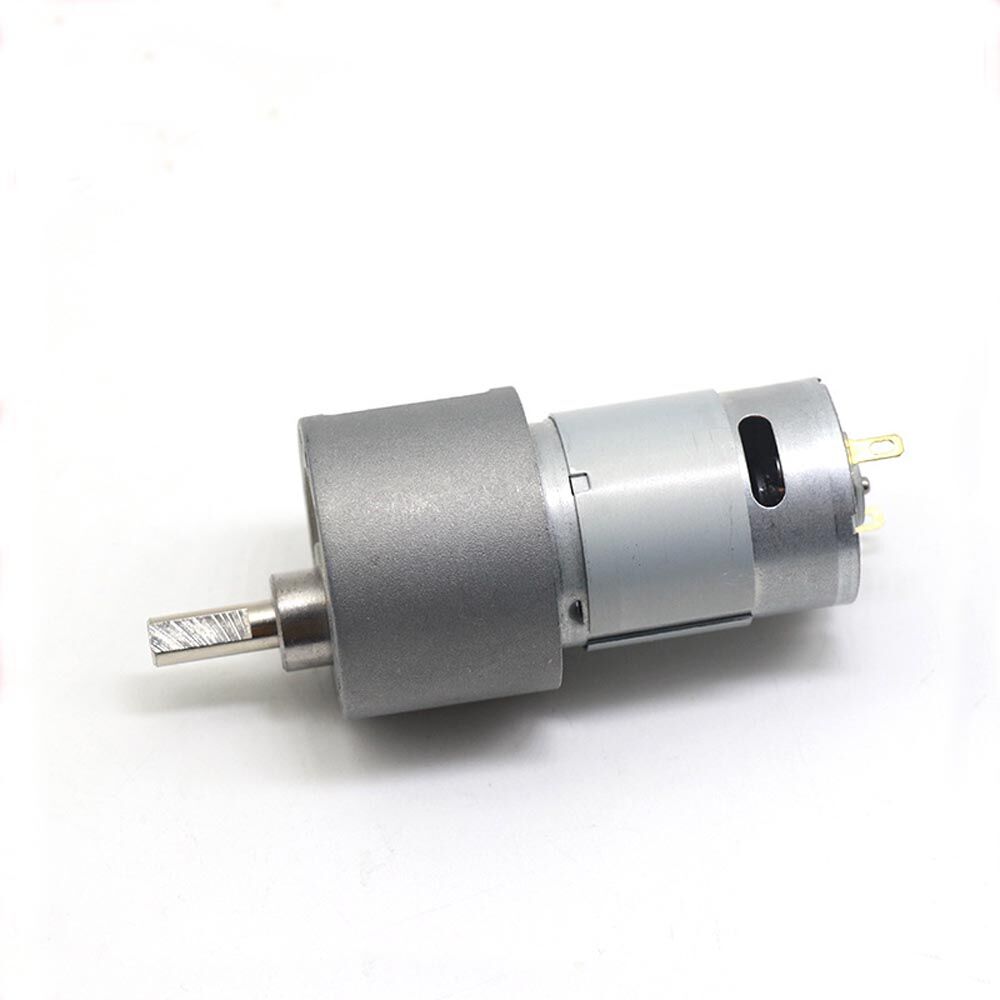

LGM37-385 ∅37mm DC Geared Motor
37mm gearbox could be with 385/520/528/550 motor, specific parameters customized by request.
Additional information
| Model | LGM37-385 |
|---|---|
| Type | DC Geared Motor |
| Brush Type | Metal-Brush/Carbon-Brush |
| Motor Size | Φ27.8*37.8mm |
| Gearbox Size | Φ37*L mm |
| Output Shaft | Shaft shape, size and length can be customized by request |
| Voltage | 1.5v-24v |
Product Details:
37mm Diameter Micro DC Geared Motor
+ Brand: Linkto Motor
| Model: | LGM37-385 | Type: | DC Geared Motor |
| Voltage: | 3v-24v | Speed: | 3rpm-1500rpm |
| Continuous Current: | ≤3A | Stall Torque: | ≤20kg.cm |
| Typical Application: | Actuator,Commercial Products,Fishing equipment,Industrial Tools,Locking device,Planter valve,Power tool,Security and Locks,Valves and Meters,etc. | ||
+ Outline Dimension
+ Gear ratio and length of gearbox
| Number of gear stages | 2 | 3 | 4 | 5 | 6 |
| Gear ratio | 6 | 16.7 | 45 | 110 | 330 |
| 10 | 23.3 | 50 | 121 | 350 | |
| 30 | 60 | 135 | 405 | ||
| 70 | 150 | 420 | |||
| 90 | 180 | 450 | |||
| 100 | 210 | 490 | |||
| 250 | 540 | ||||
| 270 | 630 | ||||
| 300 | 810 | ||||
| Length of gearbox L(mm） | 19mm | 21.5mm | 24mm | 26.5mm | 29mm |
+ Technical Data For Reference
| MODEL | VOlTAGE | NO LOAD | RATED LOAD | STALL | |||||||
| NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | rpm | A | rpm | A | mN.m | Kg.cm | W | mN.m | Kg.cm | A | |
| LGM37-385-10 | 6 | 980 | 0.3 | 800 | 1 | 70 | 0.714 | 6.28 | 390 | 3.978 | 5 |
| LGM37-385-30 | 6 | 200 | 0.3 | 175 | 0.85 | 100 | 1.020 | 2 | 850 | 8.670 | 4.5 |
| LGM37-385-50 | 12 | 304 | 0.5 | 270 | 1.9 | 310 | 3.162 | 9 | 3000 | 30.600 | 14 |
| LGM37-385-90 | 12 | 40 | 0.1 | 35 | 0.2 | 190 | 1.938 | 0.73 | 1470 | 14.994 | 1 |
| LGM37-385-121 | 12 | 34 | 0.07 | 25 | 0.38 | 400 | 4.080 | 1.05 | 1070 | 10.914 | 1.1 |
| LGM37-385-150 | 24 | 36 | 0.12 | 28 | 0.2 | 390 | 3.978 | 1.15 | 1860 | 18.972 | 0.6 |
| LGM37-385-270 | 12 | 26 | 0.25 | 20.5 | 0.46 | 784 | 8.000 | 2.3 | 1960 | 20.000 | 1.8 |
| LGM37-385-350 | 24 | 15.5 | 0.12 | 12 | 0.2 | 784 | 8.000 | 1.07 | 1960 | 20.000 | 0.6 |
| LGM37-385-490 | 12 | 8 | 0.1 | 6 | 0.4 | 784 | 8.000 | 0.92 | 1960 | 20.000 | 1.1 |
| LGM37-385-630 | 12 | 5.7 | 0.1 | 5 | 0.2 | 784 | 8.000 | 0.54 | 1960 | 20.000 | 1 |
| LGM37-385-810 | 12 | 4.4 | 0.1 | 3.8 | 0.2 | 784 | 8.000 | 0.5 | 1960 | 20.000 | 1 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Applications
- Actuator,Commercial Products,Fishing equipment,
- Industrial Tools,Locking device,Planter valve,
- Power tool,Security and Locks,Valves and Meters,etc.
