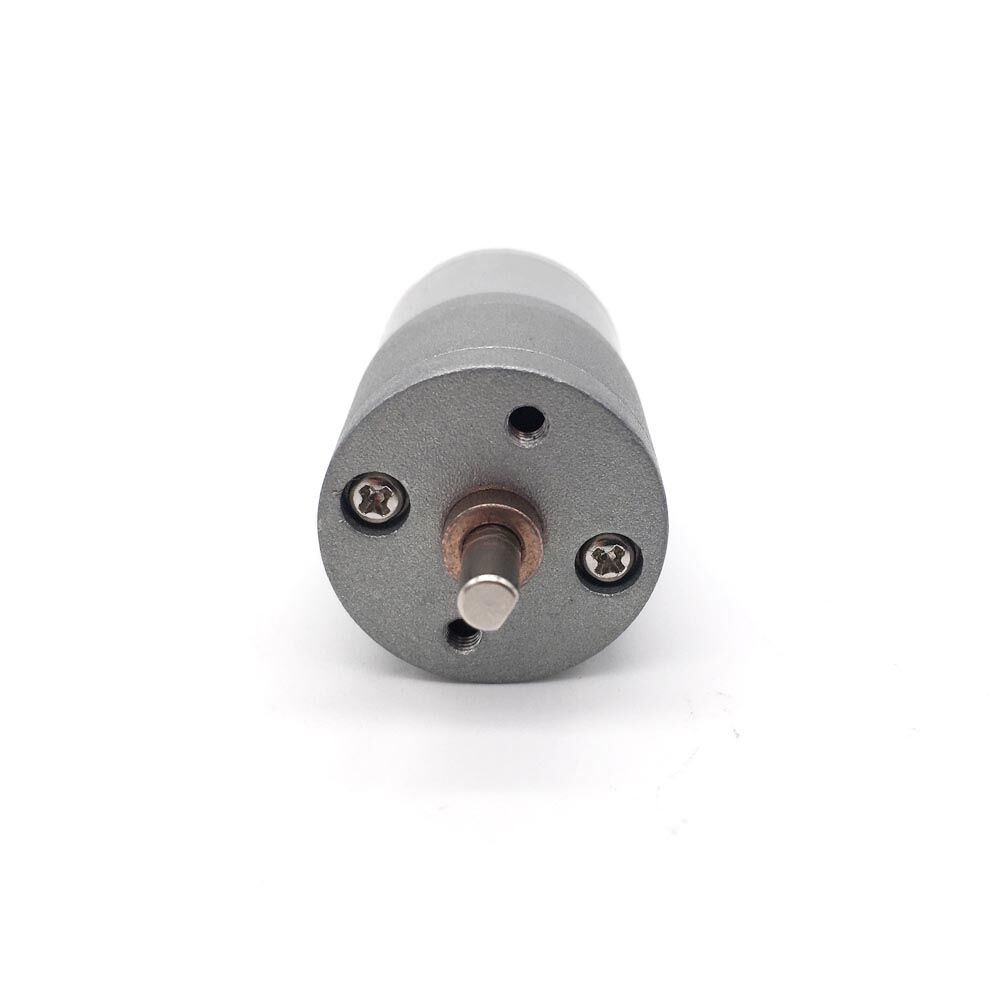

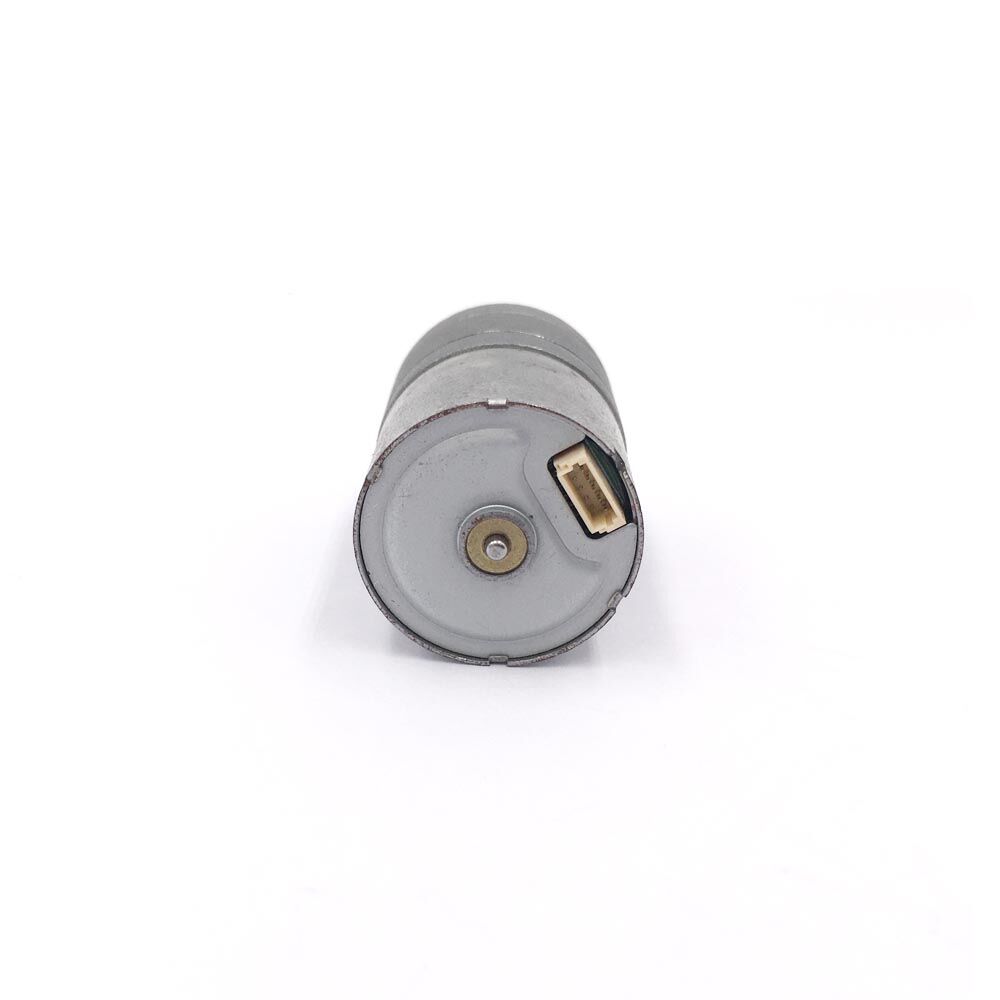

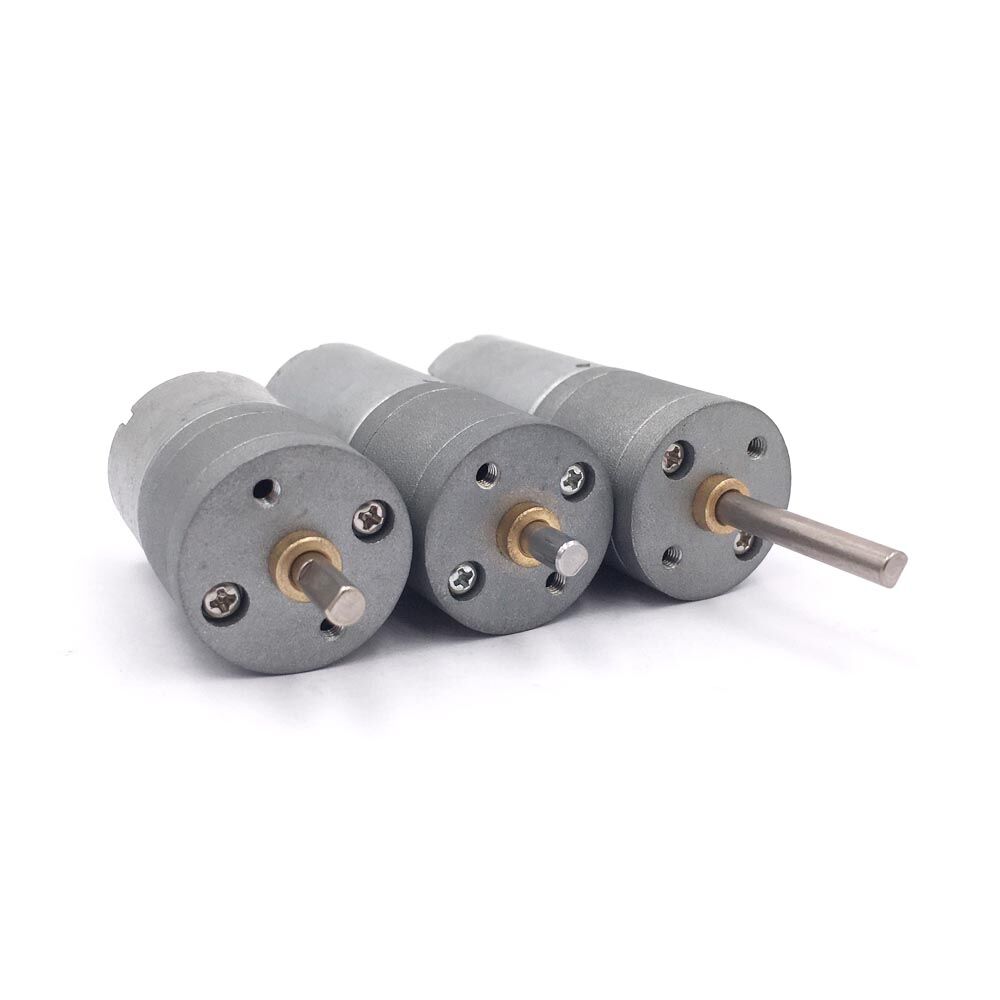

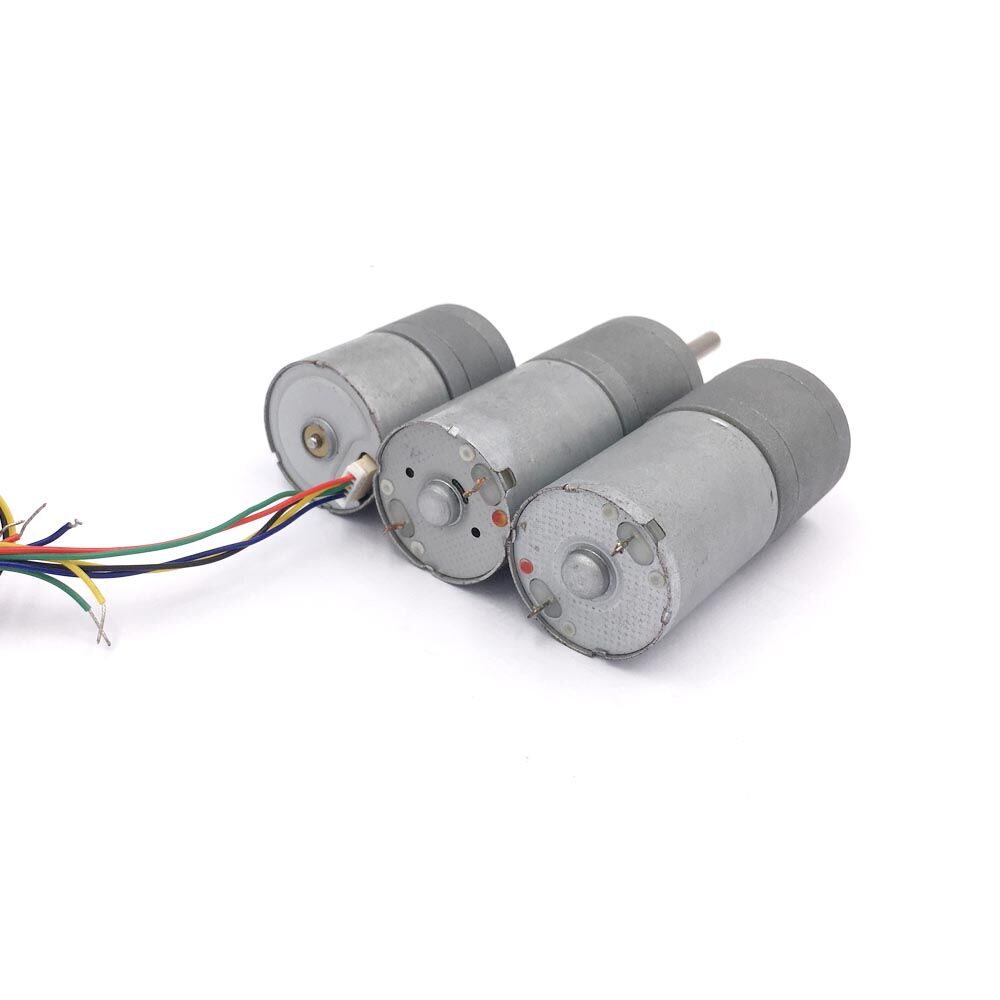

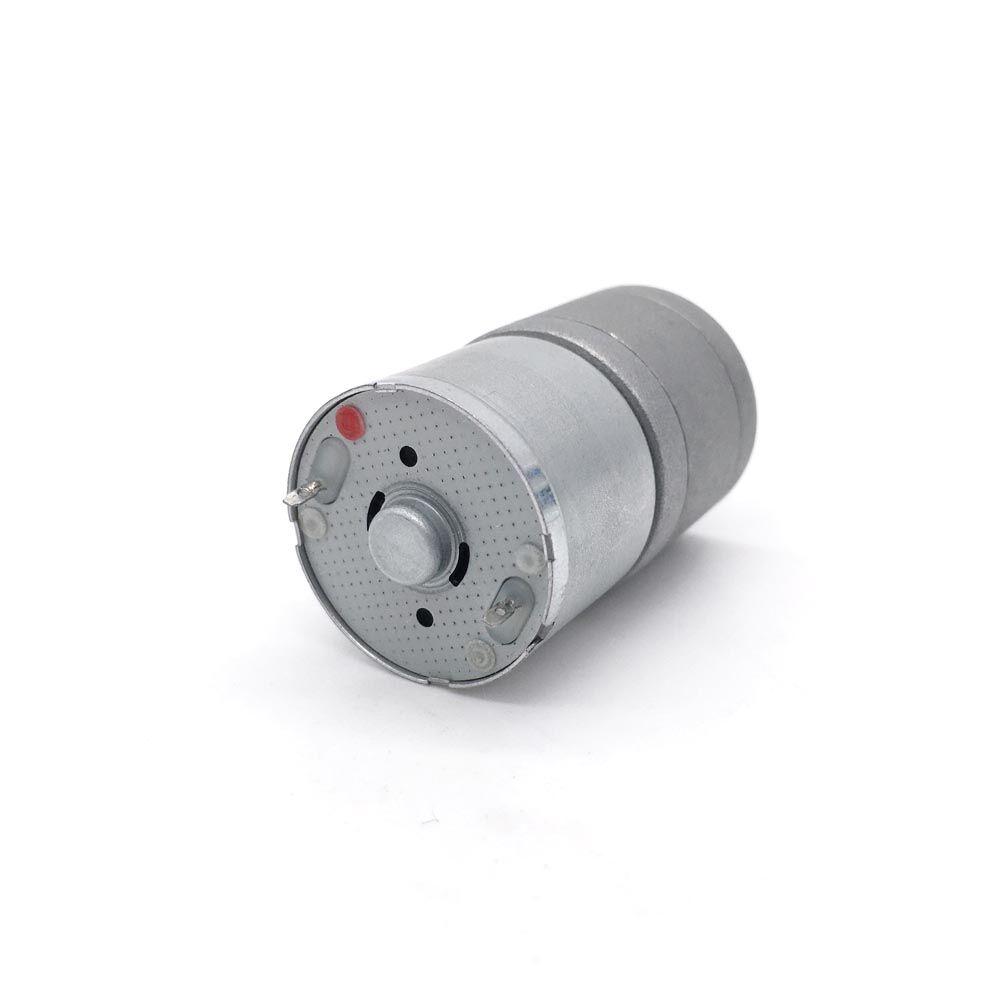

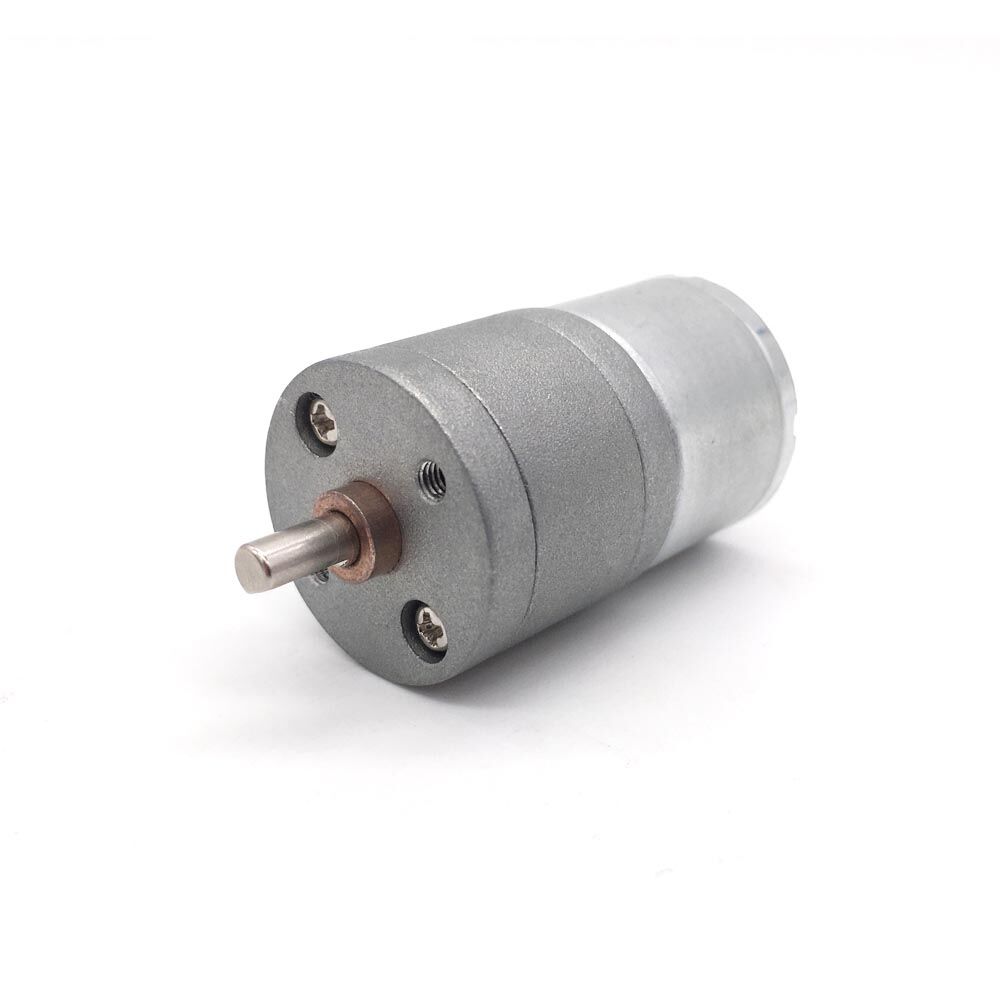

LGM25-310 ∅25mm DC Geared Motor
25mm gearbox could be with 310/370/2418/2430 motor, specific parameters customized by request.
Additional information
| Model | LGM25-310 |
|---|---|
| Type | DC Geared Motor |
| Brush Type | Metal-Brush/Carbon-Brush |
| Motor Size | Φ24.4*18.4mm |
| Gearbox Size | Φ25*L mm |
| Output Shaft | Shaft shape, size and length can be customized by request |
| Voltage | 1.5v-24v |
Product Details:
25mm Diameter Micro DC Geared Motor
+ Brand: Linkto Motor
| Model: | LGM25-310 | Type: | DC Geared Motor |
| Voltage: | 3v-24v | Speed: | 3rpm-1500rpm |
| Continuous Current: | ≤3A | Stall Torque: | ≤6kg.cm |
| Typical Application: | Balance scale,Coffee machine,Commercial Products,Educational robot,Home Appliances,Valves,Valves and Meters,etc. | ||
+ Outline Dimension
+ Gear ratio and length of gearbox
| Number of gear stages | 3 | 4 | 5 | 6 | 7 | 8 |
| Gear ratio | 4.4 | 16 | 35.5 | 59 | 130 | 286 |
| 10 | 21 | 46.9 | 78 | 172 | 378 | |
| 103 | 226 | 500 | ||||
| Length of gearbox L(mm） | 19mm | 19mm | 21mm | 23mm | 25mm | 27mm |
+ Technical Data For Reference
| MODEL | VOlTAGE | NO LOAD | RATED LOAD | STALL | |||||||
| NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | rpm | A | rpm | A | mN.m | Kg.cm | W | mN.m | Kg.cm | A | |
| LGM25-310-10 | 6 | 650 | 0.07 | 450 | 0.3 | 9.8 | 0.100 | 0.47 | 29 | 0.296 | 0.7 |
| LGM25-310-16 | 6 | 190 | 0.07 | 145 | 0.1 | 2.9 | 0.030 | 0.046 | 11 | 0.112 | 0.12 |
| LGM25-310-21 | 3 | 150 | 0.05 | 120 | 0.15 | 9.8 | 0.100 | 0.12 | 45 | 0.459 | 0.5 |
| LGM25-310-35.5 | 3 | 70 | 0.05 | 55 | 0.1 | 13 | 0.133 | 0.08 | 70 | 0.714 | 0.4 |
| LGM25-310-46.9 | 12 | 250 | 0.08 | 200 | 0.15 | 34 | 0.347 | 0.63 | 196 | 1.999 | 1 |
| LGM25-310-78 | 6 | 36 | 0.05 | 26.5 | 0.08 | 19 | 0.194 | 0.55 | 68 | 0.694 | 0.15 |
| LGM25-310-103 | 6 | 40 | 0.03 | 30 | 0.07 | 29 | 0.296 | 0.1 | 195 | 1.989 | 0.3 |
| LGM25-310-130 | 3 | 26 | 0.03 | 20 | 0.07 | 29 | 0.296 | 0.063 | 95 | 0.969 | 0.4 |
| LGM25-310-172 | 6 | 30 | 0.07 | 25 | 0.18 | 57 | 0.581 | 0.16 | 580 | 5.916 | 0.8 |
| LGM25-310-226 | 6 | 24 | 0.07 | 19 | 0.18 | 78 | 0.796 | 0.16 | 588 | 6.000 | 0.8 |
| LGM25-310-500 | 6 | 9 | 0.04 | 7 | 0.1 | 195 | 1.989 | 0.14 | 588 | 6.000 | 0.7 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Applications
- Balance scale,Coffee machine,
- Commercial Products,Educational robot,
- Home Appliances,Valves,Valves and Meters,etc.
