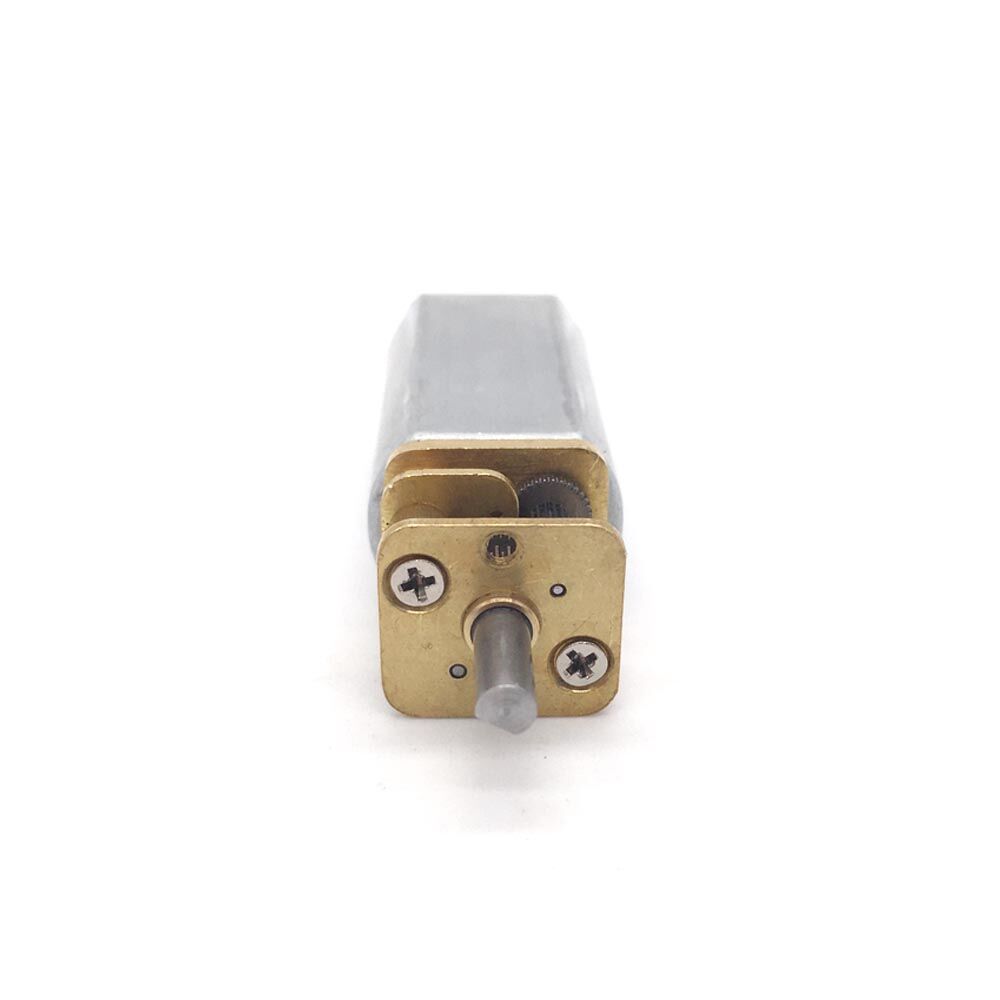

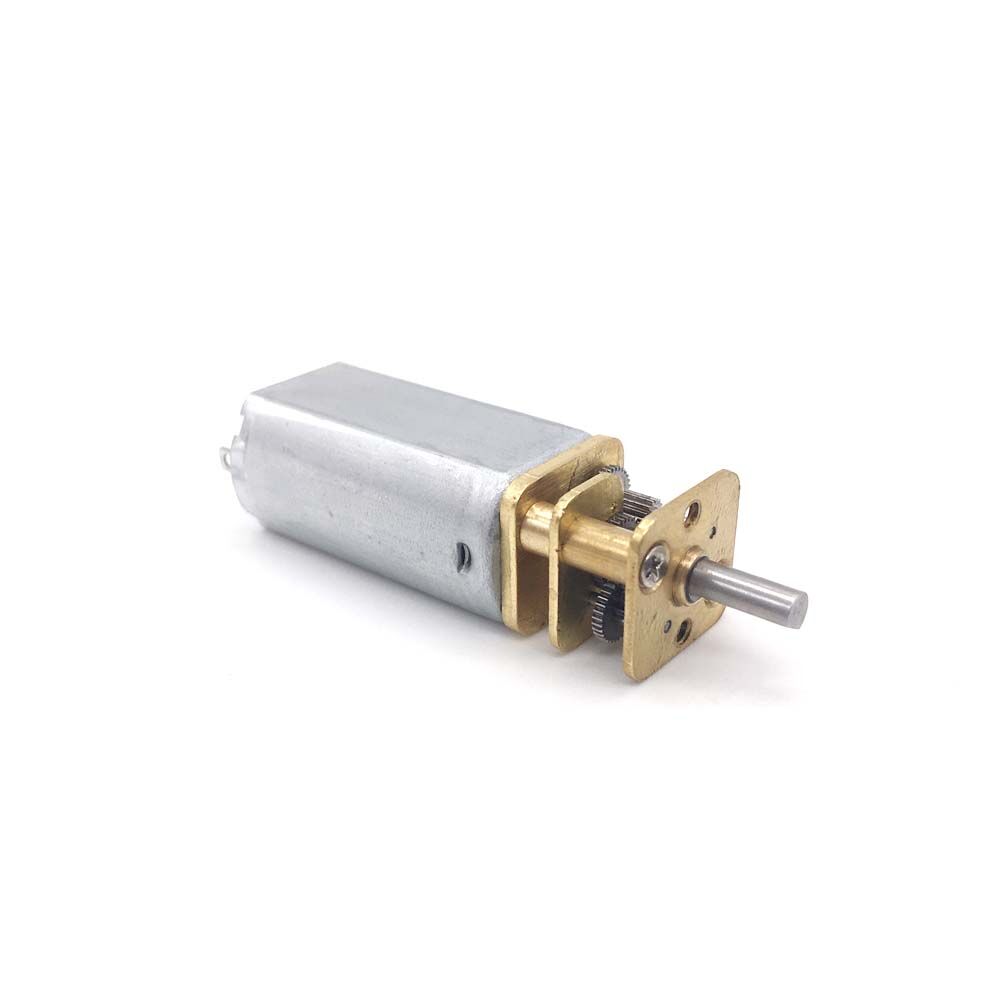

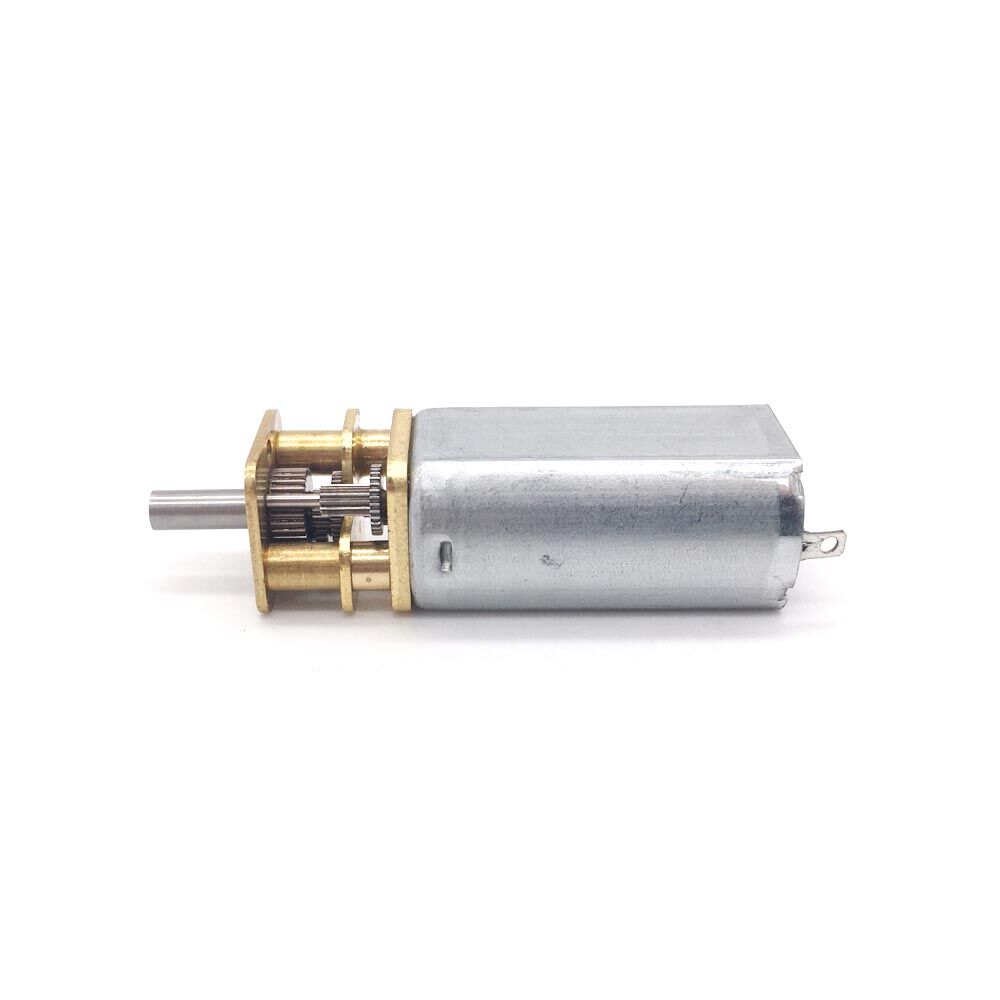

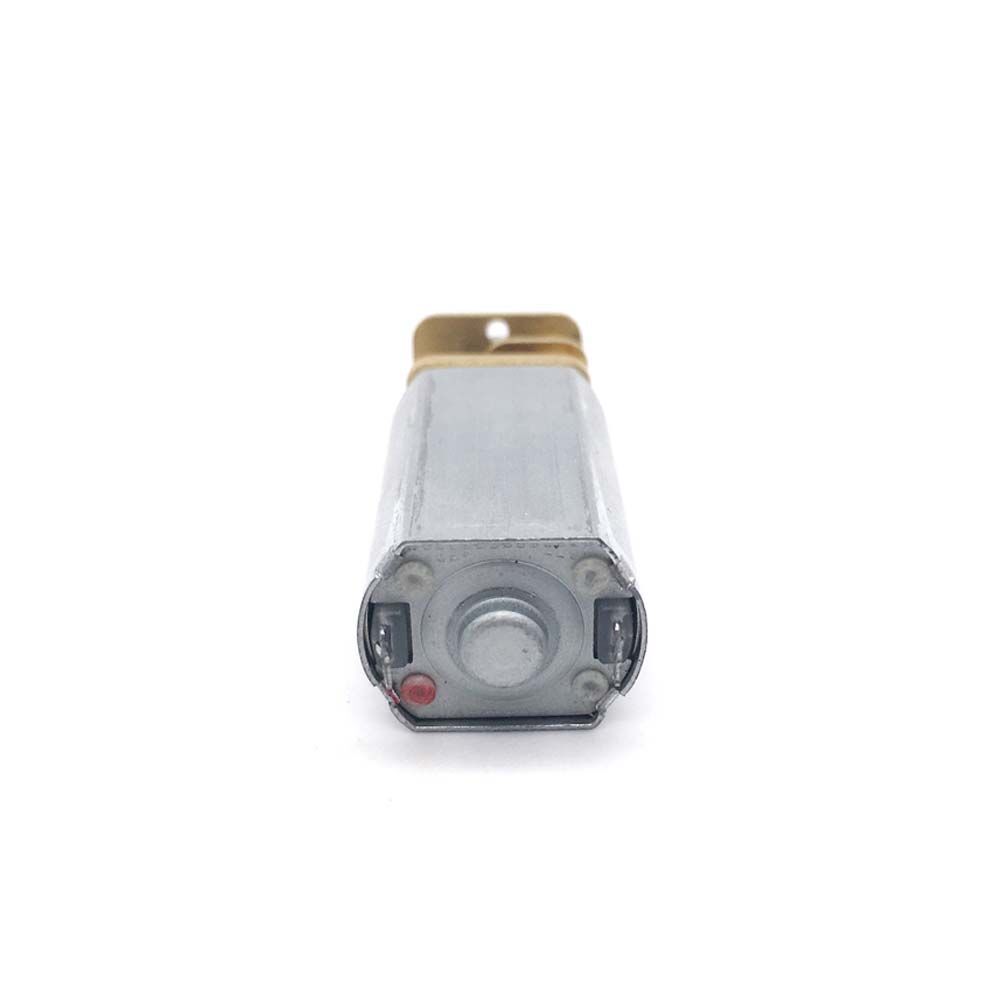

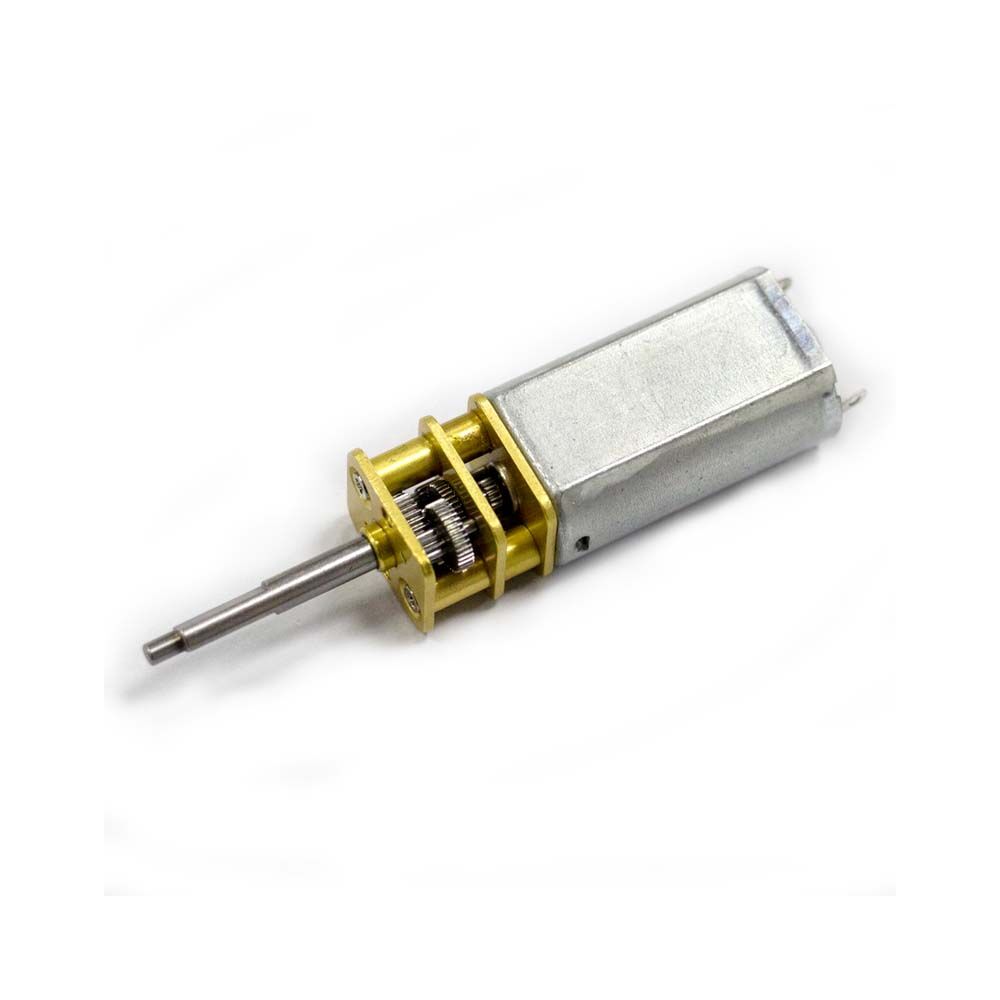

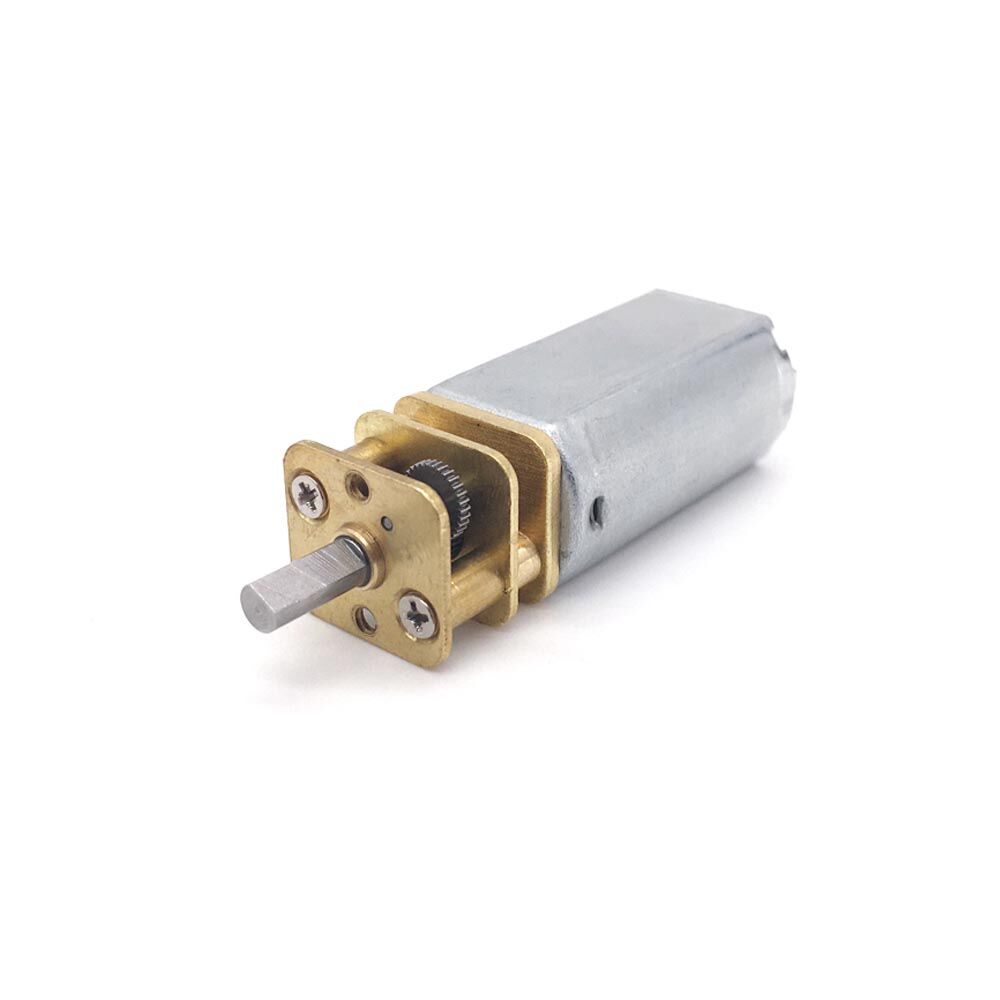

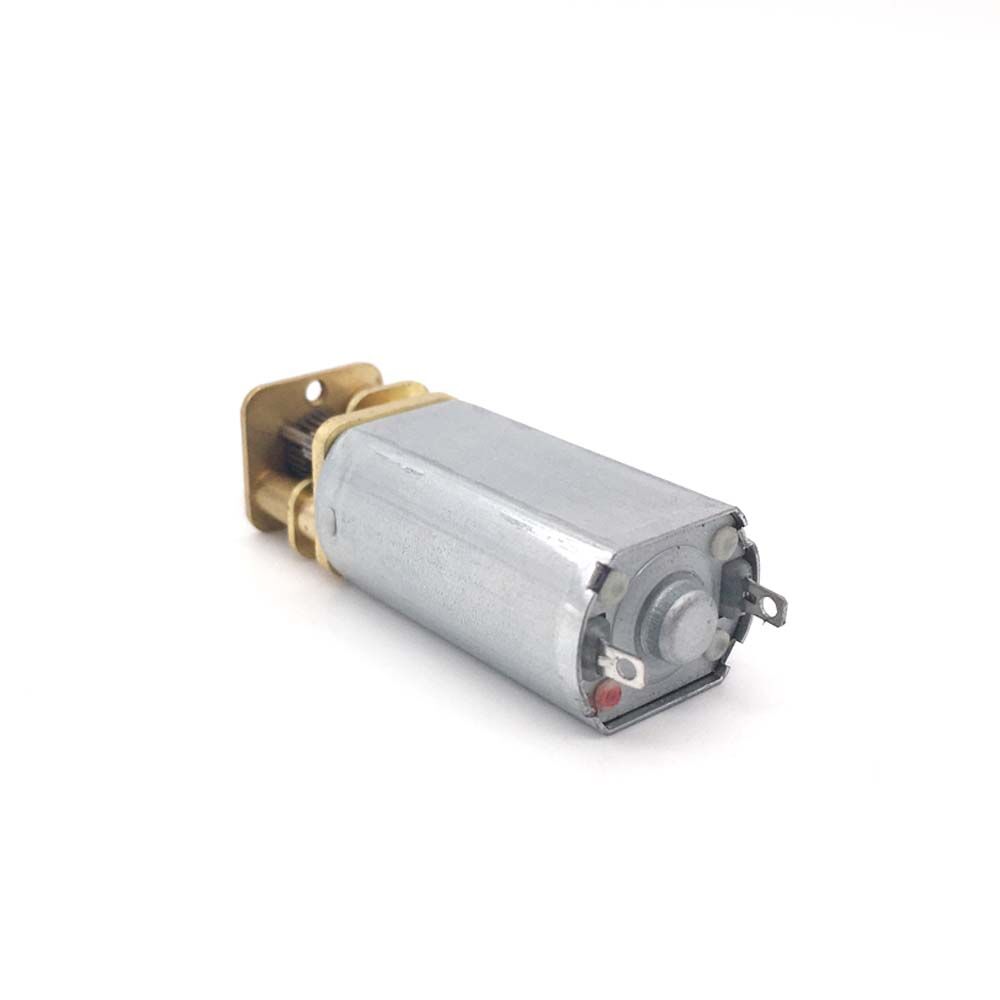

LGM13-050 13mm DC Geared Motor
13mm gearbox could be with 030/050 motor, specific parameters customized by request.
Additional information
| Model | LGM13-050 |
|---|---|
| Type | DC Geared Motor |
| Brush Type | Metal-Brush/Carbon-Brush |
| Motor Size | Φ15.5*12*26.9mm |
| Gearbox Size | 13*12*L mm |
| Output Shaft | Shaft shape, size and length can be customized by request |
| Voltage | 1.5v-24v |
Product Details:
13mm Micro DC Geared Motor
+ Brand: Linkto Motor
| Model: | LGM13-050 | Type: | DC Geared Motor |
| Voltage: | 1.5v-24v | Speed: | 5rpm-3000rpm |
| Continuous Current: | ≤3A | Stall Torque: | ≤1kg.cm |
| Typical Application: | Camera,Coffee grinder,Coffee machine,Commercial Products,Electric drill,Home Appliances,Robot,etc. | ||
+ Outline Dimension
+ Gear ratio and length of gearbox
| Number of gear stages | 2 | 3 | 4 | 5 | 7 |
| Gear ratio | 6 | 16 | 35 | 118 | 1000 |
| 9 | 20 | 52 | 150 | ||
| 26 | 60 | 170 | |||
| 30 | 67 | 215 | |||
| 85 | 250 | ||||
| 100 | 288 | ||||
| 297 | |||||
| 330 | |||||
| 360 | |||||
| Length of gearbox L(mm） | 11mm | 14.1mm | |||
+ Technical Data For Reference
| MODEL | VOlTAGE | NO LOAD | RATED LOAD | STALL | |||||||
| NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | rpm | A | rpm | A | mN.m | Kg.cm | W | mN.m | Kg.cm | A | |
| LGM13-050-9 | 6 | 815 | 0.075 | 640 | 0.17 | 4.9 | 0.050 | 0.45 | 27.44 | 0.280 | 0.6 |
| LGM13-050-20 | 12 | 407 | 0.06 | 300 | 0.09 | 8.33 | 0.085 | 0.38 | 38.22 | 0.390 | 0.24 |
| LGM13-050-35 | 6 | 271 | 0.075 | 213 | 0.17 | 14.7 | 0.150 | 0.45 | 74.48 | 0.760 | 0.6 |
| LGM13-050-150 | 12 | 54 | 0.06 | 40 | 0.09 | 49 | 0.500 | 0.38 | 98 | 1.000 | 0.24 |
| LGM13-050-250 | 6 | 32 | 0.075 | 25 | 0.17 | 49 | 0.500 | 0.45 | 98 | 1.000 | 0.6 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Applications
- Camera,Coffee grinder,Coffee machine,
- Commercial Products,Electric drill,
- Home Appliances,Robot,etc.
