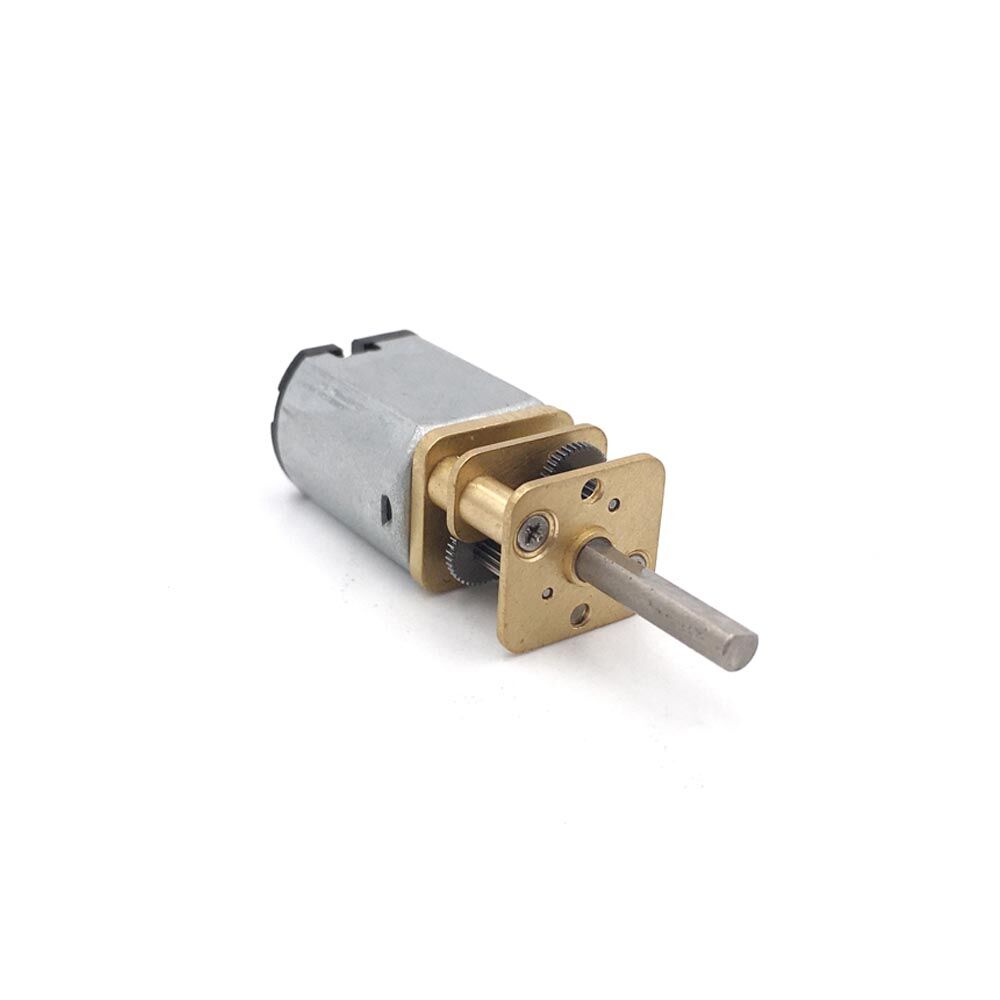

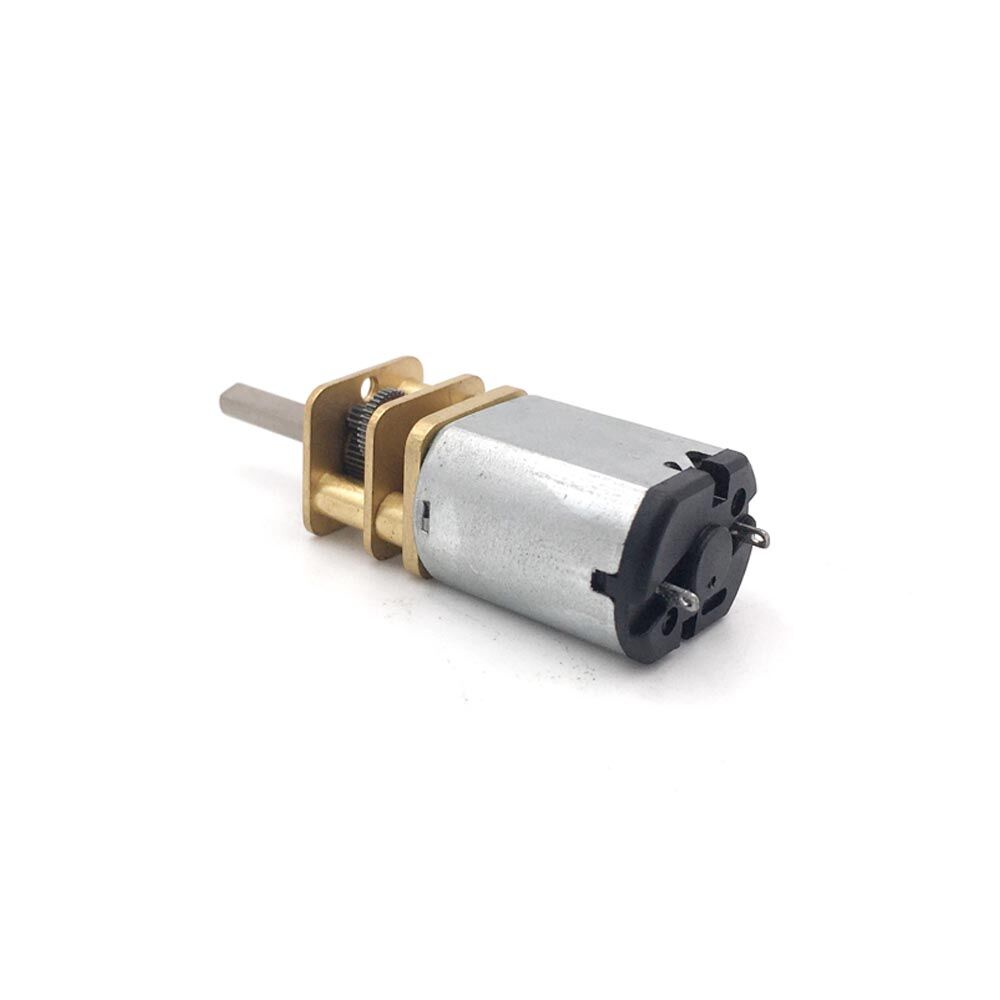

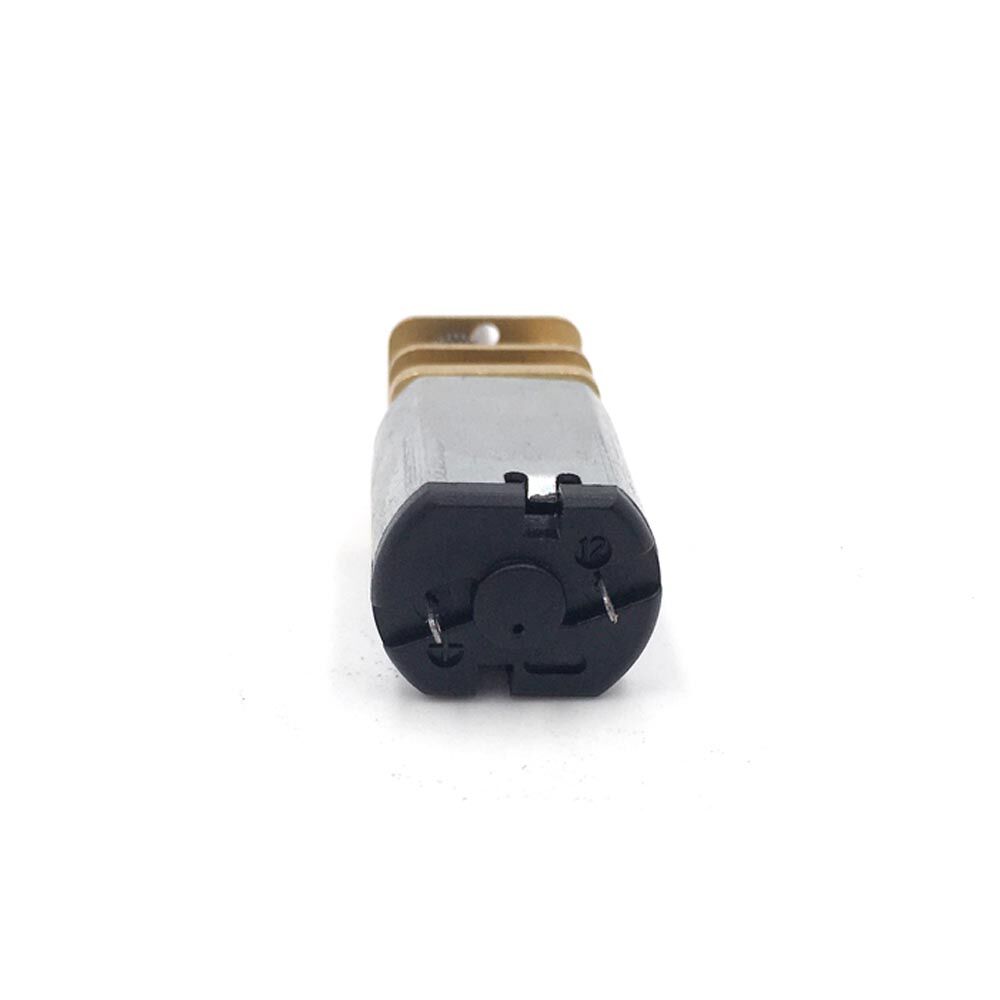

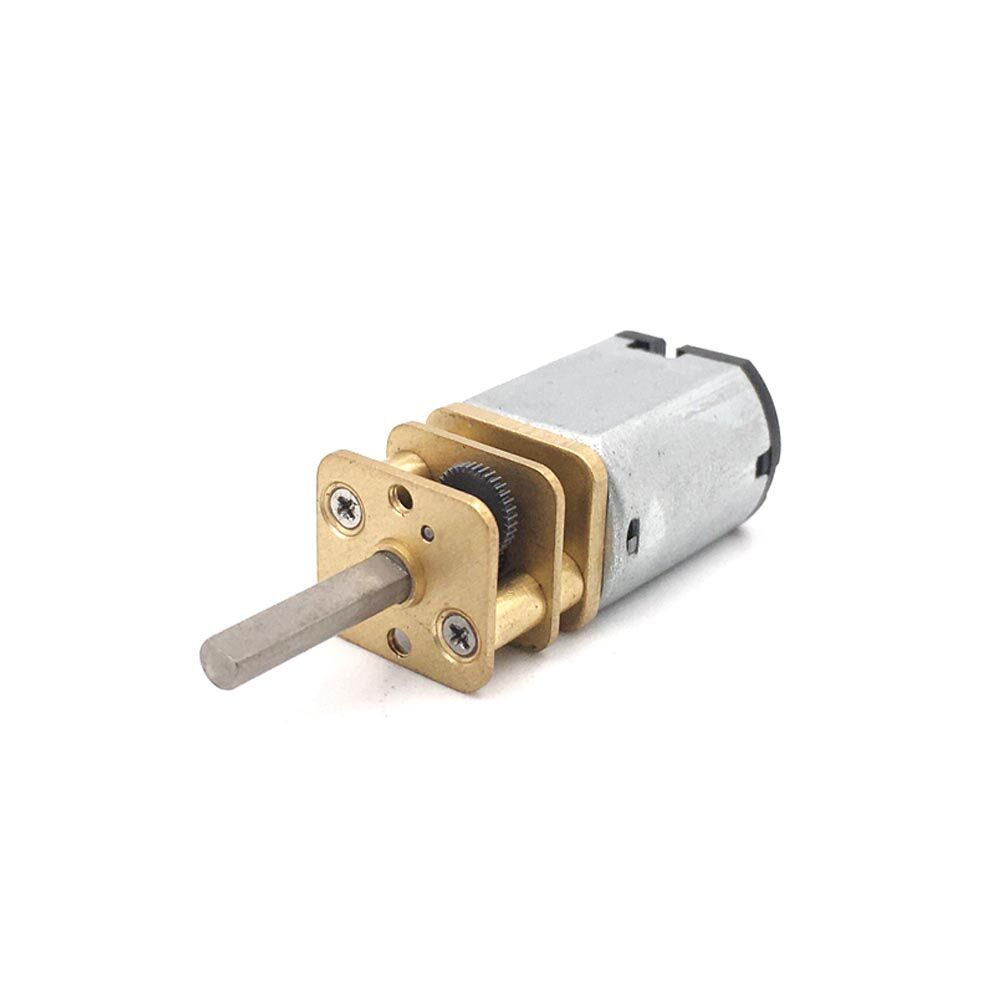

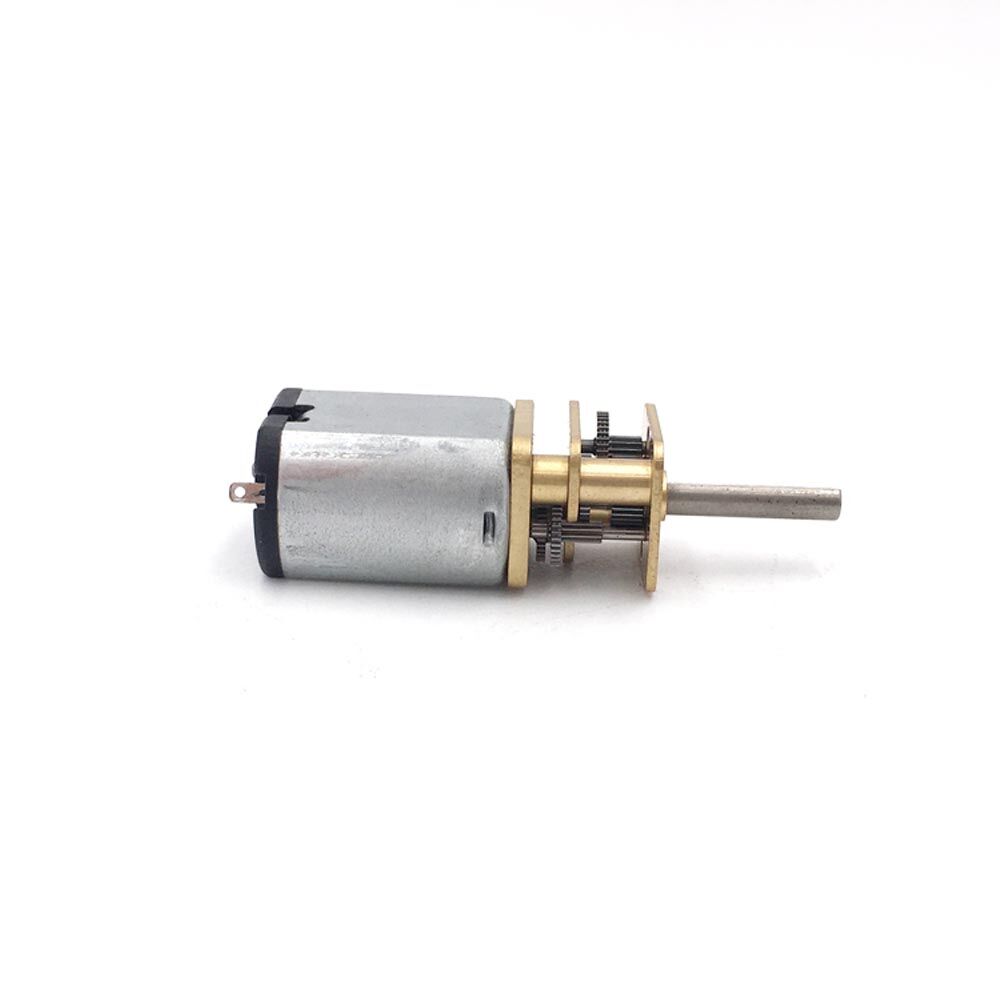

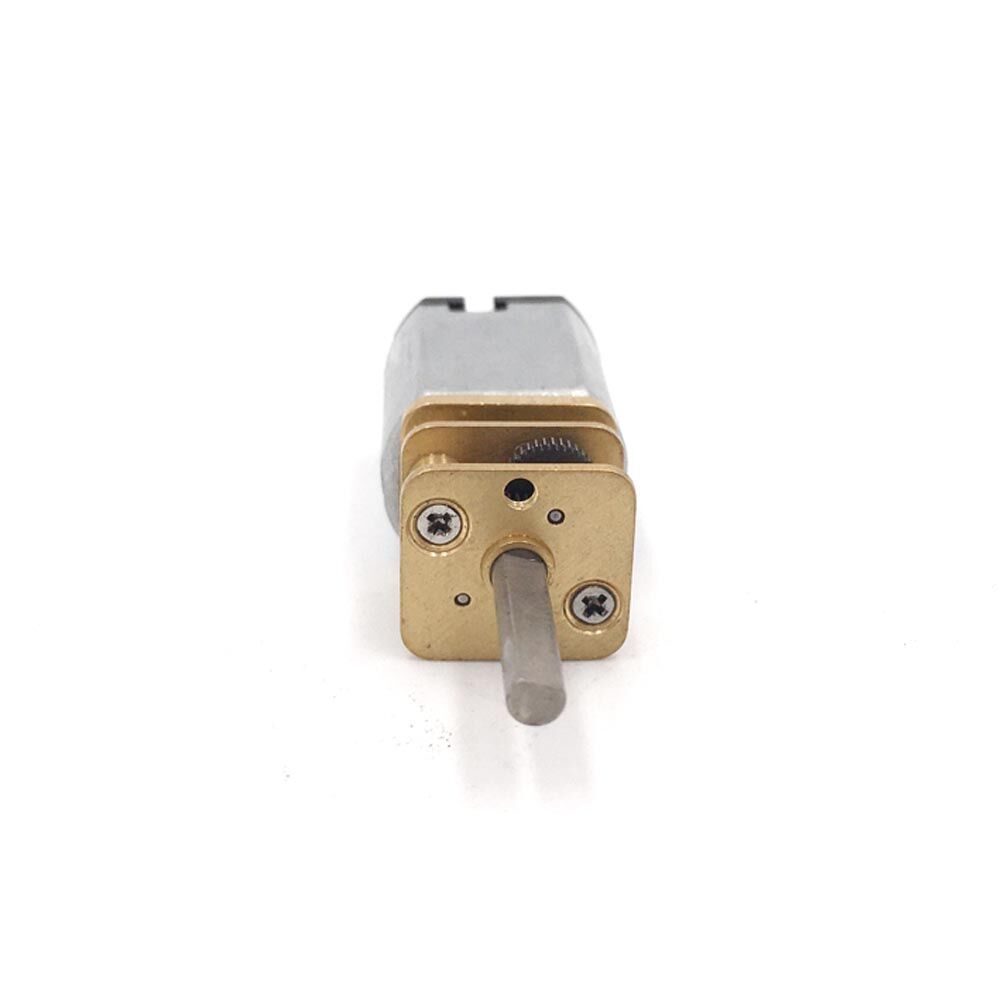

LGM13-030 13mm DC Geared Motor
13mm gearbox could be with 030/050 motor, specific parameters customized by request.
Additional information
| Model | LGM13-030 |
|---|---|
| Type | DC Geared Motor |
| Brush Type | Metal-Brush |
| Motor Size | Φ15.5*12*18.6mm |
| Gearbox Size | 13*12*L mm |
| Output Shaft | Shaft shape, size and length can be customized by request |
| Voltage | 1.5v-24v |
Product Details:
13mm Micro DC Geared Motor
+ Brand: Linkto Motor
| Model: | LGM13-030 | Type: | DC Geared Motor |
| Voltage: | 1.5v-24v | Speed: | 5rpm-3000rpm |
| Continuous Current: | ≤3A | Stall Torque: | ≤1kg.cm |
| Typical Application: | Camera,coffee machine,Commercial Products,Electric lock,Home Appliances,Robot,Security and Locks,etc. | ||
+ Outline Dimension
+ Gear ratio and length of gearbox
| Number of gear stages | 2 | 3 | 4 | 5 | 7 |
| Gear ratio | 6 | 16 | 35 | 118 | 1000 |
| 9 | 20 | 52 | 150 | ||
| 26 | 60 | 170 | |||
| 30 | 67 | 215 | |||
| 85 | 250 | ||||
| 100 | 288 | ||||
| 297 | |||||
| 330 | |||||
| 360 | |||||
| Length of gearbox L(mm） | 11mm | 14.1mm | |||
+ Technical Data For Reference
| MODEL | VOlTAGE | NO LOAD | RATED LOAD | STALL | |||||||
| NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | rpm | A | rpm | A | mN.m | Kg.cm | W | mN.m | Kg.cm | A | |
| LGM13-030-6 | 3 | 1500 | 0.06 | 1200 | 0.25 | 2 | 0.020 | 0.23 | 10 | 0.102 | 0.8 |
| LGM13-030-9 | 6 | 955 | 0.04 | 755 | 0.14 | 4 | 0.041 | 0.28 | 17 | 0.173 | 0.4 |
| LGM13-030-20 | 3 | 450 | 0.06 | 360 | 0.25 | 6 | 0.061 | 0.21 | 29 | 0.296 | 0.8 |
| LGM13-030-35 | 6 | 246 | 0.04 | 194 | 0.14 | 11 | 0.112 | 0.23 | 54 | 0.551 | 0.4 |
| LGM13-030-100 | 6 | 86 | 0.04 | 68 | 0.14 | 32 | 0.326 | 0.23 | 98 | 1.000 | 0.4 |
| LGM13-030-150 | 3 | 60 | 0.06 | 48 | 0.25 | 35 | 0.357 | 0.17 | 98 | 1.000 | 0.8 |
| LGM13-030-250 | 3 | 36 | 0.06 | 29 | 0.25 | 49 | 0.500 | 0.17 | 98 | 1.000 | 0.8 |
| LGM13-030-330 | 6 | 26 | 0.04 | 21 | 0.14 | 49 | 0.500 | 0.2 | 98 | 1.000 | 0.4 |
| LGM13-030-1000 | 3 | 9 | 0.06 | 7 | 0.25 | 49 | 0.500 | 0.14 | 98 | 1.000 | 0.8 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Applications
- Camera,coffee machine,Commercial Products,
- Electric lock,Home Appliances,
- Robot,Security and Locks,etc.
