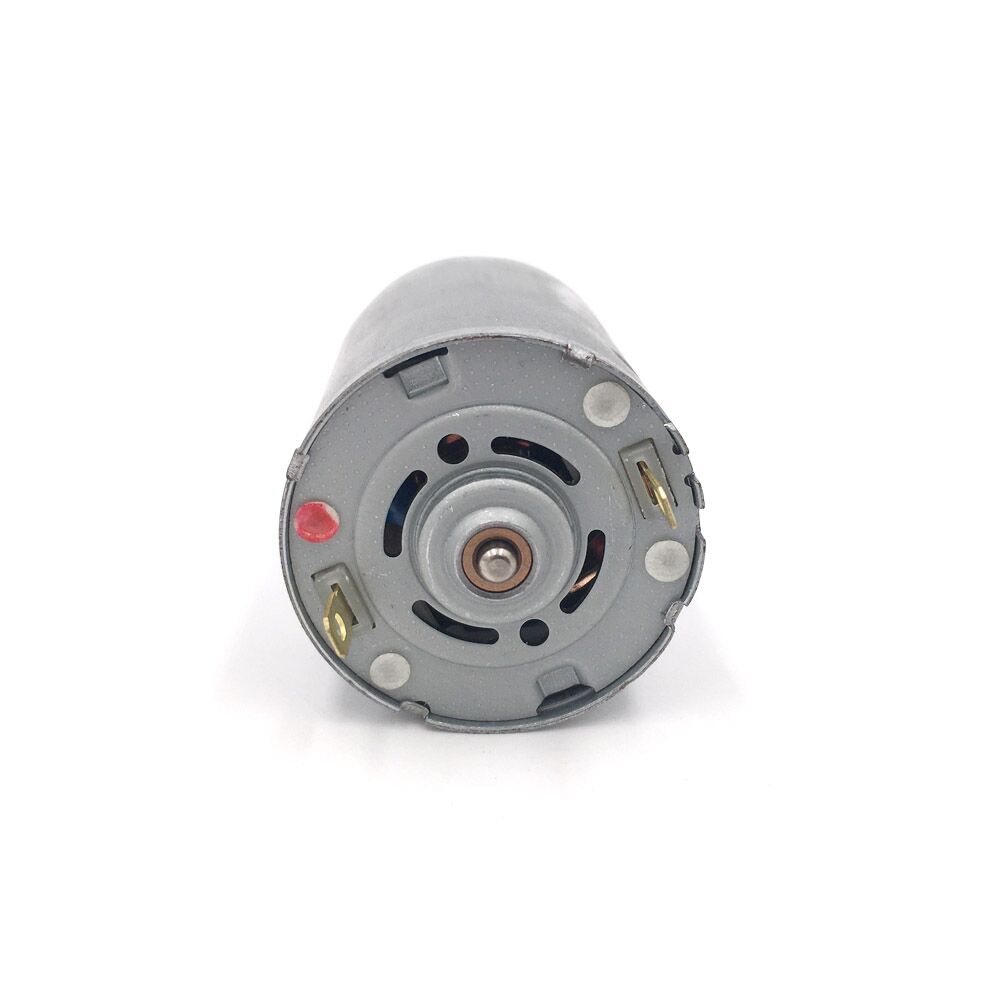

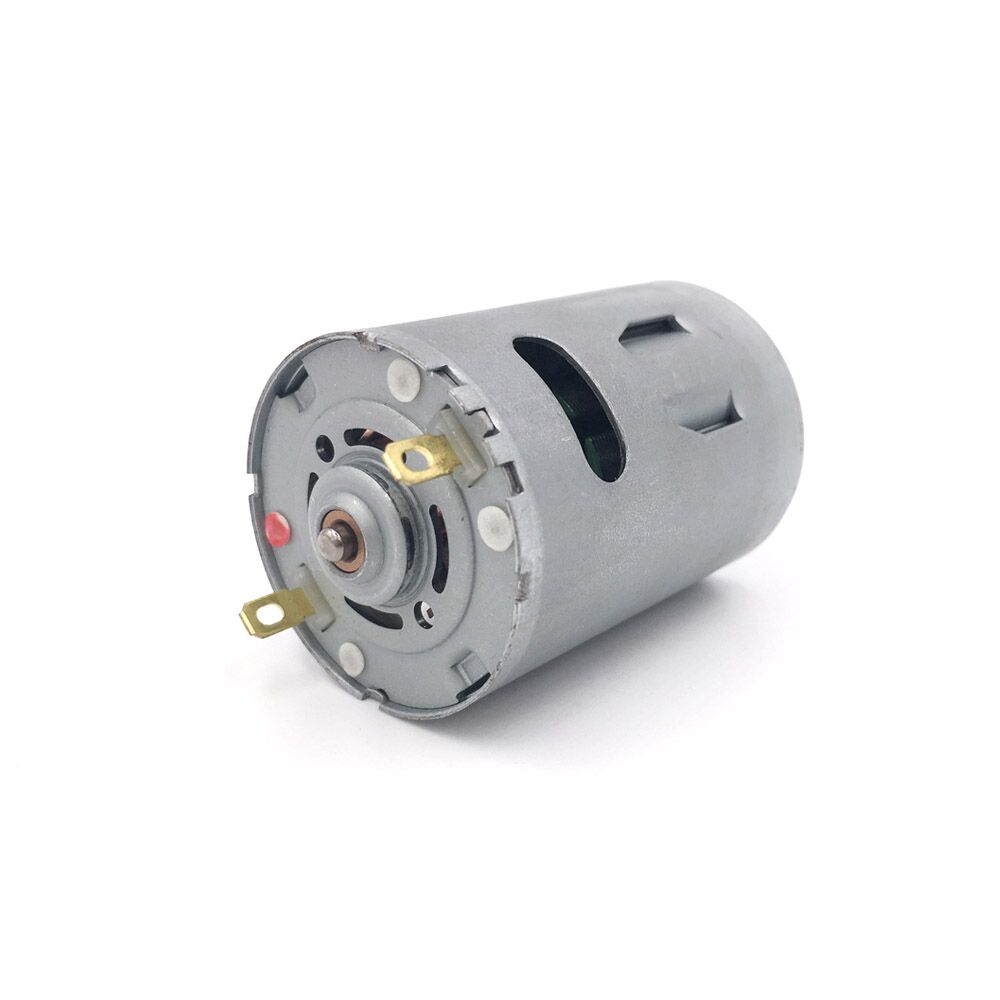

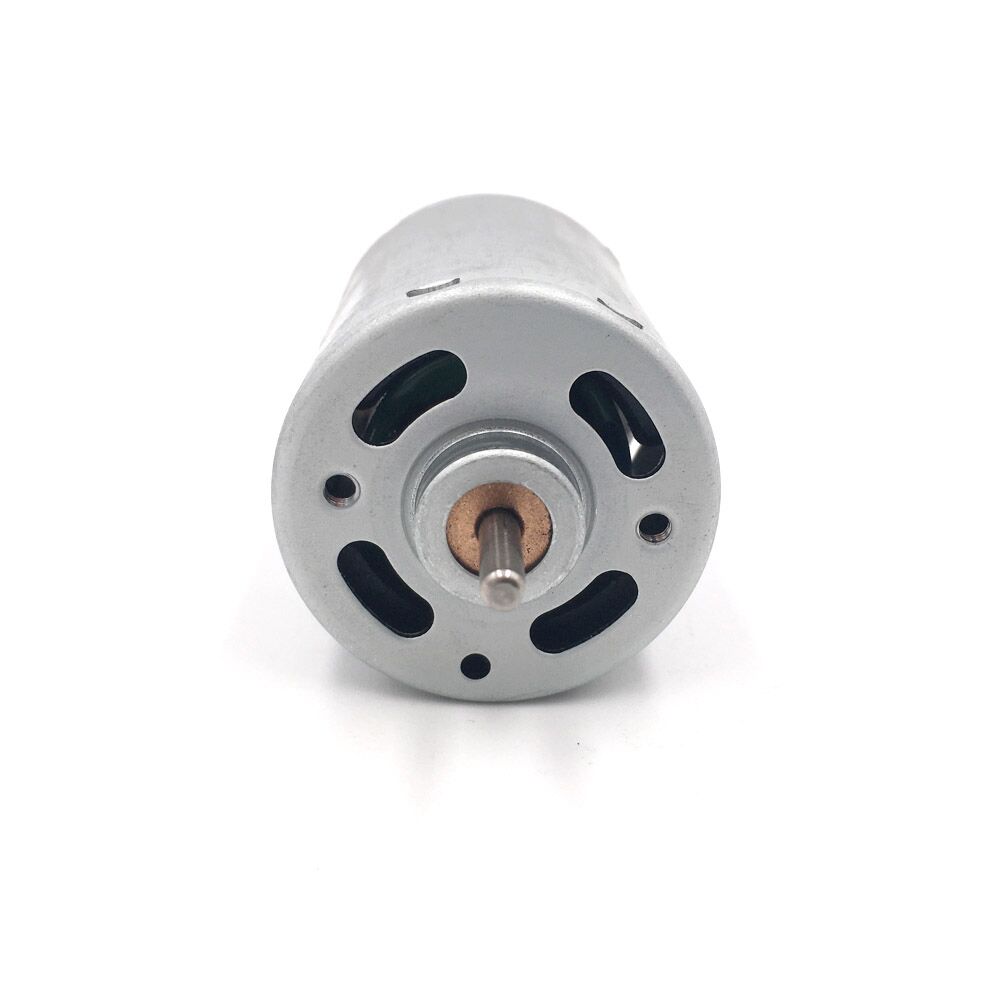

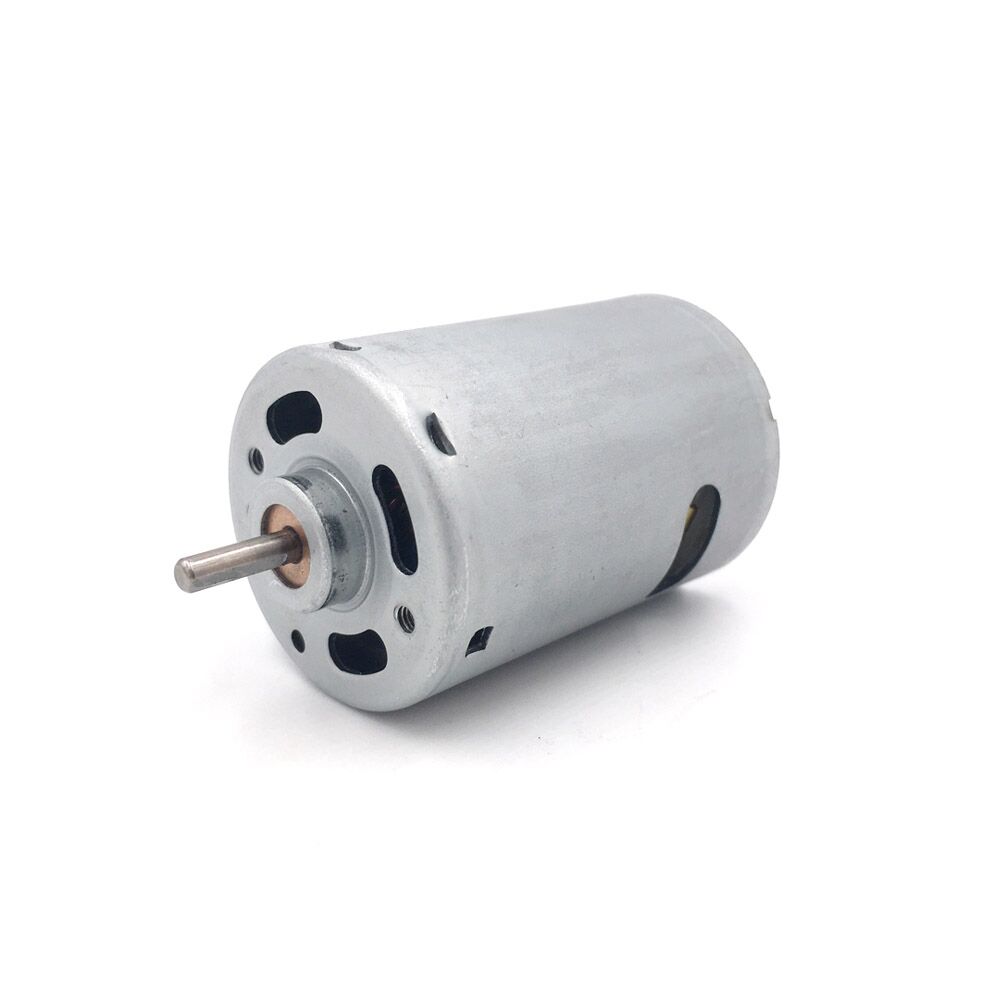

LRC-540/545 ∅35.8mm DC Brushed Motor
35.8mm diameter micro DC brushed motor, could with 36mm reduction gearbox, specific parameters customized by request.
Additional information
| Model | LRC-540/545 |
|---|---|
| Type | DC Brushed Motor |
| Body Size | Φ35.6*50mm |
| Shaft Size | Φ3.175mm diameter, Length customized by request |
| Weight | 160g (Approx) |
| Voltage | 3v-32v |
| Output Power | ≤110W |
Product Details:
35.8mm Diameter Micro DC Brushed Motor
+ Brand: Linkto Motor
| Model: | LRC-540/545 | Brush Type: | Carbon-brush |
| Voltage: | 3v-32v | Speed: | 1000rpm-30000rpm |
| Continuous Current: | ≤9200mA | Stall Torque: | ≤3kg.cm |
| Typical Application: | Automatic window system,Capsule machine,Handheld floor washer,Vacuum cleaner,Home Appliances,etc. | ||
+ Outline Dimension
+ Technical Data For Reference
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | V | r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |
| LRC-540SA-5045 | 4.5-9.6 | 6 | 11600 | 0.84 | 9600 | 4.1 | 14.9 | 152 | 15 | 86.2 | 880 | 19.7 |
| LRF-540SH-7522 | 3.0-9.0 | 6 | 16500 | 1.7 | 13860 | 7.14 | 20.4 | 208 | 29.6 | 127.4 | 1300 | 35.7 |
| LRF-545SA-17165 | 9.0-15.0 | 12 | 2450 | 0.065 | 1974 | 0.257 | 8.32 | 84.86 | 1.72 | 43.8 | 447 | 1.08 |
| LRF-545SH-21100 | 9.0-30.0 | 24 | 7850 | 0.15 | 6530 | 0.778 | 18.4 | 188 | 12.6 | 109.8 | 1120 | 3.9 |
| LRF-540SA-6035 | 3.0-7.2 | 3.6 | 9500 | 1.2 | 7650 | 4.98 | 12.6 | 129 | 10.1 | 64.7 | 660 | 20.6 |
| LRF-540PH-7021 | 6.0-8.0 | 7.2 | 20000 | 1.2 | 17317 | 7.75 | 22.3 | 227.5 | 40.5 | 166.5 | 1698 | 50 |
| LRF-540SH-4075 | 9.0-15.0 | 12 | 9300 | 0.4 | 7500 | 1.8 | 15.4 | 157 | 12.1 | 79.4 | 810 | 7.62 |
| LRF-540SA-4552 | 6.0-12.0 | 12 | 13500 | 0.62 | 11633 | 3.09 | 22.71 | 231.6 | 28.32 | 184.3 | 1880 | 25.49 |
| LRF-540PA-23198 | 6.0-12.0 | 12 | 3500 | 0.12 | 2898 | 0.58 | 14.87 | 151.7 | 4.51 | 86.5 | 882.3 | 2.79 |
| LRF-540SH-6036 | 6.0-24.0 | 12 | 19500 | 0.95 | 16634 | 5.51 | 28.8 | 293.8 | 50.22 | 2000 | 196.1 | 32 |
| LRF-545SH-5016 | 6.0-12.0 | 7.2 | 16000 | 1.3 | 13500 | 6.3 | 18.3 | 187 | 25.9 | 117.6 | 1200 | 33.4 |
| LRF-545SA-2670 | 6.0-15.0 | 9 | 4500 | 0.21 | 3645 | 0.88 | 13.1 | 133.6 | 5.03 | 70.1 | 715.6 | 3.8 |
| LRF-545SA-3153 | 6.0-12.0 | 12 | 8000 | 0.28 | 6732 | 1.49 | 16.5 | 167.9 | 11.61 | 103.9 | 1060 | 7.9 |
| LRF-545SH-21105 | 6.0-24.0 | 13 | 3900 | 0.15 | 3120 | 0.6 | 13.9 | 141.8 | 4.54 | 69.53 | 709.2 | 2.4 |
| LRF-545SH-21116 | 6.0-24.0 | 24 | 6600 | 0.12 | 5761 | 0.57 | 17.7 | 180.6 | 10.52 | 132.3 | 1350 | 4.13 |
| LRF-545SH-2845 | 6.0-24.0 | 24 | 15200 | 0.46 | 13078 | 2.84 | 38.4 | 391.7 | 52.55 | 275 | 2805 | 17.49 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Motor Characteristics
+ Applications
- Automatic window system,Capsule machine,
- Handheld floor washer,
- Vacuum cleaner,Home Appliances,etc.
