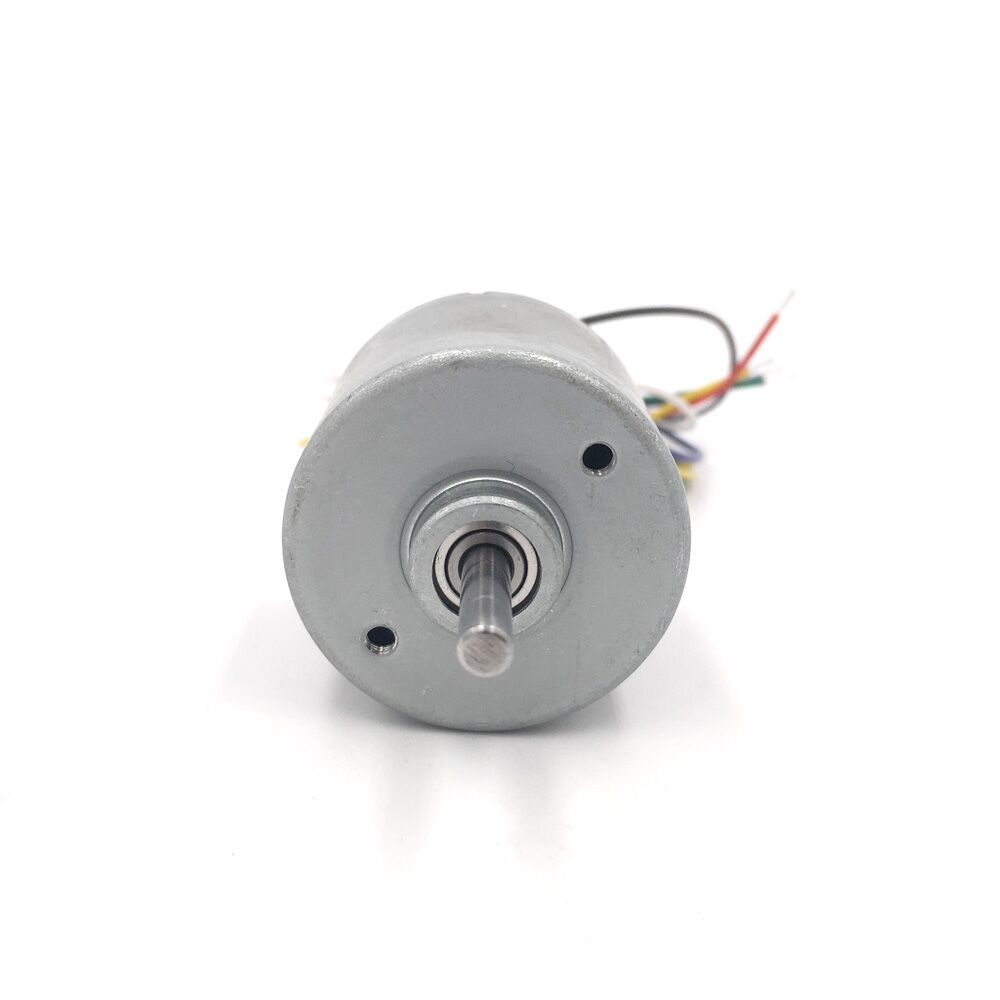

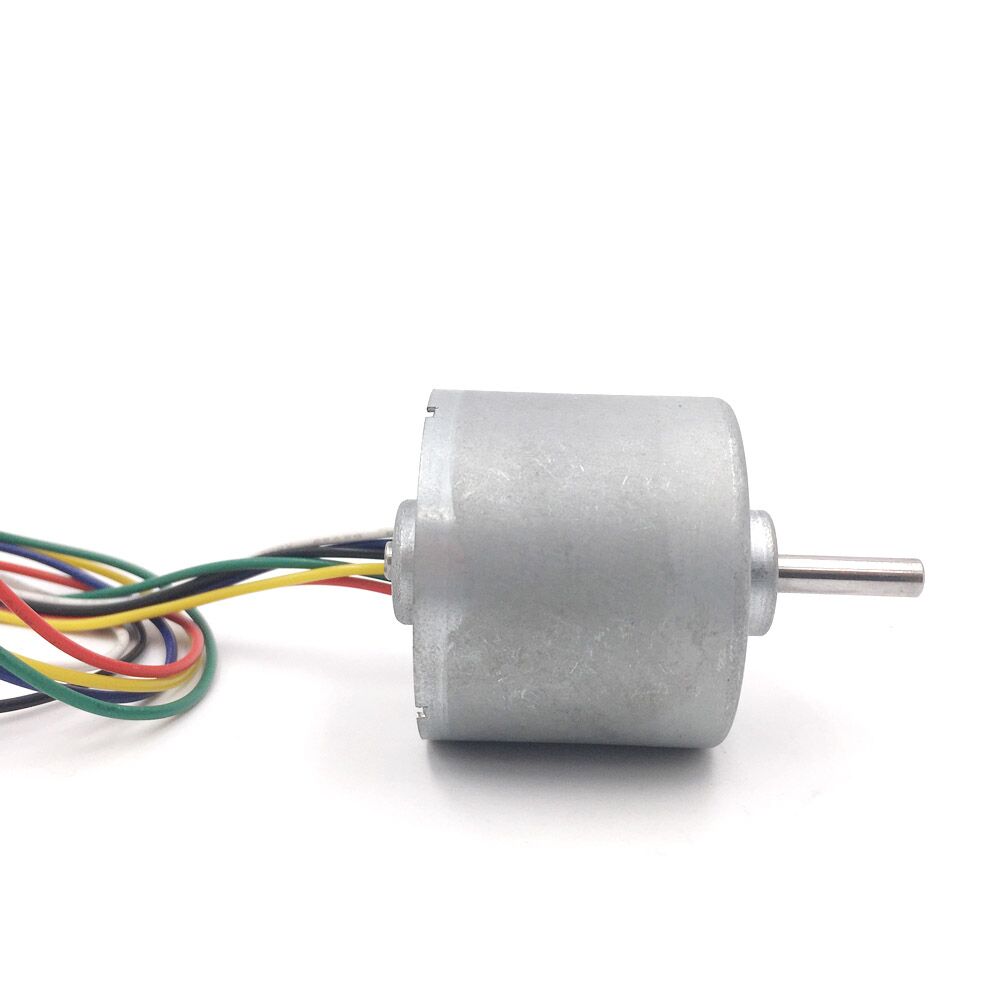

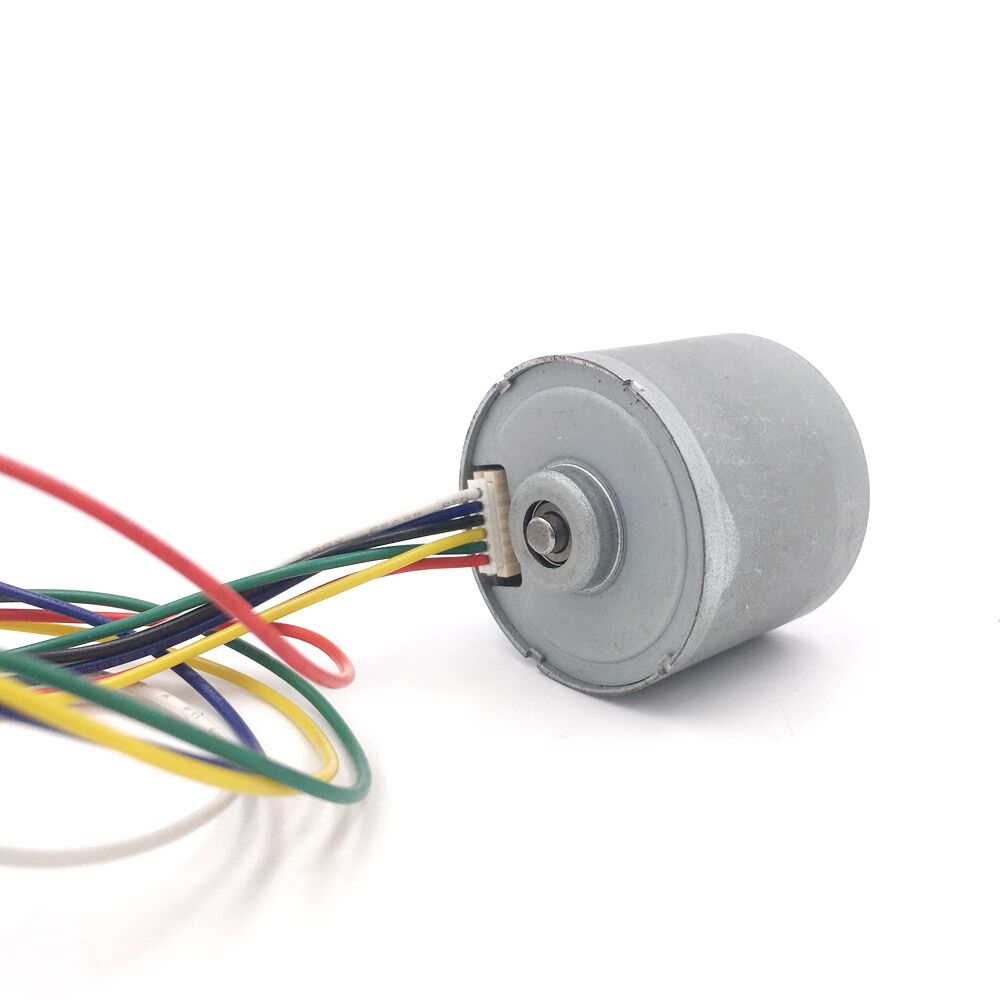

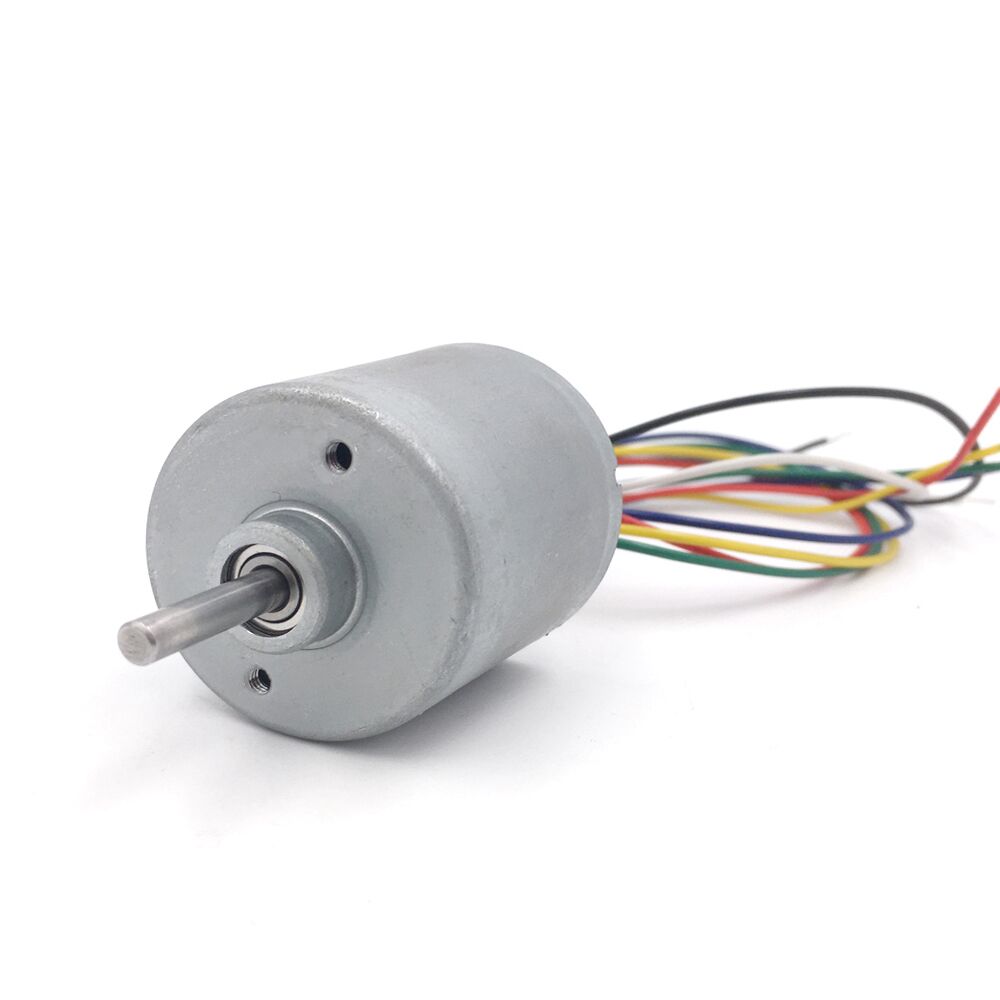

LBL-3640 ∅36mm DC Brushless Motor
36mm diameter micro DC brushless motor, could with 36mm reduction gearbox, specific parameters customized by request.
Additional information
| Model | LBL-3640 |
|---|---|
| Type | DC Brushless Motor |
| Body Size | Φ36*40mm |
| Shaft Size | Φ4.0mm diameter, Length customized by request |
| Weight | 150g (Approx) |
| Voltage | 6v-26v |
| Output Power | ≤26W |
Product Details:
36mm Diameter Micro DC Brushless Motor
+ Brand: Linkto Motor
| Model: | LBL-3640 | Type: | DC Brushless Motor |
| Voltage: | 6v-26v | Speed: | 1000rpm-12000rpm |
| Continuous Current: | ≤6000mA | Stall Torque: | ≤1800g.cm |
| Typical Application: | Automotive Parts, Home Application, Medical Apparatus, Industry Apparatus, Business Equipment, Personal Care,etc. | ||
+ Outline Dimension
+ Technical Data For Reference
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | V | r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |
| LBL3640-L1 | 8.0-16.0 | 12 | 4769 | 0.16 | 4006 | 0.818 | 14.38 | 146.7 | 6.028 | 89.87 | 917 | 4.271 |
| LBL3640-L2 | 8.0-26.0 | 18 | 7068 | 0.19 | 6008 | 1.071 | 20.78 | 212 | 13.05 | 138.38 | 1412 | 6.066 |
| LBL3640-L3 | 8.0-26.0 | 24 | 8235 | 0.247 | 6835 | 1.186 | 28.24 | 288.2 | 20.2 | 166.11 | 1695 | 5.769 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Motor Characteristics
+ Applications
- Automotive Parts: Pump, Fan
- Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk Tea Machine
- Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, Centrifugal Machine
- Industry Equipment: Electric Valve, Actuator, Micro Pump
- Business Equipment: Printer, Copier, Projector, ATM, Vending Machine
- Personal Care: Hair Dryer, Electric Shaver, Massager
