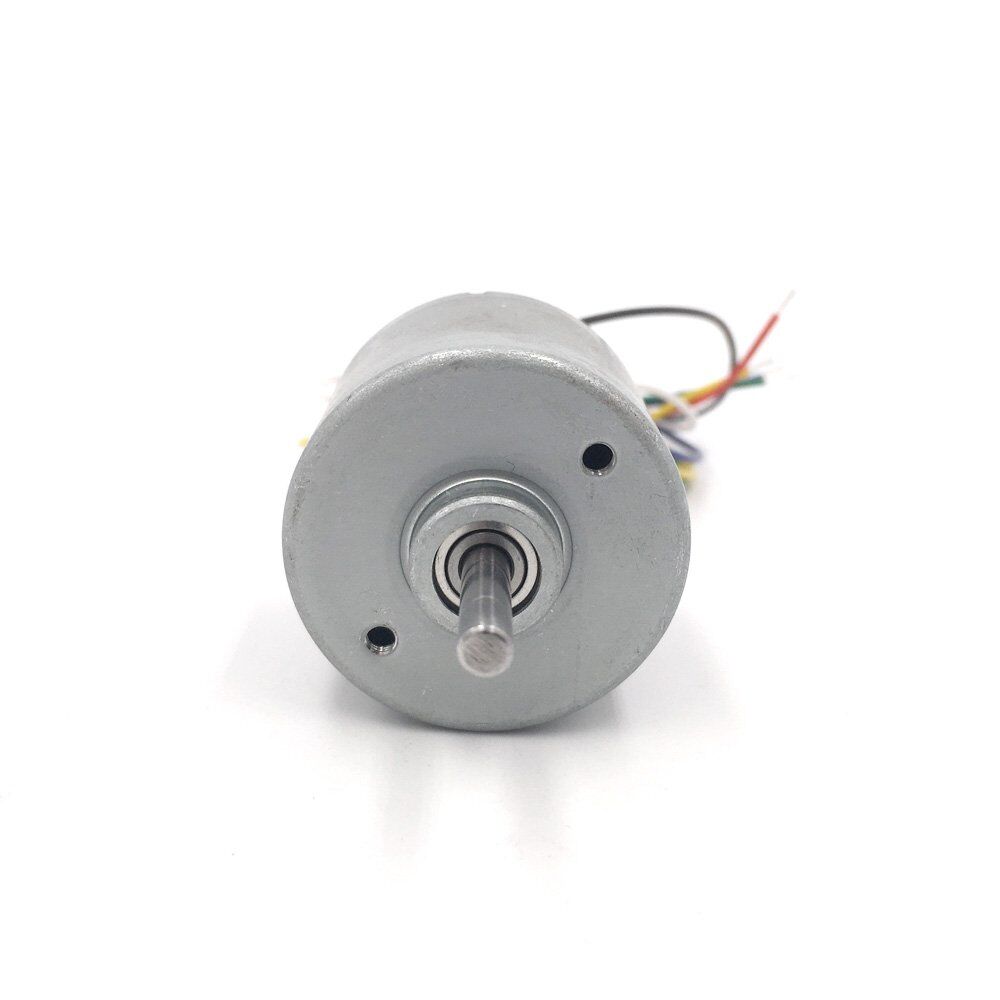

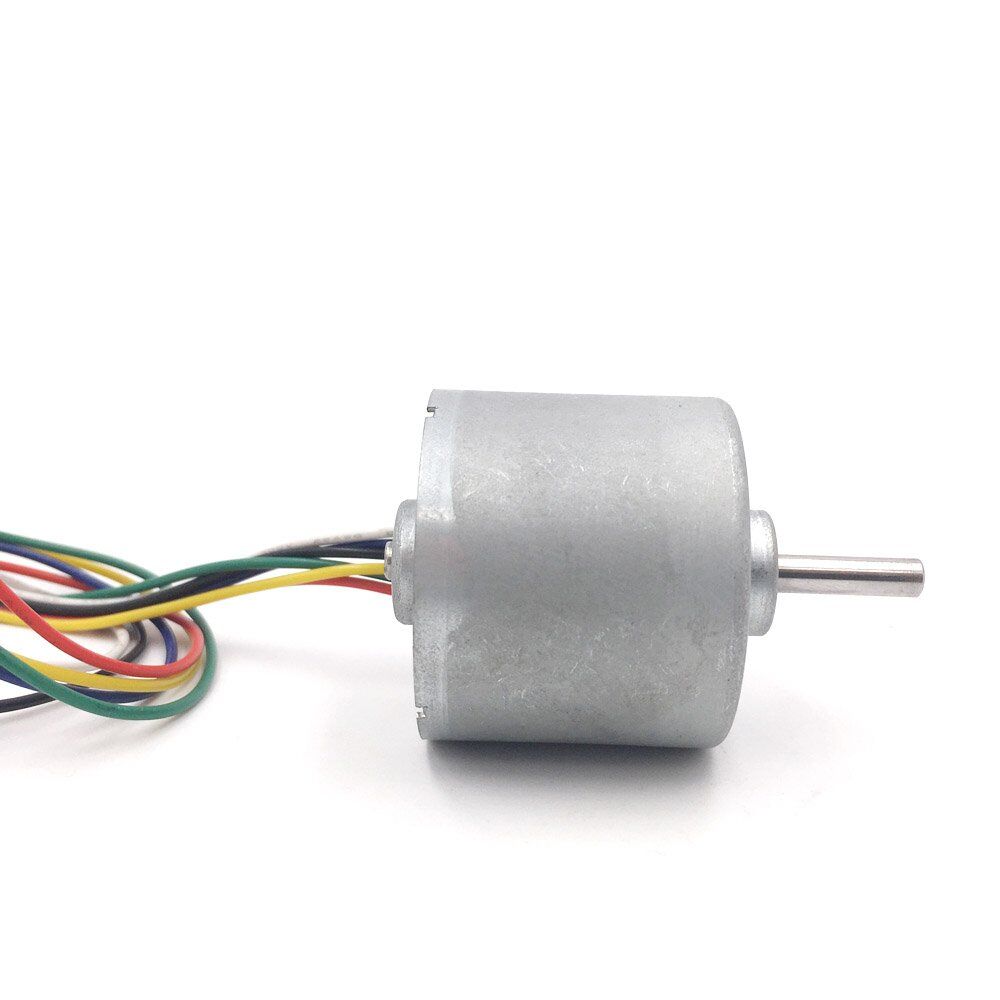

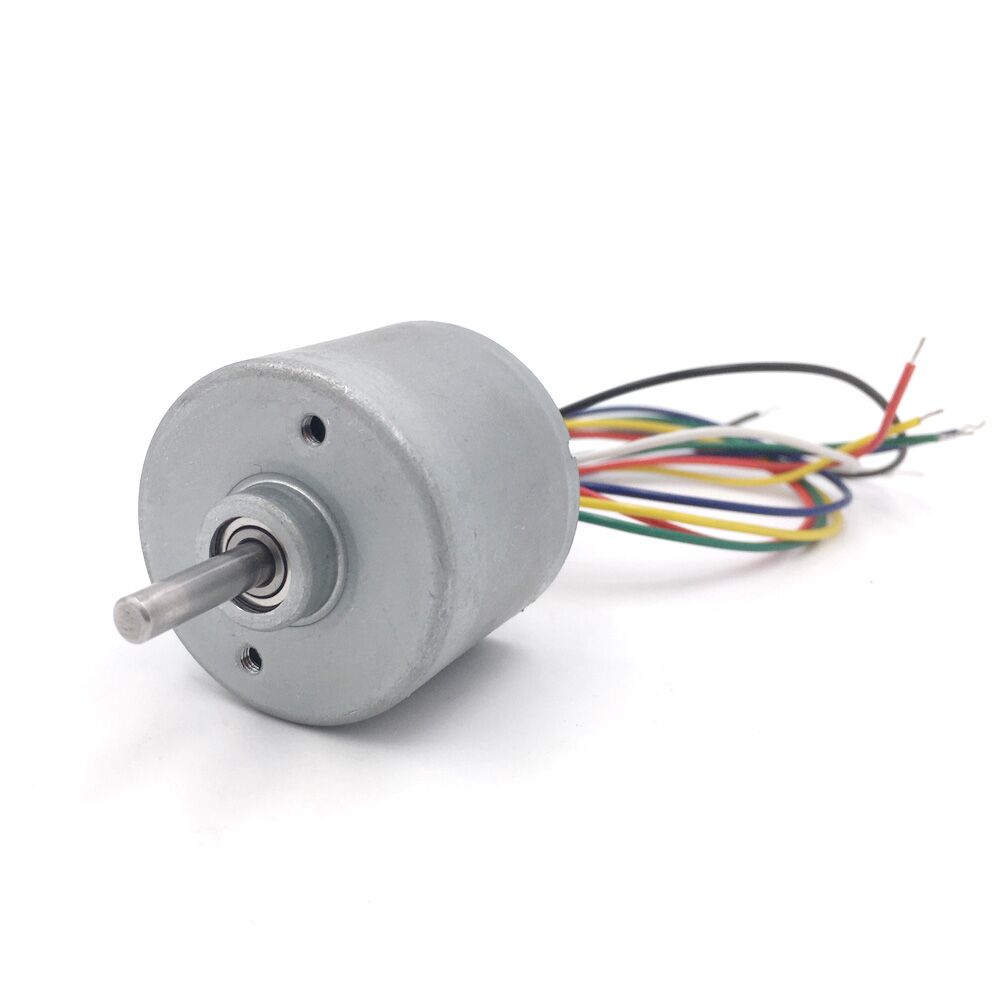

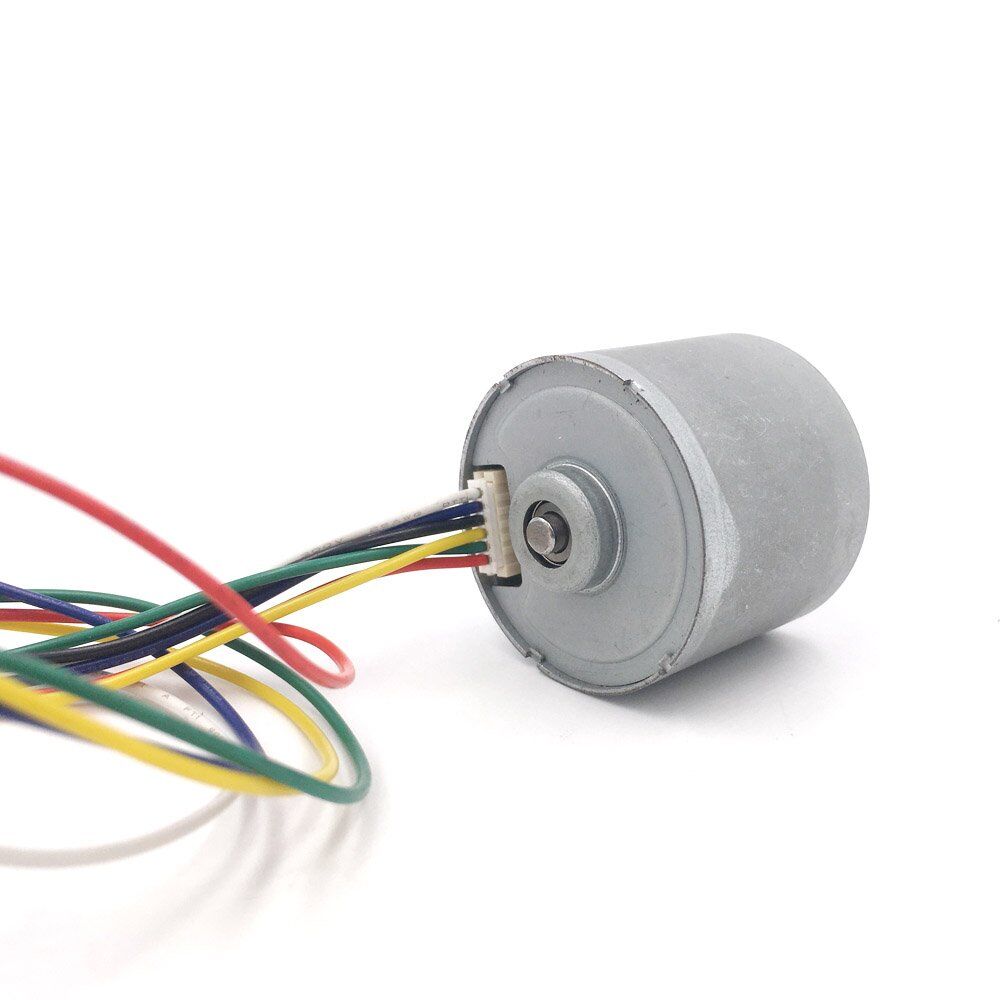

LBL-3626 ∅36mm DC Brushless Motor
36mm diameter micro DC brushless motor, could with 36mm reduction gearbox, specific parameters customized by request.
Additional information
| Model | LBL-3626 |
|---|---|
| Type | DC Brushless Motor |
| Body Size | Φ36*26mm |
| Shaft Size | Φ4.0mm diameter, Length customized by request |
| Weight | 95g (Approx) |
| Voltage | 6v-26v |
| Output Power | ≤17W |
Product Details:
36mm Diameter Micro DC Brushless Motor
+ Brand: Linkto Motor
| Model: | LBL-3626 | Type: | DC Brushless Motor |
| Voltage: | 6v-26v | Speed: | 1000rpm-20000rpm |
| Continuous Current: | ≤5000mA | Stall Torque: | ≤1200g.cm |
| Typical Application: | Automotive Parts, Home Application, Medical Apparatus, Industry Apparatus, Business Equipment, Personal Care,etc. | ||
+ Outline Dimension
+ Technical Data For Reference
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | V | r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |
| LBL3626-L1 | 8.0-16.0 | 12 | 6027 | 0.15 | 4882 | 0.638 | 9.42 | 96.1 | 4.814 | 49.59 | 506 | 2.721 |
| LBL3626-L2 | 8.0-26.0 | 18 | 7435 | 0.124 | 6022 | 0.504 | 8.92 | 91 | 5.621 | 46.93 | 478.9 | 2.121 |
| LBL3626-L3 | 8.0-26.0 | 24 | 8927 | 0.111 | 7231 | 0.456 | 8.95 | 91.3 | 6.774 | 47.1 | 480.8 | 1.926 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Motor Characteristics
+ Applications
- Automotive Parts: Pump, Fan
- Home Application: White Goods, Small Appliance, Fanner, Electric Curtain
- Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, Centrifugal Machine
- Business Equipment: Printer, Copier, Projector, ATM, Vending Machine
- Industry Equipment: Electric Valve, Actuator, Micro Pump
- Personal Care: Hair Dryer, Electric Shaver, Massager
