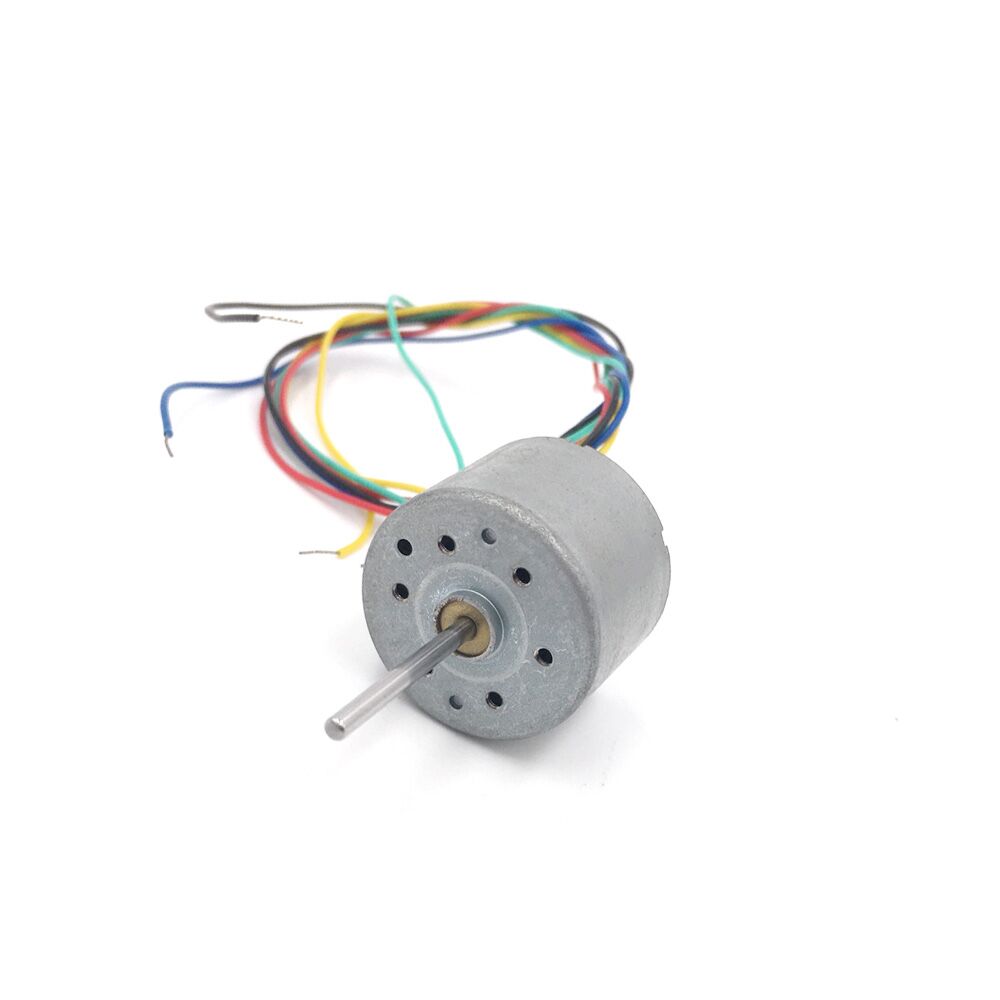

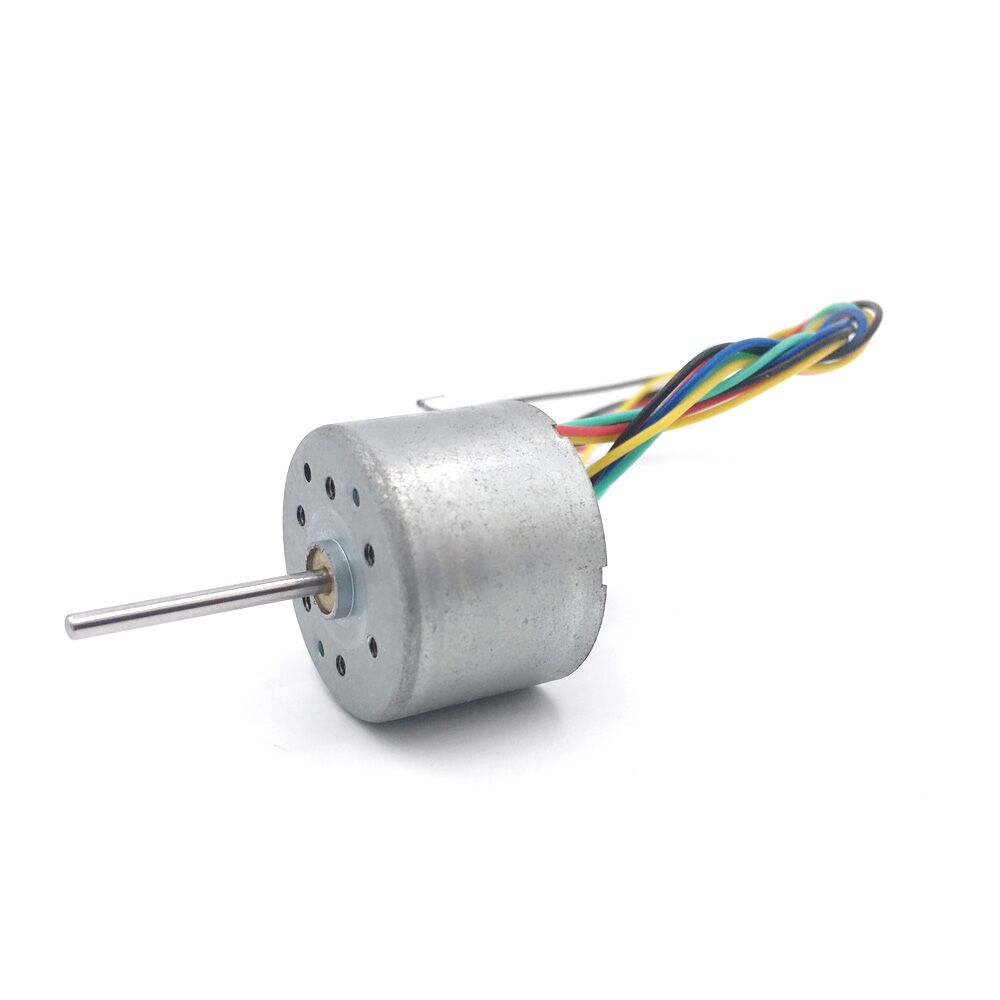

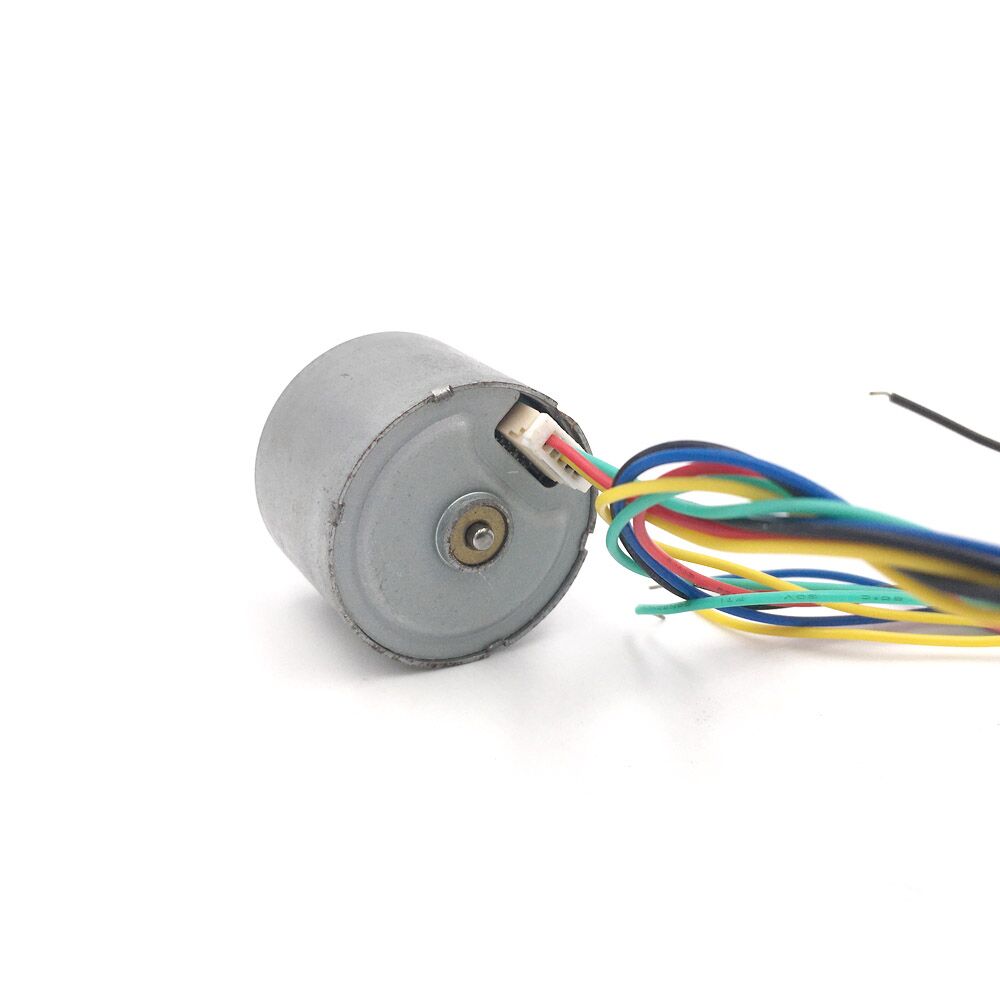

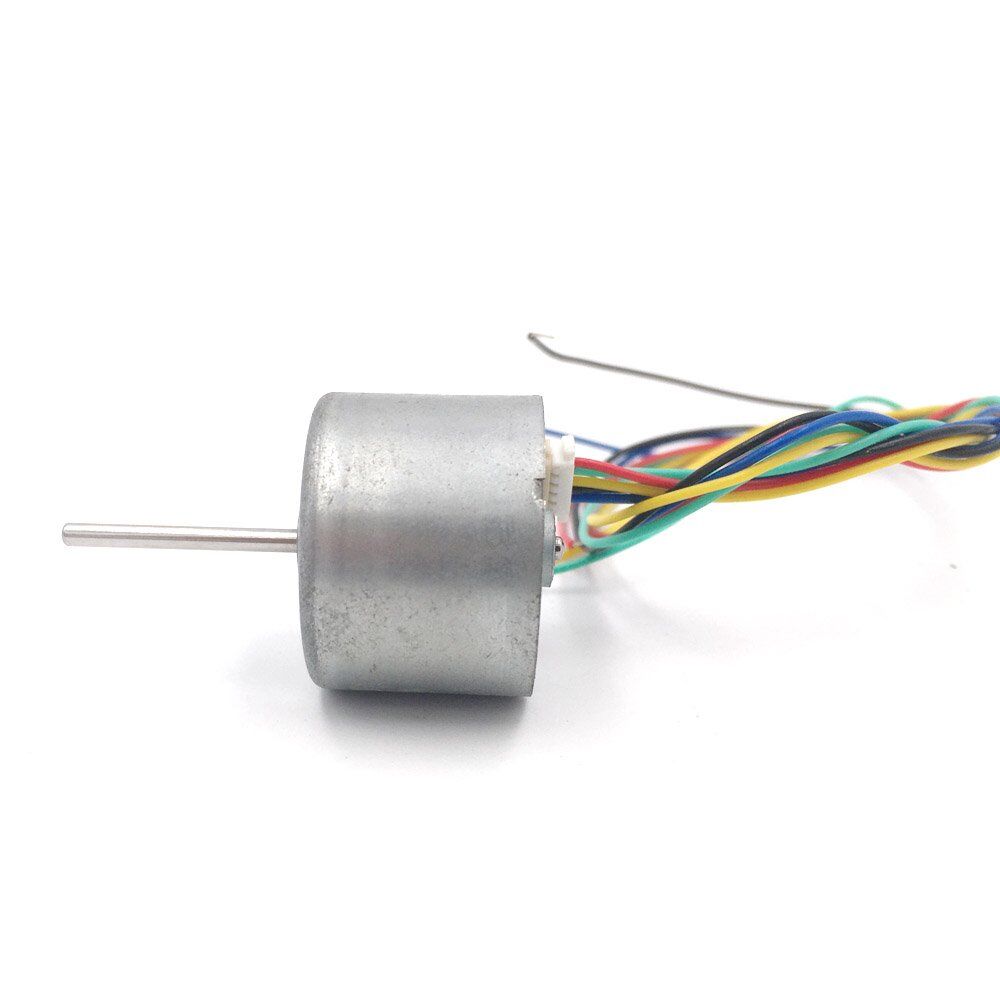

LBL-2418 ∅24.4mm DC Brushless Motor
24.4mm diameter micro DC brushless motor, could with 24mm reduction gearbox, specific parameters customized by request.
Additional information
| Model | LBL-2418 |
|---|---|
| Type | DC Brushless Motor |
| Body Size | Φ24.4*18.1mm |
| Shaft Size | Φ2mm diameter, Length customized by request |
| Weight | 30g (Approx) |
| Voltage | 5v-24v |
| Output Power | ≤6W |
Product Details:
24.4mm Diameter Micro DC Brushless Motor
+ Brand: Linkto Motor
| Model: | LBL-2418 | Type: | DC Brushless Motor |
| Voltage: | 5v-24v | Speed: | 1000rpm-20000rpm |
| Continuous Current: | ≤1100mA | Stall Torque: | ≤210g.cm |
| Typical Application: | Automotive Parts, Home Application, Medical Apparatus, Industry Apparatus, Business Equipment, Personal Care,etc. | ||
+ Outline Dimension
+ Technical Data For Reference
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | V | r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |
| LBL2418-L1 | 5.0-9.0 | 6.0 | 7230 | 0.14 | 5784 | 0.543 | 2.89 | 29.5 | 1.751 | 14.46 | 147.6 | 2.157 |
| LBL2418-L2 | 8.0-16.0 | 12.0 | 6430 | 0.05 | 5080 | 0.194 | 2.23 | 22.8 | 1.188 | 10.64 | 108.6 | 0.738 |
| LBL2418-L3 | 8.0-26.0 | 24.0 | 8900 | 0.045 | 6942 | 0.164 | 2.81 | 28.7 | 2.04 | 12.76 | 130.2 | 0.588 |
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Motor Characteristics
+ Applications
- Automotive Parts: Micro Pump, Valve.
- Home Application: White Goods, Small Appliance, Small Fanner, Electric Cooker.
- Medical Apparatus: Medical Pump, Medical Stirrer, Centrifugal Machine .
- Industry Apparatus: Electric Valve, Portable Screwdriver, Air/Water/Vacuum Pumps.
- Business Equipment: Scanner, Cash Register, Card Sender.
- Personal Care: Hair Curler, Hair Straighter, Hair Dryer, Electric Shaver, Massager, Vibrator .
