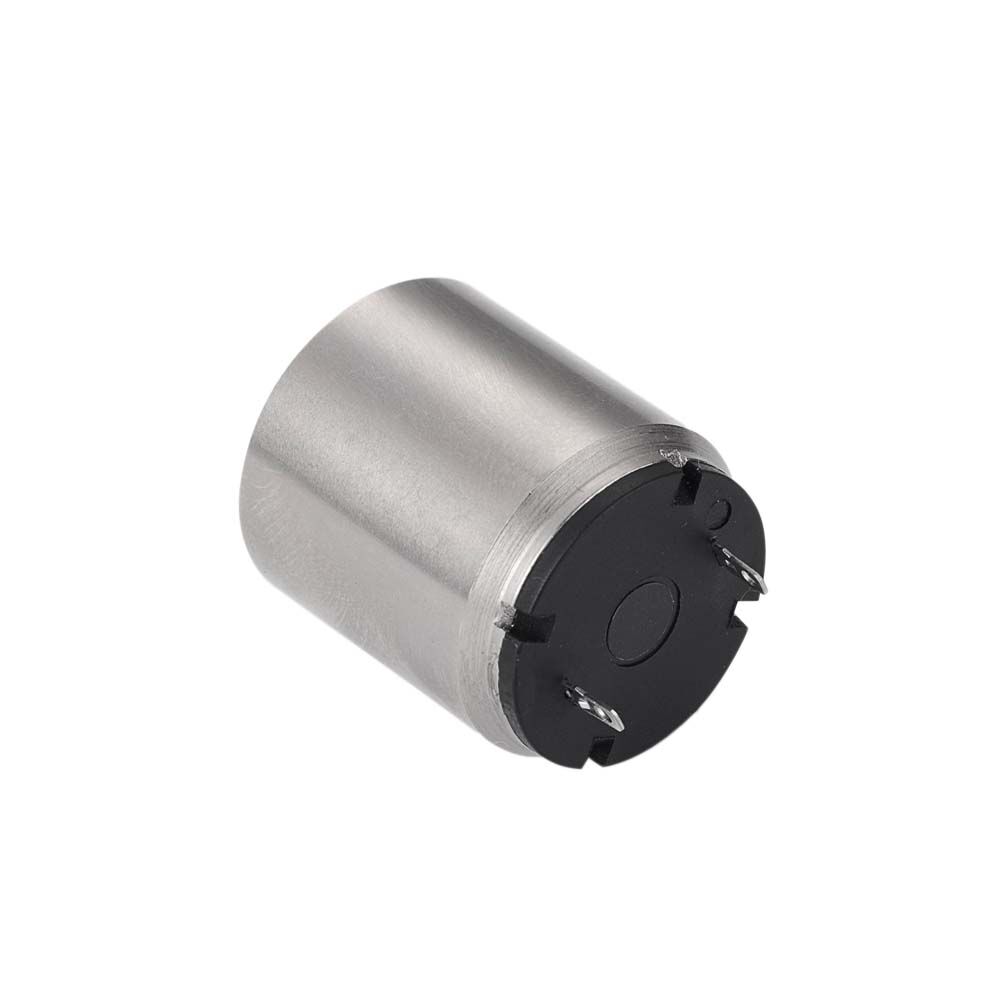

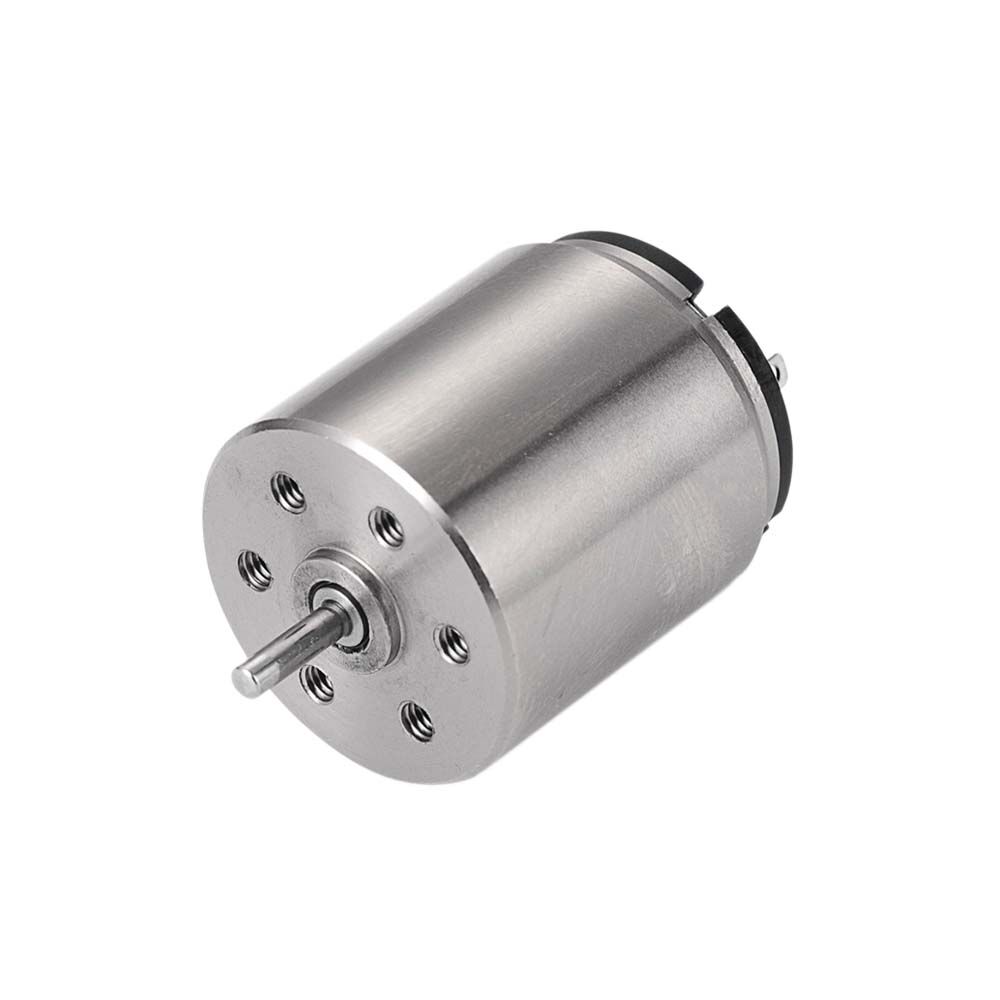

LCL-2225R ∅22mm DC Coreless Motor
22mm diameter micro DC coreless motor, could with 22mm reduction gearbox, specific parameters customized by request.
Additional information
| Model | LCL-2225R |
|---|---|
| Type | DC Coreless Motor |
| Body Size | Φ22*25mm |
| Shaft Size | Φ2mm diameter, Length customized by request |
| Weight | 44g (Approx) |
| Voltage | 3v-24v |
| Output Power | ≤2W |
Product Details:
22mm Diameter Micro DC Coreless Motor
+ Brand: Linkto Motor
| Model: | LCL-2225R | Type: | DC Coreless Motor |
| Voltage: | 3v-24v | Speed: | 1000rpm-25000rpm |
| Continuous Current: | ≤1A | Stall Torque: | ≤40mN.m |
| Typical Application: | Massage Instrument,Home Appliances,Electric Tool,Beauty Equipment,Medical Apparatus,etc. | ||
+ Outline Dimension
+ Technical Data For Reference
| Motor Data / Model: | 2225R-06A | 2225R-05A | 2225R-08A | 2225R-09A | 2225R-07A | 2225R-10A |
| Values at nominal voltage | ||||||
| 1. Nominal Voltage (v) | 6 | 12 | 12 | 12 | 21 | 24 |
| 2. No load speed (rpm) | 4900 | 10200 | 17000 | 20000 | 7800 | 10000 |
| 3. No load current (mA) | 35 | 42 | 80 | 110 | 13 | 90 |
| 4. Nominal speed (rpm) | 4042 | 8360 | 14535 | 17500 | 6747 | 8500 |
| 5. Nominal torque (mN.m) | 2 | 5 | 5 | 5 | 2.5 | 5 |
| 6. Nominal current (A) | 0.2 | 0.48 | 0.82 | 0.97 | 0.11 | 0.3 |
| 7. Stall torque (mN.m) | 11.46 | 27.5 | 34.62 | 39.65 | 18.6 | 33.49 |
| 8. Stall current (A) | 1 | 2.5 | 5.24 | 7.05 | 0.73 | 1.49 |
| 9. Max efficiency (%) | 70 | 78 | 79 | 79 | 77 | 64 |
| Motor constant | ||||||
| 10. Terminal resistance (Ω) | 6 | 4.8 | 2.29 | 1.7 | 28.5 | 16.1 |
| 11. Torque constant (mN.m/A) | 11.46 | 11.01 | 6.61 | 5.62 | 25.21 | 22.47 |
| 12. Speed constant (rpm/A) | 817 | 850 | 1417 | 1667 | 371 | 417 |
| Other characteristic parameters | ||||||
| 13. Ambient temperature -10-40℃ | ||||||
| 14. Max permissible winding temperature 65℃ | ||||||
| 15. Max permissible speed 25000rmp | ||||||
| 16. Number of the pole pairs 1 | ||||||
| 17. Number of the commutator segments 5 | ||||||
| 18. Weight 44g | ||||||
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
