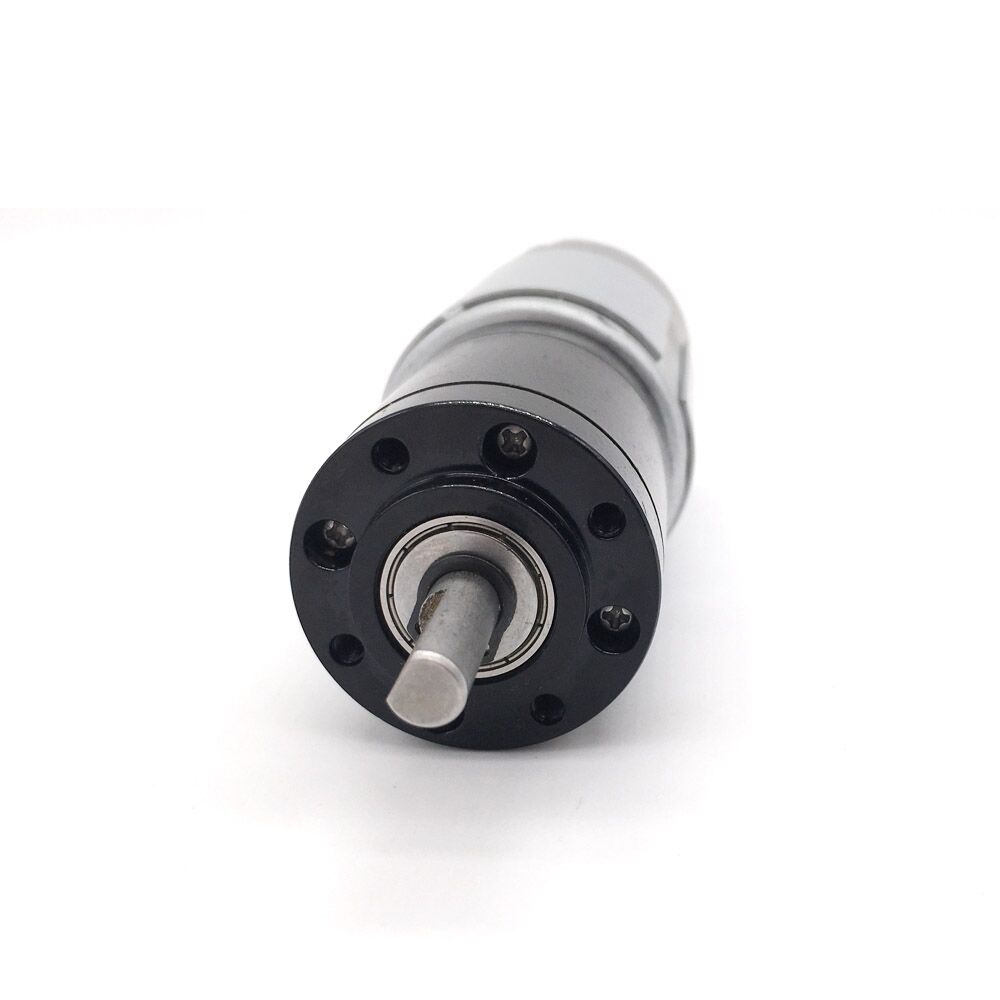

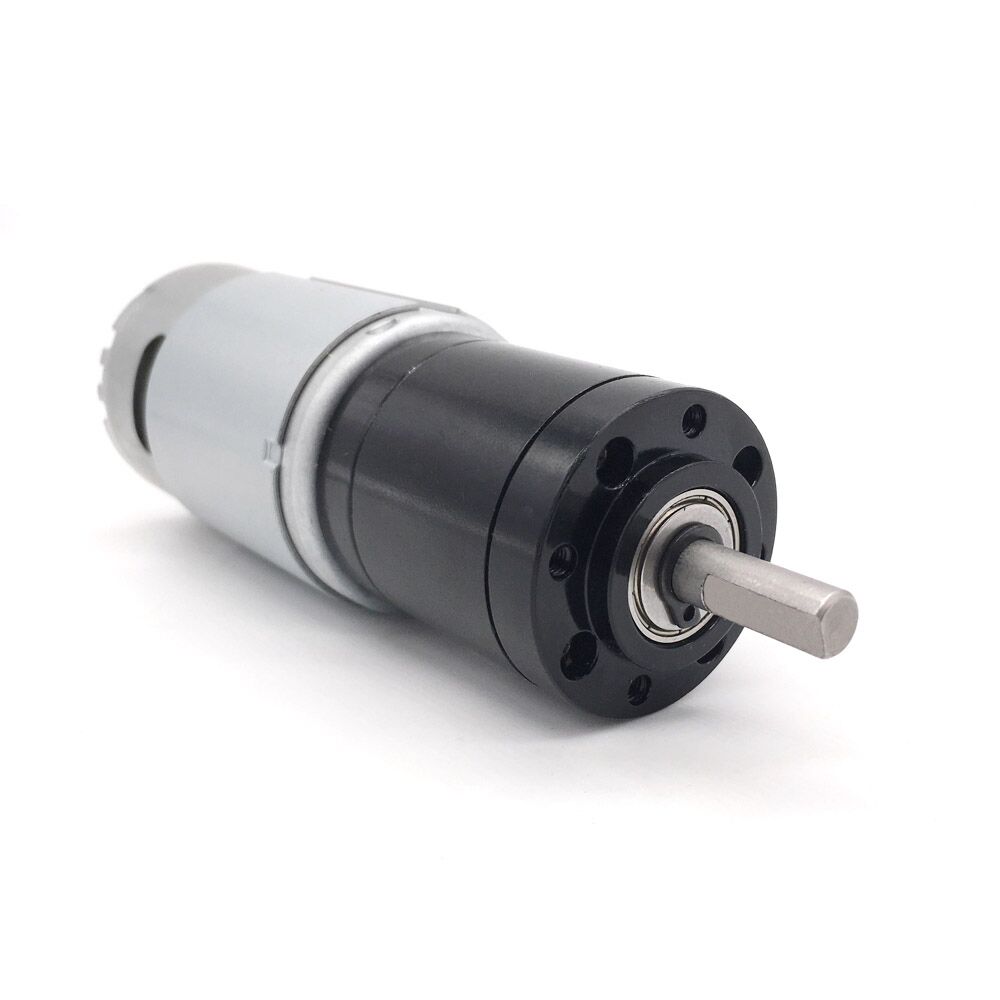

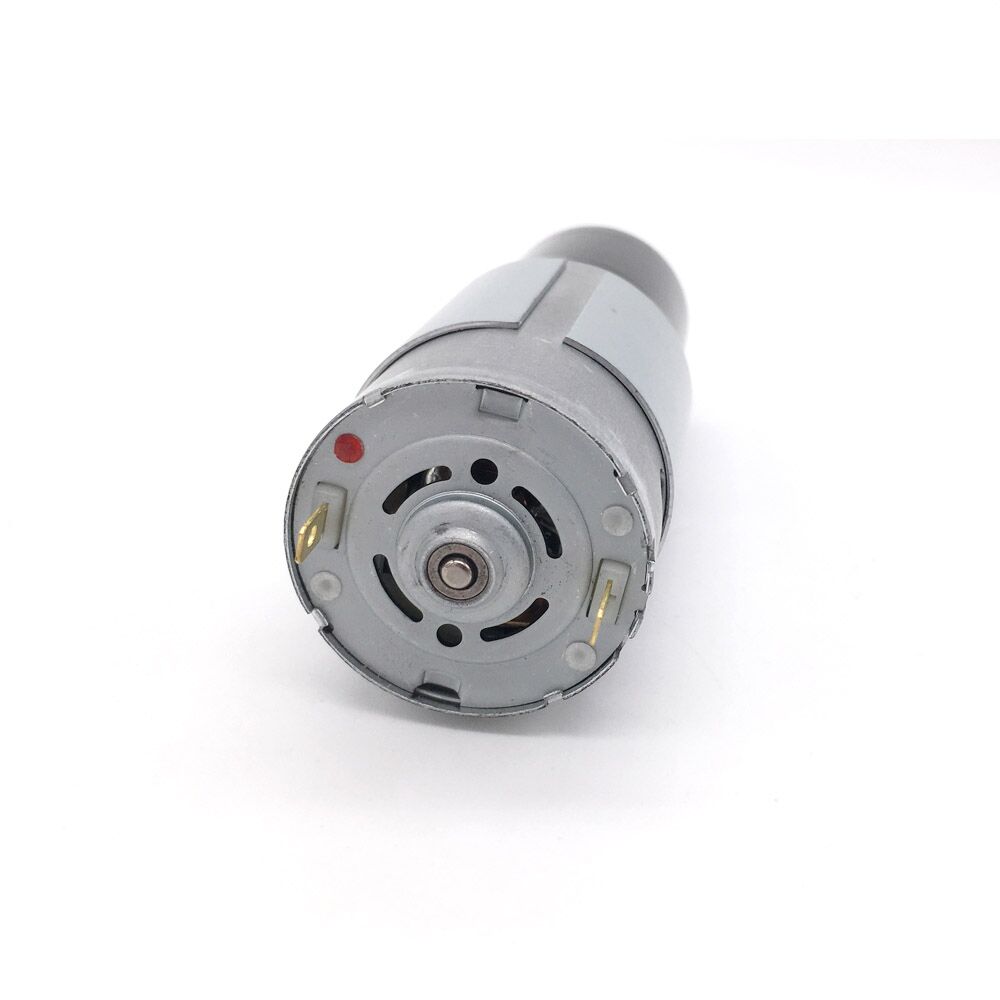

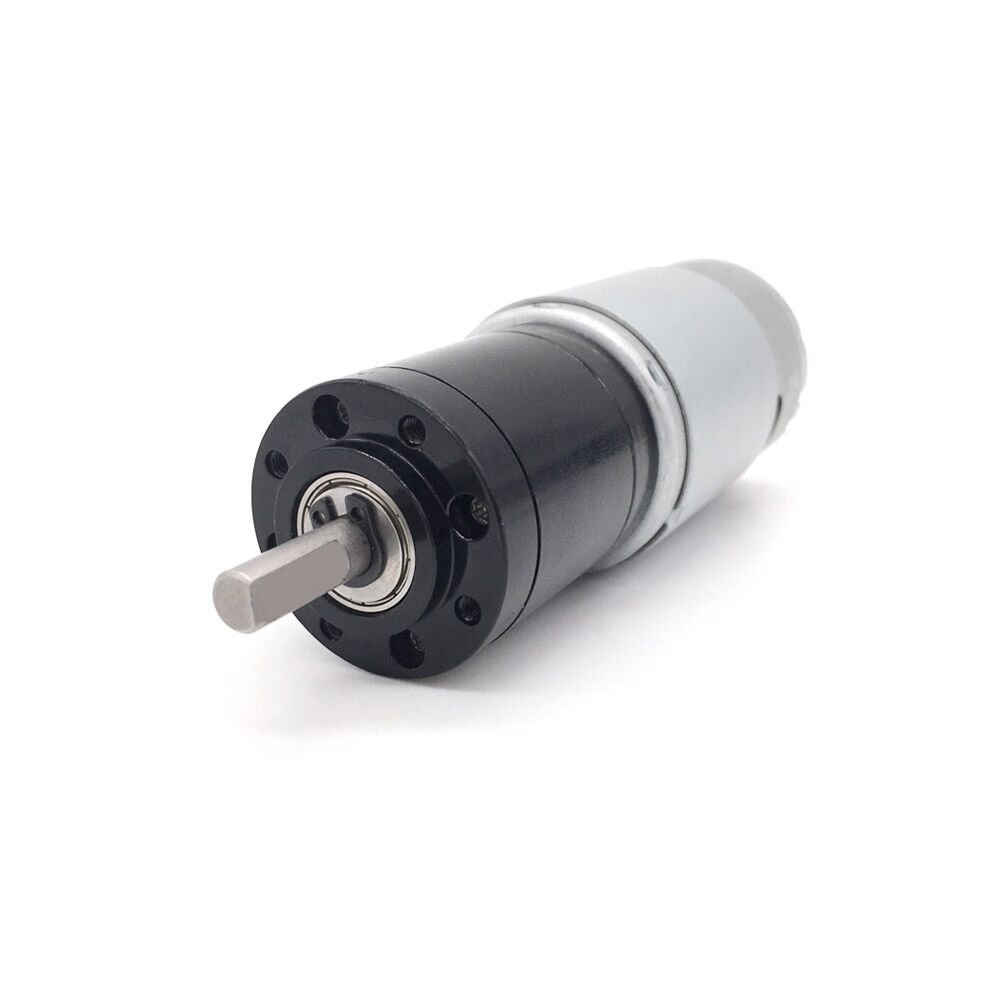

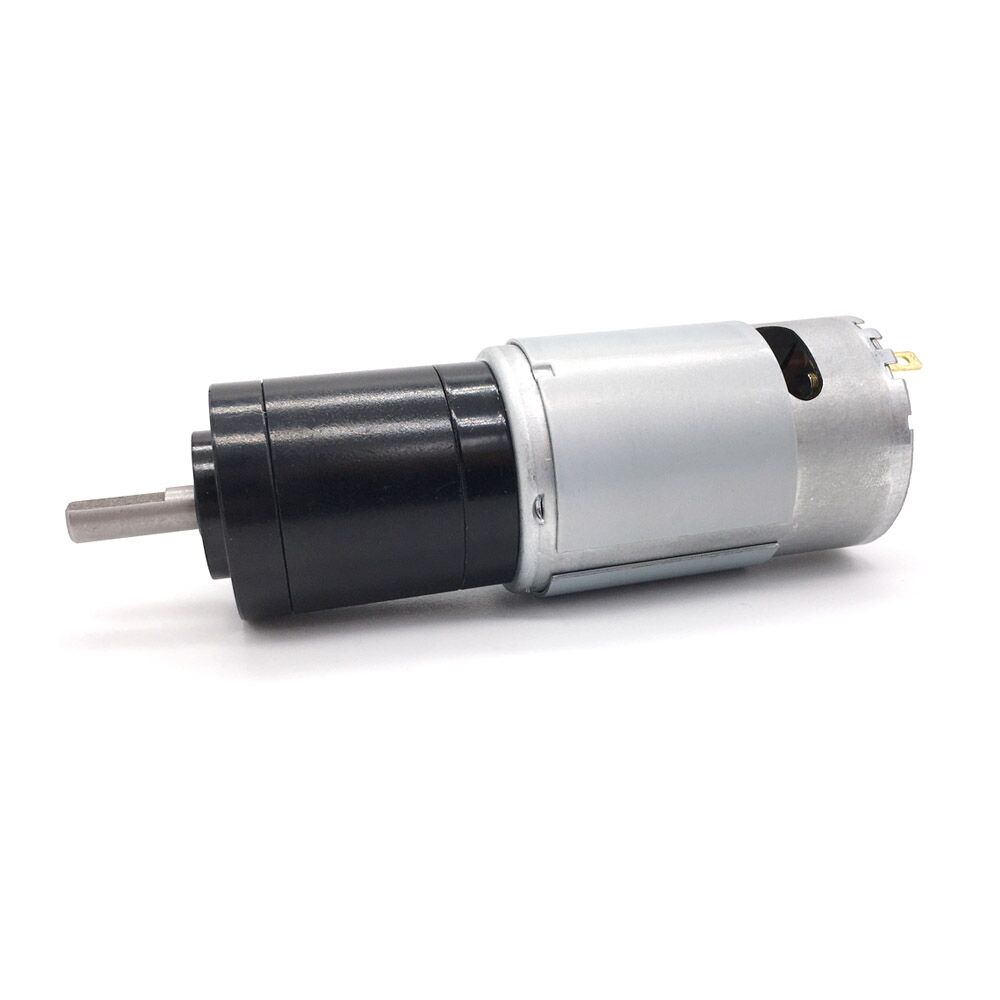

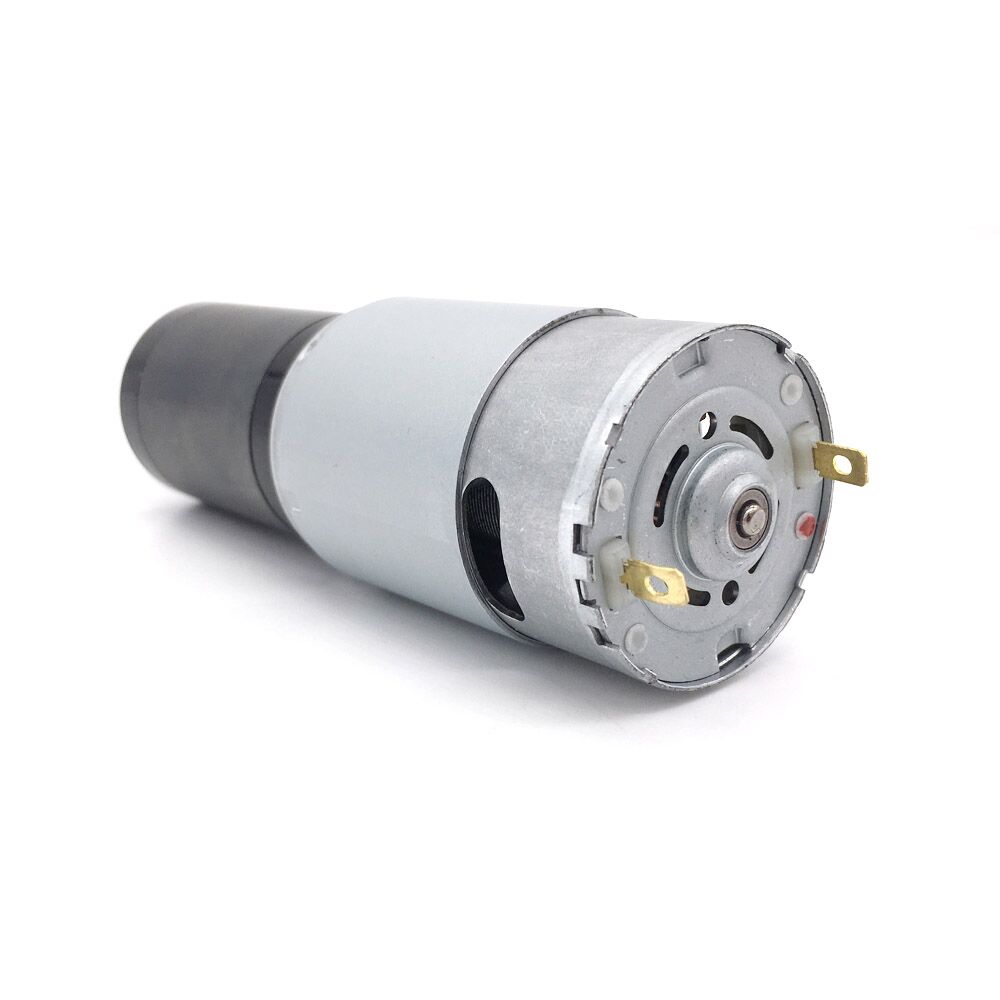

LPM32-545 ∅32mm DC Planetary Gear Motor
32mm planetary gearbox could be with 385/395/545/2838 motor, specific parameters customized by request.
Additional information
| Model | LPM32-545 |
|---|---|
| Type | DC Planetary Gear Motor |
| Brush Type | Metal-brush/Carbon-brush |
| Motor Size | Φ35.6*49mm |
| Gearbox Size | Φ32*L mm |
| Output Shaft | Shaft shape, size and length can be customized by request |
| Voltage | 3v-36v |
Product Details:
32mm Diameter Micro DC Planetary Gear Motor
+ Brand: Linkto Motor
| Model: | LPM32-545 | Type: | DC Planetary Gear Motor |
| Voltage: | 5v-36v | Speed: | 1rpm-3300rpm |
| Continuous Current: | ≤6.8A | Stall Torque: | ≤36kg.cm |
| Typical Application: | Household Appliances, Hair Care, Office Equipment, Medical Equipment, Industrial Equipment,Business Equipment,Intelligent Robot,etc. | ||
+ Outline Dimension
+ Gear Motor Technical Data For Reference
| Voltage | Reduction ratio | 1/5 | 1/11 | 1/16 | 1/21 | 1/38 | 1/52 | 1/72 | 1/100 | 1/126 | 1/175 | 1/242 | 1/334 | 1/462 | 1/586 | 1/810 | 1/1120 |
| 12V | No load speed(rpm) | 1200 | 545 | 375 | 286 | 158 | 115 | 83 | 60 | 48 | 34 | 25 | 18 | 13 | 10 | 7 | 5 |
| Rated speed(rpm) | 1020 | 464 | 319 | 243 | 134 | 98 | 71 | 51 | 40 | 29 | 21 | 15 | 11 | 9 | 6 | 4 | |
| Rated torque(Kg.cm) | 1.1 | 2.1 | 3.1 | 4 | 6.3 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | |
| Stall torque(Kg.cm) | 6 | 12 | 12 | 12 | 24 | 24 | 24 | 24 | 30 | 30 | 30 | 30 | 30 | 36 | 36 | 36 | |
| 24V | No load speed(rpm) | 1200 | 545 | 375 | 286 | 158 | 115 | 83 | 60 | 48 | 34 | 25 | 18 | 13 | 10 | 7 | 5 |
| Rated speed(rpm) | 1020 | 464 | 319 | 243 | 134 | 98 | 71 | 51 | 40 | 29 | 21 | 15 | 11 | 9 | 6 | 4 | |
| Rated torque(Kg.cm) | 1.1 | 2.2 | 3.2 | 4 | 6.5 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | |
| Stall torque(Kg.cm) | 6 | 12 | 12 | 12 | 24 | 24 | 24 | 24 | 30 | 30 | 30 | 30 | 30 | 36 | 36 | 36 | |
| Length of gearbox L(mm） | 22.5mm | 27.9mm | 33.7mm | 39.5mm | 45.3mm | ||||||||||||
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Single Motor Technical Data For Reference
| VOLTAGE | NO LOAD | RATED LOAD | STALL | |||||||
| NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||
| V | r/min | mA | r/min | mA | mN.m | g.cm | W | mN.m | g.cm | A |
| 12 | 6000 | 250 | 5100 | 2300 | 27.146 | 277 | 14.6 | 195.608 | 1996 | 14.7 |
| 24 | 6000 | 250 | 5100 | 1200 | 27.832 | 284 | 14.9 | 197.078 | 2011 | 7.2 |
+ Applications
- Household Appliances: Electric curtain, Intergrated cooker, Coffee maker, Intelligent closestool,Sweeping robot, Dish-washing Machine, Cooker hood, Electric lock
- Hair Care：Hair Curler, Massager, Electric Hair Clipper
- Office Equipment: Shredder, Printer, Projector, Counting Machine
- Medical Equipment：Massage chair, Electric trolley, Medical pump, Electric bed, Electric wheelchair
- Industrial Equipment: Water，electrical and gas valve, Air switch, Pump, Automatic door, Automatic lubrication equipment.
- Business Equipment:Vending machines, Parking locks, ATM machines, Stage lights.
- Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot
