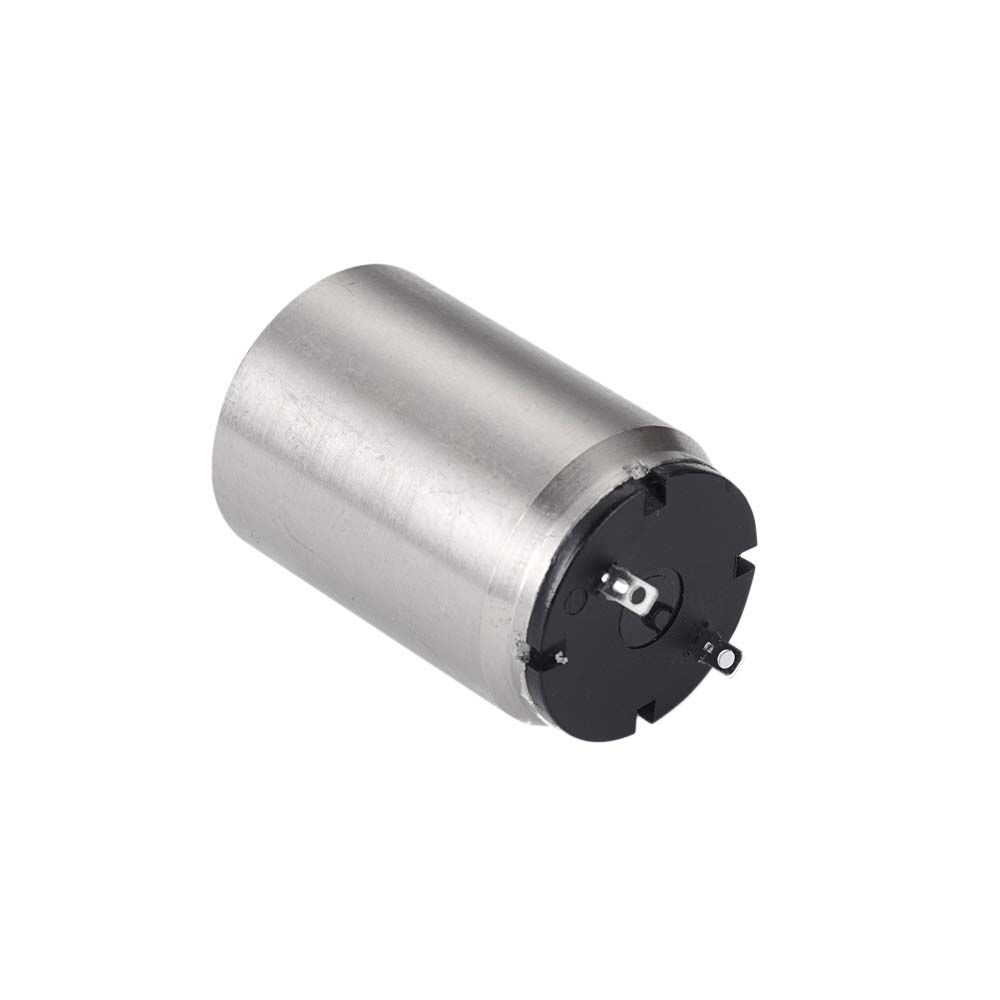

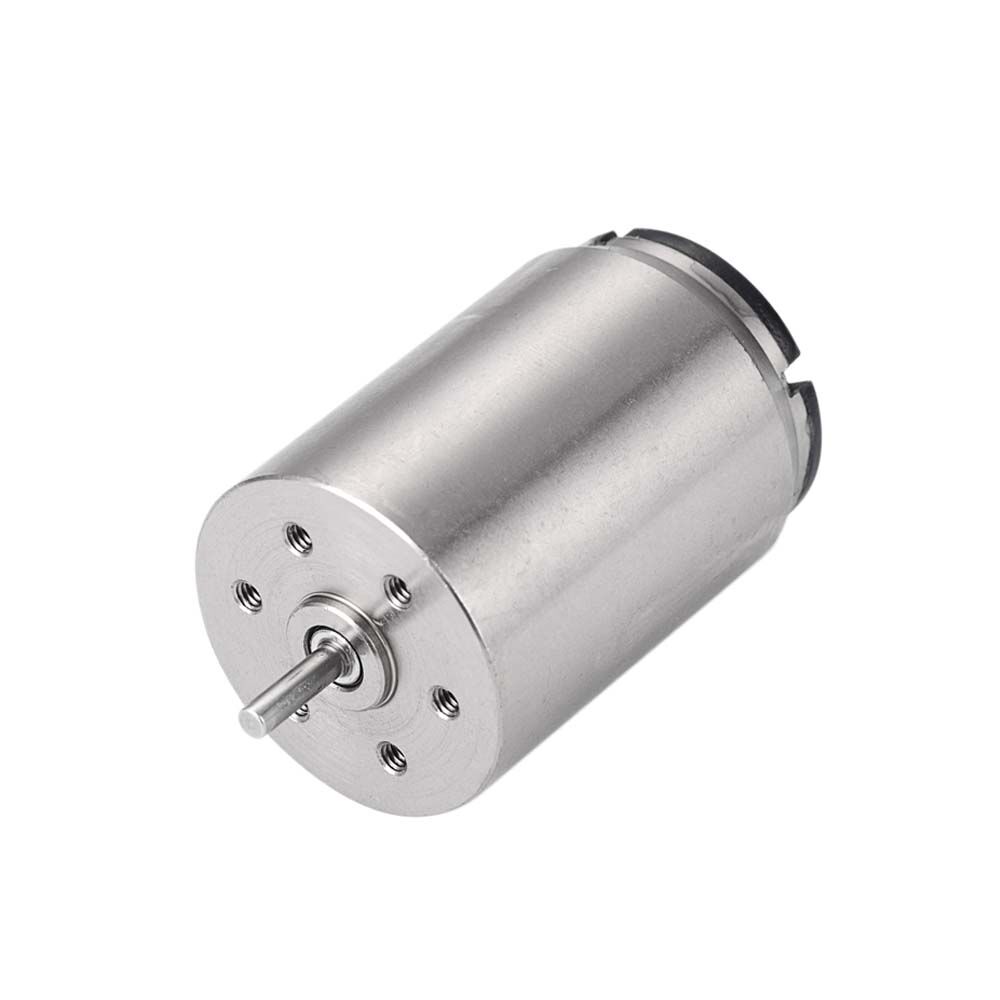

LCL-2232R ∅22mm DC Coreless Motor
22mm diameter micro DC coreless motor, could with 22mm reduction gearbox, specific parameters customized by request.
Additional information
| Model | LCL-2232R |
|---|---|
| Type | DC Coreless Motor |
| Body Size | Φ22*32mm |
| Shaft Size | Φ2mm diameter, Length customized by request |
| Weight | 60.5g (Approx) |
| Voltage | 3v-24v |
| Output Power | ≤2W |
Product Details:
22mm Diameter Micro DC Coreless Motor
+ Brand: Linkto Motor
| Model: | LCL-2232R | Type: | DC Coreless Motor |
| Voltage: | 3v-24v | Speed: | 1000rpm-18000rpm |
| Continuous Current: | ≤1.5A | Stall Torque: | ≤72mN.m |
| Typical Application: | Massage Instrument,Home Appliances,Electric Tool,Beauty Equipment,Medical Apparatus,etc. | ||
+ Outline Dimension
+ Technical Data For Reference
| Motor Data / Model: | 2232R-07A | 2232R-08A | 2232R-05A | 2232R-01A | 2232R-04A | 2232R-09A |
| Values at nominal voltage | ||||||
| 1. Nominal Voltage (v) | 3 | 5 | 6 | 10 | 12 | 12 |
| 2. No load speed (rpm) | 6500 | 7800 | 8000 | 9000 | 9800 | 12500 |
| 3. No load current (mA) | 114 | 140 | 59 | 55 | 45 | 60 |
| 4. Nominal speed (rpm) | 5550 | 6900 | 6880 | 8235 | 9114 | 11300 |
| 5. Nominal torque (mN.m) | 5 | 5 | 5 | 5 | 5 | 5 |
| 6. Nominal current (A) | 1.24 | 0.94 | 0.74 | 0.53 | 0.46 | 0.61 |
| 7. Stall torque (mN.m) | 34.11 | 42.86 | 35.1 | 59.8 | 70.54 | 52.86 |
| 8. Stall current (A) | 7.89 | 7.14 | 5 | 5.74 | 6.15 | 5.88 |
| 9. Max efficiency (%) | 80 | 76 | 82 | 83 | 85 | 82 |
| Motor constant | ||||||
| 10. Terminal resistance (Ω) | 0.38 | 0.7 | 1.2 | 1.74 | 1.95 | 2.04 |
| 11. Torque constant (mN.m/A) | 4.32 | 6 | 7.02 | 10.4 | 11.46 | 8.99 |
| 12. Speed constant (rpm/A) | 2166 | 1560 | 1333 | 900 | 817 | 1042 |
| Other characteristic parameters | ||||||
| 13. Ambient temperature -10-40℃ | ||||||
| 14. Max permissible winding temperature 65℃ | ||||||
| 15. Max permissible speed 18000rmp | ||||||
| 16. Number of the pole pairs 1 | ||||||
| 17. Number of the commutator segments 5 | ||||||
| 18. Weight 60.5g | ||||||
Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.
+ Applications
- Massage Instrument,Home Appliances,
- Electric Tool,Beauty Equipment,
- Medical Apparatus,etc.
