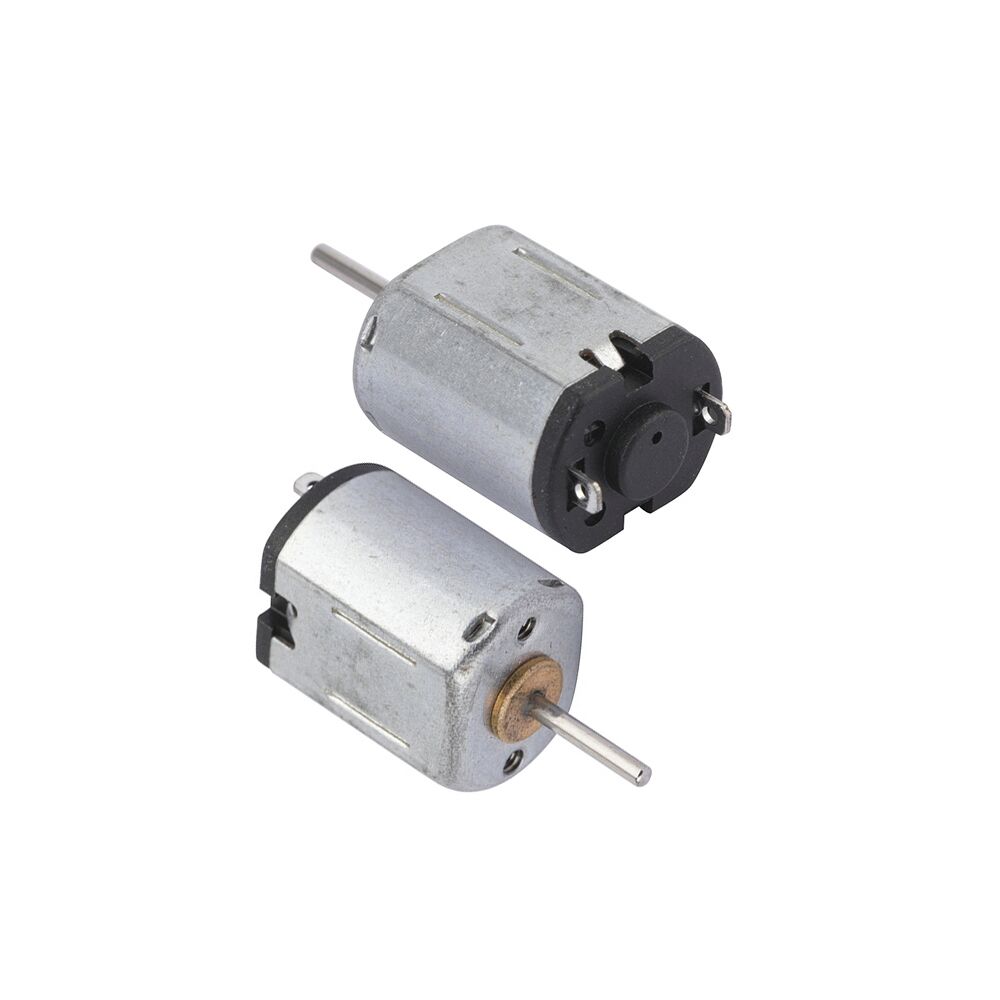

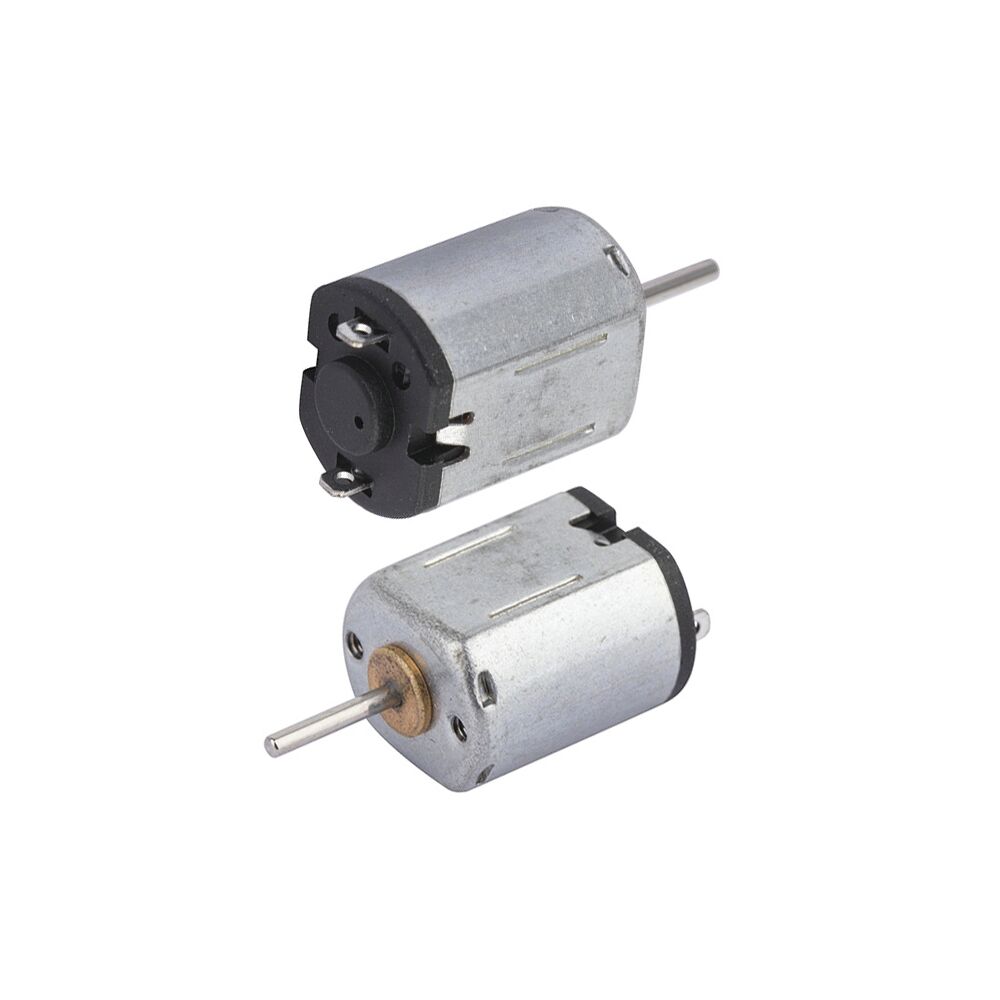

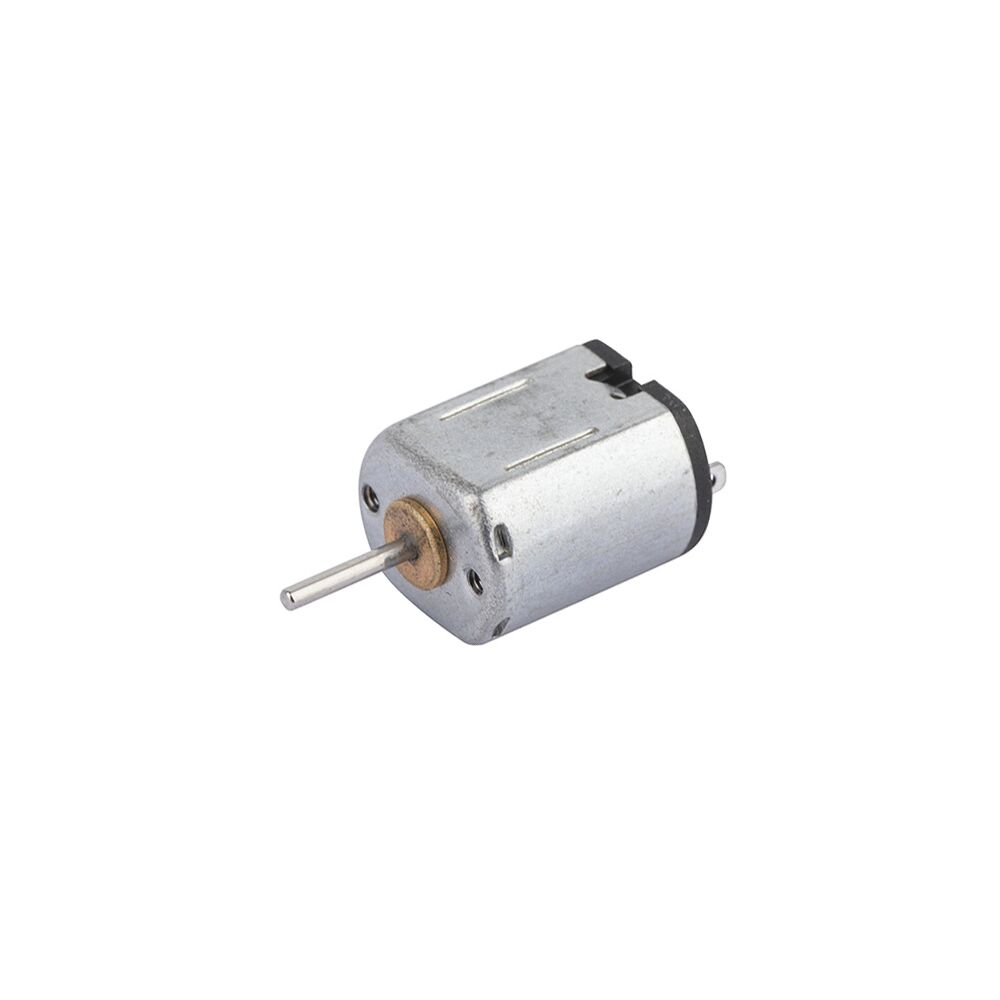

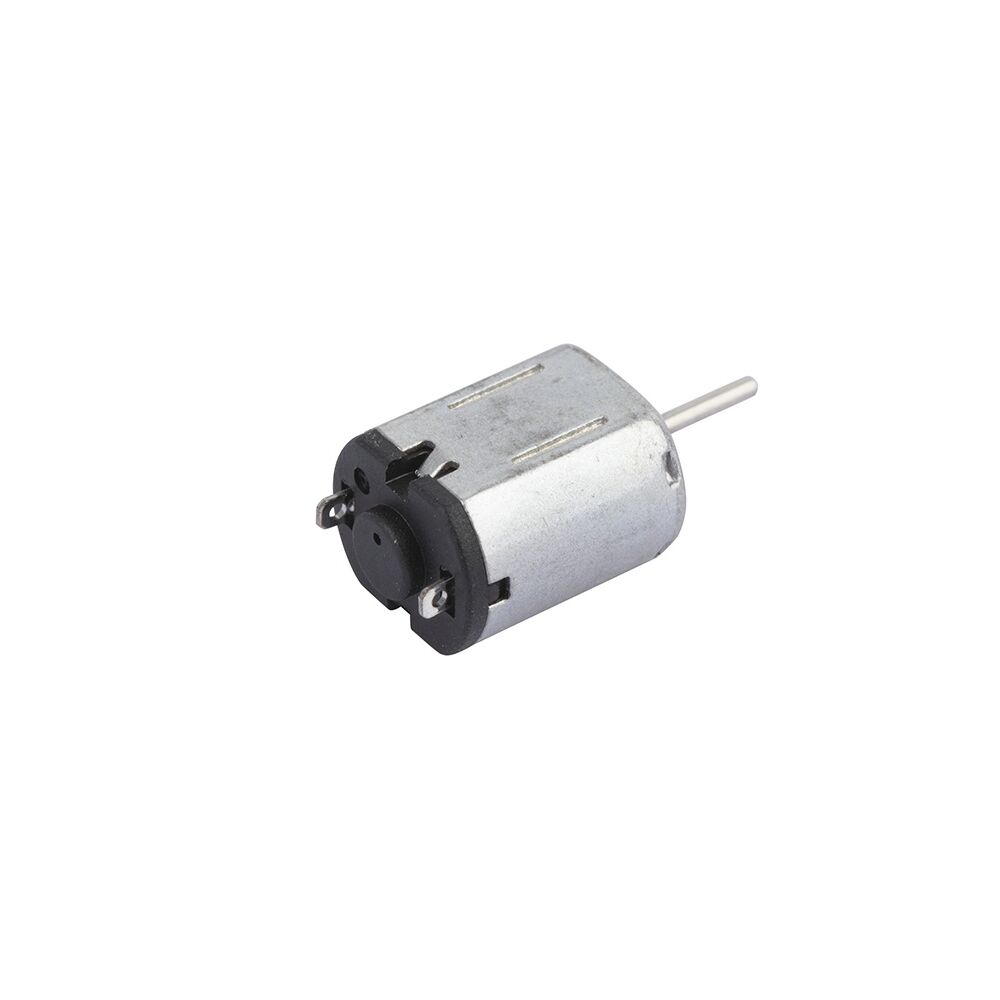

LFF-M10 ∅10mm DC Brushed Motor
10mm diameter micro DC brushed motor, could with 10mm reduction gearbox, specific parameters customized by request.
Additional information
| Model | LFF-M10 |
|---|---|
| Type | DC Brushed Motor |
| Body Size | Φ10*8*12.5mm |
| Shaft Size | Φ1mm diameter, Length customized by request |
| Weight | 4g (Approx) |
| Voltage | 1.2v-12v |
| Output Power | ≤0.4W |
Product Details:
10mm Diameter Micro DC Brushed Motor
+ Brand: Linkto Motor
| Model: | LFF-M10 | Brush Type: | Metal-brush |
| Voltage: | 1.2v-12v | Speed: | 3600rpm-32000rpm |
| Continuous Current: | ≤400mA | Stall Torque: | ≤15g.cm |
| Typical Application: | Automotive Parts,Blood pressure pump,Camera,Car reader,Commercial Products,Disposable medical products,Electric lock,Health Care Devices,Security and Locks,etc. | ||
+ Outline Dimension
+ Technical Data For Reference
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | V | r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |
| FF-M10VA-06230 | 2.0-5.0 | 4.5 | 23200 | 0.065 | 17500 | 0.14 | 0.098 | 1 | 0.2 | 0.39 | 4 | 0.3 |
| FF-M10VA-09120 | 1.0-3.0 | 1.5 | 14000 | 0.12 | 6000 | 0.3 | 0.157 | 1.6 | 0.08 | 0.25 | 2.6 | 0.45 |
+ Applications
- Automotive Parts,Blood pressure pump,Camera,Car reader,
- Commercial Products,Disposable medical products,
- Electric lock,Health Care Devices,Security and Locks,etc.
